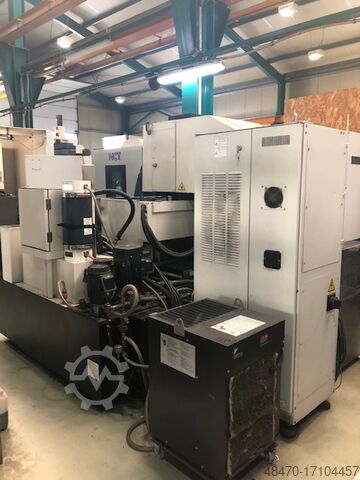

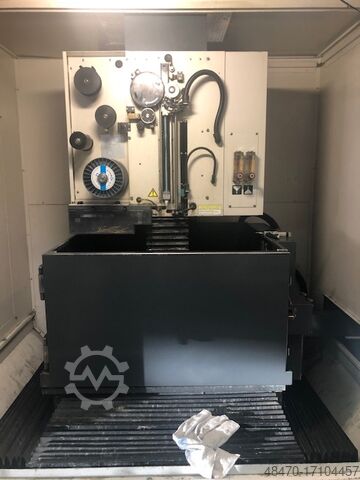

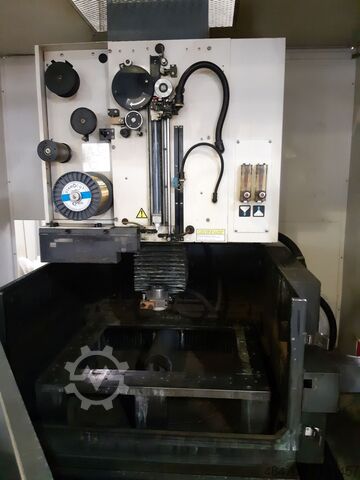

Wire EDM machine

FANUC Robocut Alpha 1C

Year of construction: 1997, condition: ready for operation (used), General Data Measurements width 2610 Measurements depth 3270 mm Measurements height 2240 mm Machine weight 2600 kg Control Unit Model System 16-WB Brand FANUC Main Drive Max taper angle ± 30 degrees/80 mm (option ± 45 degrees/40 mm) Number of axis 5 Movement X-Axis Movement 520 mm Y-Axis Movement 370 mm Z-Axis Movement 300 mm (275 mm in water bath) U-Axis Movement ± 60 mm W-Axis Movement ± 60 mm Workpiece Workpiece X 790 mm Workpiece Y 730 mm Workpiece Z 275 mm Workpiece weight 650 kg (with coaxial spindle), 450 kg (with water bath) Table Lodpfxjx Imp Ie Ac Heak Outer length 750 mm Outer width 590 mm Additional Equipment Bedra wire unwinding device BAS 45/100E (to the left of the machine), capable of handling wire spools weighing up to 45 kg This 5-axis FANUC Robocut Alpha 1C erosion machine was manufactured in 1997. It features a coordinate travel of 520 x 370 mm on the X and Y axes, and a Z-axis adjustment of 300 mm. The machine can handle a maximum workpiece weight of 650 kg and offers a rapid traverse of 900 mm/min. Ideal for precision erosion tasks, the FANUC Robocut Alpha 1C machine we have for sale. Contact us for further details regarding this erosion machine. Application Types EDM

Condition: used, Year of construction: 2019, Wire EDM Machine Manufacturer: Mitsubishi Electric Model: MV1200S NewGen Year of manufacture: 2019 Operating hours: approx. 9,500 Control: M800 D-CUBES Mitsubishi Electric control system Hybrid construction Travel paths X/Y/Z: 400 x 300 x 220 mm Travel paths U/V: 120 x 120 mm Max. workpiece dimensions: 810 x 700 x 215 mm Max. workpiece weight: 500 kg Lsdpfx Aexpfy Soc Hsak ODS – Optical Drive System Tubular direct drives in the X/Y axes Linear scales in X/Y axes Intelligent AT – Automatic wire threading For wire diameters 0.10 – 0.3 mm Automatic small-hole detection function 5 controlled axes – Prepared for additional axes PFC – Precise Finish Circuit LLS – Long Life System 10 kg wire station Wire alignment block Wire chopper Compressor cooler tä161225

Condition: used, Year of construction: 2003, functionality: fully functional, Controller FANUC 180 iS-W Lajdpjw Afyzsfx Ac Hok X travel 320 mm Y travel 220 mm Z travel 180 mm U travel 120 mm V travel 120 mm Rapid speed (X,Y,Z/U,V) 900 mm/min / 450 mm/min Max size of wpc. = L x W x H = 600 x 400 x 180 mm Max weight of wpcs. 500 kgs Dimensions of dielectricum tank = 800 x 600 x 470 mm Power required 13 kVA Weight 1200 kgs

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, workpiece weight (max.): 500 kg, travel distance X-axis: 400 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 220 mm, total height: 2,015 mm, total length: 2,760 mm, total width: 2,025 mm, workpiece height (max.): 215 mm, workpiece width (max.): 700 mm, workpiece length (max.): 810 mm, table width: 640 mm, table length: 540 mm, empty load weight: 2,700 kg, Equipment: documentation/manual, USED ​​MITSUBISHI MV1200-S Wire EDM Lodoxlc Eqopfx Ac Hjak

Year of construction: 2006, condition: good (used), SODICK EDM AQ 327 L LQ33 W WITH LINEAR MOTORS Ledpfx Acjp Ebygo Hsak SERIAL NO. : 0547 YEAR : 2006

Condition: used, Year of construction: 1998, Sodick AM 35 CNC EDM Machine Model: AM 35 Year: 1998 Control: Neuro Fuzzy II 40: Laedpfx Aowqgh Asc Hok ‘X’ axis Travel: 350mm ‘Y’ axis Travel: 250mm ‘Z’ axis Travel: 250mm Tank Dimensions: W 790 x D 590 x H 320mm Max. electrode weight: 50 kg Max. Table Load: 550 kg With: Magnetic chuck 350 x 250mm
