Roll grinding machine
FARREL 60" x 24" Heavy Duty

Name: FARREL 60" x 24" Heavy Duty
Brand: FARREL
Availability: InStock

Condition

Used

Location

Babberich

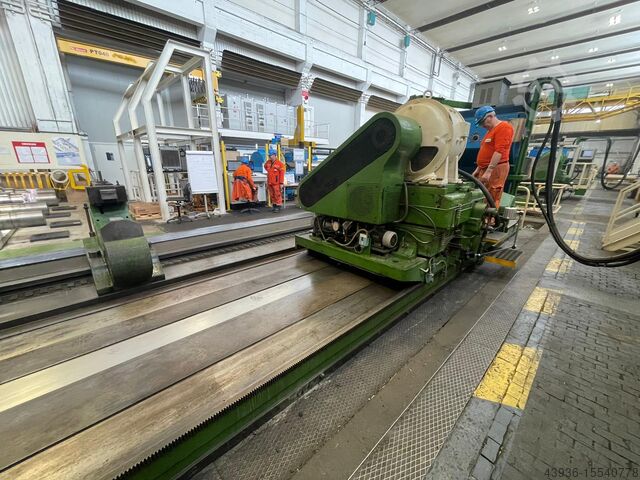

Roll grinding machine FARREL 60" x 24" Heavy Duty

Machine data

Machine type:: Roll grinding machine

Manufacturer:: FARREL

Model:: 60" x 24" Heavy Duty

Condition:: good (used)

Price & Location

Location:: Transito 21, 6909 DA Babberich, Nederland

Call

Technical details

Workpiece weight (max.):: 80,000 kg

Grinding diameter:: 1,580 mm

Grinding length:: 7,500 mm

Details about the offer

Listing ID:: A155-40778

Reference number:: 8700

Update:: 15.04.2024

Description

Manufacturer: Farrel
Type: 60" x 24" Heavy Duty
Year of manufacture: 1960

Travelling wheel machine with CROWNING and CONCAVING grinding
Equipped with stones / flanches / lubrication / coolant system

Maximum diameter full size wheel 1550 mm
Work swing over bed 1580 mm
Work load 180,000 pounds (81,000 kg)
Grinding length 7500 mm
Specifications
Metric US Standard
Center height
930 mm
Grinding diameter Ø
1860 mm
Grinding length
7500 mm
Grinding stone dimensions
1080 x 180 mm
Grinding stone speed
400 - 100 rpm
Tailstock
260 x 1250 Mk
Coolant system
Yes
filter
Yes

Dimensions (estimate)
length
13200 mm
width
4250 mm
height
3200 mm
weight
80000 kg
Please note: The information on this page is given in good faith and to the best of our knowledge, and where possible, has been obtained from the manufacturer, but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details.

Share on

download

Travelling wheel machine with CROWNING and CONCAVING grinding
Equipped with stones / flanges / lubrication / coolant system

Maximum diameter full size wheel 1550 mm
Work swing over bed 1580 mm
Work load 180,000 pounds (81,000 kg)
Grinding length 7500 mm

Center height: 930mm
Grinding diameter Ø: 1860mm
Grinding length: 7500mm
Grinding stone dimensions: 1080 x 180mm
Grinding stone speed:400 - 100Rpm
Tailstock: 260 x 1250Mk
Coolant system: Yes
Filter: Yes
Length: 13200mm
Width: 4250mm
Height: 3200mm
Weight: 80000kg

Aluminum Industry
Non-Ferrous Industry
Paper Industry
Roll Manufactures
Steel Industry
Plate Mill
Hot Rolling Mill
Cold Rolling Mill

Travelling wheel machine with CROWNING and CONCAVING grinding
Equipped with stones / flanches / lubrication / coolant system

Maximum diameter full size wheel 1550 mm
Work swing over bed 1580 mm
Work load 180,000 pounds (81,000 kg)
Grinding length 7500 mm

Hodpfx Ajr Ikvmjb Ast
Center height: 930inch
Grinding diameter Ø: 1860inch
Grinding length: 7500inch
Grinding stone dimensions:1080 x 180inch
Grinding stone speed:400 - 100Rpm
Tailstock: 260 x 1250Mk
Coolant system: Yes
Filter: Yes
Length: 519.684inch
Width: 167.323inch
Height: 125.984inch
Weight: 176449.6lbs

Aluminum Industry
Non-Ferrous Industry
Paper Industry
Roll Manufactures
Steel Industry
Plate Mill
Hot Rolling Mill
Cold Rolling Mill

Aluminum Industry
Non-Ferrous Industry
Paper Industry
Roll Manufactures
Steel Industry
Plate Mill
Hot Rolling Mill
Cold Rolling Mill

The listing was translated automatically. Translation errors are possible.
