Drilling and Milling M/C

FEHLMANN PICOMAX 100 CNC

bore capacity in steel (diameter) 30 mm
x-travel 850 mm
y-travel 435 mm
Lhodet Hxa Hspfx Aiqsl
Control HEIDENHAIN TNC 150
total power requirement 16 kW
weight of the machine ca. 3500 kg
dimensions of the machine ca. m

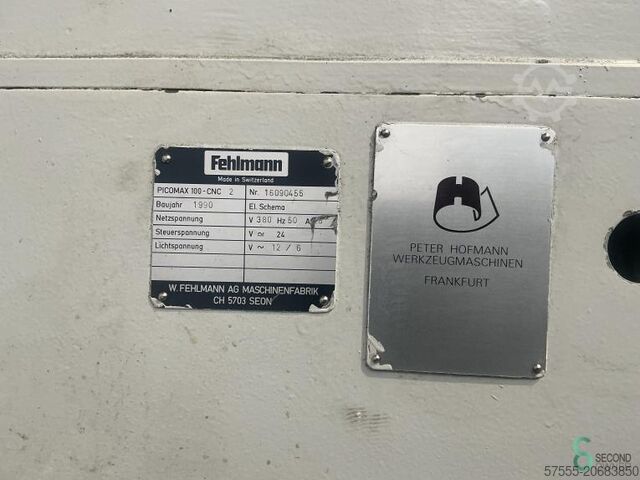

F E H L M A N N (Switzerland)

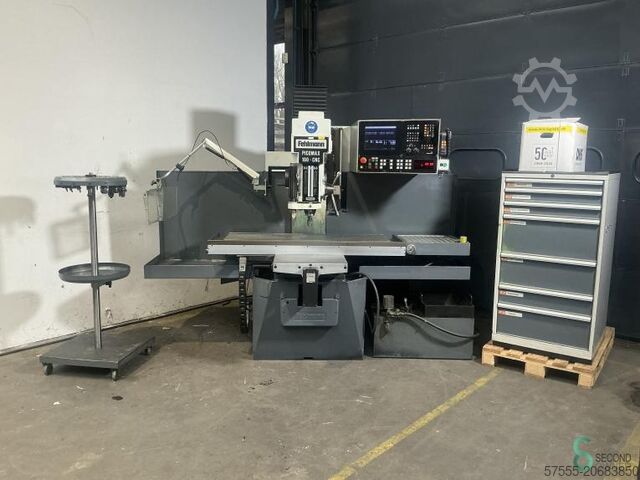

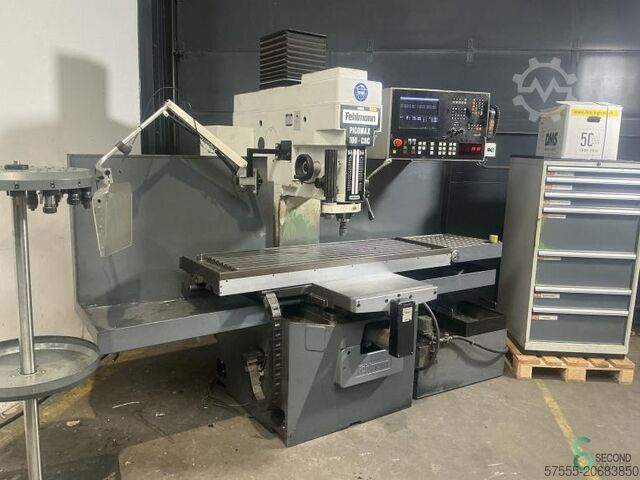

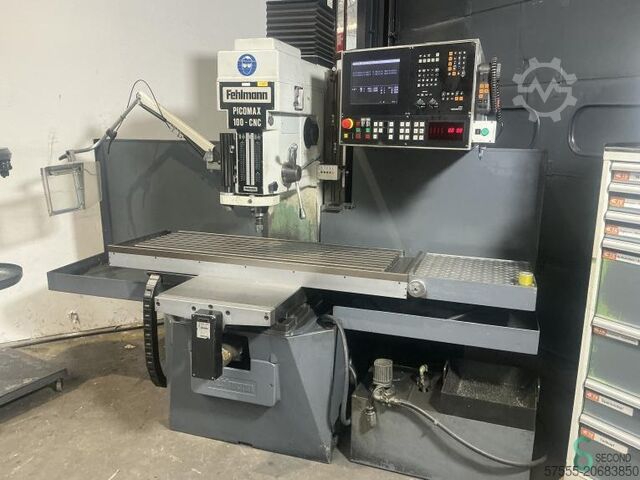

CNC-Controlled High Precision Drilling and Milling Machine with
HEIDENHAIN CNC-Control Model TNC 150
Model PICOMAX 100 CNC – 2 + A * Year 1985 Serial No. 16 085 109
_____

Table travel: Longitudinal ( X-Axis) 850 mm
Cross (Y-Axis) 435 mm
Milling/Boring head travel vertical ( Z-Axis) 210 mm

Table size /Clamping area 500 x 1.570 resp. 390 x 1.280 mm

Mounting height below spindle, approx. 140 / 690 mm
Height adjustment of Milling head max. 540 mm
Distance between spindle and column 450 mm

Spindle taper SF 32
Spindle quill travels 210 mm
Drilling Capacity approx.. 30 mm

Spindle speeds steplessly adjustable 50 – 2,500 rpm
Feeds steplessly adjustable 1 – 8.000 mm/Min.
Quick feed 8.000 mm/Min.

Spindle drive, approx. 6 kW
Total electrical load 16 kW - 400 V - 50 Hz
Weight, approx. 3,500 kg

Accessories / Special Features:

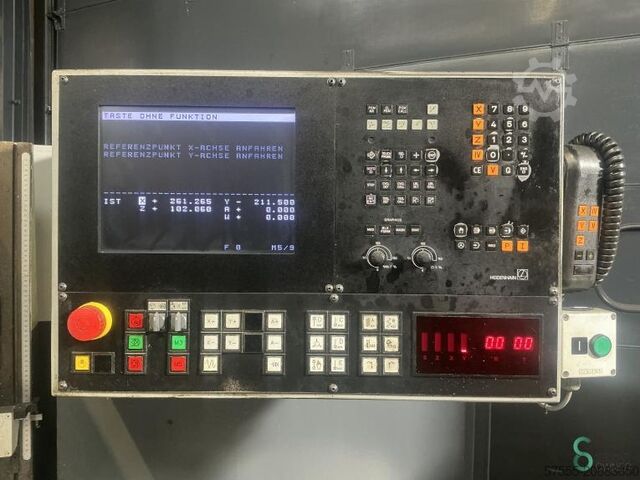

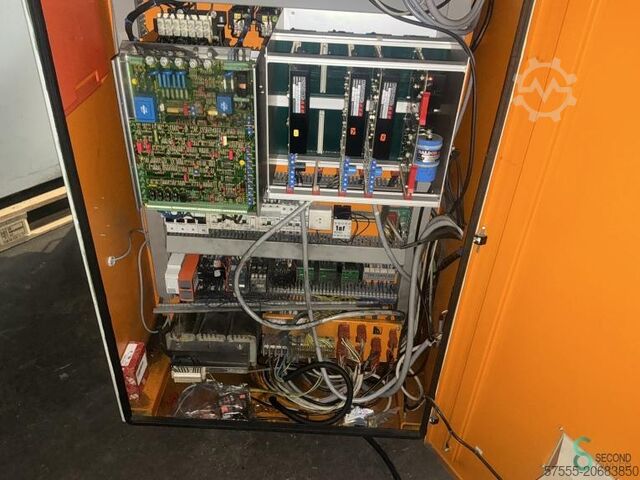

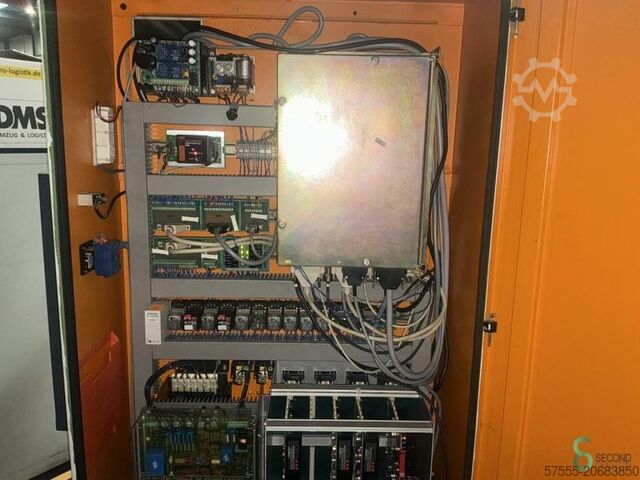

* HEIDENHAIN – CNC Path Control System Model TNC 150 with colour Screen
Grafik, Subroutines, cycles, Threading cycles, Milling Cycles, etc.
Mobile Control unit with electronic handwheel. Ideal for quick set-up and
approach to the workpiece.

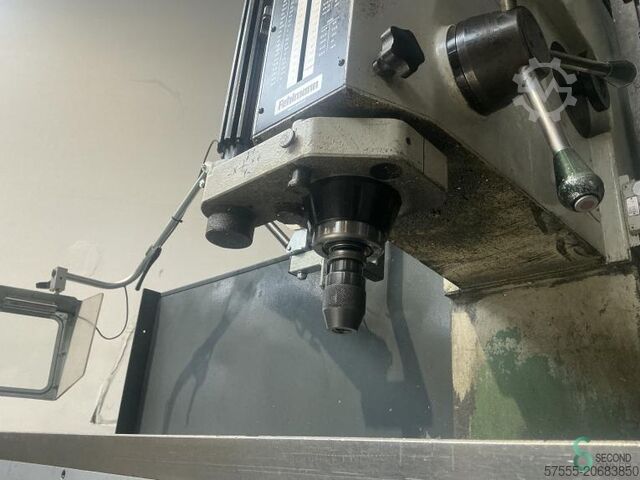

* The quill movement can be actuated manually or also by the CNC-Control,
* The Drilling depth can be presetted by a 12 fold turret drum for different
quillstops and with a digital display of the values on monitor.

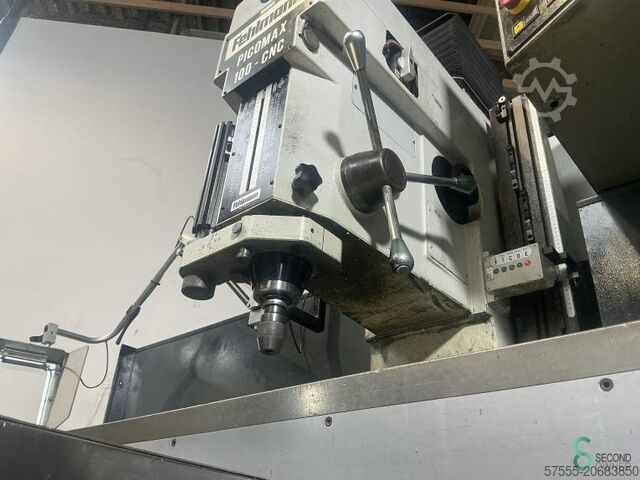

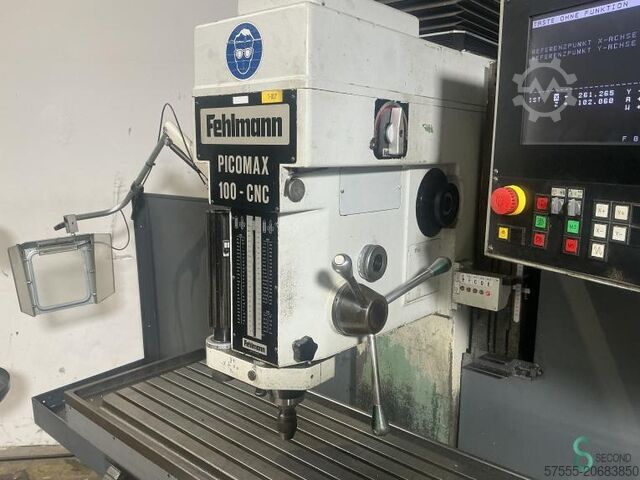

* The complete Milling/Drilling head can be positioned in 3 different heights
and with automatic clamping.
* Hi Precision Coordinate table controlled by the XY – CNC axis with hardened
ball screw spindles.

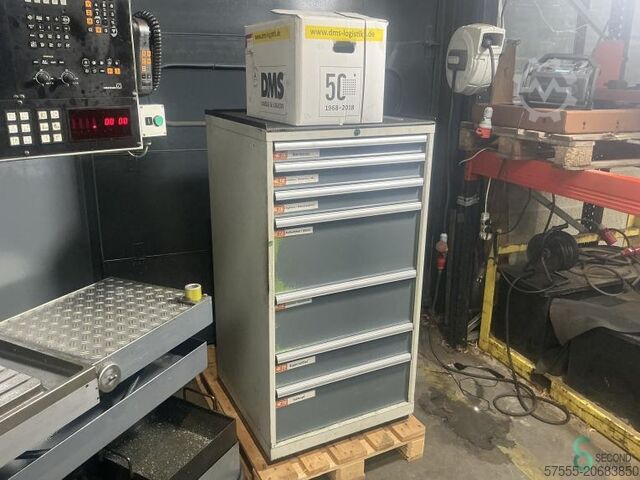

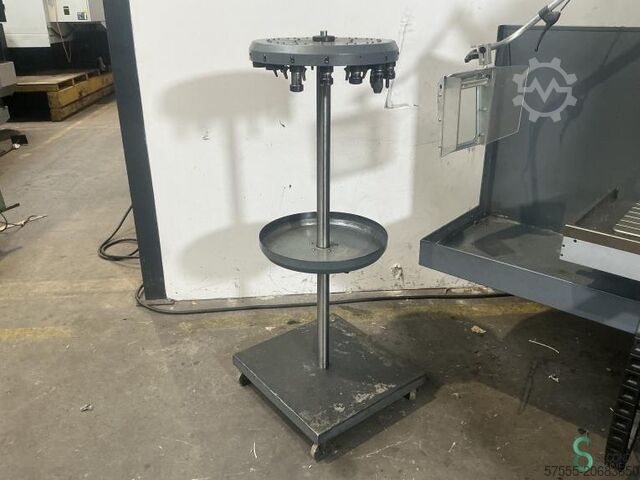

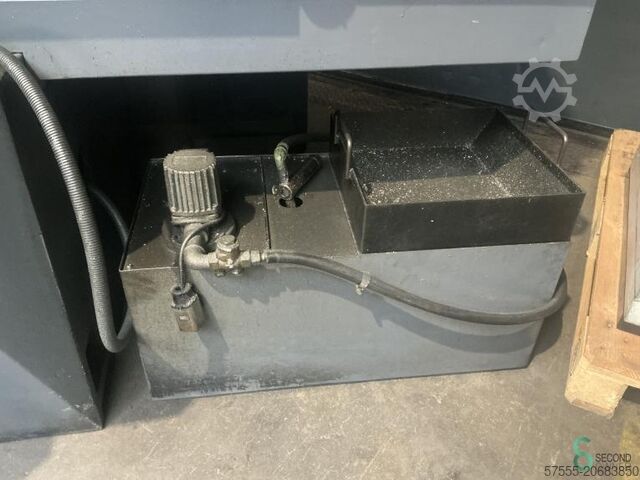

* With quick change tool holders, chucks, millers, etc. and with coolant
device.

Condition : Very Good to excellent - Machine under power, ideal for
small batch production
Delivery : Ex stock, as inspected.
Payment : Net, after conclusion of contract.
