Drilling and milling machine

Fehlmann Picomax 51 TNC

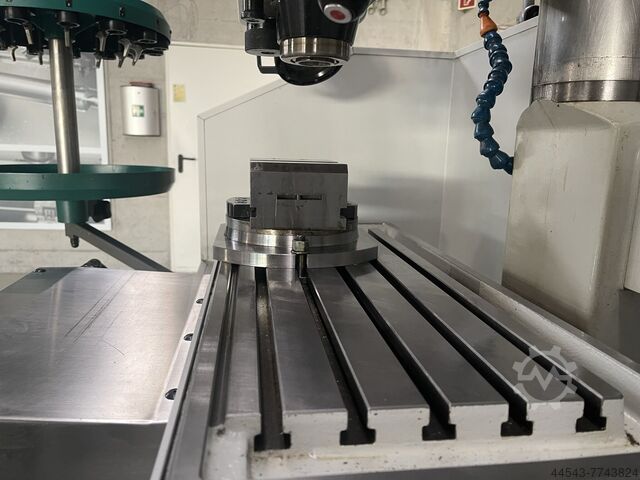

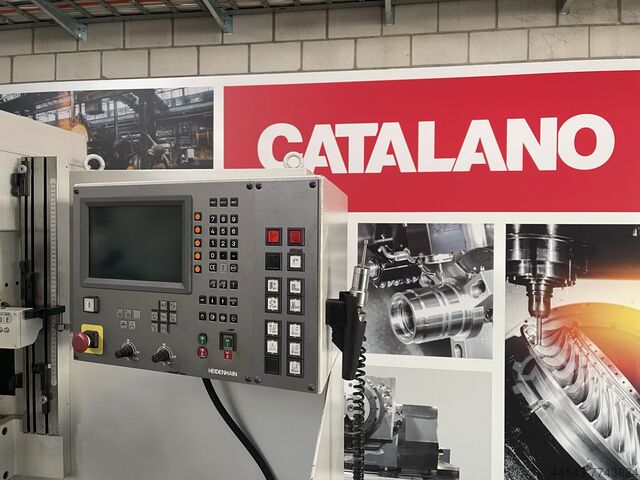

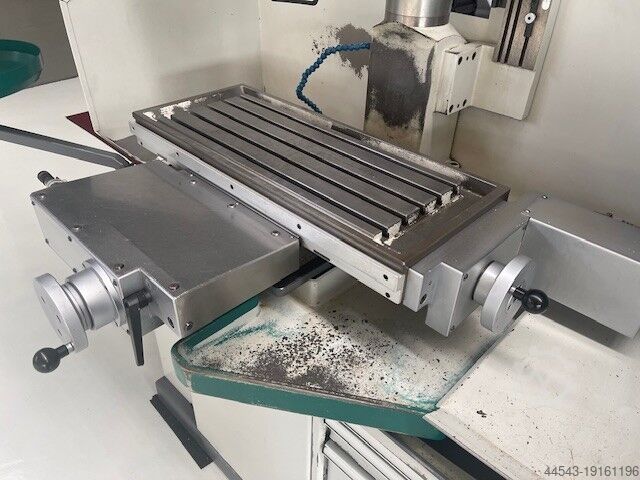

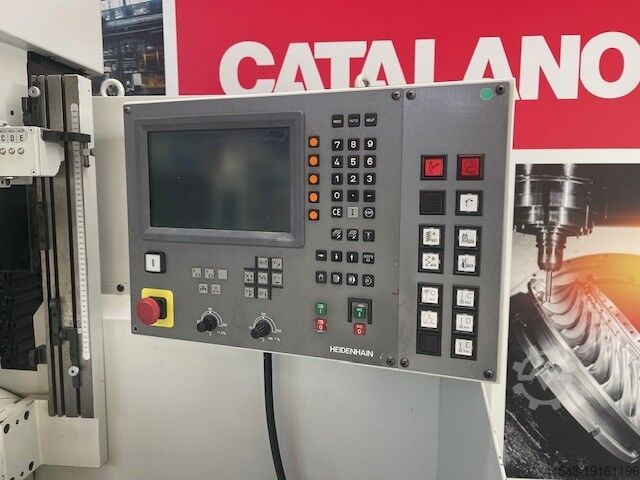

Condition: excellent (used), Control system: Heidenhain TNC 124 Travel distances X/Y/Z: 450/260/120 mm Travel distance W: 450 mm Clamping area (L x W): 770 x 320 mm Permissible table load: 100 kg Distance table – spindle nose (min. – max.): 0 – 110 – 560 mm Feed rate X/Y: 1 – 2000 mm/min Tool – quick-change system: SF 32 Speed range, continuously variable: 100 – 9200 rpm Delhsipmmuocdw Aewc Drive power: 5 kW Space requirement (W x D x H): 1500 x 1480 x 2330 mm

Condition: repair required (used), Fehlmann Picomax 60 M (5-axis universal milling machine) with Heidenhain TNC 426 x-axis 500 mm y-axis 350 mm z-axis 610 mm Motor spindle 18,000 rpm Power 10.2 kW 24-position tool changer Djlswmwrdehcdw Aowc Weight 3,200 kg with 4 axes SK 30 tools approx. 40 tool holders The machine has the following problems: - Heidenhain 430 control system is defective (booting up is not always possible, crashes during machining)

Condition: used, Year of construction: 1985, bore capacity in steel (diameter) 30 mm x-travel 850 mm y-travel 435 mm Control HEIDENHAIN TNC 150 total power requirement 16 kW weight of the machine ca. 3500 kg dimensions of the machine ca. m F E H L M A N N (Switzerland) CNC-Controlled High Precision Drilling and Milling Machine with HEIDENHAIN CNC-Control Model TNC 150 Model PICOMAX 100 CNC – 2 + A * Year 1985 Serial No. 16 085 109 _____ Table travel: Longitudinal ( X-Axis) 850 mm Cross (Y-Axis) 435 mm Milling/Boring head travel vertical ( Z-Axis) 210 mm Table size /Clamping area 500 x 1.570 resp. 390 x 1.280 mm Mounting height below spindle, approx. 140 / 690 mm Height adjustment of Milling head max. 540 mm Distance between spindle and column 450 mm Spindle taper SF 32 Spindle quill travels 210 mm Drilling Capacity approx.. 30 mm Spindle speeds steplessly adjustable 50 – 2,500 rpm Feeds steplessly adjustable 1 – 8.000 mm/Min. Quick feed 8.000 mm/Min. Spindle drive, approx. 6 kW Total electrical load 16 kW - 400 V - 50 Hz Weight, approx. 3,500 kg Accessories / Special Features: * HEIDENHAIN – CNC Path Control System Model TNC 150 with colour Screen Grafik, Subroutines, cycles, Threading cycles, Milling Cycles, etc. Mobile Control unit with electronic handwheel. Ideal for quick set-up and approach to the workpiece. * The quill movement can be actuated manually or also by the CNC-Control, * The Drilling depth can be presetted by a 12 fold turret drum for different quillstops and with a digital display of the values on monitor. * The complete Milling/Drilling head can be positioned in 3 different heights and with automatic clamping. * Hi Precision Coordinate table controlled by the XY – CNC axis with hardened ball screw spindles. Dwslhcot Hxa Hsdw Aoc * With quick change tool holders, chucks, millers, etc. and with coolant device. Condition : Very Good to excellent - Machine under power, ideal for small batch production Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.
