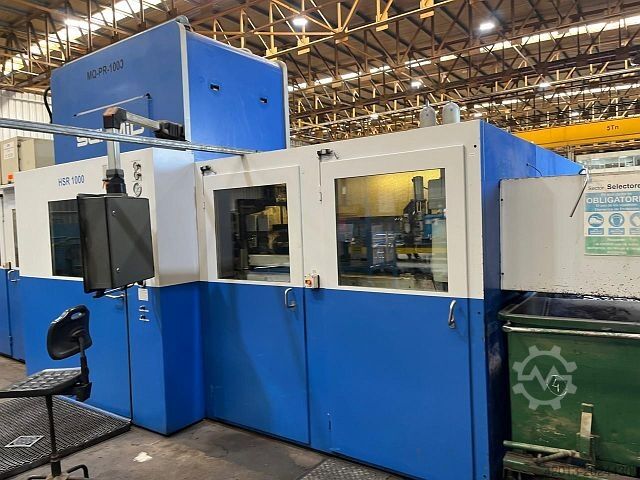

Fine Blanking Press -hydraulical-FEINTOOL (SCHMID)
HSR 1000 ECO
Machine data
- Machine type:
- Fine Blanking Press -hydraulical-
- Manufacturer:
- FEINTOOL (SCHMID)
- Model:
- HSR 1000 ECO
- Year of construction:
- 2007
- Condition:
- used
Price & Location
- Seller location:
- Reckholder 1, 9527 Niederhelfenschwil, Switzerland
Technical details
- Sheet thickness (max.):
- 12 mm
- Sheet thickness steel (max.):
- 12 mm
- Pressing force:
- 1,000 t
- Space requirement length:
- 16,000 mm
- Power:
- 190 kW (258.33 HP)
- Controller manufacturer:
- SIEMENS
- Controller model:
- S7 300
- Lifting height:
- 205 mm
- Load capacity:
- 6,000 kg
- Coil weight:
- 6,000 kg
- Coil width:
- 520 mm
- Material thickness:
- 12 mm
- Material width:
- 520 mm
- Number of straightening rollers:
- 8
- Ram stroke:
- 205 mm
- Table length:
- 900 mm
Details about the offer
- Listing ID:
- A202-44300
- Reference number:
- 49997
- Update:
- 09.10.2025
Description
.. SIEMENS S7 300
PRESS DESIGN
.. drive system: hydraulic
.. frame design: H-frame, monoblock
.. quick die change system: yes
.. feedstock transport direction: left to right
SLIDE
.. total force (nominal): 1000 to
.. stroke: 205 mm
SLIDE (HYDR. PRESS)
.. working velocity min.: 10 mm/s
.. working velocity max.: 30 mm/s
COUNTER RAM
.. nominal force: 160 to
V-RING
.. nominal force: 400 to
TOOL DIMENSIONS
.. lower table (left-right): 900 mm
.. lower table (front-back): 900 mm
OVERALL SPECIFICATIONS (COIL LINES)
.. sheet width max.: 520 mm
.. sheet thickness max.: 12 mm
.. coil weight max.: 6 to
.. feed velocity max.: 93 m/min
.. feedstock transport direction: left to right
LEVELLER UNIT
.. number of leveller rolls: 8
.. diameter of leveller rolls: 90 mm
.. diameter of feed rolls: 110 mm
STRIP-FEEDER
.. feeder type: grip feeder
.. sheet width max.: 520 mm
.. sheet thickness max.: 40 mm
.. nominal force: 18 kN
.. band support rolls: yes
CROP SHEAR
.. cutting force: 1050 kN
ELECTRICAL SPECIFICATIONS
.. total power consumption: 190 kW
DIMENSIONS / WEIGHTS
.. space requirements -left/right-: 16000 mm
ATTACHMENTS -FINEBLANKING PRESS-
.. autom. tool clamping device: yes
.. closed cabin: yes
Dedpfx Agsxl H Ipshsku
.. decoiler: yes
.. leveller unit: yes
.. waste cutter: yes
SIEMENS S7 300 controls
Control Panel SIEMENS Panel PC 477B
Switch on hours acc. to counter : 62'000 h
Total strokes acc. to counter: 3 Mio

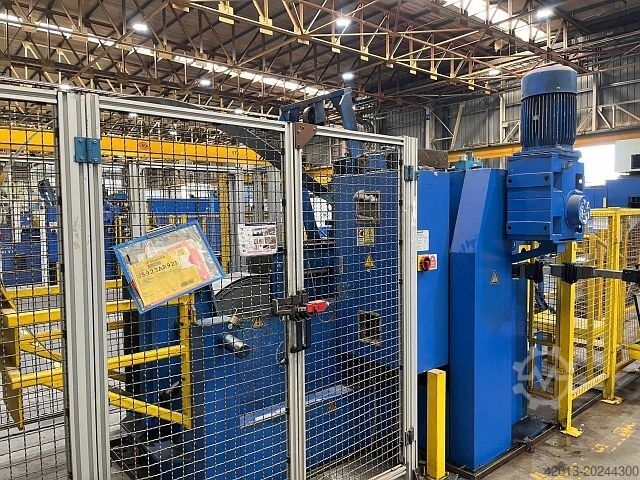

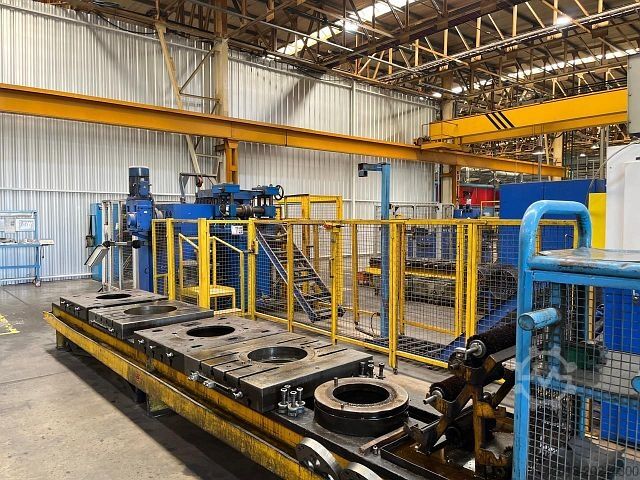

including Coil line SCHMID HR 12
