Edge Bander

Felder G330

FELDER G330 Edge Bander

Used edge bander, post-service inspection.

- Machine in excellent technical condition.

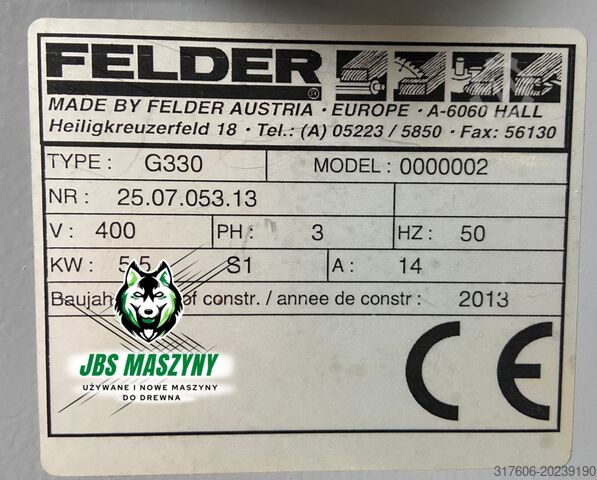

- Year of manufacture: 2013.
- One-owner machine.
- Recently serviced.

EQUIPMENT:

Electrical equipment:
- Supply voltage: 3x 400 V
- Power frequency: 50 Hz

Workpiece dimensions:
- Edge thickness: 0.4 – 3.0 mm
- Workpiece thickness: 10 – 45 mm
- Minimum workpiece width: 70 mm
- Minimum workpiece length: 210 mm

Units:
- Edge feeding from coil via feed plate
- Edge feeding for thicknesses 0.4–3 mm, manual feed for individual edging strips
- Guillotine shear for trimming coil edges up to 3 mm thick
- Gluing unit for hot-melt granulate adhesive, Teflon-coated glue pot

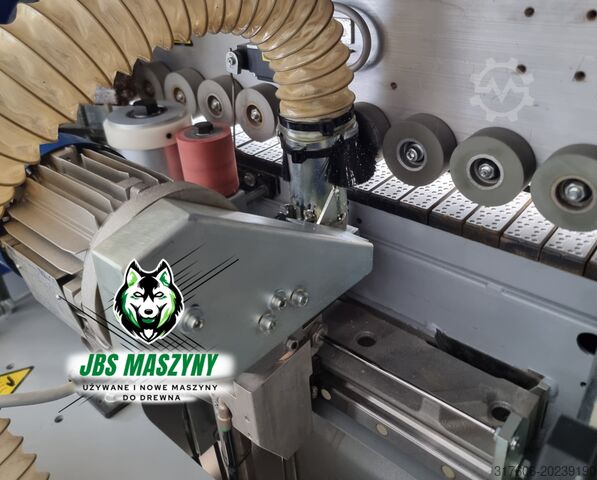

- Spring-loaded pressure unit, 1 straight pressure roller and 1 pressing roller
- Saw trimming unit: 9,000 rpm, 0.18 kW, HW saw blades Z=16, Ø 80 mm
- Multifunctional milling unit: 12,000 rpm, 0.22 kW, for rounding, straight milling, and chamfering
Dcjdpfx Ajxly I Aecwsn
- Mechanically-activated corner scraper unit for R=2 mm
- Mechanically-activated flat scraper unit

Operation:
- Control panel with LCD display and keypad
- Quick, tool-free unit adjustment system

Feed:
- Workpiece feed with chain-type conveyor
- Feed speed: 8 m/min
- Extendable support

General data:
- Extraction port Ø 120 mm

Overall dimensions:
- Length: 2,000 mm
- Width: 800 mm
- Height: 1,500 mm
- Weight: 360 kg

Machine financing available via leasing or installments.
Just visit our website: jbsmaszyny.pl

We invite you to test the machine.
