Format sliding table saw scoring FULL

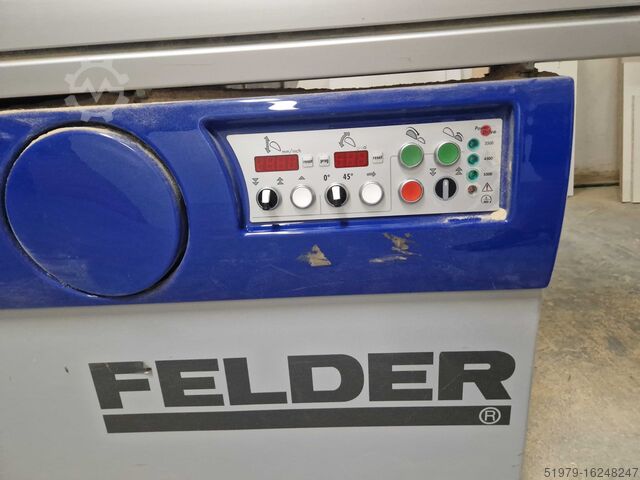

FELDER K975

Condition: used, Year of construction: 2005, power: 7.5 kW (10.20 HP), cutting height (max.): 170 mm, cutting width (max.): 1,100 mm, saw blade diameter: 500 mm, tilt adjustment saw blade: 46 °, height adjustment type: hydraulic, saw blade bore: 30 mm, rotational speed (max.): 5,500 rpm, rotational speed (min.): 2,800 rpm, total length: 3,300 mm, total width: 2,000 mm, total height: 1,800 mm, overall weight: 1,500 kg, Equipment: CE marking, No. 04528 Sliding table saw Martin T 73 BASIC Used, year of construction 2005 Sliding table 3000 mm Maximum cutting height 170 mm Maximum saw blade diameter 500 mm Saw blade bore 30 mm Cutting width 1100 mm Motor 7.5 kW Speeds 2800 / 4000 / 5500 rpm Hydraulic saw blade tilt 0° - 46° Hydraulic cutting height adjustment Nwjdpfeyymtdjx Agrel Circular saw ruler can be lowered Pneumatic saw shaft lock Cross table with fixed angle adjustment Length stop extendable up to 3300 mm Sliding table with stepless locking Integrated contact for controlling the dust extraction system Central lubrication point Transport dimensions approx. 3300 x 2000 x 1800 mm LWH Weight approx. 1500 kg To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Technical specifications, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “sold as seen” Terms of payment: Prices plus VAT, payment before collection or shipping Terms of delivery: ex warehouse

Condition: excellent (used), Year of construction: 2020, Panel saw K 540 S incl. clean air extraction unit RL 140 Max. saw blade diameter: 400 mm Cutting width: 800 mm with full table length Max. cutting height: 140 mm Cutting length: 3200 mm Njdpfsyyaifox Agrjwl Angle adjustment: manual

Condition: excellent (used), Steton PF 530 E. Electric adjustment of the planing height Nedpfxsipx Uqj Agrjwl -working width 53 cm -Ters knife shaft - length of the tops 275 cm -motor power 4kW / 380V -resistance set at an angle -electric brake The machine is in very good condition, runs quietly.

Condition: used, Year of construction: 2017, Max. cutting width: 4200 mm; max. cutting height: 2200 mm; saw blade diameter: 250 mm; max. processing thickness: 60 mm; saw blade bore: 30 mm; bottom support: plastic supports; material support: retractable plastic strips; measuring system: scale; saw head tilting: manual; saw feed: manual; mounting: free-standing; extraction: external; locking of saw beam: manual; approx. weight: 1000 kg; dimensions: 5600 x 1700 x 3000 mm; motor power: 4.2 kW. Storage location: Nattheim Nsdpfxoxg Igie Agrewl

Condition: used, Year of construction: 2001, saw blade diameter min. 200 / max. 500 mm Nwsdpfx Agozczf Ejrsl Speed 2800 / 4000 / 5500 U/min.

Year of construction: 2003, condition: reconditioned (used), longitudinal saw for cutting boards 4 meters main engine 400V, 7.5kW - blade feed motor 400V, 2.2 kW - extending the pneumatic saw Nwedpfxohbp T Se Agrel - working pressure 6bar - cutting length 4020 mm - cutting height approx. 170mm - machine length 5.5 m - machine width 1.6 m

Condition: used, Year of construction: 2022, Slider length: 3300 mm Cutting width at the rip fence: 1100 mm Cutting width at the crosscut fence: 3200 mm Cutting depth: 200 mm Scoring saw: yes Nwsdsz Ekp Uopfx Agrel Saw blade height adjustment: electric / position control Saw blade swivel adjustment: electric / position control Rip fence adjustment: electric / position control Saw blade angle display: digital display Cutting height display: digital display Rip fence display: digital display Crosscut fence display: digital Miter cutting system: RadioCompens miter cutting system Saw blade diameter: 550 mm Speeds: 4000 / 4800 / 6000 rpm Motor power: 5.5 kW Operating hours: 98 Dust extraction connection: 80 and 120 mm Machine length: 3500 mm Machine width: 2200 mm Weight: 1200 kg

Condition: excellent (used), Year of construction: 2016, Format 4 Kappa 550 Nwodpex Rugtefx Agrjl Positioning control e-motion – TFT screen Year of manufacture: 2016 320 cm sliding table 5.5 kW motor with brake Scoring unit control Max cutting height: 200 mm Saw blade: 250 - 550 mm Speeds: 3000 / 4000 / 5000 rpm Scoring blade rotation speed: 9000 rpm Motorized rip fence Saw blade tilting up to 45 degrees, single-sided Electric height adjustment Operator panel at eye level Crosscut fence with digital display Movable support rail with digital angle display Crosscut fence with length compensation Extraction connection: 120 mm and 100 mm Extension arm with swing-away function Cutting width: 1348 mm Crosscut fence up to 3200 mm Control station on sliding table Dimensions (without extension arm): 3400 x 2200 mm Weight: 1300 kg

Condition: used, Year of construction: 2022, Used machine Year of manufacture: 2022 Nwsdjzlbq Sspfx Agrsl Equipment and technical data: - Professional sliding table saw in heavy-duty design - with scoring unit; externally adjustable with separate drive motor - format sliding carriage made of anodised aluminium with a proven and permanently smooth-running ball contact system on hardened guideways (10-year manufacturer's warranty from date of first commissioning) - saw rip fence with round-bar guide; foldable for large panels, with quick clamping and integrated fine adjustment - table extension - table widening - with integrated on/off switch on the sliding carriage - with motorised height and tilt adjustment of the saw unit, digital display for tilt - programmed control of the saw blade height and tilt and the position of the rip fence - swivelling control panel at eye level - Made in Italy quality - Trimming length: 3200 mm - Cutting height 90°/45° with scorer max.: 136.5/97 mm - Cutting-to-length width to the left of the saw blade max.: 3260 mm - Cutting width with rip fence: 1270 mm - Tilt of the saw blade: 90 - 45° - Saw blade diameter with scorer max.: 400 mm - Scoring saw blade: 120 mm - Speed main saw blade: 3500/5000 rpm - Speed scoring saw blade: 9200 rpm - Dimensions format sliding carriage: 360 x 142 x 3200 mm - Extraction ports: 120 + 80 mm - Motor power: 7.0 kW, 400 V - Motor power scorer: 0.55 kW Dimensions: approx. 3200 x 950 mm Weight: approx. 745 kg Availability: at short notice Storage location: Röllbach

Condition: used, Year of construction: 1999, Second-hand machine Year of manufacture: 1999 Features and technical specifications: - with electric height and swivel adjustment for the Main saw blade, dimensions entered via keyboard Nwjdpfx Agszk N Ngorjl - digital display of the swivel angle and cutting height - CE-compliant version - Cutting length 3000 mm - with centre and end-position locking - Cutting width 1000 mm - with digital display and fine adjustment - Cutting height up to 175 mm with a saw blade diameter of 500 mm (the scoring unit must be removed for this) - 5.5 kW motor with 4 speed settings: 3/45/6000 rpm, manually adjustable - with automatic brake and digital speed display - 2-axis scoring unit with electric height and lateral adjustment Availability: at short notice Storage location: 63934 Röllbach
