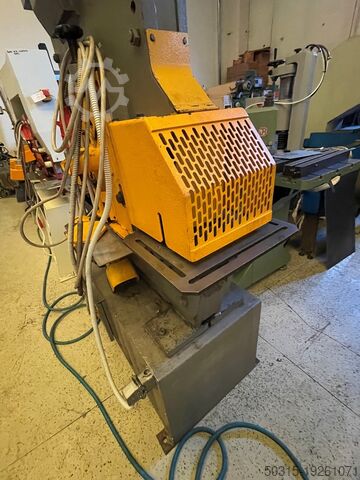

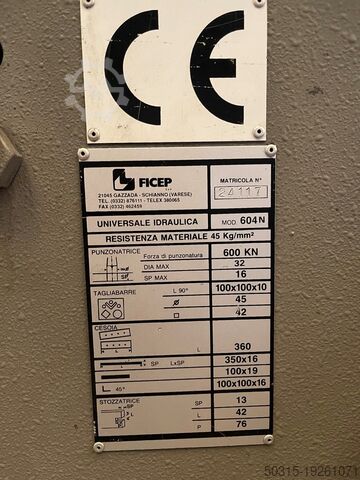

PUNCHING MACHINE FICEP 604 N

FICEP

Condition: used, Year of construction: 2019, functionality: fully functional, table length: 8,000 mm, table width: 2,540 mm, overall weight: 8,000 kg, sheet thickness steel (max.): 100 mm, cutting length (max.): 8,000 mm, cutting width (max.): 2,540 mm, drill diameter: 40 mm, FICEP TIPO G25LG - CNC PLATE PROCESSING LINE (DRILLING, MILLING, THERMAL CUTTING) | YEAR 2019 The Ficep Tipo G25LG is a CNC plate processing line for combined drilling, milling, tapping and thermal cutting of steel plates in structural steel fabrication. Built in 2019 - a young machine in its class on the used market. All processes run in a single pass on a rigid double-bridge gantry frame. CONDITION & REFURBISHMENT Refurbished and inspected by a certified technician, ready for operation. - The exact scope of reconditioning varies from machine to machine and is disclosed individually upon serious interest. - Viewing possible by arrangement (machine reconditioned - no demonstration under power). FUNCTION & APPLICATION The vertical mono drilling unit with automatic tool changer (ISO 40) performs drilling, milling, tapping, centre-punching and countersinking. The Hypertherm XPR300 plasma torch and the integrated oxy-fuel cutting unit handle thermal cutting - from thin sheet to heavy plate. The line is operated via the Ficep Pegaso CNC control. Infeed and outfeed roller conveyors with material transfer (8 m each) ensure continuous material flow. Typical applications: structural steel fabrication, steel trading and plant engineering. TECHNICAL DATA - Manufacturer: Ficep | Model: Tipo G25LG | Year: 2019 | Serial number: 36098 - Machine type: CNC plate processing line (drilling / milling / thermal cutting) - Condition: used, refurbished by certified technician - Frame design: double-bridge gantry frame, welded | Machine weight: 8,000 kg - Plate width: max. approx. 2,540 mm, min. 200 mm - Plate thickness: max. 45 mm (plasma cutting), max. 100 mm (drilling) - Drilling heads: 1 (vertical mono drilling unit) | Tool holder: ISO 40 - Max. drilling diameter: 40 mm | Max. drilling/milling depth: 100 mm - Max. spindle speed: 7,000 rpm | Spindle power: 15 kW - Plasma cutting torch (straight): 1 | Plasma source: Hypertherm XPR300 | 300 A - Oxy-fuel cutting unit: included - CNC control: Ficep Pegaso CNC - Processes: drilling, milling (incl. straight/curved slots, Y/J weld-edge preparation), tapping, centre-punching, countersinking, marking, scribing, straight plasma cutting, oxy-fuel cutting On request (to be confirmed bindingly during inspection): processing length, tool magazine stations, min. plate thickness for drilling, min. drilling diameter, pass line height, longitudinal and cross positioning speeds, connected load and machine dimensions. SCOPE OF DELIVERY - 1 x Ficep Tipo G25LG CNC drilling, milling and thermal cutting line (year 2019) - 1 x Ficep Pegaso CNC control - 1 x Vertical mono drilling unit with automatic tool changer (ISO 40) - 1 x Plasma cutting torch (straight) | 1 x Hypertherm XPR300 plasma source (300 A) - 1 x Oxy-fuel cutting unit - 1 x Infeed roller conveyor with material transfer (8 m) | 1 x Outfeed roller conveyor (8 m) - 1 x Extraction system for plasma cutting Prjdpju Dw I Esfx Ah Hja LOGISTICS & LOCATION Location: Ulft (Netherlands), directly at the German border. Dismantling, transport, installation and commissioning by ASM by arrangement - individually calculated upon request. ABOUT ASM Arendsen Steel Machinery (ASM): specialist for refurbished Ficep structural-steel machinery. Further machines on request. CONTACT / INQUIRY Viewing by arrangement | Price on request. Sale exclusively to commercial customers (B2B).

Condition: used, Year of construction: 2017, functionality: fully functional, table length: 6,000 mm, table width: 2,540 mm, overall weight: 8,000 kg, sheet thickness steel (max.): 100 mm, cutting length (max.): 6,000 mm, cutting width (max.): 2,540 mm, drill diameter: 32 mm, FICEP TIPO G25LG - CNC PLATE PROCESSING LINE (DRILLING, MILLING, PLASMA CUTTING) | YEAR 2017 The Ficep Tipo G25LG is a CNC-controlled plate processing line for drilling, milling, marking and plasma cutting of steel plates in a single pass - without re-clamping. This significantly reduces throughput times in the production of gusset plates, end plates and connection components. CONDITION Used - technically sound. The line is currently in productive operation. - Inspection UNDER POWER during ongoing production possible by appointment. - Handover as preferred: directly from ongoing production (cleaned and serviced) or - at additional cost - reconditioned by ASM. - Details on the technical condition are disclosed individually upon serious interest. FUNCTION & APPLICATION The G25LG combines a vertical mono drilling unit with automatic tool changer (ISO 40) and an integrated plasma cutting unit in a rigid twin-bridge gantry frame - all processes in a single pass according to the NC program. The Ficep Pegaso CNC transfers part data and hole patterns directly from CAD without manual rework. Typical applications: structural steelwork, steel trading and plant construction. TECHNICAL DATA - Manufacturer: Ficep | Model: Tipo G25LG | Year: 2017 | Serial number: 35446 - Machine type: CNC plate processing line (drilling / milling / plasma cutting) - Condition: used, technically sound - Plate width: max. approx. 2540 mm, min. 200 mm | Max. plate length: 6000 mm - Plate thickness: max. 100 mm (drilling), max. 45 mm (plasma), min. approx. 6 mm (drilling) - Drilling heads: 1 (vertical mono drilling unit) | Tool holder: ISO 40 - Tool positions (ATC): 24 - Drilling diameter: max. 32 mm, min. approx. 10 mm | Max. drilling/milling depth: 100 mm - Max. spindle speed: 7000 rpm | Spindle power: 15 kW - Plasma source: Hypertherm HPR 400 | Plasma current: 400 A Pjdpfsu Dxbtsx Ah Hsra - Straight plasma cutting and bevel plasma cutting - Max. longitudinal travel speed: approx. 30 m/min | Cross positioning: approx. 4.6 m/min - Pass line height: approx. 850 mm - CNC control: Ficep Pegaso, direct NC data input with CAD interface - Frame concept: welded twin-bridge gantry frame | Machine weight: 8000 kg - Processes: drilling, milling (straight/curved slots, countersinking, Y/J weld prep), tapping, centre punching, marking, straight and bevel plasma cutting Values marked "approx." are confirmed during inspection. Overall dimensions and electrical connection on request. SCOPE OF DELIVERY - 1 x Ficep Tipo G25LG CNC drilling, milling and thermal cutting line (year 2017) - 1 x Ficep Pegaso CNC control - 1 x Vertical mono drilling unit with automatic tool changer (ISO 40) - 1 x Bevel plasma cutting torch | 1 x Hypertherm HPR 400 plasma source (400 A) - 1 x Infeed roller conveyor with material transfer (6 m) | 1 x Outfeed roller conveyor (3 m) - 1 x Fume extraction system for plasma cutting LOGISTICS & LOCATION Location: Ulft (Netherlands), directly at the German border. Dismantling, transport, installation and commissioning by ASM by arrangement - individually calculated upon request. ABOUT ASM Arendsen Steel Machinery (ASM): specialist for Ficep structural-steel machinery. Further machines on request. CONTACT / INQUIRY Arrange an inspection under power | Price on request. Sale exclusively to commercial customers (B2B).

Condition: used, Year of construction: 2022, functionality: fully functional, table length: 6,000 mm, table width: 3,100 mm, sheet thickness steel (max.): 40 mm, cutting length (max.): 6,000 mm, cutting width (max.): 3,100 mm, drill diameter: 32 mm, Equipment: documentation/manual, FICEP KRONOS KR32SP - CNC GANTRY CUTTING SYSTEM PLASMA + DRILLING | YEAR 2022 The Ficep Kronos KR32SP is a CNC gantry cutting system for combined plasma cutting and drilling of steel plates in heavy steel construction. Plasma cutting, drilling, tapping, scribing and marking run in a single pass without intermediate handling. Built in 2022, among the youngest of its class on the used market. CONDITION & REFURBISHMENT Refurbished and inspected by a certified technician, ready for operation. - The exact scope of reconditioning varies from machine to machine and is disclosed individually upon serious interest. - Viewing possible by arrangement (machine reconditioned - no demonstration under power). FUNCTION & APPLICATION The KR32SP processes raw steel plates into finished components for steel construction. Plasma cutting, drilling, tapping, scribing and marking are combined on a single machine - a continuous workflow without re-clamping. Typical components: gusset plates, stiffener plates, end plates and connection plates. Target industries: steel construction, bridge building, tower construction and general metalworking. Plasma cutting is performed with a Hypertherm XPR300 power source; Hypertherm True Hole technology for dimensionally accurate hole quality is available. The scribing function transfers part numbers, bend lines and weld positions directly onto the component. CAD/DSTV connectivity and specific programming/interface details are confirmed on request. TECHNICAL DATA - Machine type: CNC gantry cutting system (plasma) | Product line: KRONOS SP - Control: Ficep PC-based CNC control - Manufacturer: Ficep S.p.A., Italy | Year: 2022 | Serial number: 36610 - Max. plate size (W x L): 3100 x 6000 mm - Max. plate thickness plasma (straight): 40 mm - Max. number of straight plasma torches: 1 | Plasma power source: Hypertherm XPR300 - Hypertherm True Hole technology: available - Number of drilling heads: 1 | Tool positions per drilling head: 6 - Max. drilling diameter: 32 mm - Spindle power (drilling head): 19 kW | Max. spindle speed: 3500 rpm - Cutting table: sturdy steel grid, prepared for extraction and filter system - Marking/scribing function: available - Dual-gantry option (tandem): available | Remote diagnostics: available (network/VPN) - Combined processes: plasma cutting, drilling, tapping, scribing, marking SCOPE OF DELIVERY - 1 x Ficep KRONOS KR32SP CNC gantry cutting system (base machine) - 1 x straight plasma torch head (Hypertherm XPR300) - 1 x drilling unit with 6-position tool changer - 1 x cutting table (steel grid, 3100 x 6000 mm, integrated extraction preparation) - 1 x CNC control unit (Ficep PC-based, remote diagnostics via network) - 1 x hydraulic and pneumatic power unit - Technical documentation / operating manual - Further equipment and accessories on request LOGISTICS & LOCATION Location: Ulft (Netherlands), directly at the German border. Machine weight, footprint and electrical connection values follow on request. Dismantling, transport, installation and commissioning by ASM by arrangement - individually calculated upon request. ABOUT ASM Arendsen Steel Machinery (ASM) specializes in refurbished Ficep steel-construction machinery - from saw-drill lines to gantry cutting systems. Further Ficep systems on request. CONTACT / INQUIRY Arrange a viewing | Price on request | Request a callback. Sale exclusively to commercial customers (B2B). Prodpfxsx H T H Ro Ah Hea

Condition: used, Year of construction: 2013, functionality: fully functional, travel distance X-axis: 15,000 mm, spindle speed (max.): 4,000 rpm, spindle speed (min.): 180 rpm, total length: 15,000 mm, table width: 3,300 mm, table length: 15,000 mm, drilling capacity: 28 mm, rotational speed (max.): 4,000 rpm, rotational speed (min.): 180 rpm, rapid traverse X-axis: 35 m/min, rapid traverse Y-axis: 12 m/min, Equipment: rotational speed infinitely variable, COLLECTIVE LISTING - 3 FICEP EXCALIBUR CNC BEAM DRILLING LINES Three refurbished CNC single-spindle beam drilling lines from the Ficep Excalibur series: two Excalibur 12 (1201 DE, year 2013) and one Excalibur 6 (601 DE, year approx. 2011). Together they form a graduated profile-processing line (up to 1,200 mm and up to 610 mm). EACH MACHINE AVAILABLE INDIVIDUALLY OR AS A PACKAGE. CONDITION & REFURBISHMENT (all three lines) All three machines have been refurbished and inspected by a certified technician, ready for operation. - The exact scope of reconditioning varies per machine and is disclosed individually upon serious interest. Prodpfx Aov Iamzsh Hoa - Viewing possible by arrangement (machines reconditioned - no demonstration under power). === MACHINES 1 + 2: FICEP EXCALIBUR 12 / 1201 DE / YEAR 2013 === Two identical lines, serial numbers 33900 and 34062. CNC single-spindle beam drilling line based on the moving-column principle. The moving drill head with direct drive performs drilling, countersinking, tapping, milling and scribing in a single pass. - Profile cross-section: max. 1,200 x 800 mm, min. 50 x 50 mm | length up to 12 m | CE - Profile shapes: I-beams, channels, angles, flat bar, square/rectangular hollow sections - Drill head: 1, direct drive, 19 kW | 180-4,000 rpm | max. drilling diameter 28 mm - Drilling feed: ball screw, servo-driven | CNC axes: 5 - X-axis: travel 0-15,000 mm, 35 m/min | Y-axis: 12 m/min | rack and pinion - Tool changer: 6-position automatic (ATC), HSK A80 - Clamping: hydraulic double-acting | Profile detection: laser, non-contact - Coolant internal (through spindle) and external - Control: Ficep Pegaso CNC (PC/CNC/PLC integrated), remote diagnostics via network - Interfaces: DSTV, DXF, XML (Tekla) | Table: 15 m long, approx. 3,300 mm wide Scope of delivery per line: drilling unit 19 kW | support table with guide rail 15 m | 6-position ATC (HSK A80) | Pegaso CNC | radio remote control | coolant system. === MACHINE 3: FICEP EXCALIBUR 6 / 601 DE / YEAR APPROX. 2011 === Serial number 32754. More compact line with moving drill cabin, workpiece stationary on the clamping frame. - Profile cross-section: max. 610 x 610 mm, min. 30 x 30 mm | I-beam web height up to 610 mm - Max. machining length: 12,000 mm | X-axis traverse 0-12,000 mm, rack and pinion - Profile shapes: I-beams, angles, UPN channels, flat bar, square/rectangular tube - Drilling spindle: 1, 7.5 kW | max. drilling diameter 22 mm | manual change (quick-change chuck) - Operations: drilling, countersinking, tapping (with suitable tooling) - Clamping: double-acting automatic (top/bottom), min. 30 x 30 mm - Control: Mitrol CNC (Ficep Group) Scope of delivery: beam drilling line 601 DE | Mitrol CNC | traverse frame 12,000 mm | length measuring/positioning system X-axis (configuration confirmed during inspection) | automatic clamping system | quick-change chuck. Machine weights, rated voltage and footprint per line follow on request. LOGISTICS & LOCATION Location: Ulft (Netherlands), directly at the German border. Dismantling, transport, installation and commissioning by ASM by arrangement - individually calculated upon request. ABOUT ASM Arendsen Steel Machinery (ASM): specialist for refurbished Ficep structural-steel machinery. Further machines on request. CONTACT / INQUIRY Price on request - individually or as a package | Viewing by arrangement. Sale exclusively to commercial customers (B2B).

Condition: used, Year of construction: 2015, functionality: fully functional, table length: 6,000 mm, positioning speed: 30 m/min, table width: 2,540 mm, working height: 1,092 mm, workpiece weight (max.): 5,000 kg, overall weight: 24,000 kg, sheet thickness steel (max.): 100 mm, cutting length (max.): 6,000 mm, cutting width (max.): 2,540 mm, drill diameter: 40 mm, FICEP TIPO B254 - CNC PUNCHING, DRILLING & THERMAL CUTTING CENTER | YEAR 2015 The Ficep Tipo B254 is a CNC-controlled punching, drilling and thermal cutting center for the complete processing of steel plates and flat products in a single pass. Punching, drilling, countersinking, tapping, marking and thermal cutting via plasma and oxy-fuel are carried out on one machine without intermediate handling. CONDITION Used - technically sound. The machine is currently in productive operation and CAN BE INSPECTED UNDER POWER (by appointment). Handover as preferred: directly from ongoing production (cleaned and serviced) or - at additional cost - reconditioned by ASM. Details on the technical condition are disclosed individually upon serious interest. FUNCTION & APPLICATION The system combines three processing units in one CNC-controlled line: hydraulic punching unit (1000 kN), drilling head (20.1 kW) and thermal cutting unit with plasma torch (Hypertherm HPR 260) plus oxy-fuel torch. All processes run via the Mitrol CNC as automated machining cycles; the machine processes steel plates up to 2540 x 6000 mm. Typical applications: structural steel fabrication, structural engineering and prefabrication of gusset plates, end plates and connection plates. TECHNICAL DATA - Machine type: Automatic CNC punching and thermal cutting system for plates - Year: 2015 | Serial number: 34201 | Machine weight: 24,000 kg - Working height: approx. 1,090 mm | Max. positioning weight (plate): 5,000 kg - Max. plate size: 2540 x 6000 mm | Min. plate width: 508 mm - Punching force: 1000 kN | Stripping force: 100 kN | Punching tools: 8 - Max. punch diameter: 32 mm | Max. punching thickness: 20 mm Predexn T H Depfx Ah Hoa - Drilling heads: 1 | Drilling tools per head: 8 - Max. drilling diameter: 40 mm | Max. drilling thickness: 100 mm - Spindle power: 20.1 kW | Max. spindle speed: 4000 rpm - Plasma torches: 1 | Oxy-fuel torches: 1 | Plasma source: Hypertherm HPR 260 - Max. plasma cutting thickness: 35 mm (pierce start) / 60 mm (edge start) - Max. longitudinal feed speed: 30 m/min - CNC control: Mitrol CNC (master/slave), online remote diagnostics - Processes: punching, drilling, countersinking, tapping, milling, marking, scribing, oxy-fuel and plasma cutting Min. plate length, max. overall material thickness and cross positioning speed are confirmed during inspection. SCOPE OF DELIVERY - 1 x Ficep Tipo B254 plate processing center (year 2015) - 1 x Hydraulic punching unit 1000 kN with 8-position tool changer - 1 x Drilling unit 20.1 kW with 8-position tool changer - 1 x Plasma cutting torch | 1 x Oxy-fuel cutting torch - 1 x Hypertherm HPR 260 plasma cutting system - 1 x Marking unit (configuration to be confirmed during inspection) - 1 x Chip conveyor - 1 x Donaldson Torit dust extraction system | 1 x Punching tool set LOGISTICS & LOCATION Location: Ulft (Netherlands), directly at the German border. Dismantling, transport, installation and commissioning by ASM by arrangement - individually calculated upon request. ABOUT ASM Arendsen Steel Machinery (ASM) specializes in Ficep structural steel machines. Further Ficep machines on request. CONTACT / INQUIRY Arrange a viewing under power | Price on request | Request a callback. Sale exclusively to commercial customers (B2B).

Condition: used, Year of construction: 2011, functionality: fully functional, working width: 1,015 mm, cutting height (max.): 310 mm, cutting width (max.): 1,015 mm, FICEP KATANA K100 + K60 - TWO REFURBISHED STRUCTURAL-STEEL BAND SAWS | BUNDLE OFFER Two automatic Ficep mitre band saws of the Katana series: the K100 (year 2011, profiles up to approx. 1000 mm) and the smaller K60 (profiles up to approx. 600 mm). Both designed for economical cutting of solid material, profiles and tubes in steel and non-ferrous metals. AVAILABLE INDIVIDUALLY OR AS A PACKAGE. CONDITION & REFURBISHMENT Both machines have been overhauled and inspected by a certified technician, ready for operation. - The exact scope of reconditioning varies per machine and is disclosed individually upon serious interest. - Viewing possible by arrangement (machines reconditioned - no demonstration under power). FUNCTION & APPLICATION Automatic mitre band saws for profile processing in structural steelwork: beam, tube and flat material as well as solid material in steel, aluminium and non-ferrous metals. Motorised feed with infinitely variable cutting speed, hydraulic clamping systems, CNC-controlled mitre cuts and cutting programs. The K60 is additionally prepared for the DSTV data interface (import from CAD/CAM). Applications: steel fabrication shops, steel and semi-finished trading, industrial pre-fabrication. --- MACHINE 1: FICEP KATANA K100 (YEAR 2011) --- Horizontal CNC mitre band saw for large structural-steel cross-sections. Hydraulic blade tensioning, dual automatically pre-settable blade guidance, integrated cooling/lubrication. - Year: 2011 | Serial number: 33111 - Cutting width at 90 deg: 1015 mm | Cutting height at 90 deg: 310 mm - Min. profile size at 90 deg: 60 x 10 mm - Cutting width at +/-45 deg: 610 mm | Cutting height at +/-45 deg: 310 mm - Max. mitre angle: +/-60 deg - Saw blade: 7880 x 41 x 1.3 mm | Blade speed: 60-170 m/min - Blade motor: 9 kW | Control: Ficep CNC - Hydraulic blade tensioning, dual blade guidance (fixed/mobile side) - Synchronised cleaning brush, integrated cooling/lubrication system - Hold-downs and workpiece vices: hydraulic, independent --- MACHINE 2: FICEP KATANA K60 --- Horizontal CNC double-mitre band saw for medium cross-sections. Hydraulic horizontal and vertical clamping, minimum-quantity lubrication, Mitrol CNC with Pegaso software. - Year and serial number: on request (to be confirmed on the name plate) - Cutting range at 90 deg: 610 x 310 mm - Cutting range at 45 deg: 400 x 300 mm | at 60 deg: 250 x 250 mm - Mitre angle range: +45 / -60 deg | Min. profile height: 60 mm - Saw blade: 34 x 1.1 x 6350 mm - Blade motor: 7 kW | Control: Mitrol CNC, Pegaso software - Data interface: DSTV | Remote diagnostics via network - Hydraulic horizontal/vertical clamping, minimum-quantity lubrication (MQL) - Operating mode: standalone or as combined line with drill unit Machine weights and dimensions for both machines follow on request. LOGISTICS & LOCATION Prodpjwd Ugtofx Ah Hja Location: Ulft (Netherlands), directly at the German border. Dismantling, transport, installation and commissioning by ASM by arrangement - individually calculated upon request. ABOUT ASM Arendsen Steel Machinery (ASM): specialist for refurbished Ficep structural-steel machinery. Further Ficep machines on request. CONTACT / INQUIRY Price on request - individually or as a bundle | Viewing by arrangement. Sale exclusively to commercial customers (B2B).

Condition: used, Year of construction: 2020, functionality: fully functional, product height (max.): 610 mm, Equipment: double-sided, FICEP NOZOMI 601 RAZ - ROBOTIC PLASMA CUTTING SYSTEM FOR STRUCTURAL STEEL | YEAR 2020 The Ficep NOZOMI 601 RAZ is a fully automatic robotic plasma cutting system for three-dimensional thermal processing of steel profiles and beams. An anthropomorphic 9-axis articulated robot machines all four profile faces without re-clamping, replacing layout, thermal cutting, coping and grinding with one automated work cell - less handling, shorter throughput times, reproducible quality from CAD/CAM data. CONDITION Used - technically sound. The machine is currently in productive operation. Year 2020 - a comparatively young machine of its class on the used market. - Inspection UNDER POWER during ongoing production possible by appointment. - Handover as preferred: directly from ongoing production (cleaned and serviced) or - at additional cost - reconditioned by ASM. - Details on the technical condition are disclosed individually upon serious interest. FUNCTION & APPLICATION The NOZOMI 601 RAZ combines plasma cutting, coping, bevel cutting, weld-seam preparation and marking in a single pass. The non-contact laser scanner measures the profile surfaces and determines the torch start position automatically. The system processes H-beams, U-channels, L-angles and flat bar. Typical applications: structural steel, bridge and plant construction, series production of connection and node details. Plasma processing uses the Hypertherm True Hole process. TECHNICAL DATA - Manufacturer: Ficep | Model: NOZOMI 601 RAZ | Year: 2020 | S/N: 36291 - Machine type: Robotic plasma cutting system (thermal profile processing) - Condition: used, technically sound Psdpfsxq Rpnex Ah Hsra - Profile size min.: 80 x 10 mm - Profile size max.: approx. 610 mm profile height (flange width to be confirmed during inspection) - Profile types: H-beams, U-channels, L-angles, flat bar - Machining sides: 4 | Clamping: automatic - Number of CNC axes: 9 | Design: anthropomorphic articulated-arm robot - Profile measurement: laser scanner, non-contact, fully automatic (multi-surface) - Cutting process: plasma | Plasma cutting heads: 1 - Plasma technology: Hypertherm True Hole - Bevel cutting: 45-degree bevels, copes, weld-seam preparation - Marking function: yes (orientation marks, weld symbols, labelling) - Software: Steel Projects PLM (licence transfer on request), free vector programming, automatic nesting - Infeed length: 16 m | Outfeed length: 16 m - Extraction: integrated particle filter system Machine weight, electrical connection values and max. plasma cutting thickness are confirmed on request. SCOPE OF DELIVERY - 1 x Ficep NOZOMI 601 RAZ robotic thermal cutting system (year 2020) - 1 x anthropomorphic 9-axis articulated-arm robot - 1 x plasma cutting head (Hypertherm True Hole compatible) | 1 x automatic torch changer - 1 x laser-scanner measuring system (non-contact, multi-surface) - 1 x infeed roller conveyor (16 m) | 1 x outfeed roller conveyor (16 m) - 1 x automatic clamping device | 1 x integrated extraction system LOGISTICS & LOCATION Location: Ulft (Netherlands), directly at the German border. Dismantling, transport, installation and commissioning by ASM by arrangement - individually calculated upon request. ABOUT ASM Arendsen Steel Machinery (ASM) is a specialist for Ficep structural-steel machinery. Further machines on request. CONTACT / INQUIRY Arrange an inspection under power | Price on request. Sale exclusively to commercial customers (B2B).

Condition: used, Year of construction: 2020, functionality: fully functional, table length: 6,000 mm, table width: 2,540 mm, sheet thickness steel (max.): 50 mm, cutting length (max.): 6,000 mm, cutting width (max.): 2,540 mm, FICEP KRONOS KR25SP - CNC GANTRY PLASMA CUTTING SYSTEM FOR STEEL PLATES | YEAR 2020 The Ficep Kronos KR25SP is an automatic CNC gantry system for high-definition plasma cutting of steel plates, designed for steel construction and sheet metal fabrication shops that need precise, repeatable and cost-efficient parts directly from plate. With a maximum plate size of 2,540 x 6,000 mm and a plasma cutting thickness of up to 50 mm, it covers a broad range of parts in a single pass. CONDITION & REFURBISHMENT Refurbished and inspected by a certified technician, ready for operation. The machine is fully functional and can be put into production immediately. - The exact scope of reconditioning varies from machine to machine and is disclosed individually upon serious interest. - Viewing possible by arrangement (machine reconditioned - no demonstration under power). FUNCTION & APPLICATION The KR25SP cuts steel plates fully automatically according to CNC program in gantry design. Using Hypertherm plasma technology including True-Hole technology, it produces contour-accurate cut parts and hole patterns at high cut quality - ideal for gusset plates, end plates, base plates and connection components in steel construction. The robust grid cutting table is prepared for connection to an extraction system; a network remote-diagnosis interface supports maintenance and support. TECHNICAL DATA - Manufacturer: Ficep S.p.A., Italy | Model: Kronos KR25SP (KRONOS SP series) - Machine type: Automatic CNC gantry plasma cutting system for steel plates - Year of manufacture: 2020 | Serial number: 36499 - Condition: used, refurbished by certified technician - Maximum plate size (W x L): 2,540 x 6,000 mm - Max. plasma cutting thickness: 50 mm - Plasma straight-cut torch: 1 | Plasma unit: Hypertherm XPR300 - Hypertherm True-Hole technology: available - CNC control and drives: Fanuc (to be confirmed on the machine during inspection) - Remote diagnostics: available (network connection) Podpfxev Iaqye Ah Hora - Cutting table: robust grid construction, prepared for extraction system - Extraction and filter system: optionally available Further details (machine weight, connected load, footprint, cutting speed) are available on request. SCOPE OF DELIVERY - 1 x Ficep Kronos KR25SP gantry system (year 2020) - 1 x plasma straight-cut torch (Hypertherm XPR300) - Grid cutting table with extraction preparation - CNC control and drives - Remote-diagnosis interface (network) LOGISTICS & LOCATION Location: Ulft (Netherlands), directly at the German border - short transport distance from the entire DACH region. Dismantling, transport, installation and commissioning by ASM by arrangement - individually calculated upon request. ABOUT ASM Arendsen Steel Machinery (ASM) is your specialist for refurbished Ficep steel construction machinery. We supply inspected, ready-to-operate systems for steel construction and sheet metal fabrication. Further Ficep systems on request. CONTACT / INQUIRY Arrange a viewing | Price on request | Request a callback. Sale exclusively to commercial customers (B2B).

Condition: used, Year of construction: 2012, functionality: fully functional, total length: 30,000 mm, drilling capacity: 40 mm, type of input current: three-phase, total width: 3,500 mm, drill diameter: 40 mm, input voltage: 400 V, FICEP HP35T - CNC SAWING & DRILLING LINE FOR ANGLE STEEL | YEAR 2012 | RECONDITIONED The Ficep HP35T is a CNC-controlled sawing and drilling line for the economical series processing of angle steel (L-profiles) in structural steelwork. Sawing and drilling run in a single automated pass with DSTV data connectivity, reducing handling, marking time and scrap for beam connections, gusset plates and lattice structures. CONDITION & RECONDITIONING Reconditioned and inspected by a certified technician, ready for operation. - The exact scope of reconditioning varies from machine to machine and is disclosed individually upon serious interest. - Viewing possible by arrangement (machine reconditioned - no demonstration under power). FUNCTION & APPLICATION The HP35T processes equal- and unequal-leg angle steel (L-profiles) up to 350 x 350 mm leg dimension and combines sawing with two drilling spindles (max. dia. 40 mm) into one continuous machining process. Material is fed via a motorized infeed roller conveyor, hydraulically clamped and positioned under CNC control. The PC-based Ficep CNC control enables manual programming at the operator terminal as well as direct program import from structural-steel CAD systems (e.g. Tekla, SDS/2, BOCAD) via DSTV. Typical applications: structural steelwork and profile processing, lattice and mast structures, plant and steel hall construction, gusset plates and beam connections. TECHNICAL DATA - Manufacturer: Ficep | Model: HP35T | Year: 2012 | Serial number: 25029 - Machine type: CNC angle processing line (sawing & drilling line) - Condition: used, reconditioned by certified technician - Cutting process: saw - Drilling spindles: 2 x drilling spindle, max. drill dia. 40 mm - Clamping: hydraulic - Profile type: equal- and unequal-leg angle steel (L-profiles) - Max. leg dimension: up to 350 x 350 mm | Min. profile: approx. from 50 x 50 x 5 mm - Feed rate (max.): approx. up to 40 m/min - Positioning accuracy, longitudinal axis: approx. +/- 0.2 mm - Hydraulic unit motor: approx. 15 kW | Feed motor (servo): approx. 3 kW - CNC control: Ficep proprietary / PC-based - DSTV interface: direct import from structural-steel CAD - to be confirmed during inspection - Electrical connection: 400 V / 50 Hz / 3-phase + N + PE (TN-S), control voltage approx. 24 V DC - Overall machine length: approx. 30,000 mm (line incl. roller conveyor; exact dimension before loading) - Machine width: approx. 3,500 mm | Machine weight: on request Note: Values marked "approx." are reference figures and will be confirmed bindingly during inspection. SCOPE OF DELIVERY - 1 x Ficep HP35T angle steel processing line (year 2012) - 1 x hydraulic unit (integrated) - 1 x CNC control unit with operator terminal - 1 x infeed roller conveyor (motorized) - 1 x electrical control cabinet - 1 x machine documentation / operating manual (Italian/English) LOGISTICS & LOCATION Pjdjxn T Smopfx Ah Hera Location: Ulft (Netherlands), directly at the German border. Dismantling, transport, installation and commissioning can be carried out by ASM by arrangement - individually calculated upon request. ABOUT ASM Arendsen Steel Machinery (ASM) specializes in reconditioned Ficep structural-steel machinery - from sawing and drilling lines and profile drilling machines to plasma cutting systems. Further Ficep machines on request. CONTACT / INQUIRY Arrange a viewing | Price on request | Request a callback. Sale exclusively to commercial customers (B2B).

Condition: used, Year of construction: 2016, machine/vehicle number: 0401-260017, The FICEP Tipo G31 sheet metal processing center for the cost-effective processing of steel sheets and flat steel in the steel construction and steel trading industries. Prodpfxsznh R Rj Ah Hoa The Ficep Tipo G31 LG can drill, center-punch, tap, countersinking, marking, milling, oxy-fuel cutting, and plasma cutting. The CNC-controlled sheet metal processing center is equipped with 2 drilling units, each with 26 kW of drive power. Two tool changers, each with 24 tool stations for ISO 40 tool holders, are available for automatic tool changing. This system is suitable for sheet metal sizes: sheet width: minimum 200 mm, maximum 3,100 mm; sheet length: minimum 2,500 mm and maximum 14,000 mm. A powerful and modern Hypertherm HPR 400 XD plasma power source is available for plasma cutting. In addition, the system features an oxy-fuel cutting unit for thick materials. The drilling unit, with high torque and a spindle speed of up to 6,000 rpm, is designed for drilling with carbide tools such as solid carbide drills, Kennametal drilling tools, Nenok Multiplex indexable insert tools, as well as for use with HSS coolant-channel drills with diameters ranging from 10 mm to 40 mm. The Ficep Tipo G31 sheet metal processing center is in very good condition and has only a few operating hours.
