Saws with pressure bem

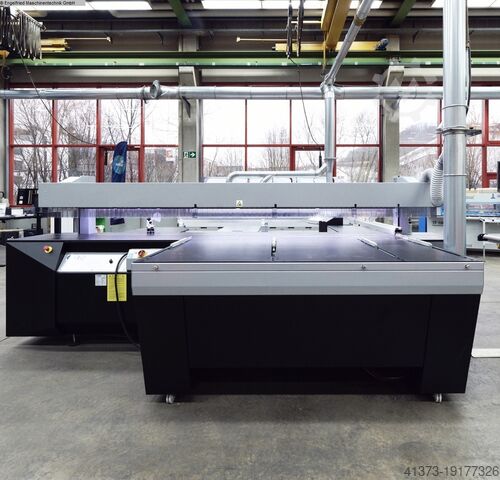

FIMAL Concept 350 Elite

Condition: as good as new (ex-display), functionality: fully functional, cutting width (max.): 2,100 mm, cutting height (max.): 105 mm, saw blade diameter: 350 mm, total length: 4,300 mm, power: 7.35 kW (9.99 HP), The FIMAL CONCEPT 350 ELITE is the further development of the proven CONCEPT 350 PLUS, setting new standards in precision, safety, and efficiency. With a reinforced machine base, optimized extraction system, and a redesigned Multistop fence table, it offers even greater comfort and performance for joiners, furniture makers, and industrial panel processing. Kodpfx Acsw Axf Reuodw Thanks to its pressure beam with automatic feed, the ELITE combines the flexibility of a sliding table saw with the cutting quality of a pressure beam saw – all within a footprint of just 28 m². Technical Specifications ⦁ Aluminum machine and extension tables ⦁ Saw unit tiltable up to 46° ⦁ Pressure beam, including LED lighting with 3 different action colors: WHITE: Machine in stand-by RED: Pressure beam lowering or emergency-stop function BLUE: Saw unit in motion ⦁ Versatile support table 1,000 x 500 mm ⦁ Scoring system via the main saw blade (co-rotating) ⦁ Automatic workpiece length detection for minimal travel distance ⦁ Mobile and height-adjustable control panel, including: Saw blade holder, template holder, emergency-stop button, start button, selector switch for grooving/scoring/cutting, rotary switch for feed speed, switches for laser (option) and USB socket ⦁ Max. saw blade projection (350 mm blade): 100 mm at 90° / 70 mm at 45° ⦁ Saw blade: diameter 300 – 350 mm, bore 30 mm ⦁ Saw blade speed: 4,000 rpm ⦁ Motor: 5 kW (= 7.5 HP) ⦁ Feed speed: 0 – 40 m/min ⦁ Total length: approx. 4,250 mm ⦁ Weight: approx. 1,300 – 1,700 kg (depending on cutting length and configuration) ⦁ Required air pressure: 7 bar ⦁ Extraction port: 1 x 100 mm, 1 x 120 mm ⦁ Extension table length: 3,670 mm / 4,270 mm / 4,870 mm (total length) ⦁ Tilting range: 0 - 46° ⦁ Sliding table: 1,000 x 400 mm (extension table) ⦁ Crosscut fence: 3,200 mm with 2 digital flip stops ⦁ Speed: 4,000 rpm ⦁ Air requirement: 6 bar ⦁ Motor voltage: 400 V (50 Hz) ⦁ Feed speed: 0 - 40 m/min Options Multistop, cutting width 2,100 mm instead of 1,300 mm Programmable saw blade height adjustment Miter fence +/-50° Cutting line laser Including delivery and installation within postal code areas 71,72,73,77,78,79,86,87,88,89

Condition: used, Year of construction: 2000, With electric height and tilt adjustment Used, excellent condition, little used Make Altendorf Type F45 Year of manufacture 2000 Machine number GS-tested Ksdpfx Acovxlq Heujdw Motor 4 kW Steel guides Carriage length approx. 3000 mm Cutting width approx. 1050 mm Pivoting up to 45° Prepared for scoring unit Parallelogram guard Tabletop extension Anodized aluminum parts Electric height adjustment Electric tilt adjustment Digital display: - Cutting angle - Speed Extraction connection D 120/80 mm Space required approx. 3010 mm x 1800 mm x 1500 mm Weight approx. 1000 kg Storage location 97447 Gerolzhofen, free on load, unpacked Sold in the current condition as seen, without warranty or guarantee

Condition: used, Year of construction: 2018, cutting length (max.): 3,000 mm, cutting width at rip fence: 1,300 mm, table length: 840 mm, main saw diameter: 450 mm, power: 7.5 kW (10.20 HP), Equipment: rotational speed infinitely variable, Used machine GM010.0399 F45 Pro Drive Year of manufacture: 2018 Template holder Max. saw blade diameter: 450 mm Motor: 7.5 kW Vario Kjdpfjw Nii Sex Acujdw DRW: 3000 mm TPL: 840 mm WGA Digit-L PA 1300 mm CNC Front support roller Air cushion table

Condition: reconditioned (used), Year of construction: 2016, functionality: fully functional, cutting length (max.): 3,000 mm, cutting width at rip fence: 1,300 mm, saw blade diameter: 450 mm, table length: 840 mm, power: 5.5 kW (7.48 HP), Equipment: rotational speed infinitely variable, scorer, Used machinery GM010.0398 Year of manufacture: 2016 F45 EvoDrive Eye-level control panel Template holder Max. blade diameter 450 mm Motor 5.5 kW (7.5 HP) VARIO 2-axis scoring unit, single-sided tilting RAPIDO, for 2-axis scorer single-sided Kdjdpfx Acow In H Hsujw LED lighting at the scoring unit Double roller carriage with carriage length 3000 mm TPL 840 mm Angle stop 90° 3200 mm CNC parallel fence 1300 mm STEG/second support on double roller carriage LASER cutting line indicator

Condition: used, Panel saw SCM Si400 EP, sliding table 320 cm, scoring saw 0.75 kW, 2-axis, electrically adjustable, scoring blade diameter 120 mm, bore 20 mm, blade tilt up to 45° motorized adjustment, blade height motorized adjustment, right-side fence motorized adjustment up to 1460 mm, main motor 7.5 kW (speeds 3000-4000-5000 rpm), max. blade diameter 400 mm, digital display on the fence on the sliding table, Kodpfx Acjw Imn Nsuedw sliding table tiltable at an angle, used machine, good condition, all adjustments fully operational.

Condition: as good as new (ex-display), Year of construction: 2024, functionality: fully functional, Exhibition machine – as new – including the following options: - Laser cutline indicator - Saw motor with 7.5 kW (10 HP) - Mitre fence swivels +/- 50° with length compensation - Programmable saw blade height adjustment Saw unit swivels up to 46° Pressure beam, including: LED lighting with 3 different action colors: - WHITE: Machine at standstill - RED: Pressure beam lowering or emergency stop function - BLUE: Saw unit in motion Up to 3,400 mm extendable telescopic stop with 2 digital displays 4 parallel, motorized positioning width stops on a 2,000 mm wide support table, size adjustment up to 1,300 mm Automatic stop retraction Versatile support table 800 x 200 mm Scoring system using the main saw blade in synchronised rotation Automatic workpiece length detection for minimum travel distances Mobile, height-adjustable control panel, including: - Touchscreen control panel with cut plan creation - Saw blade stand Kjdpfx Acjw Uf Nlsuedw - Template holder - Emergency stop button, start button, selector switch for grooving/groove sawing/cutting, rotary switch for feed speed - Switch for laser (option) - USB socket Attention: Machine is supplied without saw blade! Technical data: Cutting length: 3,200 mm Max. saw blade projection: 100 mm at 90°, 72 mm at 45° Saw blade: Diameter 300 – 350 mm, bore 30 mm Saw blade speed: 4,000 rpm Motor: 5 kW (= 7.5 HP) Feed speed: 0 – 40 m/min Overall length: approx. 4,270 mm Weight: from approx. 1,150 to 1,550 kg (depending on equipment) Required air pressure: 7 bar Extraction ports: 1 x 100 mm, 1 x 120 mm
