Circular sawing machines

Fimal P 3200 AX

Equipment features:
- Sliding carriage made of anodized aluminium, incl. high-precision guide made of hardened and ground steel
- Sliding carriage lock in any position
- Saw blade guard with swing-away device
- Extension arm with adjustable angle stop with length compensation every 5° and at 22.5°
- Mitre fence and eccentric clamp

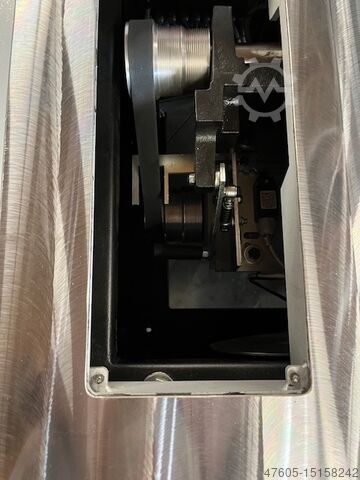

- Belt adjustment for speed change from above (opening in the saw table)
- Indicator lights for set saw blade speed
- 3-axis programming unit via TFT 15'' touchscreen on Windows basis, incl. 2,500 program slots, 2 USB ports and
1 Ethernet network connector
- Scoring unit with electromotive height adjustment and motorized axial pulse adjustment, including digital display for height and width
and width

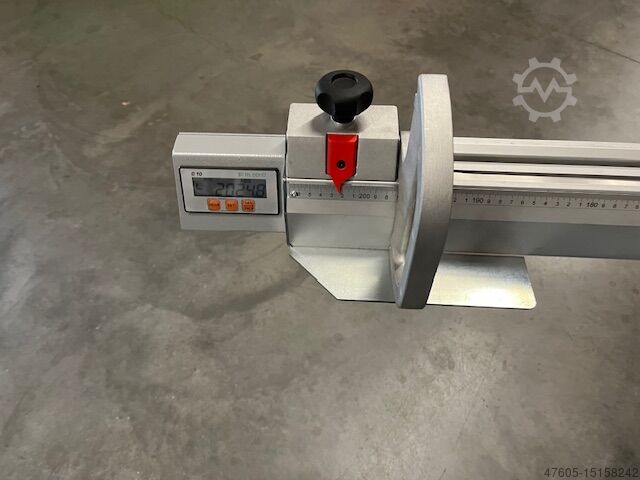

- Angle stop with 3 stop riders; 2 riders with digital display, 1 rider analog but coupled to a digital rider
also digitally adjustable
Fgoderrw Ucepfx Afpoh
- Upper control panel incl. automatic star-delta start
- Electrics and safety devices according to CE standard

Technical data:
- Saw blade inclination: 0° to 45
- Table dimensions: 1,030 x 680 mm
- Working height: 870 mm
- Sliding carriage dimensions: 3,200 x 400 mm
- Cutting length with scoring unit: 3,420 mm
- Cutting width at rip fence: 1,300 mm
- Max. Cutting height with 500 mm saw blade: 90°: 177 mm / 45°: 133 mm
- 3 speeds: 3,000 / 3,600 / 4,200 rpm.
- Motors: Main saw: 7.5 kW / 10 HP / 50 Hz, scoring saw: 0.55 kW / 0.75 HP
- Noise level according to EN 27960: 84.4 - 2565086.3 dB(A)
- Extraction nozzle 1 x 120 mm, 1 x 100 mm
- Angle fence extendable to 3,400 mm

The listing was translated automatically. Translation errors are possible.
