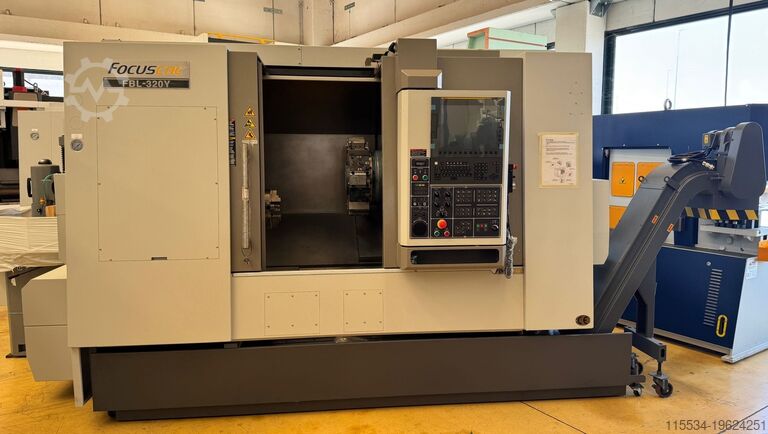

CNC lathe with inclined bedFOCUS CNC
FBL 320Y
Machine data
- Machine type:
- CNC lathe with inclined bed
- Manufacturer:
- FOCUS CNC
- Model:
- FBL 320Y
- Condition:
- new
- Functionality:
- fully functional
Price & Location
- Location:
- Via Giuseppe Verdi / 121, 25030 Torbole Casaglia (Bs), IT
Technical details
- Turning diameter over cross slide:
- 600 mm
- Turning length:
- 548 mm
- Turning diameter:
- 460 mm
- Spindle bore:
- 88 mm
- Travel distance X-axis:
- 310 mm
- Travel distance Y-axis:
- 110 mm
- Travel distance Z-axis:
- 620 mm
- Spindle motor power:
- 15,000 W
- Rapid traverse X-axis:
- 20 m/min
- Rapid traverse Y-axis:
- 20 m/min
- Rapid traverse Z-axis:
- 20 m/min
- Rotational speed (max.):
- 3,500 rpm
- Total height:
- 2,130 mm
- Total length:
- 3,900 mm
- Total width:
- 1,992 mm
- Overall weight:
- 6,500 kg
- Bar passage:
- 77 mm
- Spindle nose:
- ASA A2-8
- Equipment:
- documentation/manual
Details about the offer
- Listing ID:
- A196-24251
- Reference number:
- 09413
- Update:
- 22.07.2025
Description
WITH INCLINED BED
TECHNICAL SPECIFICATIONS:
Numerical Control: FANUC 0i-TF plus – 15" color graphic display, remote handwheel, and Manual Guide I
Max turning length: 548 mm
Distance between centers: 795 mm
Max swing diameter: 600 mm
Max turning diameter: 460 mm
Spindle bore: 88 mm
Bar capacity: 77 mm
Spindle nose: ASA A2-8
Max spindle speed: 3,500 rpm
Spindle motor: 11 – 15 kW
C axis: 0.001° positioning accuracy
Csdpfx Abow A Rl Nswshc
X-axis travel: 310 mm
Z-axis travel: 620 mm
Y-axis travel: ±55 mm
B-axis (tailstock) travel: 650 mm
Rapid traverse X-Y: 20-20 m/min
Rapid traverse Z-B: 20-20 m/min
Tailstock quill: MT 5
Length: 3,026 mm + 850 mm chip conveyor
Width: 1,992 mm
Height: 2,130 mm
Weight: 6,500 kg
COMPLETE WITH THE FOLLOWING STANDARD ACCESSORIES:
- 10” hydraulic self-centering chuck Kitagawa, set of soft and hard jaws
- Foot pedal for hydraulic chuck operation
- Serial, Ethernet, and USB interfaces
- Belt-type chip conveyor with collection cart
- Rotating tailstock
- 12-station motorized turret
- BMT 60 toolholder system
- Driven tool motor 4.5 kW
- Max speed driven tools 6,000 rpm
- Set of 12 static toolholders (5+3+3+1)
- 3-color status and end-of-cycle signal lamp
- Integrated work light
- Machine leveling pads
- Service keys toolbox
- Oil skimmer
- Mobile coolant tank
- Centralized lubrication system
- Pedal for hydraulic spindle
- Power transformer
- Operator and maintenance manuals, electrical diagrams, and CNC manuals
- CE Declaration of Conformity
INCLUDED ACCESSORIES:
- Grundfos 9.5 bar coolant pump
- Renishaw automatic tool presetting system
- Spindle air blast
- Industry 4.0 data exchange ready
- No. 1 straight driven toolholder for BMT 60
- No. 1 angular driven toolholder for BMT 60
BRAND NEW MACHINE COMPLIANT WITH CE REGULATIONS
