Machining center

Format4 Profit H10

Condition: excellent (used), Year of construction: 2022, functionality: fully functional, machine/vehicle number: S/N 320.01.001.22, travel distance X-axis: 4,150 mm, travel distance Y-axis: 2,560 mm, travel distance Z-axis: 280 mm, rapid traverse X-axis: 100 m/min, rapid traverse Y-axis: 100 m/min, rapid traverse Z-axis: 30 m/min, feed length X-axis: 4,150 mm, feed length Y-axis: 2,560 mm, feed length Z-axis: 280 mm, feed rate X-axis: 25 m/min, feed rate Y-axis: 25 m/min, feed rate Z-axis: 15 m/min, nominal power (apparent): 35 kVA, controller manufacturer: WoodFlash 4.1, controller model: H10 CNC Control, Windows 10, workpiece length (max.): 3,120 mm, workpiece width (max.): 2,160 mm, workpiece height (max.): 105 mm, total height: 2,510 mm, total length: 11,848 mm, total width: 4,850 mm, table width: 2,100 mm, table height: 895 mm, table length: 3,200 mm, overall weight: 4,500 kg, spindle speed (max.): 24,000 rpm, spindle motor power: 10,000 W, number of spindles: 1, number of slots in tool magazine: 8, input voltage: 400 V, CNC Machining Center / 3-Axis CNC Router Format 4 Profit H102232 S/N 320.01.001.22, year of manufacture 2022, with control system, HSK63 tool holder, Axis travel: X-axis = approx. 4,050 mm, Y-axis = approx. 2,560 mm, Z-axis = approx. 280 mm, including 2 Becker VTLF2.250/0-79 vacuum pumps, year of manufacture 2021, including loading table, discharge conveyor, 8-position tool changer, Ledpfx Aoxy Abusgmorw working area approx. 2,800 x 2,060 mm, groove saw unit in X and Y direction, horizontal drilling in X and Y direction, two spindles each, DH 16 drilling unit, vertical drilling: 5x in Y direction and 7x in X direction, main spindle approx. 10 kW, X-axis speed approx. 100 m/min, Y-axis speed approx. 100 m/min, Z-axis speed approx. 30 m/min.

Condition: excellent (used), Year of construction: 2021, operating hours: 121 h, functionality: fully functional, machine/vehicle number: 320.04.001.21, travel distance X-axis: 5,230 mm, travel distance Y-axis: 2,560 mm, travel distance Z-axis: 280 mm, workpiece height (max.): 105 mm, overall weight: 4,100 kg, FOR SALE: FELDER FORMAT 4 CNC + FELDER RL 350 extraction system including piping and tools (milling cutters) FELDER FORMAT 4 • Type: Profit H10 22 43 c-tech • Serial number: 320.04.001.21 • Year of manufacture: 2021 • Operating hours: 121 hours • Safety system with safety mats • Mobile control panel with screen, keyboard, and mouse • 2 vacuum pumps as standard, each with a nominal capacity of 250 m³ + a special version with a third extraction pump to ensure maximum cleanliness during milling • 8-position tool changer FELDER RL 350 extraction system including piping • 3 x 400V 50Hz 15HP 11kW • Maximum flow rate: 8000 m³/h • Nominal flow rate: 20 m/sec, 6920 m³/h • Negative pressure: 2630 Pa • Filter area: 71 m² • Extraction connection diameter: 350 mm Ljdpfxswc R D Ej Agmjrw • Residual dust content:

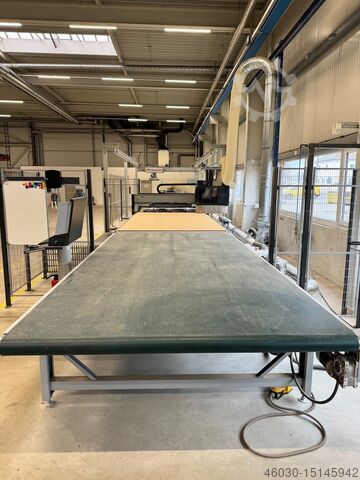

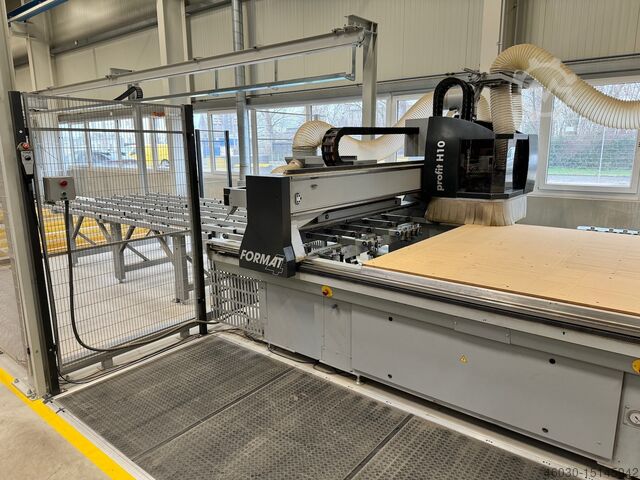

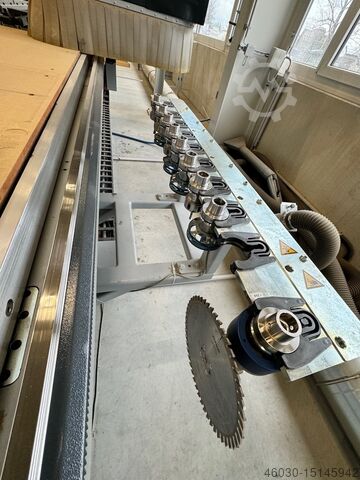

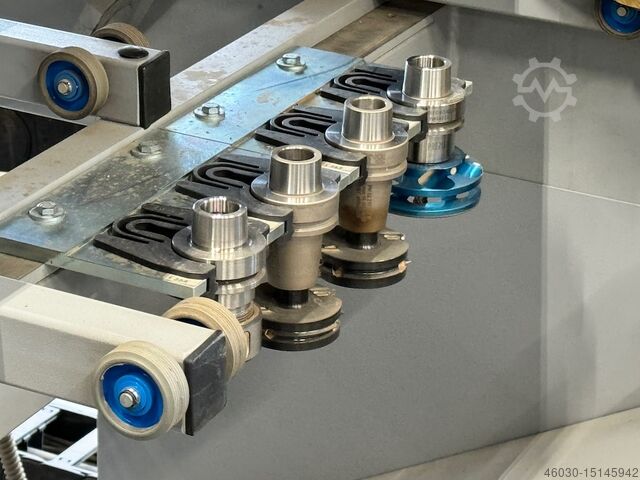

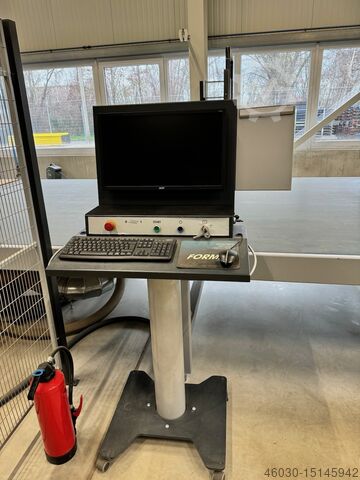

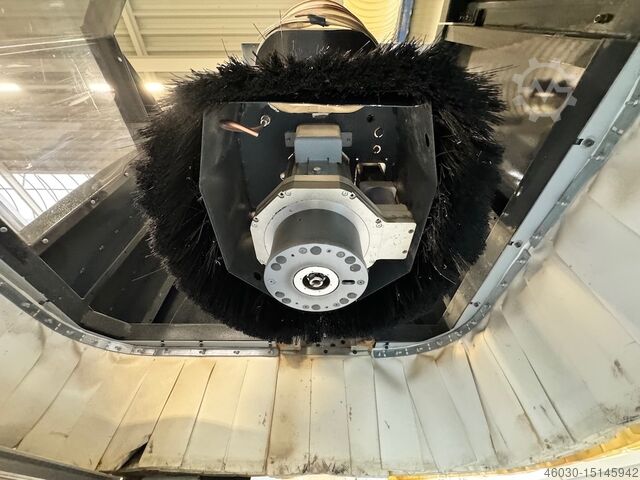

Condition: used, Year of construction: 2017, operating hours: 1,800 h, No. 3131 CNC machining center FORMAT-4 profit H10 22.43 Used, year of construction 2017 Operating hours approx. 1800 h Package consisting of CNC machining center FORMAT-4 profit H10 22.43, feeding unit FORMAT-4 L-Motion and extraction unit FELDER RL 300 Technical data CNC machining center FORMAT-4 profit H10 22.43: Matrix table system made of phenolic resin Raster table with two stop rows Automatic central lubrication HARDWARE control computer Mobile control panel Handheld terminal for remote control of the axes Two vacuum pumps, rated output 2 x 250 m3/h Tool changer with 10 tools Tool changer on the left in the machine stand: 8 tool positions for HSK Milling spindle 12 kW (S6) HSK F63, 24000 rpm Central extraction via merged connections (D=250mm) Woodflash German software (H20/H08/H10/H50) Travel of axes H10 22.43: X= 5230 mm / Y= 2560 mm / Z= 280 mm Working field: X= 4300 mm / Y= 2160 mm / Z= 105 mm Axis positioning speed: X= 100 m/min / Y= 100 m/min / Z= 30 m/min Technical data feeding unit FORMAT-4 L-Motion: Year of construction 2017 In 2-axis version with 4 storage locations for feeding an H10 with lifting table Feeding the CNC Gentle transport Fully automatic panel handling Workpiece sizes: Length 2000-4200mm / width 600-2100mm / thickness from 8mm / panel weight 200kg Density: chipboard 650kg/m3 / MDF raw 750kg/m3 Stacking height 1800mm Technical data extraction unit FELDER RL 300: Year of construction 2023 Nominal volume flow 6000 m3/h, H3 GS dust-tested, JET cleaning Compressed air connection 3/4 inch Connection pressure 7 - 12 bar with 40NL/min Operating pressure in the device 6 bar Chip container capacity 500 l Extinguishing device with powder extinguisher Dry fire extinguisher 12 kg Sale On behalf of customer, ex location Leipzig, without dismantling, without transportation and assembly Subject to errors in description and price Dismantling and loading by us optionally possible To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Ljderrh T Aopfx Agmerw Technical details, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: "purchased as inspected" Images and videos serve as examples and do not represent the actual scope of delivery Terms of payment: Prices plus VAT, payment before collection or dispatch Terms of delivery: ex location

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, travel distance X-axis: 4,150 mm, travel distance Y-axis: 2,560 mm, travel distance Z-axis: 280 mm, rapid traverse X-axis: 100 m/min, rapid traverse Y-axis: 100 m/min, rapid traverse Z-axis: 30 m/min, feed length X-axis: 4,150 mm, feed length Y-axis: 2,560 mm, feed length Z-axis: 280 mm, feed rate X-axis: 25 m/min, feed rate Y-axis: 25 m/min, feed rate Z-axis: 15 m/min, nominal power (apparent): 11 kVA, torque: 4 Nm, controller manufacturer: WoodFlash 4.1, controller model: H10 CNC Control, Windows 10, workpiece length (max.): 3,120 mm, workpiece width (max.): 2,160 mm, workpiece height (max.): 105 mm, total height: 2,510 mm, total length: 11,848 mm, total width: 4,850 mm, table width: 2,100 mm, table height: 895 mm, table length: 3,200 mm, overall weight: 4,500 kg, spindle speed (max.): 24,000 rpm, spindle motor power: 10,000 W, number of spindles: 1, number of slots in tool magazine: 8, input voltage: 400 V, Equipment: documentation/manual, rotational speed infinitely variable, CNC Machining Center 4-Axis CNC Router Format 4 Profit H10 2232 S/N 320.09.002.17 Year of manufacture: 2017 Tool holder: HSK63F Travel distances of the axes: X-axis = approx. 4,050 mm, Y-axis = approx. 2,560 mm, Z-axis = approx. 280 mm, C-axis present Including 2 Becker vacuum pumps VTLF2.250/0-79, year 2017 Incl. loading table + discharge conveyor 8-position tool changer Working area approx. 2,800 x 2,060 mm Groove saw unit in x and y directions Horizontal drilling in x and y directions, two spindles each, drilling unit DH 16 Lrjdpfx Agjxy Aa Domew Vertical drilling: 5 in y-direction and 7 in x-direction, main spindle approx. 10 kW X-axis speed: approx. 100 m/min, Y-axis speed: approx. 100 m/min, Z-axis speed: approx. 30 m/min
