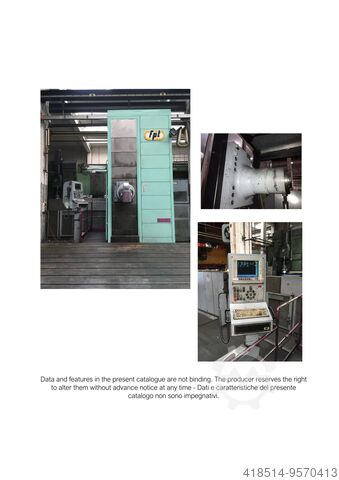

Moving column milling machine

FPT Industrie SIRIO M40

Year of construction: 1997, condition: ready for operation (used), - USED - TRAVELLING COLUMN CNC MILLING MACHINE WITH AUTOMATIC A/B-AXIS HEAD LONGITUDINAL TRAVEL: 4000 mm TRANSVERSAL TRAVEL: 1200 mm VERTICAL TRAVEL: 2000 mm RAPID FEEDS L-T-V: 15 m/min TABLE SIZE: 5000 x 2000 mm SPINDLE: 4000 rpm; 27 kW; 1200 Nm HEAD: A/B AXIS AUTOMATIC ; A 2,5°- B 2,5° ; ISO 50 ; 4000 rpm Godpeh Stzkjfx Aa Iebg TOOL MAGAZINE: CHAIN-TYPE ; 30 POS CONTROL UNIT: SELCA S3045 WEIGHT: 25500 Kg ACCESSORIES: SWARF CONVEYOR ; PORTABLE HANDWHEEL NOTE: EXTENSION 400mm -ISO50 -6.500rpm; AUTOMATIC HEAD EXCHANGE; PERIMETER GUARDING

Condition: used, Year of construction: 1981, machine/vehicle number: 78.977, Equipment: documentation/manual, Year of manufacture: 1981 / Year of retrofit: 1996/1997 Control: Siemens 840 C Siemens control for X/Y/Z/W/U/B/V axes Spindle diameter: 200 mm Main motor Siemens: 68 kW Gbodpfxoqc Umge Aa Ijg Spindle speeds: I gear: 3 - 202 rpm II gear: 180 - 808 rpm X travel: 12,000 mm Y travel: 4,500 mm Z travel: 2,400 mm (supporting sleeve □ 520 mm/travel 1200 mm + W axis 1200 mm) Mount: SK60 (SK50) Facing slide: yes Milling head: 2 units Prepared for CNC rotary table (4th axis) Without rotary table and clamping field (available separately) Full documentation Net weight: approx. 140 tons Video available!

Year of construction: 2016, condition: like new (used), Double column CMG *Installation in floor level design Measuring range * X 6,000 , Y 1,600 , Z 2,500 [mm] * Overlap of the uprights in Y = 100 mm Uncertainty of measurement single column : 25 + L/70, max. 60 [µm] at L=6.000 mm Double stand : 50 + L/70, max. 100 [µm] at L=6,000 mm Dynamics 3D traverse speed 400 mm/sec 3D acceleration 1200 mm/sec² Touch probe (per column) * Renishaw PH10M * Renishaw TP20+2 modules Control system (per stand) * WENZEL WPC2040 (Pantec Eagle Pro) Radio control unit * Hand control HT400 Software Godpfxsh T U Dfj Aa Ijbg * POLYWORKS * alternative solutions possible Accessories * Calibration ball holder - 3 times equipped * stylus assortment * TP-20 modules * Calculator , Screen Keyboard (per stand) Services of the supplier * transport, commissioning , calibration , final inspection Warranty * 12 months from the date of acceptance

Year of construction: 1999, condition: excellent (used), Technical data Manufacturer: Wenzel Type: RAplus 1621 double stand Year of construction: 1999 Measuring range Gsdpfx Aasfmdc Do Isbg X = 6000 mm Y = 1600 mm / 1600 mm (total: 3000 mm) Z = 2100 mm Measuring plate 7550 mm x 5130 mm (divided into Y0) The machine can be upgraded with new software according to customer requirements.

Condition: like new (used), Year of construction: 2023, Mazatrol Smooth Ai Gedpfsww N Ixex Aa Iebg 5-axis simultaneous machining Max. turning diameter 670 mm Max. turning length 1,519 mm Travel distances X-axis: 695 mm Y-axis: 300 mm Z-axis: 1,585 mm W-axis: 1,569 mm B-axis: -30 to 210° Rapid traverse X/Y/Z/W 50/40/50/30 m/min Main spindle Drive power: 30 kW Max. spindle speed: 4,000 rpm C-axis Max. bar capacity: 80 mm Sub spindle Drive power: 26 kW Max. spindle speed: 4,000 rpm C-axis Milling spindle Max. spindle speed: 12,000 rpm B-axis Capto C6 Tool magazine / ATC 38 tool stations Through-spindle coolant, preparation up to 70 bar 5-axis simultaneous machining package G00 slope constant Tool ID system ID chip Synchronized thread cutting Cylindrical interpolation Interface for bar feeder Automatic parts catcher Parts catcher Kitagawa B210X 3-jaw chuck for main spindle Kitagawa B210X 3-jaw chuck for sub spindle Cromar Series iV chip conveyor Drum filter High-pressure pump 15 bar Bar feeder EMT Super 80

Condition: used, functionality: fully functional, Year of construction: 1990, Technical data: Max. sheet width 3,000 mm Max. Sheet thickness at max. yield strength 240 N/mm² when bending to max. sheet width 35 mm when rounding Bending length 2.2 x S Gbjdpfju R D Dtox Aa Iog Max. Passage between the rolls 145 mm Roll diameter top roll 552 mm Bottom roller 532.4 mm Side rollers 400 mm Number of rollers 4 Driven rollers 2 top and bottom rollers Hydraulic drive of the rollers Rollers arranged symmetrically Rotation speed of the rollers 2-4 m/min Adjustable rollers 3 Hydraulic adjustment of the rollers Adjustment speed of bottom roller 0-200 mm/min. Side rollers 0-700 mm/min. Pneumatic roller brake Actuation of the hinged bearing hydraulic Operating voltage 3 x 380 V / 50 Hz Display device for roller positions 4 x optical/analog Weight of the machine approx. 42 tons Area 2.71 x 6.4 m Height 3.12 m Additional equipment: - Conical bending shoe - Top support device - Interchangeable roller 440 mm The machine has been extensively overhauled and is in very good condition.
