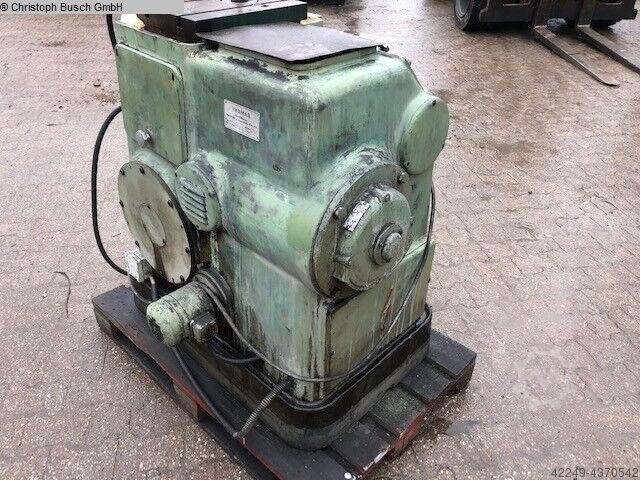

Keyseating Machine

FRÖMAG KZ 32

Condition: used, Year of construction: 1966, max. tractive force 5 t, max. stroke 850 mm, max. cutting speed 12m/min, max. return speed: 25m/min, clamping surface 410x575 mm, groove width 3 - 90 mm, bore 13 - 500 mm, workpiece weight: 6000 kg, depth of machine base under floor 1.400 mm Bcodecm Elnjpfx Afcsw

Condition: used, functionality: fully functional, Manufacturer: Arthur Klink Year of construction: ca.1960 Type: horizontal broaching machine Model: RH 10-50 Machine. No.: 241 Weight: 3.700 KG General / technical data: used horizontal hydraulic internal broaching machine in a good condition according to age with manual tool feeder in heavy design Clearing stroke: 1,500 mm Tractive force: 10,000 kg (100KN) Mounting in the drawbridge: Ø 85mm Cylindrical Through-hole in the clamping table: Ø 100mm Workpiece clamping surface: Ø 460mm Workpiece diameter: max. approx. 750mm (due to the tool trough of the tool feeder) Bedpjr A Hdgefx Afcocw Cutting speed: hydraulically infinitely variable from 1.0 m/min to 7 m/min Return speed: hydraulically infinitely variable from 5 m/min to 30 m/min Space requirement of the machine: (w x d x h) approx. 6500mm x 950 mm x 1,400 mm (without working area) Power supply: 380Volt 50 HZ Connected load: 8kw Equipment: - the machine has a mechanical hydraulic control for the clearing & return stroke - the machine has an integrated coolant system - the machine has a manually operated tool feed system - The broaching carriage with the pulling head holder is guided flat on both sides. - The machine has an adjustable tractive force limiter Accessories - 1 universal pulling head for flat shafts from 3mm to max. 25mm wide - Adapter sleeve for drawbridge from Ø 85mm to Ø 63mm Remarks: The machine can be used for the production of keyways with flat broaching tools, as well as for profile broaching. In combination with the machine bed of the machine and the stable broaching tool feeder, the machine is well suited for heavy profile broaching tools. The machine is used and is in very good condition for its age. The machine is in our warehouse and can be inspected under power. The machine is currently not technically and visually refurbished, but can be used immediately. Pulling heads for profile broaching are mostly available used on request depending on DIN standard, dimensions and stock. Direct contact details and further information can be found in the attached PDF document
