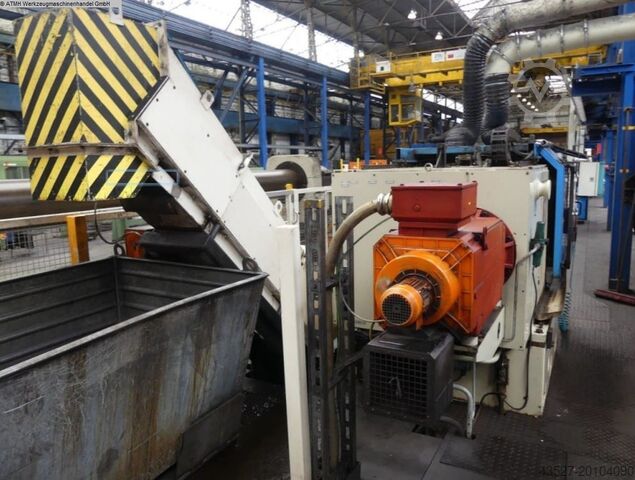

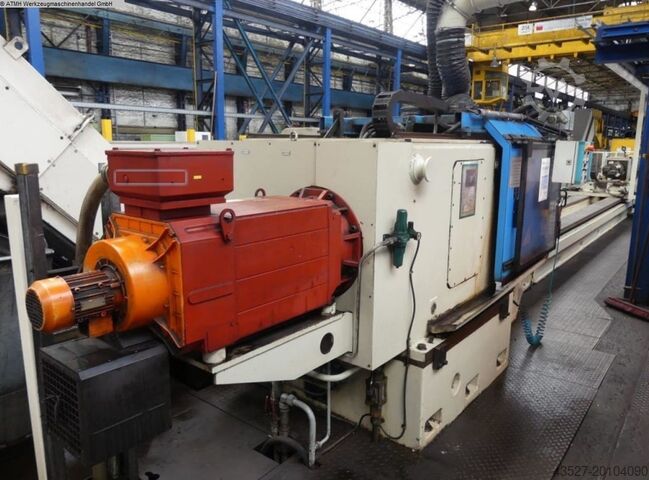

Deephole Boring Machine

FRORIEP CNC Tieflochbohrmaschine

Condition: refurbished (used), Year of construction: 2009, functionality: fully functional, machine/vehicle number: 30214501, turning length: 2,000 mm, total length: 12,000 mm, WFL Millturn M60/2000 WORKING RANGE center distance mm 2000 swing over bed, turning diameter mm 690 MAIN DRIVE AC-drive with 2 gear steps drive power 100% duty cycle kW 40 max. speed min-1 3300 max. torque at the spindle 100% duty cycle Nm 1830 TAILSTOCK quill diameter mm 140 quill travel mm 160 quill force (adjustable) N 3500-31000 quill with installed live center MK 5 TOOL HOLDER (single tool holder, turning-boring-milling unit) AC-drive drive power 100% duty cycle kW 30 speed range max. min-1 6000 max. torque at the spindle 100% duty cycle Nm 315 travel vertical to the X/Z-plane (Y-axis) mm 300[-125/+175] pivot capability of the milling spindle (B-axis) ° -110/+90 spindle head acc. DIN 69893 HSK-A100 spindle diameter in front bearing mm 100 Lodpou Hl R Tjfx Amtehi DIMENSIONS length (max. tool magazine) m 11 width/height m 3,9/3,3

Condition: good (used), total width: 3,500 mm, total length: 19,000 mm, total height: 2,100 mm, workpiece weight (max.): 6,000 kg, grinding diameter: 850 mm, grinding length: 6,000 mm, center height: 425 mm, Cylindrical grinder Schmaltz - RM 82/6000 Lhsdpfsy Dr Eaex Amtsi MACH-ID 9492 Make: Schmaltz Type: RM 82/6000 Centre height: 425mm Grinding Ø: 850mm Grinding length: 6000mm Grinding stone dimensions:1100 x 80 x 560mm Grinding stone speeds: 700Rpm Table inclasement: -5 to +5° Tailstock: 160 x 100Mk Length: 19000mm Width: 3500mm Height: 2100mm Weight: 31000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: good (used), Year of construction: 2004, IXION AUERBACH IA2 TLF-1200.4 Year of manufacture: 2004 Factory overhauled: 2023 CNC control: HEIDENHAIN 430M Travel X (table, longitudinal): 1,200 mm Travel Y (deep hole drilling-milling unit, vertical): 1,200 mm Travel Z (turret, horizontal): 700 mm Travel W (deep hole drilling-milling unit, horizontal): 1,200 mm A-axis (swivel of deep hole drilling-milling unit): +25°/-15° B-axis (NC rotary table): 360° NC rotary table with 5 T-slots: 1,000 x 1,000 mm Max. workpiece weight: 7,000 kg Rated drive power (S1 / S6): 12 / 18.5 kW Torque: 115 Nm Speed range: 60 - 6,000 rpm Max. drilling depth (in one pass): 1,200 mm (with 2 traveling steady rests) High-pressure coolant system for deep hole drilling oil: 100 bar & 42 l/min Tool changer for 24 tools With spindle air blast Ledpfx Aoydmuuemtohi Max. tool length: 300 mm Max. tool weight: 3.5 kg Tool diameter Without adjacent free space: max. 90.0 mm With adjacent free space: max. 160.0 mm Equipment inside work area: - Fully enclosed working area with roof - Oil mist extraction - Chip conveyor Required floor space: 5,150 x 5,350 x 4,020 mm

Condition: ready for operation (used), Year of construction: 2015, operating hours: 61,469 h, controller manufacturer: TRUMPF, controller model: TASC 6000, This TRUBEND Cell 5000 with TruBend 5085 extended version (2720 mm x 850 kN) and BendMaster 60 was manufactured in 2015. World's first bending automation with image recognition for maximum flexibility. Sheet metal parts up to 40 kg, 6-axis backgauge sensor technology. Maximum repeat accuracy thanks to angle sensor technology (ACB) in automated operation. It features a stable all-steel frame, electro-hydraulic top drive, and a modern block hydraulic system. The control unit is a TRUMPF TASC 6000 with a 15-inch touchscreen and network capabilities. Ideal for precise bending operations, consider the opportunity to buy this TRUMPF TruBend Cell 5000 press brake. Contact us for more information about this machine. • Machine: TruBend 5085 (2720 mm x 850 kN) with BendMaster 60 • Stable all-steel machine frame • Press beam with spherical bearing and tilt adjustment • Electro-hydraulic top drive with 4-cylinder technology • Generous edge clearance • Flat front covers • Modern block hydraulics • Electronic pressure balance • Measuring system with glass scale and spring compensation • Hydraulic oil in the machine (lifetime lubrication) • Oil cooler • Control cabinet cooling via air-to-air heat exchanger • Modern machine design • Stop/Backgauge • Stop system • Backgauge system: 2 axes (X and R) • Tool clamping • Upper tool holder, manual clamping, hardened Lsdpfx Asx Imqlemtehi • Lower tool holder, hydraulic clamping, hardened • Lower tool shift, 2 positions, pneumatic • Crowning • Manual crowning • Control • TRUMPF TASC 6000 • Graphical workshop programming • Windows XPe (embedded), Pentium 4, 2.8 GHz • 2 GB RAM • 15-inch touchscreen • Network-enabled • Teleservice via modem • Operation • Control panel with LCD keypad and foot switch • Communication rail • Safety • Standard safety devices • BendGuard safety device for upper tools up to 390 mm • CE marking Additional equipment • TRUMPF BendMaster automation (standard features) • Robot/Handling • Stable base and manipulator in die-cast aluminum • Load capacity 60 kg (workpiece plus gripper) • Low-profile welded floor track • Sheet metal sensor for contour detection • Rotary feedthrough for easy gripper change • Gripper coupling on the BendMaster • Sensors for 4-axis backgauge system • Electric drives • Double sheet detection • NC gripper transfer station • Vacuum generation for suction grippers • Control • TRUMPF PC control with operator terminal • Teleservice via modem • Operation via screen, mouse, and keyboard • Safety • Safety fence with access doorWorld's first bending automation with image recognition for maximum flexibility Sheet metal parts up to 40 kg, 6-axis backgauge sensor technologyMaximum repeat accuracy thanks to angle sensor technology (ACB) in automated operationTruBend 5085 (2720 mm x 850 kN) with BendMaster 60

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, TRUMPF TruBend Cell 5000 – Robotic Bending Cell | Year 2015 TruBend 5130X Press Brake BendMaster Robotic Bending System Lhsdpsxdfqmsfx Amtsi Control System: TASC 6000 (robot and press are programmed via the machine interface) Press Brake Specifications: Press force: 130 tons Bending length: 3,250 mm Year of manufacture: 02.2016 More information and video available on request ...

Condition: like new (used), Ryazan Model PT295106 Deep Hole Borer x 4000mm Manufacturer Ryazan Model PT295106 Year 1985 Condition Used Stock Number 2850 Lhsdpfx Aexzp Rlomtoi Centre Height 550mm Solid Boring Capacity 200mm Max Boring Length 4000mm Headstock Hollow spindle 500mm Headstock Spindle speeds 16-250 rpm Headstock drive 50/75kw Max boring length in front of headstock 3500mm Max boring length if using the 500mm hollow spindle 4000mm

Condition: excellent (used), Deep hole drilling machine tools DEGEN - UTB Lodpox Tp Ahofx Amtohi MACH-ID 9188 Make: DEGEN Type: UTB Year: 2005

Condition: used, Year of construction: 2012, functionality: fully functional, machine/vehicle number: 54, travel distance Y-axis: 1,100 mm, travel distance Z-axis: 1,100 mm, feed length X-axis: 1,400 mm, nominal power (apparent): 170 kVA, controller manufacturer: siemens, controller model: Siemens Sinumerik 840Dsl, workpiece length (max.): 1,100 mm, workpiece width (max.): 1,400 mm, workpiece height (max.): 1,100 mm, workpiece weight (max.): 2,500 kg, spindle speed (max.): 12,000 rpm, number of spindles: 1, number of slots in tool magazine: 150, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Hello, I am selling a DIXI DH 100 II: a 4-axis, dual-pallet CNC milling machine from 2012. Price: 690,000 PLN net. Machining range: X = up to 1400, Y = 1100, Z = 1100 (workpiece weight up to 2500 kg) Spindle: 12,000 RPM, 36 kW Tool holder: HSK A 100 Lhodpfxozlxmds Amtsi Table: 1000x1000, 2 pcs Tool magazine: 150 positions Coolant through spindle: 70 bar Configuration: Base machine Universal horizontal machining center DIXI DHP 100 4-axis version Control system Siemens SINUMERIK 840DSL Main drive Electric spindle 12,000 RPM Magazine 200-position tool magazine HSK 100 Machine table 2 pallets, 1000 x 1000 mm Cooling / chip removal Chip conveyor with 6 bar pump Coolant tank: 1,400 l Internal coolant supply: 70 bar Cooling unit: CSW2200 PMS Measurement / control Renishaw 3D RMP60 probe BLUM laser probe for tool measurement Additional options 2x Manual rinsing of the machining area – gun Manual control panel (handwheel) 4-color signal lamp Losma oil mist extractor 3 working modes Rotating window in the machine door Automation Automatic pallet changer Documentation Operating manual and electrical diagrams Monitor language English Training Not included

Condition: good (used), Year of construction: 2007, control type: manual, You are bidding here on: a branded machine - folding bench, from a very reputable and well-known manufacturer - Schechtl. Device features: - Schechtl HA folding bench - Rail bends cleanly – test possible - Degree indicator - Bending length approx. 310 cm - Sheet thickness: 1.5 mm for steel – more for aluminum, zinc, etc., up to 2 mm - Standard rail - Foot closing device - Sheet support - Optional roller shear with rail – see photos - 2024 price list (net) – prices are now significantly higher Important! Optionally, you can find and purchase a wide range of machines and machine accessories, such as various rails, depth stops – everything related to sheet metal and steel processing – including folding benches, guillotine shears, drilling machines, slip rolls, slitting and profiling machines, accessories (beading devices, roll sets for gutter production, back gauge, etc.), as well as additional hand tools and spare parts from many top manufacturers in our shop. Please don't hesitate to contact me if you have any questions. You will receive an invoice in accordance with § 25a UStG – VAT is included in the invoice amount. 2024 price list – prices have already increased noticeably. Differential taxation applies. Free loading possible – weight approx. 2,000 kg. Lodpfx Amsytz A Eotjhi Inspection and testing are possible and welcome by prior telephone appointment. Payment in cash upon collection. Benefit from our experience and expertise, we are happy to advise you. Collection by the buyer themselves (or by a shipping company commissioned by the buyer) should take place within 10 days after the end of the auction. Location: 97249 Eisingen, approx. 3 minutes from the A3 and A81 motorways. Item number: folding bench HA 310.
