Intelligent data loggersG.i.N.
GL5350 GL5350-8H-1R3L
Machine data
- Machine type:
- Intelligent data loggers
- Manufacturer:
- G.i.N.
- Model:
- GL5350 GL5350-8H-1R3L
- Condition:
- excellent (used)
Price & Location
- Location:
- Einsteinstraße 8a, 46325 Borken, DE
Details about the offer
- Listing ID:
- A166-75826
- Reference number:
- 24265
- Update:
- 15.11.2024
Description
Type: GL5350 GL5350-8H-1R3L
G.i.N. Intelligent data logger GL5350
Performance meets intelligence
Future generations of vehicles will be increasingly equipped with intelligent
driver assistance systems, complex multimedia components and
and systems for autonomous driving. These complex,
Hfedpfxjt R R Uws Afpen
networked technologies provide ever larger amounts of data, which makes
and more complex during the development phase.
In order to shorten the test drives, reduce their number
and still meet the test requirements of all departments,
the advantages of an intelligent and powerful data logger
data logger such as the GL5300 series come into play.
The GL5300 series covers the time-synchronous recording of LIN/
CAN & CAN FD bus systems via FlexRay networks through to Ether-
networks (TCP/UDP/DLT/ADB and Ethernet raw logging).
This series also offers the connection of up to 8 cameras
and up to 5 GLX504 for a further 20 CAN FD channels with SIC transceiver
and up to 3 GL5450 for synchronous recording of up to 60
100-base T1 (30 taps) and up to 18 1000-base T1 routes (9 taps).
Residual bus simulation
Classifier
Gateway
CCP/XCP on CAN, XCP on CAN FD, XCP on FLexray, XCP on Ethernet
Transmission of any freely configurable messages
Selective recording (extensive triger and filter conditions)
Data transmission via LAN/WLAN, USB and mobile radio
Operation via menu control
Technical data:
GL5300 Configuration
GL5350-8H-1R3L
CAN interfaces
CAN 2.0 16
CAN FD 4
LIN interfaces 5
RS-232 interfaces 7
Analog inputs 10 Bit 4
Operating voltage +7 V ... +50 V
Power consumption at 12 V: typ. 10.3 W
Current consumption at 12 V:
in sleep mode < 2 mA
in half-sleep mode typ. 180 mA
in operation typ. 860 mA
Operating temperature range -40 °C... +70 °C
Housing:
Material side profiles: Al Mg3
Cover: EN AW-6060 (AlMgSiO,5) T66
Trim strip: ABS
Dimensions (LxWxH) 212x 290 x 80
Weight ~ 3500g
Condition: used

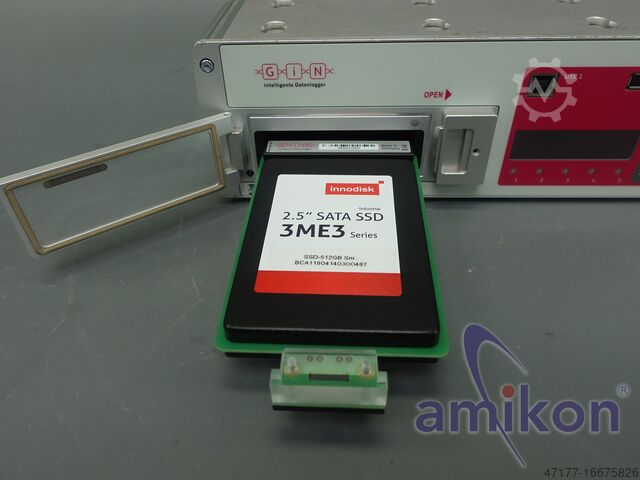

Scope of delivery: (see picture)
(Changes and errors in the technical data, specifications are reserved!)
We will be happy to answer any further questions you may have on the phone.
The listing was translated automatically. Translation errors are possible.
