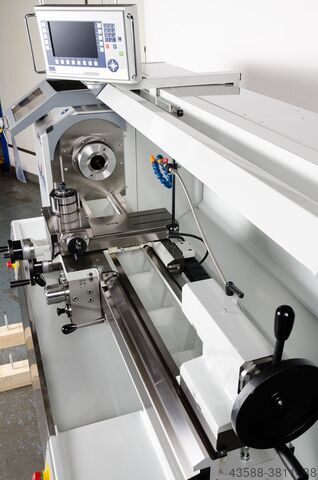

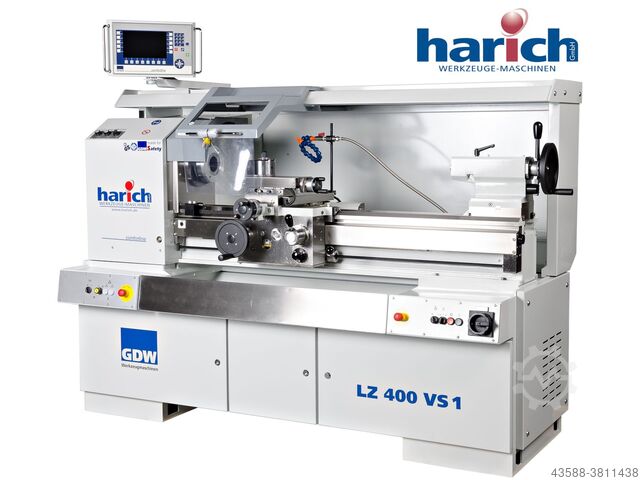

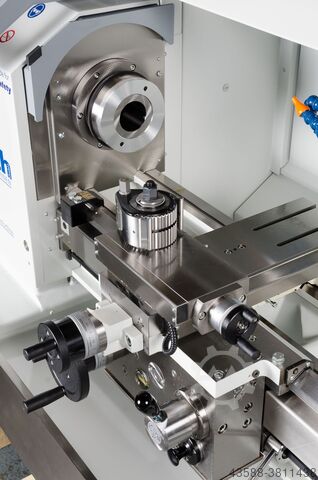

Guidance and lathe

GDW LZ 400 VS 1

Precision lead and feed spindle lathe
Manufacturer: GDW
Model: LZ 400 VS1 comfortline

Condition: New machine

with stepless speed control
and stepless feed rate control
to the highest safety standard
Dodpfxsdymdrs Albeuw

Distance between centers: 1000 mm
Distance between centers (height): 200 mm
Spindle bore: 62 mm
Speed range: 0 - 4000 rpm

standard equipment includes:

The base price already includes the latest display generation "comfortline", which incorporates many new features and simplifications:

- 9'' TFT color display
- Technology memory for 99 tools
- Spindle positioning via teach-in button
- Input of constant speed or constant cutting speed (V = c)
- Selectable speed limitation
- Error and status display in plain text
- Feed rate and thread pitch input using image-supported menus
- When cutting threads, there is no need to change or even purchase additional change gears to be able to cut all common threads!

In addition, the standard equipment includes:

- LED light integrated into the machine housing
- Quick-change tool holder size B with turning tool holder
- Lead screw disengagement with key
- Braking system for the main drive
- Sliding chuck guard with end switch monitoring
- Removable chip guard back panel
- Adjustable splash guard
- Removable chip tray
- Simple bed stop (fixed stop, longitudinal)
- Central lubrication
- Reducing sleeve for main spindle internal taper ME 70/MK 4
- Protective flange for spindle head DIN 55027-6
- 2 fixed centers DIN 806-MK 4
- Set of operating tools with tool bag, set of wrenches, oiler
- 5 replacement shear pins
- 2 operating manuals with parts lists, electrical documentation
