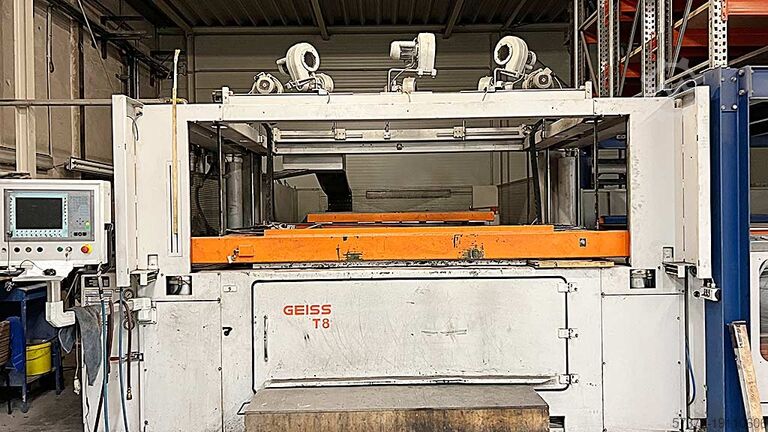

Vacuum Deep-Drawing Machine

Geiss T8 DU

Condition: new, • Working capacity 3300mm X, 200mmY, 180mm Z • 1 x vertical electro-spindle 7kw with saw • 1 x vertical electro- spindle 7kw 12 – 18000 rpm Gsdpfx Aasn Nv S Tj Isbg • 1 x electro-spindle kw1.7 with point to point vertical / horizontal drilling group • 1 x horizontal electro-spindle 5.6kw 12-18000 rpm • 4+4 work piece holding benches moveable on the X axis/ Each fitted with adjustable pneumatic workpiece clamps • L/H and R/H retractable work piece reference stops • Stand alone electrical control cabinet with hand held remote control for machine set up • Simple parametric programming with 3D working models • Perimeter safety cabin with front doors, vertical operation, synchronised with machine cycle

Condition: reconditioned (used), Year of construction: 2007, machine/vehicle number: FARO-PT08, Faro gage Plus Arm 6 axis, Arm length 4ft (appx. 1,2m) Accuracy 5+8L/1000µm Last calibration 2016 incl. very new Inspect3D software Inca Premium Windows 10 PC or notebook (new) or other application (Polywork, PcDmis, MComos.) On demand we can deliver a granit plate with 1500x1000mm. Gedpfx Aopqx H Nja Isbg Softwaretraining possible

Condition: new, Year of construction: 2026, Technical data Control system: Multi-axis real-time interpolator, with active trajectory forecasting, LAN communication, EtherCat, 2ms sampling time, optional RTCP tool end tracking, correction map Gbjden Hq Hujpfx Aa Ijg Working area: X 600 x 900 mm Y 3000 x 12000 mm Gate clearance and Z axis range: 100-1000 mm Drive system: Omron servo drives with EtherCat protocol, X, Y helical slats hardened ground in accuracy class 6, Z axis ball screw with accuracy class 5 Linear bearing: Trapezoidal rails, Bosch Rexroth 25 Speed: Up to 120 m / min Acceleration: Up to 1G Program resolution: up to 0.0001mm Positioning accuracy: 0.01 mm Gate drive: double-sided master / slave with gate angle correction Electrospindles: 2 kW to 36 kW powered by an inverter Tool taper: ISO30 lub HSK63 ER32 Maximum speed of the electro-spindle: 24,000 rpm (option 6,000, 40,000, 50,000) Construction: Steel welded, ribbed, stress relieved, precision machined Equipment options positioning and correction of the material by means of a camera, laser, measuring probe linear, revolver tool magazine cooling the tool with mist, chilled air 3D laser or touch scanner positioning databases additional angular / rotary axes drilling units, angular active oscillating knife, roller knife, drag knife, creaser, marker pen pneumatic clamping clamps chip extraction installation integration with an industrial robot Table type: T-slot: aluminum profiles, solid aluminum, solid steel; vacuum; hybrid, pneumatic clamping clamps

Condition: new, Year of construction: 2025, 5 AXIS Machining Center 2131 X, Y, 2100 X 3100MM MOVEMENT RANGE Z AXIS RANGE 1000 MM FOR 5 AXIS HEAVY MACHINES HITECO 17KW S6 TILTING/ROTATION HEAD KIT AXIS RANGE A= +- 185°, C= +- 320°, ORBITAL K PLUS PX-2 15/12 63F NC HSK63 OMRON AC SERVO DRIVE KIT OSAI OPENKEY INDUSTRIAL REAL TIME CONTROL SYSTEM Gbsdpfx Aaeu U Hmps Iog EUCHNER HBA-103037 MANUAL MANIPULATOR CONTROL CABINET AIR CONDITIONING LINEAR MAGAZINE 18 POSITION 16 POSITION HSK63F TURRET MAGAZINE CORRECTION MAP RENISHAW TS27R TOOL MEASURING PROBE SKF AUTOMATIC CENTRAL SOLID GREASE LUBRICATION

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 3300x2100x2100 mm Gedpfov A Hbnex Aa Iobg Weight 2000 kg Total power requirement 16 kw
