Surface Grinding Machine

GERD WOLFF G115 Schleifmaschine

cutting speed 35 m/s
grinding height 210 mm
workpiece length / mm
weight of the machine ca. 210-260 kg
required space 1100 x 760 x 860 mm

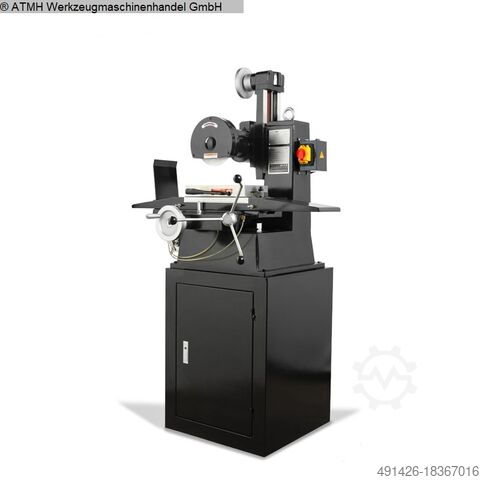

The G115 Surface Grinder is a compact grinding machine designed for processing
the circumference or face of the grinding wheel on the horizontal or vertical
surfaces of a workpiece. Using fixtures or shaped grinding wheels, inclined or
shaped surfaces can also be processed. The machine is ideal for small
businesses, maintenance industries, home workshops, laboratories, teaching
demonstrations, and more.

TECHNICAL DATA

Maximum cutting amount: not greater than 0.03 mm

Maximum linear speed of the grinding wheel: 35 m/s

Table size: 152×304 mm

Maximum grinding height: 210 mm

Longitudinal stroke of the worktable: 340 mm

Transverse travel of the worktable: 170 mm

T-slot of the worktable: 1-12 mm

Outer diameter × inner diameter × thickness of the grinding wheel: 180×32×13 mm

Grinding head motor: 550 W/220 V
Crsdpjvuuvkjfx Abwjh

Vertical feed handwheel interval: 0.025 mm

Lateral feed handwheel interval: 0.02 mm

Net weight / Gross weight: 210/260 kg

Machine dimensions: 930×780×730 mm

Package size: 1100×760×860 mm


FEATURES

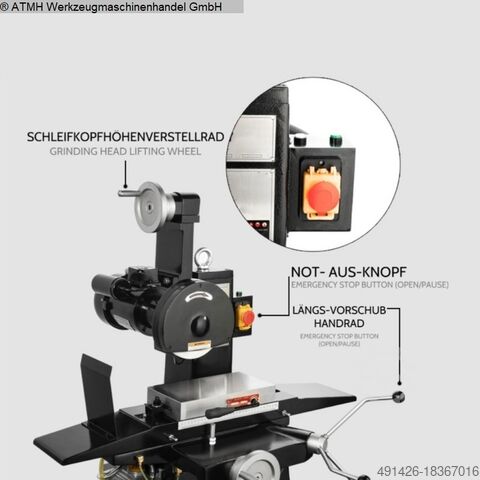

The worktable can be moved back and forth as well as left and right.
The grinding head can be raised and lowered vertically.
High rigidity of the entire machine.
The grinding head runs smoothly.
Compact design with low noise.
The machine is lubricated by a manual oil pump. To lubricate, simply pull out
the handle.


Work cabin is available separately.

If you need any other special accessories to improve work efficiency, please
contact customer service. (Special accessories must be purchased separately.)


PRODUCT INFORMATION:
From the proximal end of the main spindle to 100 mm, the radial runout of the
tapered hole axis is 0.01~0.02 mm.
