Centerless grinder cnc

GHIRINGHELLI M150 SP610

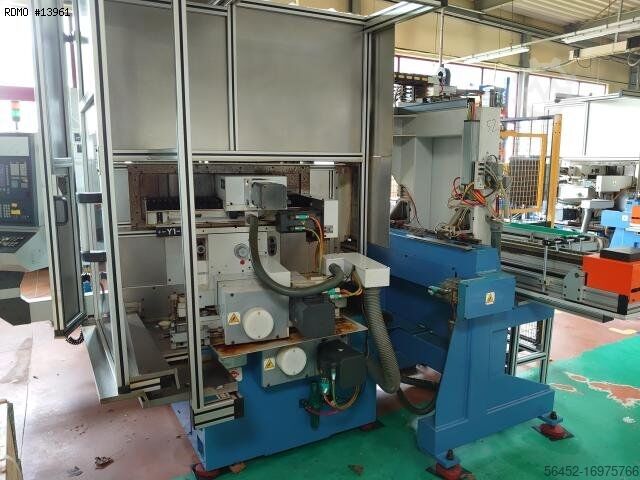

Condition: used, GHIRINGHELLI M150SP610 is a CNC centerless grinding machine designed for precision, high accuracy and reliable production. Capacities: grinding diameter 1–100 mm, infeed grinding 140 mm. Grinding wheel: new Ø610 mm (worn Ø440 mm), width 200 mm, bore 305 mm; regulating wheel: new Ø305 mm (worn Ø220 mm), width 200 mm, swivel -7/+7°. Wheel speeds: 1409 rpm (new), 1685 rpm (worn), peripheral speed 45 m/s; stepless regulating spindle 0–140 rpm; dressing speed 400 rpm. Power 3×400 V 50 Hz, air 5 bar, total installed 45 kW. Size L6200×W3200×H2542 mm, weight ≈5800 kg. Accessories: diamond wheel, automatic infeed attachment, flanges, MARPOSS E78 electronic balancing, profiling device, central lubrication, splash guard. Achieves tight tolerances; typical sectors: automotive, aerospace, medical, machine tools, watchmaking Nedpey S Dd Rsfx Akusct

Condition: refurbished (used), CN Centerless grinding machine ROSSI MONZA 1500 CN currently being overhauled and fully electrically/electronically retrofitted Ncjdpfxsmmqiro Akuot Siemens electronics with touchscreen, brushless motor on Z (workpiece diameter) and regulating wheel (adjustable RPM), step motor on grinding wheel dressing increment, auto size compensation after grinding wheel dressing Grinding wheel 350 mm * 610 mm dia This machine can be inspected in our warehouse in Gussago BS Italy Centreless grinding is a procedure for grinding cylindrical bodies and is used for mass production of rollers cylindrical, conical rollers, jet needles, pump pistons, hydraulic sliders, crosses, drills etc. During centerless plunge grinding, the workpiece is ground in one pass thanks to the translation of the grinding wheel. For this purpose, the grinding wheels and the adjustment discs have a negative profile of the piece to work which is given to them with the aid of a tool. The through-feed grinding or also through grinding and longitudinal grinding: pieces to be worked proceed uninterruptedly with axial feed through the rectification gap. Grinding wheel width: 350 Grinding wheel diameter: 600 CNC: Siemens

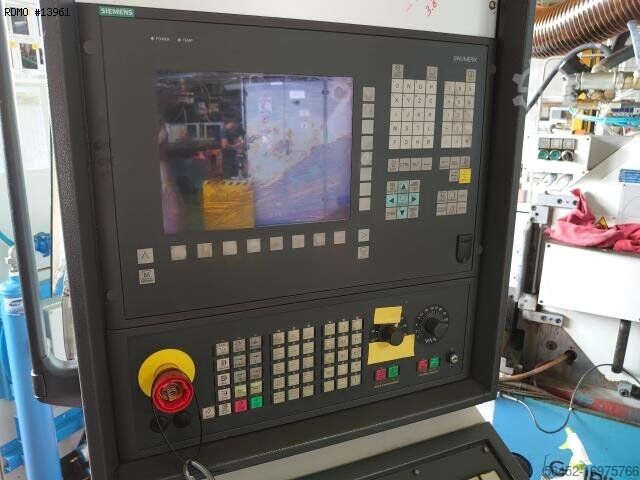

Condition: used, TECHNICAL DETAILS - Min/max. grindable diameter: 1 - 100 [mm] - Max. length of the workpiece when plunging : 140 [mm] - Min/max work wheel diameter: 440/610 [mm] - Max. working wheel width: 80 [mm] - Peripheral grinding wheel speed: 50 [m/s] - Speed with new work wheel: 1565 [rpm] - Min./max. drive wheel diameter: 220/305 [mm] - Max. width of drive wheel: 67 [mm] - Max. drive wheel inclination: +/- 7 [°] - Drive wheel speed during machining: 0/140 [rpm] - Drive wheel speed in dressing: 200 [rpm] - Total installed power: 41 [kW] - Dimensions : 5920 x 5071 x 2500 [mm] - Net weight: 7000 [kg] EQUIPMENT - CNC SIEMENS 840D control - 5 numerical axis (1 for working grinding wheels facing device, 2 for driving grinding wheels facing device, 1 for upper slide, 1 for lower slide) - working grinding wheels facing device by diamond knurling wheel Ncjdpsuhb R Ajfx Akuet - driving grinding wheels facing device by diamond center - automatic parts feed bowl - parts conveying strip

Condition: ready for operation (used), Year of construction: 2013, functionality: fully functional, machine/vehicle number: 5064, Please let us know your asking price. Sale only within Europe, incl. Turkey Nsdpfju Rdm Uox Akuoct Robot is not scope of supply - Robot not scope of supply Technical data see hand out Without packaging; any warranty rights are excluded. Should you wish to dismantle the system yourself, please inform us accordingly in your bid For the correctness of the technical data, for the completeness of accessories and tool equipment, and for compliance with all safety and environmental protection requirements specified in the accident prevention regulations.

Condition: used, Year of construction: 2002, Centerless Grinding Machine BOCCA MALANDRONE R 80/200 CNC Njdpfxehzvkdo Akujct GENERAL CHARACTERISTICS: Grinding Wheel Dimensions: Ø610xØ304,8x300 mm Regulating Wheel Dimensions: Ø355xØ152,4x300 mm
