Grinding machines - centerless

Monzesi Rossi Monza 1500 CN

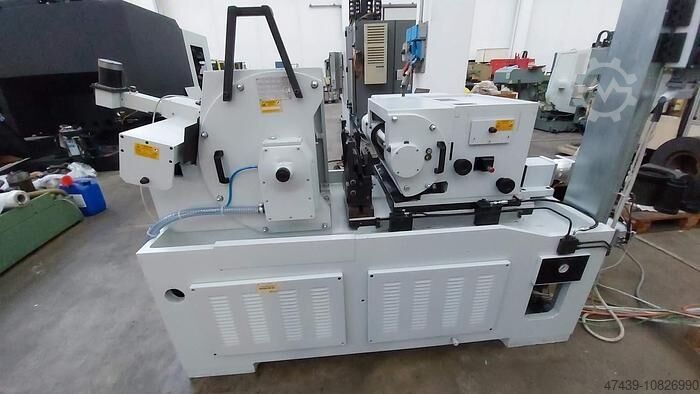

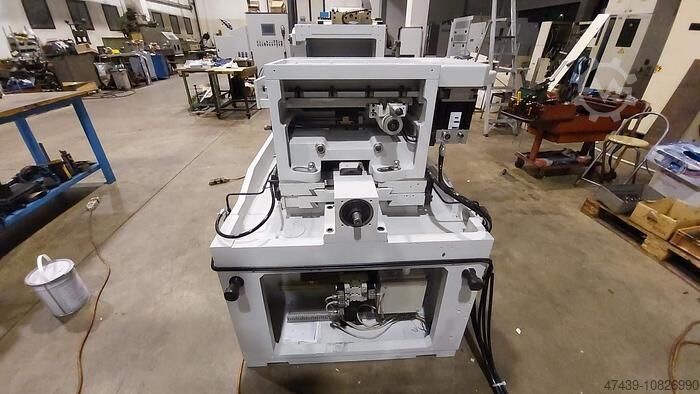

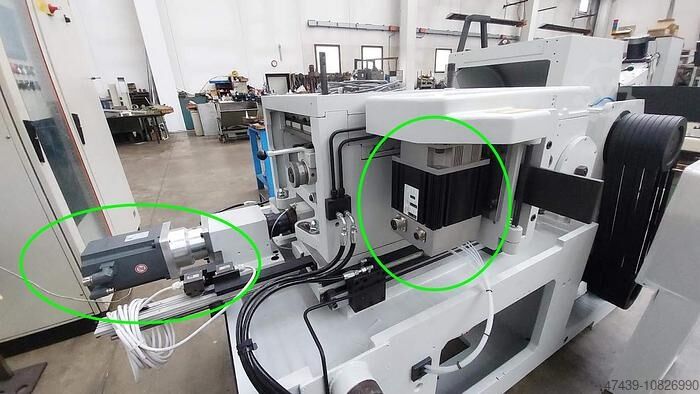

Condition: used, Centerless grinding machine Monzesi Rossi Monza 510 510 x 250 wheel Through-feed grinding + auto plunge grinding AUT7 B92Sy2Rh3O Under power in our warehouse in Gussago BS. machine tools Centerless grinding is a procedure for grinding cylindrical bodies and is used for the mass production of rollers cylindrical, tapered rollers, jet needles, pump pistons, hydraulic sliders, crosses, tips, etc. During plunge grinding, the workpiece is ground in one pass thanks to the translation of the grinding wheel. For this purpose, the grinding wheels and the adjustment discs have a negative profile of the workpiece to work which is given to them with the help of a tool. Through-feed grinding or also through grinding and longitudinal grinding: parts to be machined proceed uninterruptedly with axial advancement through the grinding gap.

Condition: good (used), Centrifuge CD 850 x 1500 TECHNICAL DATA: Dimensions: 2480 mm x 1900 mm (open doors) x 2420 mm Installed power: 37 kW Weight: 2150 kg Chdjd3Vc The centrifuge is taken directly from the current production and is sold as seen. Technical documents (machine-expose) will be sent on request. Viewing and collection in 9125 Kühnsdorf / Austria.

Year of construction: 2023, Condition: new, PLASMA CUTTING MACHINE MODEL MTX 1500/3000 Construction: steel+aluminium Overall dimensions: 3350/2200/1300 Working area: 3100/1520/140 XY axis drive: 4Nm stepper motors with gears, precision grade 8 Z axis drive: stepper motor ball screw Travel speed: up to 25m/min Z axis control system: THC My plasma system Collision protection system to prevent burner damage Linear guide: TBI Automatic material detection system Power supply: 240V Maximum load: 1700kg Total weight: 1200kg net INCLUDED: - control panel -water table -exchangeable grate -control software in German, English, Polish -Certification of conformity CE Bdpq7L - DTR - warranty The possibility of selecting the appropriate Hypertherm cutter to individual needs of the company.

Condition: excellent (used), Year of construction: 2007, DP 1500 KEL VARIA 1500 CNC Nzxxdprobf

Condition: good (used), Year of construction: 2015, Functionality: fully functional, Machine/vehicle number: 112902, Title: Intorex CNI 1500 CNC Control Lathe - 2015 Model Description: Experience precision engineering at its finest with the Intorex CNI 1500 CNC Control Lathe, a powerhouse of machining. Manufactured in 2015, this machine embodies reliability, accuracy, and efficiency, making it an ideal addition to any workshop or manufacturing facility. Key Features: Year of Manufacture: 2015 Brand: Intorex Model: CNI 1500 Control: CNC Control Max. Turning Diameter: 300mm Diameter Max. Turning Length: 1500mm Inc. Drawing and programming Software IntorEDIT (easy to use) Additional Features: Adjustable Tailstock (12 & 18mm), Round steady (90mm Dia & 140mm Dia), 2 pneumatic centerers to facilitate the loading of the pieces Applications: Ideal for precision turning operations in Woodworking / Joinery Reason for Selling: Upgrading to newer equipment. Isux8Qi Comes with rolling cabinet for accessories and tooling

Condition: good (used), Year of construction: 2003, Boschert TRI 1500 CNC Z Rota Revo TRUMPF quick tool change system Punching force: 3x 280 kN (28 tons) Station1 Trumpf SystemTool -Gr. 3 (105 mm) with spraying device Station2 Trumpf SystemTool- Size 3 (105 mm) rotation freely indexable Cd3Z7Shcpw Station3 Trumpf SystemTool/Boschert Revotool -Gr.3 (105 mm) incl. Revotool 8-fold tool holder Travel x- 2800 mm (repositioning up to 9999 mm) y- 1580 mm punching arm throat: 1730 mm tool system Trumpf Gr1-3(105mm) Labod 32050 graphic control / workshop programmable Max. Sheet thickness: 6 mm(jaw opening) Max. Lifting height: 90 mm up and down infinitely programmable. Punching slug extraction Fast hydraulics 400 strokes/min Ball rollers in the machine table Table width left + right: 2800 mm each Table depth: 2810 mm Table height: 900 mm Total width: 5482 mm total depth: 4600 mm total height: 2110 mm Driving power: 25 kVA Machine weight: 15.800 kg Hydraulic filling: 160l Color: Blue RAL 5017/Light gray RAL7035 Machine year 2003 Very well maintained condition - Partially overhauled with a lot of accessories

Condition: new, Working range Geometric and working accuracy ISO 13041-1 Max. orbital diameter over bed mm 550 Swing diameter over cross support mm 350 Center distance mm 1'600 Max. Max. workpiece weight kg 1'000 Work spindle Spindle nose ISO 702-3 8 Spindle bore mm 82 Spindle taper metric 90 Main drive Dpnjrb Drive power kW 17 Automatic 2-stage gearbox Spindle speed range min-1 0 - 3,000 Spindle speed range - 1st stage min-1 0 - 750 Spindle speed range - 2nd stage min-1 20 - 3,000 Max. Torque in spindle - 1st stage (S1/S6-40%) Nm 1'300 Max. Torque in spindle - 2nd stage (S1/S6-40%) Nm 295 X-axis Max. Max. travel mm 285 Rapid traverse mm / min 10'000 Ball screw - diameter / pitch mm 25 / 5 Max. Feed force N 5'000 Accuracy of repeated position approach according to ČSN ISO 230-2 mm 0.01 Z-axis Max. Max. travel mm 1'590 Rapid traverse mm.min-1 10'000 Ball screw - diameter/pitch mm 40 / 5 Max. Feed force N 10'000 Accuracy of repeated position approach according to ČSN ISO 230-2 mm 0.015 Standard tool holder MULTIFIX C Max. Cross-section of the steel mm 32 x 32 8-position tool turret Max. Cross section of steel mm 20 x 20 Tailstock Quill diameter mm 90 Quill stroke mm 160 Inner taper in quill - Morse 5 Machine dimensions Length x width x height mm 3'238 x 1'920 x 1'755 Weight of the machine kg 3'400

Condition: new, The CNC box-way lathes of the Numturn 500 Series are suitable for a wide spectrum of applications. Baebx03Lnm2 They are ideal for single parts production and also for cost-effective small batch production of larger workpieces. The standard package includes an automatic 8-station tool turret and a hydraulic power chuck providing even more flexibility and productivity. The Fagor control is a superior tool for workshop programming and an easy to use CNC solution with an excellent price/performance ratio. Our complete data sheet with all details and technical data can be found here under Documents as a PDF download.

Condition: used, Year of construction: 2001, turning diameter 640 mm turning length 1500 mm control SIEMENS SINUMERIK 820 D turning diameter over slide 420 mm spindle bore 65 mm centre height 320 mm centre distance 1500 mm Bfrqp0Gt bed width 440 mm spindle drive 17 kW max. torque on the spindle max. 162 Nm rapid travel - longitudinal/face 10 / 5 m/min feed power 10000 / 9500 N tailstock quill diameter 100 mm tailstock quill stroke 240 mm tailstock taper MT 5 total power requirement 25 kW weight of the machine ca. 5,5 t Accessories: 3-jaw chuck 310 mmø, various tool holders for turret, running center, coolant

Condition: good (used), Year of construction: 2003, 6 inches Lathe with C and Y axis Year Model 2003 Dppast Fanuc 18iT Control Unit 15kw spindle main motor 550mm 600mm 350mm Y 100mm Feeder 45 Spindle Power 6000rpm 12 Station Turret Probe for tooling

Condition: used, TECHNICAL DETAILS - Number of axes : 4 MAIN SPINDLE - Spindle power : 26 [kW] - Spindle speeds : 4000 [rpm] - Max. bar diameter : 77 [mm] - Max. turning diameter : 420 [mm] - Max. diameter on bench : 750 [mm] - Spindle nose : A2-8 - C axis indexing precision : 0,001 [°] TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 260 / 1605 [mm] - Y stroke : +/- 75 [mm] - Tool type : VDI 50 - Live tools speed : 25 - 4.000 [rpm] - Live tools power : 7,5 [kW] TAILSTOCK - Tailstock type : Numérique - Type of cone : CM4 - Distance between centers : 1.500 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 55,6 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 4.270 x 2.206 [mm] - Machine height : 2.165 [mm] - Machine weight : 7 800 [kg] MACHINE HOURS - Number of hours under power : 35.546 [h] EQUIPMENT - CNC : Mazatrol 640T NEXUS - Interface : USB / RJ45 / RS232 - Coolant tank : 350 [l] - Chips conveyor - Tool probe - Parts catcher - Predisposition for barfeeder - Rest : SMW SLU-3.1-MS Ø20-165 Dprztv - Number of turning tool holders : 2 - Number of fixed tool holders : 10 - Chuck 3 jaws : KITAGAWA B210

Condition: excellent (used), Year of construction: 2012, CNC Lathe - 2 Axes CN : FANUC oi-TD Equipped with : 10-position automatic turret 1 hydro chuck 3 concentric jaws ø 375mm Tool feeler Set of tool holders Chip conveyor Specifications : Max. bed clearance 600 mm Max. passage on carriage 420 mm Max. turning Ø 490 mm Distance between centres 1530 mm Spindle bore 89 mm Max. rotation speeds 2500 rpm Sleeve counterpoint dia 130 mm CM4 Counter-spindle stroke 200 mm Main motor power 30 kW Dimensions 4,990 x 1,880 mm Dpfgsz Weight 9,000 kg

Condition: good (used), Year of construction: 2003, Explore this used Mori Seiki SL 303 MC / 1500 CNC lathe from 2003, located in Spain. Boasting precision and versatility, this powerhouse is armed with the advanced Mori Seiki MSX 501 control unit, ensuring seamless operation and control. With a substantial turning length of 1450 mm, it accommodates diverse machining tasks, while the formidable 3000 rpm spindle speed guarantees swift and accurate results. The dynamic motor power of 22/18.5 kW adds to its prowess, making it a reliable choice for demanding metalworking applications. Elevate your production capabilities with this used Mori Seiki gem, where innovation meets performance for unparalleled machining excellence. Technical specifications: Control Unit: Equipped with the advanced Mori Seiki MSX 501 control unit for seamless operation and control. Year: 2003 Location: Spain Turning Length: 1450 mm Spindle Speed: 3000 rpm Motor Power: 22/18.5 kW Condition: Used Dimensions Length: 4600 mm Width: 2060 mm Weight:9000 kg C90Be0U Special Features: Precision and Versatility: This CNC lathe offers precision and versatility for diverse machining tasks. Advanced Control Unit: The advanced Mori Seiki MSX 501 control unit ensures seamless operation and control. Swift and Accurate Results: The formidable spindle speed of 3000 rpm guarantees swift and accurate machining results. ____ *Information may be inaccurate and subject to change without notice. This description could have been automatically translated, and details in this classified ad are indicative and subject to change. GLOMACHT advises verifying specifications or else.

Condition: used, Year of construction: 2000, turning diameter 500 mm turning length 1500 mm control Monforts Euro Turn turning dia. over slide 290 mm spindle bore 70 mm spindle tunring speed 2 - 2800 U/min spindle drive 15 kW bed width 360 mm face slide travel 265 mm upper slide way 140 mm total power requirement 16 kW weight of the machine ca. 3,3 t dimensions of the machine ca. 3,45 x 1,65 x 1,93 m In our opinion, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools and clamping devices shown are only included in the scope Uzgbhq83Zd of delivery if this is noted in the additional information. Subject to changes and errors in the technical data and information as well as prior sale!

Condition: used, Year of construction: 2009, Mori Seiki NZ1500T2Y Year 2009 Used Mori Seiki NZ1500, with Twin Spindle, Twin Turret, with Driven Tools & 2 x Y Axis, CNC Lathe with Barfeed, Swarf conveyor, Parts unloader, and parts conveyor. Fitted with Mori Seiki Fanuc based MSX-701 iii control. Note: Photo'd as received this morning, more pictures to follow once power up. Control: MSX-701III Capacity: Swing over bed 800 mm. Max distance between spindle nose 1,130 mm. Max. turning diameter 320 mm. Max. workpiece diameter for transferring 300 mm. Max. turning length 810 mm. Bar work capacity 52 mm. Axis: X1 Axis Travel 210 mm. X2 Axis Travel 210 mm. Y1 Axis Travel +65 / -45 Y2 Axis Travel -65 / +45 Z1 Axis Travel 810 mm. Z2 Axis Travel 810 mm. Spindle 2 B-Axis Travel 900 mm. C Axis in Main Spindle INCLUIDO/ INCLUDED Feeds: Feed X1/X2 Axis 30.000 mm./min. Z1/Z2 Rapid Feed Z1/Z2 Axis 50.000 m./min. Work feed 0-5000 mm/min. Main Spindle Speed: 60-6.000 rpm Speed ranges 2 Power: 22//18 kW Quill diameter 61 mm. Nose A2-5 Min Spindle indexing range 0.001º Spindle 2 Speed: 60-6.000 rpm Power: 22//18 kW Quill diameter 61 mm. Nose A2-5 Min Spindle indexing range 0.001º Turret Turret type 16 station x 2 Driven Tools Speed 6.000 rpm Max Power Driven Tools 7.5 / 5.5 kW Equipment Swarf Conveyor Parts unloader Parts conveyor Us82In3D8L Bar Feed Hydrafeed Multi Servo Machine Weight 8.300 kg Machine Dimensions (LxWxH) 3.930 x 2.718 x 2.320 mm

Condition: good (used), Year of construction: 2000, Punch press Manufacturer: EHT Type: Strippit 1500/30 Year of manufacture: 2000 CNC control: Fanuc Working area without repositioning: 2500 x 1500 mm Iswduya Material thickness max.: 8 mm Punching force: 30 to. Turret with 46 tool stations including 4 index stations size D 3 programmable clamps Metal table used exclusively in single-shift operation incl. WILSON TOOL tools

Condition: as good as new (ex-display), Year of construction: 2021, Operating hours: 400 h, Functionality: fully functional, Turning length: 1,500 mm, Turning diameter over cross slide: 650 mm, Turning diameter: 650 mm, Spindle speed (max.): 4,200 rpm, 5-axis / 7-axis CNC twin spindle turning and milling center. Okuma Multus U3000 1SW 1500. Year of manufacture 2021. CNC control OSP P300SA IGF-D. 400 spindle hours. Bztvf7B3U Swing diameter over slide 650 mm. Turning length 1500 mm. Main spindle: Bar capacity 81 mm. Spindle drive motor 15/22 kW. Spindle speeds up to 4200 rpm. Chuck diameter 250 mm. C axis 0.0001°. Counter spindle: Bar capacity 81 mm. Spindle drive motor 15/22 kW. Spindle speeds up to 4200 rpm. Chuck diameter 250 mm. C axis 0.0001°. Tool support: Single tool carrier in the work area. Tool for turning (L) and milling (M). CAPTO C6 tool holder. Tool drive motor (milling/M) 19/25 kW. Tool speeds (milling/M) 50 - 12000 rpm. Tool magazine and automatic tool changer. Tool positions - 80 times Axis/travel paths: X facing travel 645 mm. Z longitudinal travel 1600 mm. Y vertical travel (off-center) 250 mm. B Swivel range 240° (0.0001°). C1 (spindle left) 360° / 0.0001°. C2 (spindle right) 360° / 0.0001°. W Counter spindle longitudinal travel 1594 mm. Complex complete processing at high speed for small to medium batch sizes: The Okuma MULTUS combines the advantages of lathes and vertical centers. For optimal stability and damping, all linear guides are equipped with cylindrical rollers. The Thermo-Friendly concept ensures high dimensional stability - even when the ambient temperature changes. This MULTUS U3000 is a multitasking machine with automatic tool changer and counter spindle. This 10-inch feed class machine has a wide range of machining features and is the embodiment of power, speed and process flexibility. With this machine you can do the work in one setup and with free tools in the ATC. The MULTUS U3000 has a B-axis range of 240° with a 12,000 rpm H1 milling spindle with dual function (L/M). The H1 dual function spindle head uses CAPTO C6 tools and has a high performance 25kW milling motor spindle. The H1 turret features a 0.001 degree B-axis, provided by a moving column Y-axis feed, enabling powerful Y-axis machining over a 250mm range. Both the left and right spindles are equipped with a fully contoured C-axis. Thanks to the OSP-P300 control, familiar programming methods from the lathe and machining center disciplines can be easily combined, so that advanced functions such as the “Collision Avoidance System” are standard.

Condition: ready for operation (used), Year of construction: 2007, Functionality: fully functional, Overall weight: 6,600 kg, MORI SEIKI - ZT 1500 YB Year of construction: 6 / 2007 Control system: MSX 501 MAPPS III (Fanuc) Country of origin: Japan Delivery time: Immediately / by arrangement Freight basis: ex location Technical details Turning diameter: max. 310mm turning length: 235mm Control: MSX 501 MAPPS III (Fanuc) Main spindle Speed range - main spindle 50 - 5,000min/-1 Drive power - main spindle 22 / 18.5kW Spindle bearing diameter 120mm spindle bore 73mm Usable bar diameter 52mm C-axis 0.001° counter spindle Speed range - counter spindle 50 - 5,000min/-1 Drive power - counter spindle 22 / 18.5kW Chuck diameter 170mm Tool turret: Number of turrets 2 Number of tool stations 2x 12pos. Gxcyrpu Number of driven tool stations 2x 12pos. Speed range - driven tool stations max. 6,000min -1 Drive power of driven tool stations 5.5 / 2.2kW Shank height for square tool 20mm Shank diameter of drill 25mm Indexing time 0.2sec Tool holder VDI 30 Travel distances x-axis 1: 140 / 2: 140mm y-axis 100 (+/- 50)mm z-axis 1: 700 / 2: 690mm Travel distance counter spindle B: 775mm Feed rates Rapid traverse X 1/2: 18m/min Rapid traverse Y: 6m/min Rapid traverse Z 1/2: 24m/min Rapid traverse B: 24m/min Rapid traverse C: 400min/-1 Accessories Chip conveyor -Coolant device -Interface bar feeder available -No bar feeder included in scope of delivery Machine weight: 6600kg Space requirement approx. 4.5 x 2.8 x 2.2m

Condition: excellent (used), Year of construction: 2016, Operating hours: 2,000 h, Functionality: fully functional, Turning length: 1,500 mm, Turning diameter: 650 mm, Machine in immaculate condition. Built in 2016, installed in 2018. Hardly any hours, no brainer. Can be viewed immediately. Attention! Full option technology, software and adaptation for high-precision gearing included! (Okuma Gear Machining Package) Gear hobbing, which previously required complex programming, can now be performed with ease. Thanks to the simple programming, only the tool type, tooth data and cutting conditions need to be entered to achieve high-precision machining. The programming time is reduced to around a tenth of the manual input. Process-intensive machining is made possible, including gear hobbing, which was previously carried out on expensive special machines. Control system: OSP 300 S Max. Turning diameter: 650 mm Ue2Ooncvpp Max. turning length: 1,500 mm Main spindle: Big Bore spindle Drive power: 32/22 kW Max. spindle speed: 3,000 rpm Spindle nose: A2-11 Counter spindle Big Bore spindle Drive power: 32/22 kW max. spindle speed 3,000 rpm spindle nose: A2-11 Milling spindle Drive power: 22 kW max. spindle speed: 12,000 rpm Full B-axis HSK-63 Travel X-axis: 695 mm Y-axis: 300 mm Z-axis: 1,600 mm W-axis: 1,554 mm B-axis: -30° to +210° Tool magazine / ATC 80 tool positions Further equipment High-precision option C-axis main and counter spindle Air on the spindle Full B-axis Hydraulic steady rest, SMW Autoblok K4 Clamping range: 30-245 mm Chip conveyor, MT10 20 bar high pressure pump Cooling through the spindle Renishaw system, RMP60 probe Renishaw TRS2 tool breakage control API Library 2 One-Touch IGF Advance M-D Kit Spiral turning function CAS anti-collision control Structure thermal drift control (TAS-C) and spindle line (TAS-S) Preparation for multiple holders Simultaneous 5-axis kit Super-Nurbs Tool center point control II Inverse time feed DNC-DT Tool posture command Herical cutting Slope machining Gear machining package Skyving Hobbing Zero offset Z-axes after measuring on main spindle Zero offset Z-axes after measuring on counter spindle Zero offset C-axis after measuring at main spindle Zero offset C-axis after measuring on counter spindle Operating hours Switch-on time: approx. 9,000 hours Machining: approx. 2,200 hours

Condition: excellent (used), Year of construction: 2009, With additional sanding aggregate for sanding strips and drilling aggregate in loader. Max. length to be mechanized: 1500 mm Max. diameter to be mechanized: 200mm Axes stroke: lineal: X: 1500mm Y: 500mm Z: 500mm Y2: 400mm Y3: 400mm Y4: 400mm rotational: A: 360 B: +/- 90 Horizontal headstock (rotation of the piece): Biqmg7Lwkzm - power: 22,2 kW - rotation speed: 0-1500 rpm Electro spindle (with tool changer) - power: 12 kW - rotation speed: 0-24000 rpm Tools change: - type: HSK F 63 - lineal: 6 positions Weight of the machine: 4000 kg Dimensions: 5000 x 3200 x 2800 (h)

Condition: good (used), Year of construction: 1998, Functionality: limited functionality, Machine/vehicle number: 0014, Turning length: 1,500 mm, Turning diameter over cross slide: 610 mm, Turning diameter: 580 mm, Spindle motor power: 30,000 W, Spindle speed (min.): 14 rpm, Spindle speed (max.): 3,200 rpm, Spindle bore: 90 mm, Travel distance X-axis: 598 mm, Travel distance Y-axis: 230 mm, Travel distance Z-axis: 1,660 mm, Rapid traverse Z-axis: 20,000 mm/min, Okuma MacTurn 50X1500 CNC Controller OSP 7000L max. turning diameter 580 mm turning length 1500 mm swing diameter over bed 610 mm swing diameter over slide rest 580 mm Main spindle: turning speed range - main spindle 14 - 3200 min/-1 spindle bearing diameter 130 mm spindle bore 90 mm spindle nose JIS A2-11 power capacity - main spindel 30 (22) kW C-Axis 0,001 ° axis stroke: x-axis 598 mm y-axis 230 (+110 / -120) mm z-axis 1.660 mm feeds: rapid traverse X / Y: 12.000 mm/min rapid traverse Z: 20.000 mm/min rapid traverse C: 100 min/-1 cutting feed speed X / Z / Y: 0,001 - 1.000 mm/U turret: type H2 ATC number of toolpositions 2 (1x L-Tool / 1x M-Tool) pos. driven statition stufenlos / stepless Spindle speed - driven tool stations 40 - 3.000 min -1 Tailstock: diameter of quill 120 mm quill stroke 170 mm taper of center MK 5 T92Mfujjyx tool magazin: number of toolpositions 32 pos. tool taper MAS BT 50 max. tool diameter 170 mm max. tool length 350 mm max. tool weight 20 kg drive of magazin 3,2 kW total power requirement 53 kVA weight of the machine ca. 18,5 t dimensions of the machine ca. 5,3 x 3,2 x 3,0 m Chipconvyer "Machine have today broken panel to ATC and broken M-spindle motor"

Condition: like new (used), Year of construction: 2023, turning diameter 620 mm turning length 1500 mm control Siemens 808D spindle bore 100 mm turning diameter over slide 420 mm spindle turning speed range 10 - 4000 U/min Srup2 main drive 41 kW rapid traverse speed 10000 mm/min total power requirement 65 kW weight of the machine ca. 9 t dimensions of the machine ca. 6,4 x 3,0 x 2,5 m Control unit CNC Siemens 808D new Drives/Servomotores, 24 month warranty on equipment - Chip Conveyor - Tool cooling system - Tailstock - Tool changer (Tower) with 8 positions OPTIONAL INCLUDED - - piece support (Lunete)

Condition: good (used), Year of construction: 2009, Functionality: fully functional, Turning length: 1,500 mm, Turning diameter: 550 mm, Spindle motor power: 22,000 W, Spindle speed (min.): 3,800 rpm, Spindle bore: 80 mm, Power: 22 kW (29.91 HP), Equipment: Rotational Speed Infinitely Variable, Okuma Macturn 350 2SW-1500 Big Bore main spindle, machine type CNC turning-milling center Make / Manufacturer Okuma Okuma Model / Type MacTurn 350 2SW1500 BigBore Year of manufacture 2008 / 2009 Control OSP P 200 L IGF One Touch Advanced + CAS Spindle turning time 6437 h Technical data max. turning diameter : 550 mm max. turning length : 1,500 mm Travel of upper turret (milling spindle): X-axis : 505 mm/190 mm/1670 mm Y-axis : 190 mm ( +95 /-95 ) Z-axis : 1670 mm W-axis : 1680 mm Lower turret travel: X/Z 210 mm/ 1670 mm Main spindle "Big Bore" version Spindle motor main spindle 22 kW, 412 Nm Max. speed main spindle 3800 rpm Spindle nose Main spindle JIS A2-8 spindle bore 80 mm max. bar diameter : 71 mm C-axis 0.001 ° Counter spindle "Super Big Bore" version Counter spindle motor 22 kW, 412 Nm max. counter spindle speed 3300 rpm Spindle end counter spindle JIS A2-8 Spindle diameter 80 mm max. bar diameter : 71 mm Milling spindle spindle motor milling spindle : 11 kW max. milling spindle speed : 12000 rpm tool holder : HSK 63 B-axis : 0.001° tool magazine : 44 stations lower turret Tool positions : 12 Tool holder : VDI-40, driven tool stations : 12 positions max. power driven tools : 7,5 kW max. speed of driven tools : 4500 rpm machine weight : approx. 15.000 kg space requirement 6000 x 3500 x 3000 cm Further equipment features - High pressure cooling 40 bar - Interlit ISF 614 chip conveyor - Interlit SBP 4 heavy-duty crane filter - Touch setter - Helical Cutting - 4 Extra M- Code Set - 2x hydraulic power chuck SMW BH-D 315-95 diam. 250 mm - DNC- T1 interface - RS 232 C interface - Chuck blow-off function main- counter spindle - TAS -S + TAC-C Status report after commissioning in Bergisch Gladbach Measurement results Geometry Dpdqph Backlash XA - axle 0.015 mm Backlash XB - axle 0.015 mm Backlash ZA - axle 0.020 mm Backlash ZB - axis 0.020 mm Backlash Y - axis 0.010 mm XA - axis measured with plug gauge at 300 mm 0.02, YA at 300 mm 0.007in T1,T2, T3 B-axis : Alignment and function good M- drive lower turret : tested and good Milling spindle : tested up to 6000 rpm, no abnormalities Main / counter spindle tested, no anomalies High pressure pump function good, no anomalies Accessories - 2 x hydraulic crane chuck SMW - Pallet with 16 pcs. driven tool holders , 10 pcs. HSK 63 holders , 3 pcs. VDI 40 holders - Lifting hook front - All original axle locks Neff The Okuma specialist and NeffBuy We are also happy to provide you with an all-round carefree package, a visit to our showroom including demonstration and acceptance, loading, transportation, installation and commissioning of the machine as well as instruction and subsequent service. We provide Okuma CNC service throughout Europe, both electronically and mechanically, and on top of that we have a 1200 m2 stock of all Okuma spare parts, please visit our homepage.

Condition: excellent (used), Year of construction: 2015, Operating hours: 12,980 h, Functionality: fully functional, Machine/vehicle number: AV0338, Equipment: Documentation/Manual, Spinner TC800-85SMCY with Spinner Servo Load 80-1500 short loader Machine data Manufacturer: Spinner Machine type: TC800-85SMCY Year of construction: 2015 Condition: very good(used) 12980 operating hours Data on the bar short loader Manufacturer: Spinner Machine type: Servo Load 80-1500 Bars up to 1500mm length and diameter up to Ø80mm Machine description Fanuc 32i-TB control unit with 15" flat screen With manual guide Main spindle spindle outlet with Hainbuch chuck up to Ø80mm changeable to 3-jaw SMW Autoblok chuck up to Ø315mm Counter spindle with Hainbuch chuck tap up to Ø65mm 12-position turret with VDI50 holder each station can be equipped with driven tools With accessories Yaxkirfo Driven tools The machine is currently still under power and could be inspected. Only self-collection with dismantling. Further information can be requested.

Condition: excellent (used), Year of construction: 2008, Max. length to be mechanized: 1500 mm Max. diameter to be mechanized: 200mm Axes stroke: lineal: X: 1500mm Y: 500mm Ce20Ih097N Z: 500mm Y2: 400mm Y3: 400mm Y4: 400mm rotational: A: 360 B: +/- 90 Horizontal headstock (rotation of the piece): - power: 22,2 kW - rotation speed: 0-1500 rpm Electro spindle (with tool changer) - power: 12 kW - rotation speed: 0-24000 rpm Tools change: - type: HSK F 63 - lineal: 6 positions Weight of the machine: 4000 kg Dimensions: 5000 x 3200 x 2800 (h)
