CNC lathe – spare parts donor with Eltropilot EPL 2 control unit, automatic lathe

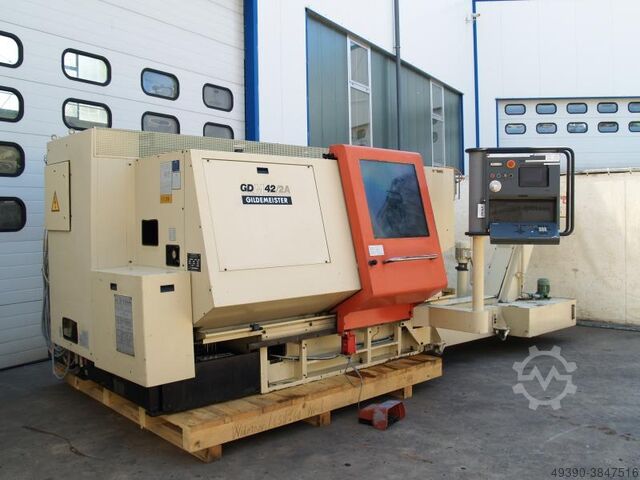

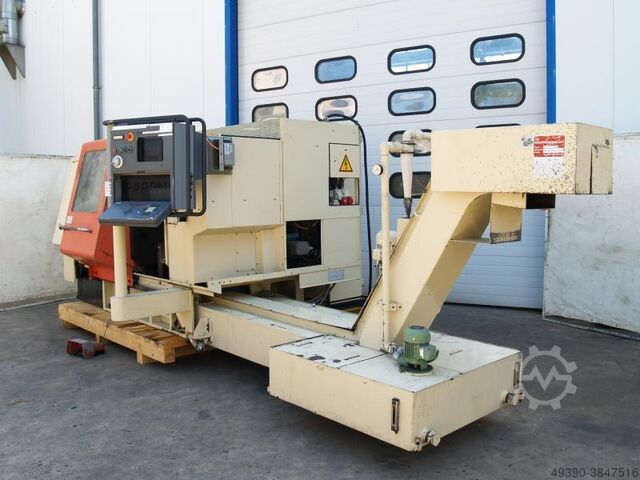

GILDEMEISTER GDM 42/2A

Spare parts donor
We are dismantling the CNC turning machine GILDEMEISTER, type GDM 42/2A
CNC control system Eltropilot EPL 2
Machine no. 4.5733, year of manufacture 1989
Machine not operational - electrical problems
Turning diameter, normal: 185 mm
Swinging diameter, max.: 400 mm
Cross slide travel = planar travel: 190 mm
Longitudinal slide travel = longitudinal travel: 450 mm
Spindle bore in the turning spindle: 52.7 mm
Spindle passage in the draw tube: Ø 42 mm
Feed rate X and Z, max.: 3000 mm/min
Spindle speed: 40-6300 rpm, continuously variable
Motor power, spindle drive: 22 kW
Mains connection: 400 volts, 50 Hz, 45 kVA
- Hydraulic 3-jaw chuck FORKARDT, Ø 200 mm

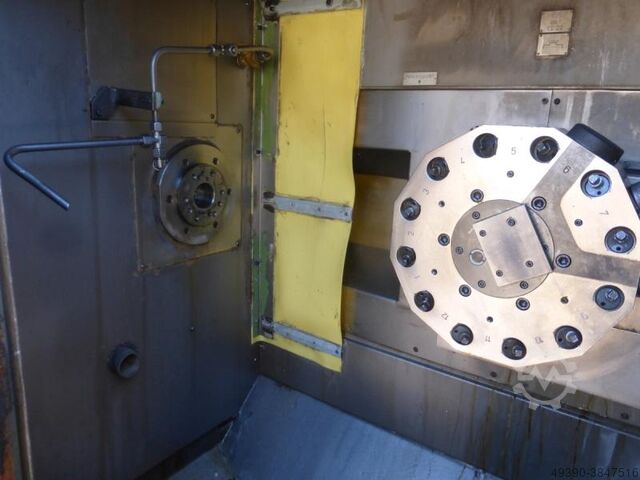

- Tool turret, 12-station, VDI 40, every second station powered
- Powered tool station in 6 stations
- Electrical cabinet located beside the machine
Footprint of the complete machine, L x W x H: 5000 x 2500 x 2100 mm
Weight of the complete system: approx. 5.7 tons
good condition
Hjdedzqm Repfx Adzor

Transport dimensions:
Footprint of the base machine, L x W x H: 3000 x 2300 x 1900 mm
Weight of the base machine: approx. 4.8 tons
Footprint of the machine's electrical cabinet, L x W x H: 2500 x 550 x 2000 mm
Weight of the machine's electrical cabinet: approx. 450 kg

without chip conveyor
Main motor missing
Individual parts available upon request

In the electrical cabinet:
Siemens Siemens 6SC6101-3A-Z + the circuit boards
