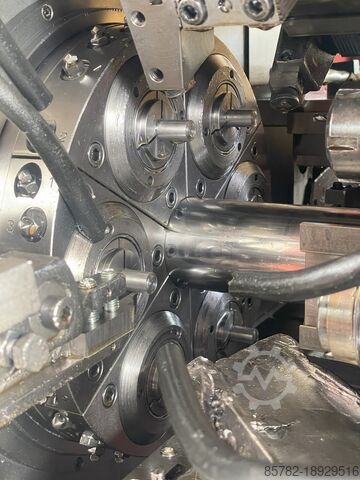

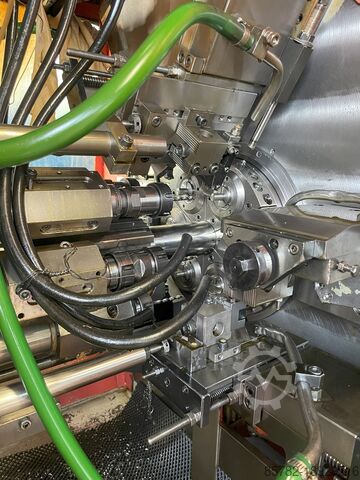

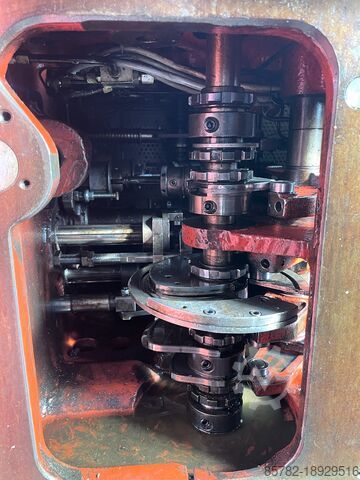

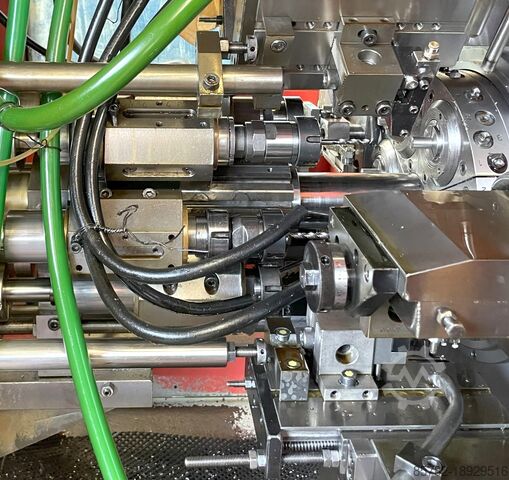

Multispindle lathe

GILDEMEISTER GM20

Condition: new, TECHNICAL DATA: - Number of spindles: 6 - Maximum bar diameter: 20 [mm] -Bar passage extension on request 25 [mm] - Cross carriages : 4 (pos.1-2-4-5) - Maximum feed length: 100 [mm] - Main spindle speeds : 400 - 4000 [rpm] with threading,400- 5000 [rpm] without threading Bodpfxeq Nzl Te Af Hodk - Travel time: 0.7 [s] - Cycle time: 1.4 - 60 [s] - Power: 11 [KW] ELECTRICAL PROVISION FOR LOADER INTERFACE Hardware and Software Interface for Loader ELECTRICAL EQUIPMENT consisting of theAC motors (protection type lP 54), main motor and feed with a PLC programmable Siemens S7-1500 DOCUMENTATION: CE certification with manuals Wiring diagrams I Hard copy + 1 Copy on USB with files in .pdf format EC Directive 2006142lCE - 2014130/EC 2O14I68IUE STANDARD

Condition: used, Year of construction: 2014, DOOSAN DNM 650 II MACHINING CENTER YEAR OF FIRST INSTALLATION: 2014 CNC: SIEMENS SINUMERIK 828 D TABLE DIMENSIONS: 1,300 mm x 670 mm MAX. WEIGHT ON THE TABLE: KG. 1,000 TRAVELS: X: 1,270 mm Y: 670 mm Bodpfx Afswcg I Tj Hjdk Z: 625 mm TOOL MAGAZINE: 30 POSITIONS TAPER: ISO 40 MAX. SPINDLE SPEED: 12,000 RPM INTERNAL SPINDLE COOLING / HIGH PRESSURE SPINDLE MOTOR POWER: 15 KW MACHINE IN PERFECT CONDITION COMPLETE WITH ALL MANUALS WEIGHT: KG. 8,500

Condition: new, Year of construction: 2024, Gildemeister 20ACN allows, again via SIEMENS operator panel, to set and change spindle rpm, cycle time and thread speed easily. It can machine workpieces up to 25 mm in size with equal ease and precision. It offers the possibility of mounting NC slides. Position 6 consists of: NC parting slide and NC take-up slide, NC take-up spindle with variable rpm, with synchronization and stop. The NC take-up spindle, specifically programmed, has the option of becoming a C-axis. Technical data: Bdsdpfouqh Ihjx Af Hjk - Max. round bar diameter mm 20 / 25 - Max. square bar diameter mm 17 - Bar pusher mm 100 / 125 - Front spindle stroke mm 86 - Longitudinal guide block stroke mm 50 - Radial slide stroke mm 42 / CNC 50 - Axial slide stroke mm 50 / CNC 56 - CNC cutting stroke mm 42 - CNC pickup slide stroke mm 42 - CNC Pickup Spindle Stroke mm 100 - Continuous spindle speed rpm rpm 420 - 5,000 - Rapid traverse times s 0.5 - 0.7 - Main drive power 11 kW / CNC 15 kW - Installation area without bar guide mm 4,000 x 1,900 - Net weight kg 5,500 The Gildemeister 20AC, on the other hand, is a multispindle lathe that targets highly specialized industries where precision and accuracy are imperative.

Condition: excellent (used), Year of construction: 2010, operating hours: 15,600 h, functionality: fully functional, Spindle speed: 50-6000rpm Movement XA-XB: 205mm ZA-ZB: 700mm W: 730mm YA-YB: 95mm Turrets: 2x 16pos Multitasking V16 Spindlespeed live tools: 45-6000rpm Motors live tools: 5.5/3.7kW Spindle motors: 22/15kW Manufacturing year: 2010.12 Length: 3300mm Width: 2500mm Height: 2500mm Weight: 9000kg Bdedpowfr R Ejfx Af Hek Robot interface

Condition: used, Year of construction: 2011, Mazak HC Nexus 6000-II Mazatrol Matrix Nexus Bedpev Tvivofx Af Hjdk Year: December 2011 Pallet Size: 500mm x 500mm Movement: - X: 800 mm - Y: 800 mm - Z: 800 mm Max Workpiece: Ø 900 mm x 1000 mm Max Table Load: 1000 kg Spindle Speed: 10,000 rpm (2 gears) Spindle Power: 30/37kW Spindle Taper: CAT 50 Rapid Traverse X/Y/Z: 60 m/min Tool Magazine: 80

Condition: excellent (used), New 2008 Swing over bed - 600 (Ø 23.62) Diameter × length - Ø 300 × 600 (Ø 11.81 × 23.62) Max. diameter - Ø 380 (Ø 14.96) Bdjdpfx Afsrfx Tns Hjk Max. travel range of Z/X axis - 600 / 240 (23.62 / 9.44); Z-axis: FANUC 2.8 kW (4 HP) /3000 rpm; X-axis: FANUC 2.8 kW (4 HP) /3000 rpm Diameter of spindle bore/Draw bar bore - STD: Ø 77 / Ø 52 (Ø 3.03 / Ø 2.04); OPT: Ø 86 / Ø 77 (Ø 3.38 / Ø 3.03) Spindle speed - STD: 8” chuck 3500 rpm; OPT: 8” chuck 4500 rpm, 10” chuck 3500 rpm Chuck diameter - STD: Ø 8” ; OPT: Ø 10” Hydraulic Tailstock – travel 465 (18.3) MT. No.4 VDI Tool stations - OPT: 8 STD: 10 Coolant Chip conveyor Power requirement - 208-220 volts / 100 Amps / 3 Phases / 60 Cycles Floor area (L × W × H) - 4080 ×1675 × 1842 (160.62 × 65.94 × 72.51) Gross weight (approx.) - 5200 kg (11440 Ibs)

Year of construction: 2001, condition: excellent (used), Multispindle lathe Schütte AG20 Bedjhrihyspfx Af Hsdk

Year of construction: 1998, condition: good (used), CHIRON FZ 18L 1998year Sinumerik 810 with 4 Axis Nikken Travels X 2000 mm Y 400 mm Z 425 mm table2280 x 450 mm Bdodpfohpq U Ujx Af Hsk spindle max 8000 Toolchanger ATC: 20 pos tools SK 40 weight 6,70 T manual books dimensions lenght 3,9m width 2,45m height 2,8m free loaded on truck EXW 01360 LOYETTES

Condition: like new (used), MACHINE DATA TORNI TACCHI FTC model 51 OVERALL DIMENSIONS Center distance 4000 m/m Height 1550 m/m Width 1400 m/m Length 6200 m/m Weight 10.000 Kg Swing over bed 1120 m/m Swing over carriage 810 m/m Swing over gap 1350 m/m Hole through spindle 123 m/m Number of speeds 18 Range of speeds 7-550 / 1’ Horsepower of motor 25HP Morse taper № 6 Metric threads – inch – module – pitch Bdjdod Tm D Espfx Af Hek 3 jaw chuck 450 m/m Face plate 850 m/m Extra face plate 1420 m/m Good condition

Year of construction: 2010, condition: ready for operation (used), Control Unit Brand MAZATROL Bodpfxowbk Tkj Af Hedk Model MATRIX This 3-axis Mazak QTN 250 M X 1000 horizontal turning machine was manufactured in 2010. If you are looking to get high quality turning capabilities consider the Mazak QTN 250 M X 1000 machine we have for sale. Contact us for more information. Application Types Turning
