CNC turn-mill center

GILDEMEISTER TWIN 65

Condition: used, Year of construction: 2011, Technical details: weight of the machine ca.: 11 t Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts. Gjdpfx Adoyz Sdqs Hjua *

Condition: used, Year of construction: 2003, Technical details: weight of the machine ca.: 11 t Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts. Gusdpfx Adeyzyude Hsa *

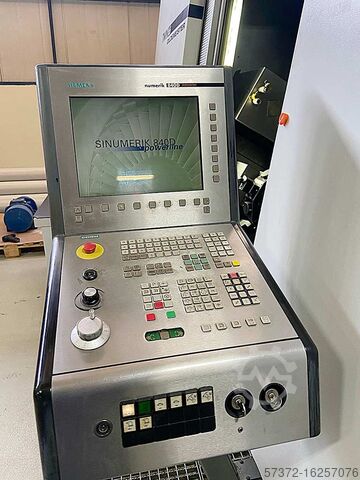

Condition: ready for operation (used), Year of construction: 2006, operating hours: 38,407 h, spindle speed (max.): 5,000 rpm, travel distance X-axis: 300 mm, travel distance Z-axis: 650 mm, spindle motor power: 26,000 W, total height: 2,900 mm, total width: 2,500 mm, overall weight: 12,000 kg, controller manufacturer: SIEMENS, controller model: 840 Powerline, product length (max.): 7,855 mm, number of slots in tool magazine: 24, number of axes: 3, This 9-axis Gildemeister TWIN 65 was manufactured in 2006. It features a spindle power of 65 kVA and a maximum spindle speed of 5000 rpm. The machine includes a tool magazine with 24 tools and a turret-type tool changer. With a robust weight of 12,000 kg and dimensions of 7855 mm x 2500 mm x 2900 mm, this horizontal turning machine is equipped with special features like a touch probe and internal coolant supply. If you are looking to get high-quality turning capabilities, consider the Gildemeister TWIN 65 machine we have for sale. Contact us for further details. Godpeyvz Ibjfx Ad Houa • Electrical connection/total power: 65 kVA • Tool holder: VDI 30 • Tool changer type: Turret • Configuration: Multi-slide turning center with Slide 1 (Top), Slide 2 (Bottom), and Slide 3 (Counter spindle) • Axes travels: • Slide 1 (Top): X1 (Cross) 300 mm; Z1 (Longitudinal) 650 mm; Y1 (Vertical) ±40 mm (only on version with Y-axis) • Slide 2 (Bottom): X2 (Cross) 180 mm; Z2 (Longitudinal) 650 mm • Slide 3 (Counter spindle): X3 (Transverse) 175 mm; Z3 (Longitudinal) 670 mm • Counter spindle: max speed 5000 rpm; power 26 kW (40% ED) / 21 kW (100% ED) • C-axis: Integrated for oriented stopping and contouring • Driven tools: 12 stations per turret; all 12 stations capable of driven tools; max power 11.7 kW; speed up to 4000 rpm Additional equipment • Touch probe • Chip conveyor • Internal coolant supply Technical Specification Taper Size VDI 30 Counter Spindle Yes Driven Tools Yes

Condition: ready for operation (used), Year of construction: 1996, number of axes: 2, This Gildemeister MF twin 65 was manufactured in 1996. It features two turrets, each with 12 tool positions, all motorized-capable, and includes 14 driven tools and 14 tool holders. The machine boasts both spindles in very good condition and a bar passage of 65 mm, complemented by a Cucchi Pietro bar feeder. Contact us for more information about this machine. • 2 turrets (12 + 12 tool positions), all motorized-capable Guedpfx Ajyaqr Aed Hja • Bar passage: 65 mm • Both spindles in very good condition • New hydraulic/power unit pump Additional equipment • Cucchi Pietro bar feeder • 14 driven tools • 14 tool holders

Condition: good (used), Year of construction: 2004, Mfd. 2004 Gildemeister Twin 65 CNC Lathe Specifications Chuck Size: 8" Bar Capacity: 2" Turning Diameter: 8" Spindle Speed: 5,000 RPM Control: Siemens CNC Control Gujdeyq S Ugopfx Ad Hea Distance Between Centers: 20" Turret: 12 Station Sub-Spindle: Yes Chip Removal: Chip Conveyor Features Barfeed Included

Condition: good (used), Year of construction: 1999, Gildemeister MF Twin 65, year of manufacture 1999, Siemens 840 D control, travel X/Z 190/555 mm, 1 x Y axis +/- 40 mm, 2 turrets with 12 stations each, driven tools, VDI 30 toolholder, C axis, spindle speed up to 6,000 rpm, max. bar passage up to 65 mm, bar feeder is included but is no longer installed on the machine. Guedpfx Adsyiab Ao Hsa

Year of construction: 2002, condition: ready for operation (used), Axes: XYZCB (8-axes), max. turning diameter: 250mm, max. turning length: 300mm, bar loader diameter: 65mm, tool system: VDI30/tooth profile, torque: 150Nm, speed: 5000rpm, drive power: 22kW, control: Siemens Sinumerik 840D powerline. Dimensions X/Y/Z: approx. 2430mm/5600mm/2430mm, weight: approx. 13000kg, operating hours: approx. 34624h, spindle hours: approx. 22797h. Guodetufbyopfx Ad Hea

Condition: used, Year of construction: 2007, controller manufacturer: Siemens, controller model: 840 D, _____ Description: Year of manuf. : 2007 Control : Siemens 840 D Turning diam. : 250 mm Turning length : 650 mm In General: Year of construction:2007 Control:Siemens 840 D Bar capacity:65 mm Turning diameter:350 mm Turning length:650 mm Main spindle: Technology:Motor spindle Speed:5,000 rpm Power max.:35 kW Torque max.:370 Nm C-axis:0.001 Bar capacity:65 mm Chuck:Hainbuch Spanntop size 65 Clamping cylinder:Hollow clamping cylinder Sub spindle: Technology:Motor spindle Speed:5,000 rpm Power:26 kW Torque:290 Nm C-axis:0.001 Chuck:Hainbuch Spanntop size 65 Clamping cylinder:Partial hollow clamping cylinder Z-axis:670 mm X-axis:175 mm Gsdpfxjyamflo Ad Hsua Tool carrier i (X/Y/Z): Technology:Tool turret, 12 stations Tool holder:VDI 30 Tool drive:4,000 rpm, 11 kW, 28 Nm X-axis:300 Y-axis:80 mm ( +/- 40 mm) Z-axis:650 mm Tool carrier II (X/Z): Technology:Tool turret, 12 stations Tool holder:VDI 30 Tool drive:4,000 rpm, 11 kW, 28 Nm X-axis:180 Z-axis:650 mm Equipment: Chip disposal:Chip conveyor Coolant supply:IKZ system Measuring systems:Direct in all X-axes (glass scales) Bar loader:IRCO Breuning Part removal:Finished part gripper + indexing belt Emulsion mist separator:Mechanical Set-up mode:Electronic handwheel

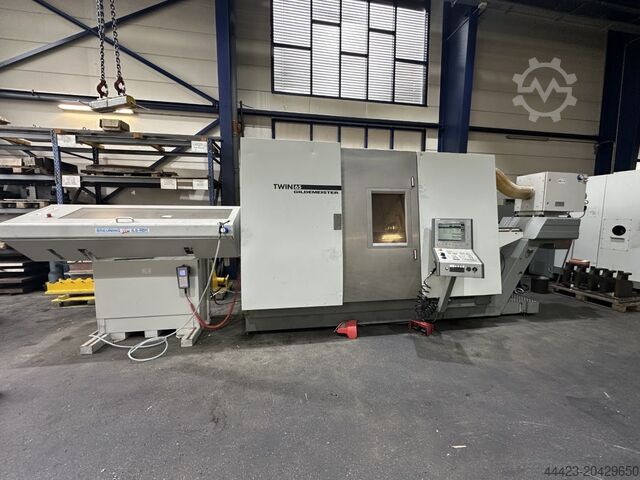

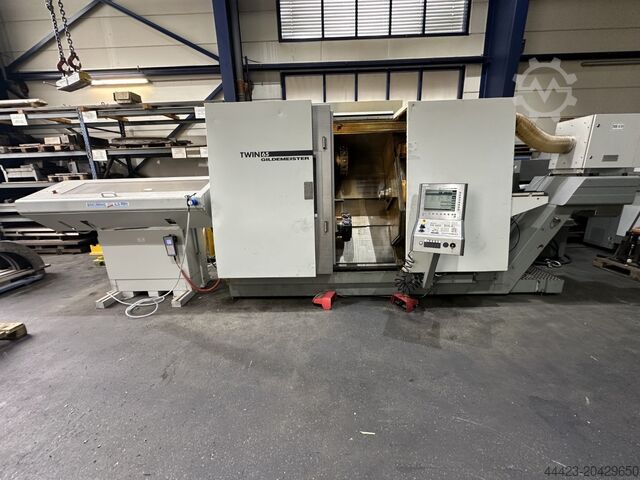

Condition: good (used), Year of construction: 2008, 1 used CNC turning/milling center Gildemeister type TWIN 65 RG 2 year 2008 with Siemens 840 D Maximum turning length (travel in the Z axis) 650 mm Godeq T I Izepfx Ad Hjua Maximum turning diameter over bed 250 mm Maximum length of travel in the X-axis 300 mm Maximum feed speed X-axis 30 m/min Maximum feed speed Z axis 30 m/min Maximum main spindle power 35 kW Spindle diameter 65 mm Minimum main spindle speed 20 1/min Maximum main spindle speed 5000 1/min Lathe length 7000 mm Lathe width 4700 mm Lathe height 2500 mm Lathe weight 10 t Machine equipment Y axis Irco loading magazine ILS RBK 1200 mm Workpiece pick-up device Technical data Errors excepted Please note that the machine is sold without chucks, as these remain with the seller!
