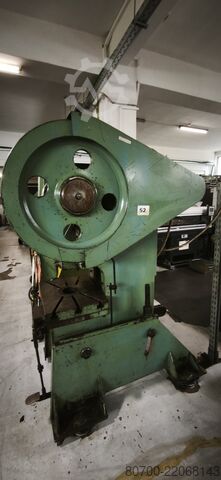

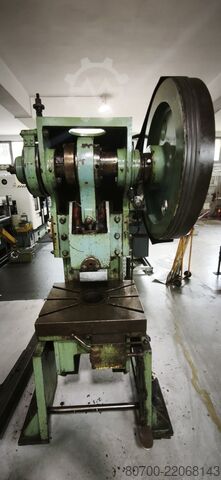

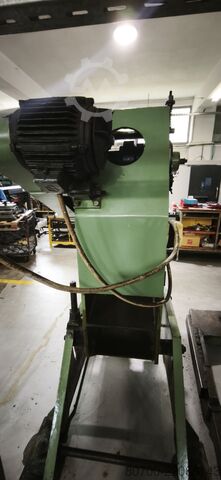

Condition: excellent (used), Year of construction: 1974, functionality: fully functional, power: 2.2 kW (2.99 HP), pressing force: 25 t, stroke length: 80 mm, overall weight: 1,300 kg, We offer this used Olympia OAFS eccentric press, year of construction 1974. OLYMPIA 25 Ton Mechanical Eccentric Press Manufacturer: OLYMPIA (Greece) Technical Specifications: Press Capacity: 25 Tons Stroke: 80 mm Strokes per Minute: 95 Motor Power: 3 HP Machine Weight: Approx. 1,300 kg Description: Very well-maintained OLYMPIA mechanical eccentric press in excellent working condition. Cedpfozbr Stjx Appogu The machine is fully operational and can be inspected under power. It has been used in a professional manufacturing environment and has been regularly serviced throughout its working life. The press features a robust cast-iron frame, large working table, foot pedal operation, and centralized lubrication system, ensuring reliable and accurate performance for stamping, punching, blanking, and general sheet metal processing applications. The machine is mechanically sound, ready for immediate production, and requires no known repairs. Features: Excellent working condition Under power Central lubrication system Heavy-duty cast iron construction Foot pedal operation Reliable and easy maintenance Ready for immediate use If you have any questions or need more information, feel free to send us a message or give us a call.

Condition: used, Year of construction: 1980, For sale is a robust mechanical eccentric press / stamping press from the manufacturer MGR. The machine is ideally suited for punching, forming, and pressing operations in the metalworking industry and comes from industrial use. Technical data: Manufacturer: MGR Type: 45R Year of manufacture: 1980 Pressing force: 45,000 kg (45 tons) Stroke: 230 mm Ram stroke: 80 mm Codpfoy Unmbex Appogu Ram adjustable: 55 mm Adjustable stroke: 9 – 120 mm Motor power: 3.5 hp Voltage: 380 V Machine no.: 311860

Condition: used, functionality: fully functional, power: 2.2 kW (2.99 HP), input voltage: 400 V, input frequency: 50 Hz, type of input current: AC, pressing force: 45 t, stroke length: 90 mm, table width: 680 mm, table length: 430 mm, throat depth: 210 mm, distance table to ram: 300 mm, clearance between the columns: 420 mm, total length: 1,100 mm, total width: 1,000 mm, total height: 2,200 mm, overall weight: 3,000 kg, Eccentric press CLUANA 45t Pressing force: 45 tons Made in Italy Swivelable Adjustable stroke: 8 to 90 mm Stroke rate: 58/minute Overhang: 210 mm Distance between the front columns (tie rods): 420 mm Minimum clamping height: 300 mm Table size: 680 x 430 mm Through-hole in the table: Ø 130 mm Ram bore: Ø 40 mm Dimensions: 1000 x 1100 x 2200 mm Weight approx. 3000 kg Motor power: 2.2 kW Connection: 400V 2-hand release Foot pedal release Single stroke Cgsdpfx Aey Ugrioppsu Continuous stroke Central lubrication Accessories 4 Vibra-Jack vibration-isolating feet Spacer for lower installation height

Condition: used, Year of construction: 1962, pressure 025 t throat 200 mm stroke 8 - 80 mm no. of strokes 180 /min distance table/ram, max. stroke up, adjustment up 330 mm table surface area 550 x 400 mm hole in the table 60 mm table height over floor 800 mm passage to the back 200 mm ram surface 355 x 220 mm Cgedsy Rutaspfx Appou ram adjustment 50 mm power requirement 2,7 kW weight 2,5 t dimensions (WxDxH) 1,2 x 1,8 x 2,4 m AS SPARE PARTS DISPENSER

Condition: used, Year of construction: 1996, pressure 40 t stroke 4 - 100 mm no. of strokes 130 /min throat 225 mm dayligth 475 mm table surface area 650 x 465 mm Cgsdpfsy Rurpex Appou hole in the table 210 x 170 mm table height over floor 710 - 950 mm table adjustable 240 mm ram surface 430 x 240 mm ram adjustment 85 mm power requirement 2,2 kW Weight 3,3 t dimensions (WxDxH) 1,1 x 1,9 x 2,2 m with motor, hydraulic clutch/brake combination, mechanical overload protection in ram, manual stroke adjustment, manual ram adjustment, adjustable table, motoric centralized lubrication, two-hand and foot operation

Condition: used, Year of construction: 1978, pressure 050 t throat 250 mm stroke 8 - 120 mm no. of strokes 100 /min distance table/ram, max. stroke up, adjustment up 400 mm table surface area 650 x 515 mm hole in the table 115 mm table height over floor 790 - 1020 mm Cgsdpfx Asy Rurijppju table adjustable 230 mm ram surface 390 x 180 mm ram adjustment 70 mm power requirement 2,0 kW weight 2,6 t dimensions (WxDxH) 1,1 x 1,4 x 2,2 m SPECIAL DEAL as is where is WITHOUT putting into operation / WITHOUT additional work free loaded to truck

Condition: used, Year of construction: 1966, pressure 040 t Cgedpfx Asy Nd Sveppsu throat 240 mm stroke 8- 88 mm number of strokes - idle run 130 /min shut height (stroke down, adjustm. up) 320 mm ram adjustment 63 mm table surface area 560 x 435 mm ram surface 250 x 200 mm hole in the table 150 mm table height over floor 950 mm total power requirement 4 kW weight of the machine ca. 3,3 t dimensions of the machine ca. 1,7 x 0,85 x 2,4 m

Condition: used, Year of construction: 1976, pressure 025 t table-size 500 x 400 mm ram stroke - adjustable min/max 20- 120 mm throat 250 mm ram surface 350 x 250 mm strokes of ram per min. 120 shut height (stroke down, adjustm. up) 300 mm ram adjustment 60 mm tool shank hole (depth x diameter) 32 x 80 mm hole in the table 180 mm weight of the machine ca. 1,6 t Cgsdpey Nd Spjfx Appsu Machine has adjustable table (150 mm).

Condition: used, Year of construction: 2002, pressure 80 t throat 300 mm stroke 8-110 mm no. of strokes 100 Hub/min ram - range of adjustment 75 mm Csdpsy I Dd Nsfx Appogu table surface area 750x590 mm ram surface 540x400 mm hole in the table 200x200 mm table height 780 mm tool hole in ram Ø 40 mm total power requirement 11 kW weight of the machine ca. 5,5 t dimensions of the machine ca. BxTxH 1200x1700x2700 mm

Condition: used, Year of construction: 2008, pressure 40 t throat 230 mm stroke 4-100 mm table surface area 650x450 mm ram surface 420x220 mm ram - range of adjustment 85 mm hole in the table 170x220 mm table height 800 mm no. of strokes 60 Hub/min dayligth 375 mm Dimensions (HxWxD) 2800x1200x1900 mm weight of the machine ca. 3,2 t Cgodpfjy I Ddvsx Appou

Condition: good (used), Year of construction: 2012, Condition: 2012 overhauled to the latest UVV Installation height: 800 mm Ram stroke: 500 mm Projection: 360 mm Nominal force: 400 kN Hydraulic pressure: 160 bar Operating hours: 1356 Other: new control from Pilz, electrical circuit diagrams available Video about functionality available Cgjdoy H Iddopfx Appou

Condition: used, Eccentric Press, C-Frame Press, Helmerding EH 35 B, Used Machine Manufacturer: Helmerding Type: EH 35 B Year of Manufacture: 1985 Weight: 2500 kg Technical Specifications: Press Capacity: 35 tons Stroke Length: 70 mm Table Dimensions: 600 x 450 mm Operating Modes: Continuous / Single stroke (Inching) Safety: Two-hand safety start control Dimensions: Cgodpoy D Uhdjfx Appsu Overall Dimensions: 1020 x 1600 x 2400 mm Additional Information: Note: The base plate (bed plate) is not included with the machine.

Condition: ready for operation (used), functionality: fully functional, Eccentric press 40 tons Codpjy Agbgofx Appogu Manufacturer: ASILIAN Press Capacity: 40 tons Stroke length: 100 mm Speed: 120 strokes per minute Motor power: 5,5 kW Table size: 500 x 350 mm Ram: adjustable It is used for metal stamping, blanking, etc

Condition: used, Year of construction: 2007, pressure 40 t stroke 12 - 100 mm no. of strokes 60 - 150 /min Cgjdpfxsyx Inte Appeu throat 220 mm dayligth 340 mm table surface area 650 x 480 mm ram surface 370 x 300 mm ram adjustment 70 mm power requirement 4,0 kW Weight 3,0 t dimensions (WxDxH) 1,2 x 1,5 x 2,3 m with infinitely variable drive, pneumatic clutch/brake combination, light guard (make Sick), hydraulic overload protection in ram, pneumatic counterbalance on ram, manual stroke adjustment, manual ram adjustment, central lubrication, two-hand and foot operation

Condition: used, Year of construction: 1999, functionality: fully functional, overall weight: 1,100 kg, 40 ton eccentric press MIOS, type C Cgedpfx Aoywylhsppou

Condition: like new (used), Year of construction: 2017, functionality: fully functional, Training school display unit VERY VERY seldom use For demo only, like new Cgjdpjyunphefx Appsu 1) Amada TP45FX 2) PATEC 110ton press with recoiler

Condition: used, Year of construction: 2000, gebraucht 2000 070165A prompt, Zwischenverkauf v Italien 27900 € 1 40 to 2.6 mm 650 mm 380 mm 120 mm 8 - 78 mm 145 1/min 6 60 mm 40 mm 195 mm 297 mm 800 mm 3 kW 1450 mm 1150 mm 2150 mm 2200 kg Two-hand control panel and foot pedal Work area enclosure with safety switch Additional bolster plate Central lubrication system Stroke counter Cjdpfxsyrhpve Appogu Operating manual with CE declaration of conformity BUYING USED MACHINERY IS A MATTER OF TRUST - OUR TRANSPARENCY PROMISE We offer you maximum security and complete transparency. • HONEST INSIGHTS: Detailed photos and functional videos of the current condition • LIVE ON-SITE CHECK: Live testing is possible at our facility • DIGITAL DEMONSTRATION: Individual live demonstration via video call • RISK-FREE PURCHASE: 14-day return policy Details:

Condition: new, neu ca. 10 Wochen ab Auftrags Italien 66700 € 1260.63 € 50 to 3.5 mm 800 mm 450 mm 22 - 110 mm 60 - 100 1/min 70 mm 8 70 mm 235 mm 290 mm 5.5 kW 1330 mm 1000 mm 2650 mm 4500 kg touch screen control semi automatic stroke adjustment Cgsdpfx Apjyq Sqnjpou die space adjustment with mechanical display decimal resolution adjustable motor speed overload protector double bolster plate oil circular lubrication dynamic brake safety light guard Keyence Automation and control of press parameters by PLC, alarms and informations displayd on human machine interface touch screen. Standard monitoring: - press speed view and adjustment - programmable piece counter and maintenance piece counter - die space adjustment with brake motor - Semi automatic or automatic stroke adjustment - die safety control - alarms view - overload protector

Condition: used, Year of construction: 1992, pressure 25 t throat 375 mm stroke 8 - 80 mm no. of strokes 120 Hub/min ram adjustment 45 mm Cgodsykb Ebepfx Appju total power requirement 1,5 kW weight of the machine ca. 2,5 t

Condition: used, pressure 35 t throat 300 mm stroke 10 - 120 mm no. of strokes 110 Hub/min ram adjustment 50 mm total power requirement 3 PS Cedpfx Aeykb D Rjppjgu

Condition: used, Year of construction: 2004, pressure 25 t throat 375 mm stroke 80 mm no. of strokes 120 Hub/min ram adjustment 45 mm total power requirement 3,5 kW Cgjdpfxjykb D Do Appju weight of the machine ca. 2,8 t

Condition: used, Year of construction: 1996, pressure 45 t throat 230 mm stroke 0 - 160 mm no. of strokes 120 Hub/min ram adjustment 55 mm total power requirement 3,0 kW Csdpfoykb Dwjx Appogu weight of the machine ca. 2,95 t

Condition: used, pressure 35 t throat 220 mm stroke 10 - 120 mm no. of strokes 120 Hub/min ram adjustment 50 mm Cgjdpfx Apsykb Dqepju table surface area 590 x 440 mm ram surface 460 x 160 mm total power requirement 2,2 kW weight of the machine ca. 2,5 t dimensions of the machine ca. B 0,88 x T 1,2 x H 1,95 m

Condition: used, Year of construction: 1992, pressure 25 t throat 375 mm stroke 8 - 80 mm Cjdpfxjykb Dko Appjgu no. of strokes 120 Hub/min ram adjustment 45 mm total power requirement 1,5 kW weight of the machine ca. 2,5 t

Condition: used, pressure 45 t throat 230 mm stroke 10 - 140 mm Cgedpjykb Ddjfx Appju no. of strokes 80 Hub/min ram adjustment 55 mm total power requirement 3,0 kW weight of the machine ca. 2,7 t
