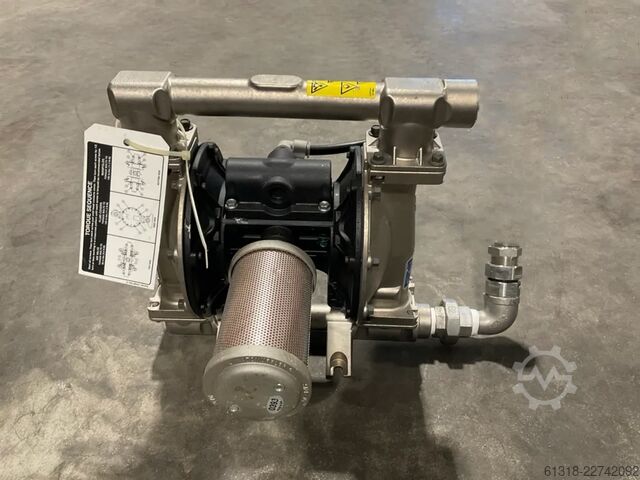

Year of construction: 2019, condition: excellent (used), Used Verderer VA25 Air-Operated Double Diaphragm (AODD) pumps with Stainless Steel configurations. The specific arrangement code you provided (VA25 SS SS TF TF) designates a heavy-duty metallic pump constructed with a Stainless Steel fluid section, Stainless Steel seats, and PTFE (Teflon) balls and diaphragms and defines a heavy-duty, highly corrosion-resistant configuration of the Verderair VA 25 Air-Operated Double Diaphragm (AODD) pump. This specific model is typically engineered to handle aggressive chemicals, strong acids, solvents, and high-temperature fluids The operating limits and physical profile for the Verderair VA 25 SS SS TF TF include the following parameters: Connection Size (Liquid):1" BSP or NPT (Threaded) Connection Size (Air): 1/2" NPT Maximum Flow Rate: 189 liters per minute (50 GPM) Maximum Discharge Pressure: 8.6 bar (125 PSI) Maximum Fluid Temperature: 104°C (220°F) Limited by the PTFE components Maximum Suction Lift (Dry): 3.0 to 4.9 meters Maximum Suction Lift (Wet): 6.0 to 8.8 meters Maximum Particle Size: 3.2 mm (Solids handling capacity) Pump Weight: approx. 16.5 to 18.8 kg (heavy due to full-metal construction) Certifications: ATEX certified (safe for explosive atmospheres) Hfsdpfxoz Abcpe Ac Asl Dimensions: L 470 mm x W 250 mm x H 360 mm SS (Fluid Section): 316 Stainless Steel housing and manifolds. Provides high chemical resistance and mechanical durability; SS (Air Section / Check Valve Seats): Depending on the generation, this represents a heavy-duty Stainless Steel center air section or Stainless Steel valve seats. It avoids the corrosion or cracking risks associated with aluminum or plastic components in harsh environmental conditions; TF (Check Valve Balls): PTFE (Teflon) check balls. Ensures a tight seal and broad chemical compatibility during cycling; TF (Diaphragms): PTFE (Teflon) diaphragms (typically backed by an EPDM layer for flexibility). PTFE offers the highest level of universal resistance to corrosive fluids; Price 2.490 Euro + VAT, negotiable, FCA: Oradea/Romania Irrtum, Anderungen und Zwischenverkauf vorbehalten / Subject to errors, changes and prior sale / Ne rezervăm dreptul la greșeli, modificări și vânzare We speak English. /Wir sprechen Deutsch./ Beszélünk magyarul. /Nous parlons français/Vorbim romana

Condition: excellent (used), 2 identical used units of Verderair VA50 Air-Operated Double Diaphragm (AODD) pumps with Stainless Steel configurations. The specific arrangement code you provided (VA50 SS SS TF TF) designates a heavy-duty metallic pump constructed with a Stainless Steel fluid section, Stainless Steel seats, and PTFE (Teflon) balls and diaphragms. SKU 810.2392 maximum air pressure 8.5 Bar; This Air Operated Diaphragm Pump is suitable for the transferring of chemicals, solvents, flammable liquids and fluids with abrasive particles. Constructed of Stainless Steel and PTFE (Teflon) Energy efficient Easy to install, operate and maintain Anti-ice muffler Free of air lubrication Non-stalling air valve Can run dry without damage Dry self-priming Key Technical Specifications Knowing these parameters can help you accurately list your pump for sale or verify if it meets your facility's operational needs: Maximum Flow Rate: 568 L/min (approx. 150 GPM) Maximum Discharge Pressure: 8.4 bar (approx. 122 PSI) Liquid Connections: 2" BSP/NPT Air Inlet Connection: 1/2" NPT Wetted Materials: Stainless Steel (SS) housing with PTFE (TF) diaphragms/balls, making it highly resistant to aggressive chemicals, solvents, and abrasive media. Maximum Suction Lift: 2.5 m (dry) / 5.5 m (wet) Hfodpfxezz Twco Ac Aol Certification: Standard metallic configurations usually come with ATEX certification for hazardous environments Price 5.260 Euro + VAT, negotiable, FCA: Oradea/Romania Irrtum, Anderungen und Zwischenverkauf vorbehalten / Subject to errors, changes and prior sale / Ne rezervăm dreptul la greșeli, modificări și vânzare We speak English. /Wir sprechen Deutsch./ Beszélünk magyarul. /Nous parlons français/Vorbim romana

Year of construction: 2008, condition: like new (used), LEWA Inline Dilution and Dosing Systems These mobile dosing units (2 units) are designed as inline dilution and dosing systems. They are used for the precise production and delivery of liquid mixtures/buffer solutions directly in the production process, without the need for separate mixing tanks. Dosing range: 1st unit 60 - 2,100 and 2nd unit 15 - 800 liters/hour LEWA Ecodos - dosing pumps for highly precise dosing of different liquids Diaphragm valves and pressure holding valves for exact pressure and flow regulation Static mixer, which homogenously mixes the added media Measuring and control technology such as flow meters, pressure sensors, pH and conductivity meters for process monitoring Control and operation: Simatic 15 Touch Panel PC 667 Controller: Simatic S7-300 Data recording: Yokogawa DX 220 P recorder Liquid analysis system: Mettler Toledo M 700 Manufacturer: LEWA Year of manufacture: 2008 Hfedpfx Acszl S Ste Ajl Space requirement: approx. 210 x 130 x 220 cm + approx. 150 x 90 x 165 cm

Condition: new, CP Pump Systems Stainless Steel Mag Drive Chemical Process Pump Type: MKP 50-32-250 Hfjdoym Anvspfx Ac Aol Complete with ABB M3KP 180 MLA EX proof Motor 22kW Mag. 93Nm Q. 16 m³/h H. 75m n. 2950 min IMP. 240 mm New, unused, ex stores stock

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, overall weight: 260 kg, total length: 1,140 mm, total width: 450 mm, total height: 525 mm, volume flow: 14.5 m³/h, final pressure: 2.2 bar, power: 4 kW (5.44 HP), input voltage: 400 V, input frequency: 50 Hz, rotational speed (max.): 1,440 rpm, protection type (IP code): IP56, 2 units of horizontal, radially split volute casing pumps in process design, with single-inlet, single-stage radial impellers. ! Price per unit ! Manufacturer: KSB Model: CPKN-C3.1 040-250 Year of manufacture: 2009 Shaft seal: Double-acting Burgmann mechanical seal with flushing water connection and flow meter Impeller diameter: 260 mm Pump speed: 1440 rpm Please note: The nameplate indicates the parameters from the last duty point, not the pump’s design (best efficiency) point! Best efficiency point according to curve: Flow rate: 14.5 m³/h Head: 22 meters (2.2 bar) Shaft power: 1.85 kW Efficiency: 46.1 % NPSH: 1 m Duty point from last application: Flow rate: 6.0 m³/h Head: 24.0 meters Shaft power: 1.36 kW Efficiency: 30 % NPSH: 0.8 m Materials: Volute casing: Noridur 1.4593 Casing cover: Noridur 1.4593 Shaft: C 45+N Impeller: Noridur 1.4593 Other wetted parts: 1.4517 Electric motor: 4.0 kW Energy efficiency: IE1 Voltage: 400/690 V Speed: 1440 rpm Material 1.4593 Noridur is ideally suited for: Hfjdpfx Acexp Eqke Aol - Chemical and process engineering industries - Sulfuric and phosphoric acid - Salt production and processing - Petrochemical industry - Coke plants - Textile and pulp industries - Food and sugar industries - Mining/coal extraction and handling - Flue gas desulfurization plants - Acidic, chloride-containing wash suspensions - Acidic process water - Wastewater treatment plants - Offshore and marine applications ! Price per unit !

Condition: excellent (used), Packo PHP 2 Pharmaceutical Process Pump The Packo EHEDG and 3A-certified PHP2 series pharmaceutical process pumps are used for the most demanding sterile applications in the pharmaceutical, biotechnology, and semiconductor industries. These perfectly cleanable pumps feature pump housings made of thick, cold-rolled 316L stainless steel, which are 100% non-porous and extremely smooth. The pumps feature fully machined, open impellers made of 1.4435 material. Thanks to their gap-free design and final electropolishing, the PHP2 series pumps are perfectly cleanable, making them a reliable component in your production process. Areas of Application These perfectly cleanable process pumps are the ideal solution for clean water circuits, cleaning applications, etc. Typical fluids include pure water, WFI, CIP, syrups, etc. Your Benefits High pump efficiency leads to lower energy consumption Low NPSH values: reduced risk of cavitation Electropolished: perfectly cleanable Simple design and maintenance: less downtime Standard components Fully certified (roughness value, FDA, USP, 3.1 for wetted parts, certificate of conformity, etc.) Suitable for SIP Robust construction according to ASME BPE guidelines Wetting parts < 0.4 µm Manufacturer: Packo Type: PHP 2/40-1857752 Hfjdpow Hc Hmefx Ac Aol Flow: 14 m³/h Height: 59 m Weight: 91 kg Find more items - new and used - in our shop! International shipping costs on request!

Condition: used, functionality: unexamined, machine/vehicle number: ML-348, Used Hyco ML-348 Vacuum Diaphragm Pump Model: ML-348-D37-SA Type: p-227/1 | 207/1 | p-173/2 Hfjdpfx Acew Evhzj Ael Voltage: 230-400, 50/60 Hz Multiple units in stock.

Condition: excellent (used), functionality: fully functional, Year of construction: 2013, power: 4 kW (5.44 HP), overall weight: 81 kg, total length: 590 mm, total width: 440 mm, total height: 360 mm, 2 magnetically coupled centrifugal pumps made of stainless steel. ! Price per unit ! Last used for pumping caustic soda. Manufacturer: CP Pumpen AG (Switzerland) Type: MKP 20-15-160 Design: Monobloc with base plate Delivery rate: 5 m³/h (1.38 liters/second) Delivery head / Pressure: 21.1 meters (2.1 bar) Medium temperature: 35 - 40 °C Impeller Ø 153 mm Speed: 2950 rpm Material (casing and impeller): 1.4581 Includes bolts and plug for connecting cable Motor: Siemens Type: 1LE10011BA222FA4 Power: 4 kW Hfsdpowncv Rjfx Ac Aol Voltage: 400 Volt Efficiency: IE2 Dimensions: Length: 590 mm Width with temperature sensor: 440 mm Base plate width: 330 mm Height: 360 mm Weight: 81 kg Inlet: DN 20 Outlet: DN 15 ! Price per unit !

Year of construction: 1997, condition: refurbished (used), overall weight: 300 kg, total length: 1,270 mm, total width: 550 mm, total height: 570 mm, 4 spiral casing pumps in process design 1 of these completely overhauled, ball bearings of the pump and motor new. Mechanical seal overhauled by a specialist company. All seals new. Flow rate: 6 m³/h Head: 25 m Pump speed: 1440 rpm Shaft seal: double-acting mechanical seal Manufacturer: Burgmann HRZ 13754-00 SIC/SIC/-CAR/SIC-VITON Impeller type: closed two-channel impeller Impeller diameter: 277 mm Bearing type: rolling bearing Impeller side: 1x NU411 Drive side: 2x 7311 Lubrication type, drive side: oil Lubricant monitoring: oil level regulator Materials: Pump casing: Duplex steel Noridur 1.4593 (9.4460) Partition wall: Duplex steel Noridur 1.4593 (9.4460) Pressure cover: Duplex steel Noridur 1.4593 (9.4460) Shaft: Hardened steel C45+N Impeller: Duplex steel Noridur 1.4593 (9.4460) Bearing housing lantern: Grey cast iron EN-GJL-250 Shaft sleeve: Duplex steel 1.4462 Suction nozzle nominal size: DN 80 Discharge nozzle nominal size: DN 40 Nominal pressure suction side: PN 10 Nominal pressure discharge side: PN 10 Coupling manufacturer: Flender Hfedpfx Acjiuznuj Ajl Coupling type: Eupex NH with intermediate sleeve Base plate: Grey cast iron Motor manufacturer: AEG AM 132 Efficiency class: IE 0 Motor speed: 1476 rpm Frequency: 50 Hz Rated voltage: 400 V Motor rated power: P2 7.50 kW Thermal class: F Motor protection type: IP55 Cosphi: 0.82 Dimensions: Length: 1270 mm Width: 550 mm Height: 570 mm Weight: 300 kg The material 1.4593 Noridur is very well suited for: - Chemical and process industries - Sulfur and phosphoric acid - Salt extraction and processing - Petrochemical industry - Coking plants - Textile and pulp industry - Food and sugar industry - Mining/coal mining and transport - Flue gas desulfurization plants - Acidic, chloride-containing wash suspensions - Acidic process water - Wastewater treatment/sewage treatment plants - Offshore and marine technology

Year of construction: 2009, condition: refurbished (used), functionality: fully functional, 1 liquid ring vacuum pump. Please read the description carefully from beginning to end! The pump is not suitable for: Water, the food industry, and non-corrosive media. For these media, more cost-effective materials such as 1.4408 or 1.4571 are better suited. Caution! The pump does not have explosion-proof certificates. It is also not possible to replace the motor, as it is a special long-shaft motor. The mechanical seal also does not have EX certificates! The pump is made of the special Alloy 59 material! This alloy is used when conventional chrome-nickel steels are no longer sufficient in terms of corrosion resistance. Especially when chloride-induced pitting and crevice corrosion and stress corrosion cracking are a problem. Alloy 59 is used for: environmental technology, the chemical industry (chemical processes with oxidizing and reducing acids, resistance to wet chlorine gas), and waste incineration plants. Primarily, 2.4605 is used in the chemical industry, the pulp and paper industry, and in flue gas desulfurization plants. Excellent resistance to mineral acids such as nitric acid, phosphoric acid, sulfuric acid, and hydrochloric acid, and especially to sulfuric acid/hydrochloric acid mixtures. Typical applications are: -Equipment components for processes in organic chemistry with chloride-containing media, especially when catalysts based on chlorides are used. -Multipurpose plants in the chemical industry -Plant parts in the fine chemical and pharmaceutical industries -Scrubbers, heat exchangers, flaps, fans, and agitators for flue gas desulfurization plants (FGD) in fossil-fired power plants and waste incineration plants -SO2 scrubbers for ship diesel engines -Components for seawater and concentrated brines -Equipment and components for geothermal and sour gas applications -Reactors for acetic acid and acetic anhydride -Reactors for hydrofluoric acid -Sulfuric acid coolers -Piping in geothermal power plants -Components in flue gas desulfurization plants Manufacturer: Busch Type: LC 0220 A ZZO XX ZZ Volume flow: 195 m³/h Motor power: 7.5 kW Voltage: 400/690 volts Speed: 1440 rpm Vacuum: 33 mbar Material: 2.4605 (Alloy 59) NiCr23Mo16Al All ball bearings are new, and the mechanical seal has been refurbished by a specialist company. Hedpfxeigqute Ac Aefl Weight: 121 kg Dimensions: Length 960 mm, Width 370 mm, Height 370 mm Connection: DN 50 (2")

Condition: used, Double diaphragm pump with pneumatic drive, DEPA type DH40-FA-ZRT Pneumatic diaphragm pump, double pump Serial No.: B1802498 Year of manufacture: 09.05.2018 Temperature: max. 130°C Size: 40 Particle size: max. 16 mm Suction head: approx. 2 m Suction head, product-filled: approx. 9 m Operating pressure: max. 7 bar Hfsdpjib D H Uofx Ac Asl Air connection: 3/8" Suction connection: 1 1/2" Pressure connection: 1 1/2" - Self-priming - Aluminum housing - Diaphragm plates made of stainless steel - Diaphragms made of studded E4® PTFE composite - Balls made of PTFE - Ball seats made of stainless steel Space requirement: L x W x H: 370 x 270 x 450 mm Weight: 15 kg Very good condition

Year of construction: 1987, condition: excellent (used), 1 chemical standard centrifugal pump with very few operating hours. The pump is suitable for acidic condensate and aggressive acids. Also suitable for saltwater!! Manufacturer: Sulzer Model: ZA 200-4500 Material: Duplex 9.4460 / Noridur 1.4593 Flow rate: 250 m³/h Head: 27 meters at 980 rpm Shaft power: 42 kW Motor power: 75 kW Hfedpfx Ash S Nz Ssc Aol NPSH: 1.6 Speed: 980 rpm Year of manufacture: 1987 Pump speed of 1480 rpm is also possible!! Flow rate at approximately 1480 rpm (information without guarantee) Flow rate: 430 m³/h Head: 62 meters Shaft power: 88 kW Shut-off valves and pipelines in stainless steel are also available. The material 1.4593 Noridur is very well suited for: - Chemical and process engineering industries - Sulfuric and phosphoric acid - Salt extraction and processing - Petrochemical industry - Coke plants - Textile and pulp industry - Food and sugar industry - Mining/coal extraction and handling - Flue gas desulfurization plants - Acidic, chloride-containing washing suspensions - Acidic process water - Wastewater treatment/sewage treatment plants - Offshore and marine engineering

Year of construction: 2015, condition: excellent (used), functionality: fully functional, total length: 1,030 mm, total width: 450 mm, total height: 480 mm, 2 units of horizontal, transversely divided spiral casing pump in process design, with radial impeller, single-stage, single-suction. ! Price per unit ! Manufacturer: KSB Model: MCPK 40-25-160 Year of manufacture: 2015 Shaft seal: Double-acting Burgmann mechanical seal with seal water connection and flow meter Impeller diameter: 169 mm Pump speed: 2950 rpm !!! ATTENTION !!! The nameplate indicates the operating parameters. This is not the actual flow rate at the best efficiency point !!!! I have attached 2 characteristic curves as photos. Photo 11: Best efficiency point Photo 12: Operating parameters from the last application Flow rate: 6.9 m³/h Head: 33.0 meters Hfodpfx Acjfyn Rpe Aol Shaft power: 1.73 kW Efficiency: 35.87 % NPSH: 2.17 Data for the operating point in the last application, approximately: Flow rate: 2.2 m³/h Head: 37.0 meters Shaft power: 1.27 kW Efficiency: 18.07 % NPSH: 1.99 Materials: Spiral casing: Noridur 1.4593 Casing cover: Noridur 1.4593 Shaft: C 45+N Impeller: Noridur 1.4593 Remaining parts in contact with the medium: 1.4517 Electric motor: 5.5 kW Energy efficiency class: IE 2 Voltage: 400/690 Volts Speed: 2950 rpm The material 1.4593 Noridur is very well suited for: - Chemical and process industries - Sulfur and phosphoric acid - Salt extraction and processing - Petrochemical industry - Coke plants - Textile and pulp industry - Food and sugar industry - Mining/coal extraction and transport - Flue gas desulfurization plants - Acidic, chloride-containing washing suspensions - Acidic process water - Wastewater treatment/sewage treatment plants - Offshore and marine engineering ! Price per unit !
