Condition: good (used), Year of construction: 1992, functionality: fully functional, Technical Data – Lorenz LS 180 CNC External gear cutting – max. outside diameter: 280 mm Internal gear cutting – max. inside diameter: 100 mm + cutter diameter Max. workpiece outside diameter: 420 mm Max. module: 5 Max. stroke length: 60 mm Stroke rate (stepless): 250 – 1250 strokes/min Machine weight: approx. 7,500 kg Kdjdpfx Aoxyatueaysw Machine dimensions (L × W × H): approx. 4,500 × 2,500 × 2,700 mm Additional Information Year of manufacture: 1992 Condition: good, well maintained Operational status: fully functional, ready for operation Location: Turkey Availability: immediately Inspection: test under power and inspection on site possible at any time by appointment

Condition: good (used), Year of construction: 1998, Number of working hours 126348.3 h control Siemens SINUMERIK voltage 400 V weight of the machine ca. 8,0 t Key data Normal module: 6 mm Max. workpiece pitch circle diameter: 250 mm Max. tooth width (straight teeth): 60 mm Helix angle adjustment: 45° to +0.5° Axis angle: 0° to 90° Center distance workpiece/jigging spindle: –80 mm to +320 mm Stroke position, stroke length Max. stroke position range (depending on stroke length): 0 mm to 80 mm Stroke position adjustment range: 0 mm to 80 mm Stroke drive Stroke rates infinitely variable Standard: 100 to 1200 DH/min Motor for stroke drive: 9 kW Maximum cutting speed: 150 m/min Feeds Rotation axes (tool C1, workpiece C2 axis): Feed stepless relative to 100 Ksdpfxjxyadtj Aayjdw mm pitch circle diameter: 1.0 to 9420 mm/min Radial axis (column slide X1 axis): Feed continuously variable: 1.0 to 9420 mm/min, rapid traverse corresponds to maximum feed rates Connected load / weight Total connected load: 26 kVA Total weight (standard version): approx. 9,000 kg

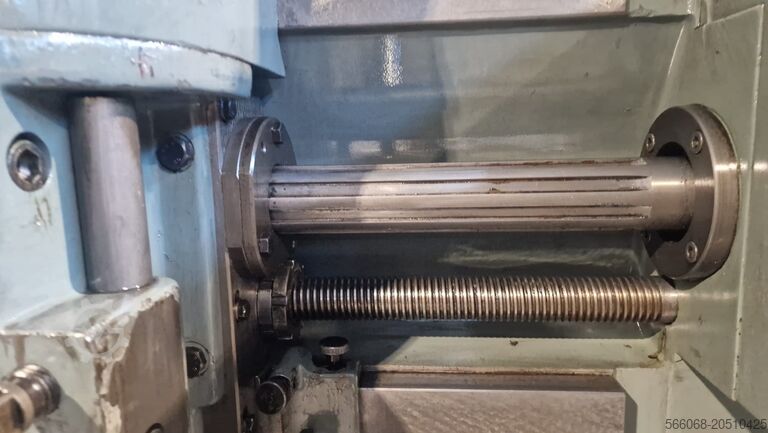

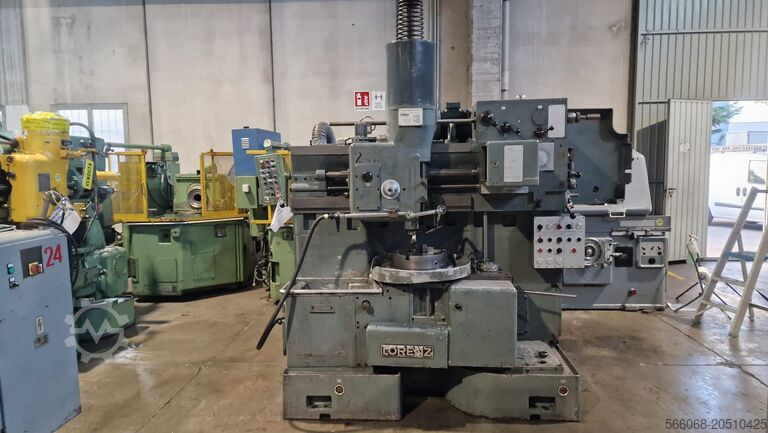

Condition: excellent (used), machine/vehicle number: DCL1754, Specifications Manufacturer LORENZ Model S8/630 Condition Used Serial Number 10330 Stock Number DCL1754 Ksdpfx Aasxv S A Heyodw Module 8 Max diameter 630 mm Working stroke 200 mm Description Equipment: Instruction manual/Electrical Diagrams change gears Acam

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, spindle speed (max.): 3,000 rpm, travel distance X-axis: 90 mm, travel distance Y-axis: 80 mm, travel distance Z-axis: 400 mm, spindle bore: 40 mm, TECHNICAL DETAILS Travel Distance X-axis: 90 mm Travel Distance Y-axis: 80 mm Travel Distance Z-axis: 400 mm Maximum Admissible Head Circle Diameter: 140 mm Milling Arbor Diameter: 22 mm Maximum Gear Cutting Length: 160 mm Angle Maximum Milling Head Swivel Angle +A Direction: 45° Maximum Milling Head Swivel Angle -A Direction: 118° Workpiece Spindle Outer Diameter: 105 mm Bore: 40 mm Rapid Traverse X-axis: 7,500 mm/min Y-axis: 5,000 mm/min Z-axis: 15,000 mm/min Speeds Tool: 50 to 4,000 rpm Maximum Workpiece Spindle Speed: 3,000 rpm MACHINE DETAILS Kjdjxvrarjpfx Aaysdw Electrical Connection Mains Connection: 400 V (AC) Supply Voltages: 400 V (AC) Control Voltage: 24 V (DC) Frequency: 50 Hz Machine Connected Load: 13 kVA Cable Cross-section: 16 mm² Protection: 63 A Dimensions & Weight Space Requirement: 5.25 x 4.06 x 2.94 m Machine Weight: 8 t EQUIPMENT Industrial Filter IFS EC1500 Sediment Separator Knoll KF200/640 Integrated Chip Conveyor with Magnetic Separator Machine Automation for Loading and Unloading Workpieces Robot Automation Güdel KTB-31/62, Year of Manufacture: 2018 with Station for Part Removal

Condition: used, Year of construction: 2014, Infeed and outfeed chain conveyor, with tool holders, chip conveyor, hydraulic unit and air conditioning. * Kodpfx Asxtbmijayedw

Condition: used, Year of construction: 1988, machine/vehicle number: 14411, stroke length: 220 mm, table diameter: 730 mm, For sale is a Lorenz LS 630. A robust and precise machine, renowned for its high build quality. The machine requires technical refurbishment due to the control system, but is in very good mechanical condition. It can process components up to module 12. A stable and high-quality Lorenz LS 630 that can be made fully operational again with some effort. Kdjdpfx Aoxrcmbjayow

Condition: used, Year of construction: 1985, Technical details: max. wheel diameter: 780 mm gear width: 130 mm max. module: 10 weight of the machine ca.: 8,5 t no. of strokes: 30 Hub/min Hier fully functional machine, Little used There are some Tools and Change gears Liebherr WSC501 CNC gear shaping machine, used, ready for use Manufacturer: Liebherr Type: WSC 501 Kedpfxoxqgv Rj Aayjdw Mach.- No.: 4407/05 Year of manufacture: 1985 Details: Max. gear shaping module: 8mm (30°gears possible up to module 10°) Max. gear width: 130mm Diameter of the machine table: 500mm Maximum wheel diameter: 780mm Shut height – table: 650mm Stroke rate min. 30DH/min Continuously adjustable max. 1500 DH/min. Operating voltage: 380V Frequency: 50Hz Control voltage: 110V Connected load: 36 kVA Rated current: 55A Weight: 8500kg Dimensions: approx. 4,85 x 3,655 x 3,78 (width x depth x height in m) The machine has seen only very limited use in our company. It remains fully operational and can be demonstrated in function upon appointment. Comprehensive documentation is also available The machine is particularly suitable for: ? Internal and external gearing in small batch sizes ? Internal gears in blind holes (non-through bores) ? External gears without run-out, where hobbing would not be possible Typical workpieces include: internal gear rings for planetary gear systems, drive shafts, coupling hubs, and more. Attractive Offer – Liebherr WSC501 CNC Gear Shaping Machine ????? ? ISO 9001 + EN 9100 Certified ? Excellent opportunity to acquire a robust German-made gear shaping machine ? Fully operational, with very limited usage history ? Demonstration possible upon appointment Highlights: - Suitable for internal and external gear shaping in small to medium batch sizes - Unique capability for internal gears in blind holes - Ideal for external gears without run-out, where hobbing would not be possible - Applications: planetary gear rings, drive shafts, coupling hubs, and more ????? Benefit: Save costs compared to new machines while still relying on Liebherr quality. Interested? Contact us today to arrange a viewing or request further technical details. *

Condition: excellent (used), Specifications Kdjdpexgprgjfx Aayjw Manufacturer LORENZ Model LS 150 Year 2005 Condition Used Stock Number in fabbrica Max diameter 150 mm Module 3 Stroke 50 mm Description Available on May 2025 SIEMENS SINUMERIK 810 D

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, table bore: 80 mm, table diameter: 145 mm, gear diameter: 125 mm, controller manufacturer: Siemens, controller model: SINUMERIK 840 D, TECHNICAL DETAILS Maximum wheel diameter: 125 mm Maximum module: 3 Maximum gear width (spur gears): 24 mm Center distance: -25 to +180 mm Maximum swivel angle: 12° Maximum helix angle: 45° Table Table diameter: 145 mm Table bore: 80 mm Infinitely variable table speed: 0.03 – 50 rpm Shaper spindle Stroke rate (double strokes): 1,500 – 3,000 DS/min Stroke position adjustment: 70 mm Stroke length min./max.: 0 – 30 mm Shaper spindle diameter: 85 mm Cutter holder mount: HSK 80 B Tool and workpiece Tool number of teeth: 1 – 200 Minimum tool module: 0.05 Workpiece number of teeth: 1 – 1,500 Minimum workpiece module: 0.05 Control Control: SINUMERIK 840 D MACHINE DETAILS Ksdsxf Azxspfx Aayjdw Electrical data Drive power: 7.5 kW Total power requirement: 30 kVA Weight and dimensions Machine weight: approx. 8 t Space requirement: approx. 4.3 × 2.8 × 2.9 m EQUIPMENT Swiveling counter-holder with 4 positions Automatic workpiece changing device Linear workpiece conveyor

Condition: used, Year of construction: 1954, total height: 2,000 mm, total width: 1,600 mm, total length: 2,400 mm, Empty weight: 1.000 kg Price: On request Chuck: 700mm  Workpiece maximum height: 550mm  X axis displacement: 450mm - Year: 1954 - Documentation available: No - CE certificate present: No - Transport dimensions: 2400mm x 1600mm x 2000mm (l x w x h) Kodpfsxbq U Ssx Aayjdw - Transport weight [kg]: 1000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: ready for operation (used), functionality: fully functional, Manufacturer: LORENZ Model: S8/630 Wheel diameter: 630 mm Wheel width: 180 mm Max. module: 8 Serial number: 12371 Power (kW): 10 Dimensions (L×W×H mm): 3000 × 2500 × 3500 Weight (kg): 5500 Max. workpiece diameter (mm): 630 Max. module: 8 Current condition: fully functional Kedpfx Ajxakzpeaysdw

Condition: ready for operation (used), Max. external diameter (gear): 630 mm Max. internal diameter (gear): approx. 750 mm Max. tooth width: 180–200 mm Max. module: 8 Stroke: up to 220 mm Strokes per minute: 47–300 strokes/min Kodow S T Uwspfx Aayedw Tool holder: MK 4 Drive capacity: approx. 8 kW Total connected load: approx. 10–12 kW Machine weight: approx. 5,500–5,800 kg The machine has been in storage in Langenfeld since 04.09.2025. It is currently being cleaned and can be inspected by appointment.

Condition: good (used), Year of construction: 2007, max. wheel diameter 1200 mm gear width 260 mm max. module 16 min. module 0,5 Kdedpfx Aajwzmp Ieyew stroke 270 mm distance between table/spindle 920 mm taper of shaper cutter SK control Liebherr LH 90 table diameter 900 mm min. workpiece diameter-at internal hobbing 1200 mm strokes - infinitely variable 50-1000 Hub/min spindle diameter 125 mm table hole 320 mm Distance of shafts Min/Max 0-820 power requirement Stosskopf 30 KW total power requirement 72 KVA weight of the machine ca. 24 t dimensions of the machine ca. 6,5x2,9x4 m Liebherr LH 90 control, 9 axis CNC, top condition.

Condition: good (used), Year of construction: 2009, max. wheel diameter 1200 mm gear width 260 mm max. module 16 min. module 0,5 stroke 270 mm distance between table/spindle 920 mm taper of shaper cutter SK control Bosch MTX table diameter 900 mm min. workpiece diameter-at internal hobbing 1200 mm strokes - infinitely variable 50-1000 Hub/min spindle diameter 125 mm table hole 320 mm Distance of shafts Min/Max 0-820 power capacity Stosskopf 30 KW total power requirement 72 KVA weight of the machine ca. 24 t dimensions of the machine ca. 6,5x2,9x4 m Liebherr LH 90 control, 9 axis CNC, top condition. Kjdpfjwzmpzjx Aaysdw

Condition: like new (used), functionality: fully functional, overall weight: 7,000 kg, This machine is configured with 4 fully electronic CNC axes and has integrated software that generates the automatic program. Description Maximum gear diameter: 400 mm Gear width: 76 mm Stroke: 82 mm Rotation: 150 - 700 rpm Module: min. 0.5 mm Module: max. 6 mm Machine weight: approx. 7500 kg Electrical equipment: – Operating voltage: 380/400 V – Protection: 20kva Machine with new CNC Siemens 808D Siemens drives and servomotors New update 2025 Kdsdpswvbqijfx Aayow Screens for automatic program generation Automatic cycles NR12 Included in Chip conveyor Coolant tank Automatic lubrication Digital pressure controls Hydrostatic guide

Condition: used, Year of construction: 1959, total height: 1,900 mm, total width: 2,200 mm, total length: 1,500 mm, Empty weight: 2.500 kg Price: On request Kdedpfowniikex Aayow - Year: 1959 - Documentation available: Yes - CE certificate present: No - Serial number: 80 - Control: Conventional - Motor power: 5.0kW - Transport dimensions: 1500mm x 2200mm x 1900mm (l x w x h) - Transport weight [kg]: 2500kg - Transport packages [pcs.]: 3 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, total height: 1,200 mm, total width: 1,200 mm, total length: 4,000 mm, Empty weight: 4.000 kg - Documentation available: No - CE certificate present: No - Control: Conventional - Transport dimensions: 4000mm x 1200mm x 1200mm (l x w x h) - Transport weight [kg]: 4000kg Kjdpfx Aswnib Toayedw Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, Year of construction: 1998, max. wheel diameter 85 mm Kodpfx Aaswhqx Tjysdw gear width max. 125 mm max. module 3 Control ja total power requirement 30 kW weight of the machine ca. 8 t

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, feed length X-axis: 230 mm, feed length Y-axis: 25 mm, feed length Z-axis: 150 mm, workpiece diameter (max.): 300 mm, TECHNICAL DETAILS Control: Siemens 840 D Kdjdpfx Aowc Tg Njayjw Nominal module in steel with approx. 600 N/mm² tensile strength: 4 Largest tooth width: 25 mm Largest nominal diameter: 130 mm Largest helix angle when using 125 mm diameter cutting wheels: ± 45° Workpiece with internal gearing Nominal module in steel with approx. 600 N/mm² tensile strength: 4 mm Largest tooth width: 25 mm Largest swing diameter: 300 mm Largest inner diameter: 130 mm Tool Largest permissible cutting wheel diameter: 175 mm Cutting wheel holder – diameter: 1.5 inches Cutting wheel holder – taper in the shaping spindle: PKP 45 hollow steep taper – Bauer Travel paths Radial (X-axis): 230 mm Manual transverse column adjustment (Y-axis): ± 25 mm Adjustment range of the axial slide (Z-axis): 150 mm Workpiece table Outer diameter: 168.14 mm Bore: 65.532 mm Spindle spindle Largest stroke length (V-axis): 30 mm Spindle axis adjustment range: ± 0.25° MACHINE DETAILS Length: 6,435 mm Width: 4,560 mm Height: 4,400 mm Weight: approx. 11,000 kg

Condition: excellent (used), Year of construction: 1979, Max. gear diameter: 180 mm Gear width: 45 mm Max. module: 4 Min. module: 0.5 Max. stroke length: 0 – 52 mm Internal spindle taper: MK 4 Table diameter: 160 mm Table bore diameter: 75 mm Strokes per minute: 355 – 630 Kdjdpfx Aajwbvwnoyjw Machine dimensions approx.: 2.30 x 1.50 x 2.36 m Drive power: 6 kW Machine weight approx.: 2,500 kg The machine can be inspected on site

Condition: good (used), Year of construction: 2005, functionality: unexamined, machine/vehicle number: 29406, Lot consists of: Kdodev R Tmtepfx Aaysw (1)CNC Gear Shaping Machine Position consists of: (1) CNC gear shaping machine Technical Details/Technical Details: English: max dia 130mm, max face width 25mm, min/max module 0.5-4, strokes 500 - 2,500 1/min, spindle dia 85mm, CNC Siemens Sinumerik 840D, 400V 50Hz 49kW, LxWxH 6.4x4.5x4.4m, weight 12to Parts Gantry System and/or Cranes are not included in the scope. German: max. diameter 130mm, max. face width 25mm, min./max. Module 0.5-4, strokes 500-2,500 rpm, spindle diameter 85 mm, CNC Siemens Sinumerik 840D, 400 V 50 Hz 49 kW, LxWxH 6.4 x 4.5 x 4.4 m, weight 12 tons Parts gantry system and/or cranes are not included in the scope of delivery.

Condition: used, Year of construction: 2007, max. dia. of teeth cutting 2000 mm workpiece dia. 2700 mm Diameter of the table 1500 mm max. module 22 Control 840D turning speeds 3,5 U/min table load capacity 20000 KG Distance of shafts 70...1220 mm Stroke length 30...330 mm no. of strokes 10...200 Hub/min total power requirement 138 kW weight of the machine ca. 38 t dimensions of the machine ca. 11x5 m machine: Full CNC machine with electronic rolling coupling for C- and D-axes and digital INDRAMAT drive technology. Stiff machine bed in welded construction. Radial axis (X-axis) with hardened guideways, sliding guide with wraparound, longitudinal guide with roller recirculating shoes. Ground preloaded ball screw with play-free preloaded nut. Digital AC drive technology with play-free gearbox. Linear measurement system for radial positioning. Freestanding machine table with electrohydraulically play-free preloaded double worm gear, part wheel diameter 1365 mm, hydrostatic axial and radial bearings, automatic compensation of the workpiece weight. Table hole with a diameter of 500 mm through and open at the bottom. Water-cooled digital AC servo motors. The machine is to be installed on a foundation. Machine stand: Ksdpfxev E R Eis Aaysdw as a highly rigid cast construction for axial travel of 1200 mm. Axial axis (Z-axis) with hardened guideways, slide-guided, longitudinal guide and wraparound with roller recirculating shoes. Ground ball screw with play-free preloaded nut. Digital AC drive technology. Encoder for axial positioning. Shapping head: SK 4.1 with hydraulic NC servo drive for impact spindle movement and cutting wheel lifting, stroke length 330 mm, impact spindle diameter 160 mm. Hydrostatically supported impact spindle, linear guide and lateral guide for the lifting mechanism. Maximum tool diameter 300 mm. Drive motor power 30 kW. Stroke rates from 10 - 200 DH/min, stroke speed from 5 - 45 m/min. Impact spindle speed for working and return stroke independently programmable. In the cutting area, the spindle speed remains constant. Maximum cutting wheel speed 10 rpm, digital AC drive technology. Cutting wheel lifting correction for internal and external gearing manually reversible. Lateral offset of the impact spindle axis up to 50 mm from the machine center to prevent return stroke collision of the cutting wheel, manually adjustable.

Condition: like new (used), Year of construction: 2017, max. wheel diameter 100 mm gear width 26 mm max. module 31 min. module 0,1 Control Siemens 840 D SL total power requirement 45 kW weight of the machine ca. 7 t dimensions of the machine ca. 4x3x2,5 m Gleason 100S gear shaping machine for the production of internally and externally toothed cylindrical gears and other cylindrical workpiece circumference regularly occurring profiles and moulds as well as for the production of profiles using the single part process. Technical data: Nominal workpiece diameter 100 mm Kdedpfx Asv Ehbboayow Largest circumferential diameter 150 mm Machine nominal module approx. 3 mm (Guide value depending on the respective machining task.) Shaping spindle stroke speed range 0 - 3,000 1/min Stroke position adjustment range (manual) 20 mm Largest toothing width 26 mm Smallest pitch height of the hydrostatic inclined guide 400 mm Smallest/largest distance between tool axis - 20/+ 180 mm and workpiece axis Stand inclination range (manual) - 1/+ 11° Tool holder (manual clamping) HSK-D63 (hollow shank taper according to DIN 69063) Weight of the machine approx. 7,000 kg with robot cell

Condition: used, Year of construction: 2003, max. wheel diameter 600 mm gear width 92 mm Kjdpfovzhflox Aayodw max. module 8 mm max. ram stroke 100 mm table diameter 400 mm workpiece dia. 600 mm Shockable standard module max. 8 mm angle adjustable from - to -0,5 / +0,5 Grad stroke range 80 - 1200 Hübe/min feed radial axis machine column 1 - 3750 mm/min Accessories: - Various stop blade holders - Various clamping devices

Condition: good (used), Year of construction: 1998, Max. Pitch circle diameter External gearing 300 mm Max. Pitch circle diameter internal gearing 300 mm Max. Outer diameter of workpiece (equipment) 450 mm max. module 6 gear hobbing width -max. 100 mm Max. Helix angle (with tool Ø 125 mm) +/- 45 ° strokes - infinitely variable 130 - 1300 Hub/min workpiece weight 1000 kg Minimum distance table top - tool spindle -55 / +300 mm Maximum distance table top - tool spindle 200 mm Maximum distance table top - tool spindle 350 mm Manual Upright side shift +/- 25 mm Manual swivelling angle of the tool spindle +/- 0,5 ° Max. Tool speed 15 UpM Max. Workpiece speed 27 UpM Max. Tool diameter 7 Zoll voltage 400 V frequency 50 Hz Max. Line power 70 A total power requirement 48 kW weight of the machine ca. 11 t dimensions of the machine ca. 4,27 x 3,11 x 2,87 m taper in main spindle SK 45 table hole 40 mm control Siemens Sinumerik 840 C Gleason PFAUTER gear shaping machine Mod. PSA 300 The CNC modular gear shaping machine with skiving cutter for the machining of external and internal cylindrical gears, with straight or helical involute with straight or helical involute toothing, as well as any other profile splitting process. The work cycle is controlled by a CNC Kdjdpfx Aasvu E Nueyow unit, with specific software for machining the gears, machining. Field of application --> The PSA 300 has been designed for the production of: - Gears with straight external teeth - Gears with straight internal teeth - Gears with external helical teeth - Gears with internal helical teeth
