Condition: used, functionality: fully functional, Conventional Lathe WEILER CONDOR VS2 Technical details Spindle bore: 38 mm Swing diameter over bed: 340 mm Swing diameter over cross slide: 200 mm Turning length: 750 mm Spindle speed (max.): 2,800 rpm Fgedpfxjxmg S Rs Afpjh Spindle speed (min.): 12 rpm Overall length: 1,700 mm Overall width: 650 mm Overall height: 1,500 mm Total weight: 800 kg

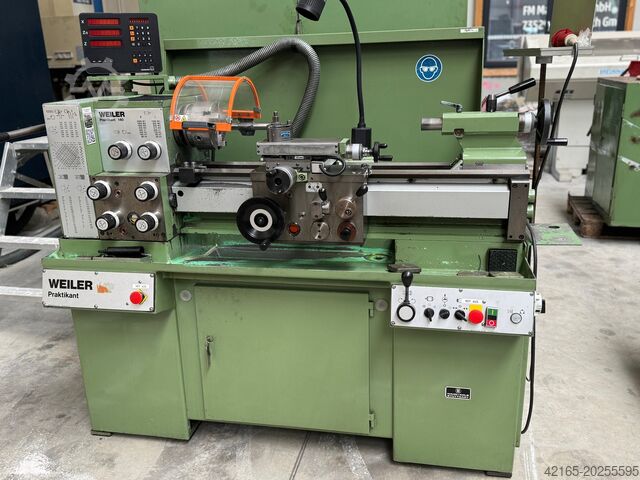

Condition: excellent (used), Year of construction: 1985, functionality: fully functional, Conventional Lathe WEILER Praktikant 140 B Year of manufacture: 1985 Working area: Centre height: 140 mm Centre distance: 650 mm Fodpfx Ajxmf Nnjfpsgh Swing diameter over bed: 280 mm Swing diameter over cross slide: 190 mm Spindle: Spindle taper: DIN 55027/DIN ISO 702-3 Gr. 5 Spindle bore: 43 mm Spindle diameter at front bearing: 70 mm Main drive: Drive power: 2.6 / 3.1 kW Speed range: 48 – 2,500 rpm Number of speeds: 16 Feed range: Number: 24, Longitudinal feed: 0.02 – 0.63 mm/rev, Cross slide: 0.006 – 0.2 mm/rev. Length x Width x Height: 1600 mm × 800 mm × 1300 mm Weight: Approx. 650 kg

Condition: ready for operation (used), turning length 800 mm turning diameter over bed 330 mm turning diameter over slide rest 170 mm turning speed range 24 - 2800 U/min spindle bore 38.0 mm centre height 165 mm total power requirement 3.5 kW weight of the machine ca. 850 kg. dimensions of the machine ca. 1850 x 800 x 1700 mm from a vocational school - in good condition (!!) particularly suitable for medium-precision turned parts Features: - Robust lead/feed screw lathe - HEIDENHAIN 3-axis digital display “VRZ 770” - RÖHM three-jaw chuck Ø 160 mm - Foldable lathe chuck guard - Chuck key - TRIPAN steel holder with 3x inserts - Sliding tailstock - Swiveling machine light - Control panel, front left - Automatic feeds for face and upper support - Machine base, with cabinet door (storage space) - Chip splash guard rear panel Fgodpfoxmaktjx Afpeh - 1x empty tool cabinet - EMERGENCY stop button - Operating instructions

Condition: excellent (used), Year of construction: 1990, functionality: fully functional, L+Z Lathe WEILER Praktikant 160 – Partially Overhauled The machine is in very good used condition – delivery upon request, delivery time by arrangement! ✅ Technical Data Year of manufacture: approx. 1990 Digital readout: 3-axis (NEW) Max. turning diameter over bed: approx. Ø 320 mm Max. turning diameter over cross slide: approx. Ø 198 mm Max. turning length: approx. 650 mm Bar capacity: approx. Ø 40 mm Spindle speed: 96 – 2500 rpm Spindle nose: A 2 - 5 Drive power: approx. 2.2 kW Thread cutting: metric, imperial, DP, module Tailstock: MT 3 Dimensions (LxWxH): approx. 1700 x 1000 x 1700 mm Weight: approx. 650 kg ✅ Accessories 3-jaw chuck 160 mm (NEW) Quick-change tool post + 1 insert Electric chuck guard (NEW) Work lamp (NEW) Complete machine documentation Emergency stop Various chuck keys Coolant system L+Z spindle guard Machine mounts Fsdpoxl Eydjfx Afpsgh Optional: additional quick-change holders, drill chuck, live centre, collet attachment 386E + collet set 386E (NEW) Transport, installation & commissioning optional ✅ Condition Machine partially overhauled Very good used condition Delivery upon request – delivery time by arrangement (subject to prior sale)

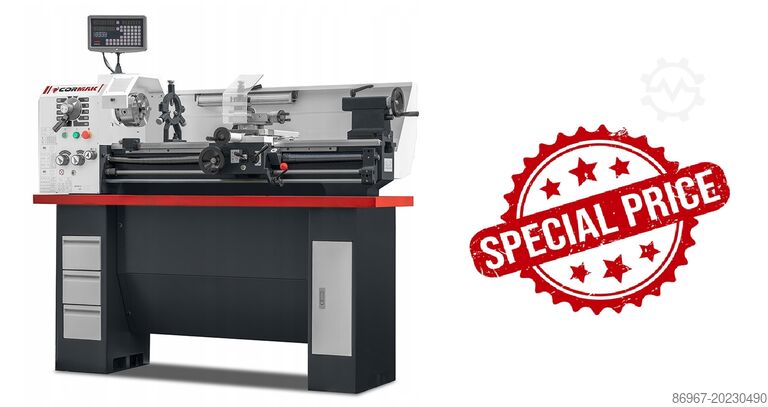

Condition: new, Year of construction: 2025, UNIVERSAL LATHE CORMAK 330 x 700 F38 WITH DIGITAL READOUT The semi-professional universal metal lathe CORMAK 330 x 700V mm is equipped with a 12-speed gearbox and an induction motor (constant speed) 1.1 kW/400V – offering maximum torque. It is recommended for machining hard steels and mechanical turning. It can be used for a variety of tasks such as internal and external surface turning, taper turning, polishing, metric and inch threading, drilling, and broaching. Technical Specifications: Max. turning diameter over bed: 325 mm Turning length between centers: 700 mm Max. installed workpiece length (lathe chuck/center): 700 mm Turning diameter over cross slide: 208 mm Bed width: 160 mm Spindle bore: 38 mm Spindle taper: MT5 Tool post dimensions: 78 x 78 x 20 mm Max. tool size: 16 x 16 mm Top slide travel: 100 mm Cross slide travel: 153 mm Longitudinal travel: 800 mm Spindle end: MT5 Spindle speeds: 12 steps (L/H) Spindle speed range: Fjdpfx Aoxlpm Iofpegh L: 65, 90, 120, 120, 160, 300 rpm H: 380, 500, 640, 850, 1100, 1650 rpm Metric threads: (16) 0.25–6 mm Inch threads: (24) 4–120 TPI Longitudinal feed range: 0.087–2.218 mm/rev Cross feed range: 0.019–0.477 mm/rev Tailstock quill diameter: 32 mm Tailstock quill travel: 75 mm Tailstock quill taper: MT3 Motor power: 1.1 kW / 400 V Dimensions: 1770 x 740 x 1600 mm Weight: 390 kg Standard Equipment: Fixed and follow steady rests Lathe stand/base 2-axis digital readout (DRO) 3-jaw lathe chuck Internal and external chuck jaws Change gears Cooling system Lubrication pump Chuck and tool post keys Set of service tools Safety guards compliant with CE standards Operating manual CE Declaration of Conformity

Condition: used, TECHNICAL DETAILS - Number of axes : 3 - Number of spindles : 2 - Number of turrets : 1 MAIN SPINDLE - Spindle nose : A2-6" - Spindle power : 22 [kW] - Spindle speeds : 3400 [rpm] - Max. bar diameter : 76 [mm] - Max. turning diameter : 298 [mm] COUNTER-SPINDLE - Spindle nose : A2-5" - Spindle speeds : 6000 [rpm] - Rapid traverse rate : 10 [mm/min] TURRET 1 - Number of positions : 12 - X/Z stroke : 213/572 [mm] - Tool type : BMT65 POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 30 [kW] WEIGHT & DIMENSIONS - Machine floor space : 3630/2290 [mm] - Machine height : 2340 [mm] - Machine weight : 4536 [kg] MACHINE HOURS - Number of hours under power : 622 [h] - Number of working hours : 137 [h] Fgodpfxjxlk I Te Afpoh EQUIPMENT - CNC : HAAS - Interface : Ethernet / RS232 / USB / PCMCIA - Interactive programming - Coolant tank - Chips conveyor - Tool probe - Electric transformer - Number of fixed tool holders : 9 - Chuck 3 jaws : 2

Condition: ready for operation (used), Immediately available ex CH toolmaking: L & z Colchester Lathe Type Triumph 2500 Year of manufacture: 1997 A-axis digital readout Swing over bed: 400 mm Distance between centers: 1000 mm Center height: 195 mm Swing over support: 246 mm Spindle bore: 54 mm Swing diameter in gap: 585 mm Infinitely variable spindle speeds: 14 – 2500 rpm Drive power: 7.5 kW Tailstock taper No. 5 Tailstock quill travel: 145 mm Chuck Multifix toolholder with insert Fgjdpexld H Asfx Afpoh Digital readout Weight: 2.5 t Price: EUR 3,500.-- plus VAT ex location

Condition: ready for operation (used), Year of construction: 1966, Immediately available from location: L & Z Lathe Weiler Year of manufacture approx. 1966 Centre height 140 mm Swing diameter 280 mm Over carriage 180 mm Turning length 800 mm Spindle bore 24 mm Fedpfx Asxld Hvefpogh Spindle speeds up to 1600 rpm Drive power 2 kW Chuck diameter 140 mm Multifix tool holder with inserts Weight 1 ton Priced at EUR 1,500.— plus VAT ex location

Condition: used, Year of construction: 1990, functionality: fully functional, machine/vehicle number: LVT50 GMRJA/04069, MACHINE SPECIFICATION Height of centres 195mm Swing over bed 400mm Swing over cross slide 246mm Swing in gap 585mm Width in front of faceplate 165mm Bed length between centres 1250mm Spindle speeds (infinitely variable) 0-2500rpm Spindle nose mounting (Camlock) D1-6 Spindle bore 54mm Spindle motor 7.5kW Width over bedways 318mm Travel of cross slide 250mm Travel of top slide 130mm Travel of tailstock barrel 178mm Taper in tailstock barrel No. 5 MT Approx. Weight 1800kg Machine in Metric execution   Fgjdpfx Afexldidjpoh MACHINE EQUIPPED WITH Newall 2 Axis Digital Readout System 3 Jaw Chuck Quick change Toolpost Ainjest high speed screwcutting attachment Chuck Guard Lighting Coolant System Rear Splashguard

Condition: ready for operation (used), Weiler Commodor lathe with leadscrew and feed shaft for sale. Manufacturer: Weiler Type: Commodor Condition: used, good, still in production Scope of delivery: - Multifix B tool holder - Three-jaw chuck Fedpsxladwofx Afpegh

Condition: good (used), functionality: fully functional, Swing diameter 381 mm Turning length 1500 mm Fodpfx Afoxk T Ruspegh

Condition: new, Year of construction: 2025, CORMAK TU290V Vario Lathe-Mill Fedpfx Afsxixkdspjgh The CORMAK TU290V750 Vario is a combination of a lathe and a milling machine, offering both convenience and space-saving benefits in the workplace. It features smooth variable spindle speed control for both turning and milling functions. Turning capacity: 290 x 750 mm Lathe motor: 1 kW / 230 V Milling motor: 0.6 kW / 230 V The machine is capable of performing a range of turning operations including external and internal cylindrical surface machining, thread cutting, and parting. The milling functions include slot milling, drilling, and reaming. It is commonly used in small industrial enterprises, workshops, garages, and similar environments. Technical Specifications LATHE 3-jaw chuck diameter: 160 mm Max. turning diameter over bed: 290 mm Max. turning diameter over cross slide: 180 mm Distance between centers: 750 mm Bed width: 180 mm Spindle bore: 29 mm Spindle taper: MT4 Spindle speed control: Stepless (2 ranges) Spindle speeds: Range 1: 75–500 rpm Range 2: 300–2000 rpm Metric threads: 18 types (0.2–3.5 mm/rev) Imperial threads: 21 types (8–56 TPI) Longitudinal feeds: 6 types (0.07–0.4 mm/rev) Tool post dimensions: 65 x 65 x 20 mm Max. tool size: 12 x 12 mm Top slide travel: 70 mm Cross slide travel: 130 mm Longitudinal travel: 630 mm Tailstock quill diameter: 30 mm Tailstock quill travel: 70 mm Tailstock taper: MT2 Motor power (S1/S6) / Voltage: 1 / 1.3 kW / 230 V MILLING MACHINE Max. drilling diameter: 16 mm Spindle quill taper: MT2 Spindle quill travel: 50 mm Head tilt angle: -90° to +90° Distance spindle to column: 170 mm Distance spindle to table: 43 – 250 mm Spindle speed range: 50 – 2250 rpm T-slot size and number: 8 mm / 2 slots Motor power / Voltage: 0.6 kW / 230 V GENERAL SPECIFICATIONS Dimensions (L x W x H): 1350 x 580 x 1630 mm Weight: 230 kg

Condition: good (used), Year of construction: 2021, – Year of manufacture: 2021 – Centre distance: 910 mm – Swing over bed: 300 mm – Swing over gap: 430 mm – Swing over cross slide: 178 mm – Spindle bore: 38 mm – 60/2000 rpm – Longitudinal and cross feed – Digital readout – Multifix with 4 tool holders – Safety guard – Three-jaw chuck Fjdpfxjxhx S Eo Afpsgh – Emergency stop switch – Documentation – 400V

Condition: good (used), Year of construction: 2015, turning length: 400 mm, 2015 Schinfa Rebuild EUR 18.500 Re-Grinded guideways New bearings / screws / engines New eletric / lubrication / protectors CE-Safety cobvers HeidenHain ND780 2 axis Dro  Fedsxgdb Nepfx Afpsgh Steady rest / Documentation / Drawings Slant bed construction Levers and handles controlled from one place Precision H7 Turning jobs Collet device with collets  Multi fix tool holder system    DBC Turning Length: 400mm Swing over bed Ø: 315mm Swing over cross slide Ø:180mm Spindle bore: 37mm Spindle power: 3.2kW Stroke pinole: 100mm Spindle taper: 5Mk Speeds / ranges: 90-3550Rpm Quill Ø: 48mm Length: 1400mm Width: 700mm Height: 2100mm Weight: 1250kg

Condition: like new (used), Year of construction: 2024, functionality: fully functional, Lead and Feed Screw Lathe OPTIturn TH 3309D Year of manufacture: 2024 Condition: as new, workshop-inspected Delivery time: immediately available Technical Data Center height: 165 mm Center distance: 830 mm Swing diameter over bed: 330 mm Swing diameter over cross slide: 208 mm Turning length in bed gap: 430 mm Spindle speed ranges: 16 steps, 70–2000 rpm Drive motor: 1.5 kW, 400 V, 50 Hz Spindle mount: Camlock DIN ISO 702-2 No.4 Spindle bore: 38 mm Spindle taper: MT5 Tailstock quill: MT3, quill travel 110 mm Weight: approx. 512 kg Machine dimensions (LxWxH): 1685 × 745 × 1590 mm Threads and Feeds Metric: 0.4–7 mm/rev (26 threads) Imperial: 56–4 TPI (34 threads) Longitudinal feed: 0.052–1.392 mm/rev (32 feeds) Cross feed: 0.014–0.38 mm/rev (32 feeds) Accessories: Fixed steady rest (Ø 6–50 mm) Travelling steady rest (Ø 8–30 mm) LED machine lamp Reducing sleeve MT5/MT3 Two fixed centre points MT3 Fedjxgbbaepfx Afpegh Multifix tool holder Change gear set Machine base Initial fill with quality oil Operating tools Subject to errors and input mistakes!

Condition: like new (used), Year of construction: 1997, functionality: fully functional, Weiler Commodor 230 Lead and Feed Screw Lathe with 3-Axis Digital Readout K&C NEW Excellent Original Condition CE !!! Technical Data: >> Year of manufacture: 1997 Machine no. 330 >> Centre height: 230 mm >> Centre distance: 1,000 mm >> Spindle speeds: from 13 to 2,000 rpm >> Spindle bore: 56 mm >> Short taper spindle nose DIN 55027, size 6 with bayonet lock >> Tailstock: Morse taper 4 >> Feeds: from 0.026 to 0.888 mm/rev Fgsdpfjxfu Spjx Afpeh >> Thread cutting: metric, imperial, module, and diametral pitch >> Metric thread pitches: from 0.35 to 12 mm >> Weight: approx. 2,000 kg >> Spindle brake engageable >> Drive power: 7.5 kW >> Length: 2.2 m, Height: 1.5 m, Depth: 1.0 m Accessories and Equipment: >> 3-axis digital readout from K&C, brand new, 12-month manufacturer's warranty with user manual Functions: mm/inch switch-over, coordinate selection ABS/INC, value halving, reference mark, 200-tool memory, taper calculation, radius/diameter, quick zeroing, counting direction toggle >> 3-jaw chuck NEW 200 mm, 2 sets of jaws >> Multifix size B with 3 tool holders >> Bed stop >> Fixed steady rest >> Machine lamp >> Coolant system About the machine: For sale is a Weiler Commodor 230 lathe in excellent original condition with CE conformity. The Commodor 230 is one of the largest manual lathes manufactured by Weiler—a very robust and high-performance machine. The new K&C 3-axis digital readout makes operation even easier and more precise. The machine has been electrically and mechanically inspected in our workshop. A full oil change has been carried out. This newer generation of Weiler lathes is particularly user-friendly. You are welcome to view and test the machine under power at our premises.

Condition: ready for operation (used), Colchester Triumph 2500 Lathe Swing over bed: 400 mm Swing over cross slide: 246 mm Distance between centres: 1270 mm Centre height: 195 mm Max. turning diameter: 585 mm Spindle motor power: max. 7.5 kW Spindle speed: max. 2,500 rpm Infinitely variable spindle speed ranges: - low: 14–300 rpm - medium: 36–830 rpm - high: 109–2,500 rpm Overall dimensions: 2,600 mm x 1,300 mm x 1,800 mm (L x W x H) Accessories: 5 Multifix tool holders Steady rest Live and dead centers Drill chuck Jaws Fgodpexfrgdefx Afpeh Cabinet Coolant pump You are welcome to come and inspect the machine. We are happy to organize affordable shipping for you. You will receive a proper invoice. A net invoice can be issued for international customers with a valid VAT ID number. Subject to prior sale. Visit our shop and see our other offers. The company names and trademarks mentioned are the property of their respective owners and are used for identification and description purposes only. Technical data may be subject to deviations, and errors in the item description may occur and are reserved.

Condition: excellent (used), functionality: fully functional, Tovaglieri Mebot Parallel Lathe 2000 x 250 Model: TVC 500 Bar Passage 50 Used Machine Internal code 159 Fgodpfx Ajxfkbtefpoh

Condition: ready for operation (used), GDW Romi T180 Lead and Feed Screw Lathe Centre height: 180 mm Swing over bed: 325 mm Swing over cross slide: 210 mm Fgjdpfjxfhukjx Afpoh Spindle speed: from 50 to 2500 rpm Distance between centres: 1000 mm Spindle bore: 40 mm Tailstock: MT3 Cross feeds from 0.021 to 0.367 mm/rev Number of longitudinal feeds: 20, from 0.043 to 0.744 mm/rev Spindle brake Weight: approx. 1100 kg Space requirement: 2200 mm x 920 mm x 1400 mm (L x W x H) You are welcome to arrange a viewing appointment. We will be happy to organise affordable shipping for you! You will receive a proper invoice. For international customers, a net invoice can be issued. This requires a valid VAT identification number. Subject to prior sale. Visit our shop and view our other offers. Specified brand names and trademarks are the property of their respective owners and are used for identification and product description purposes only. Deviations in technical data or errors in the item description may occur and are subject to change.

Condition: good (used), Year of construction: 2012, functionality: fully functional, Weiler Praktikant VC precision lathe Manufacturer: Weiler Type: Weiler Praktikant VC precision lathe Year of manufacture: 2008 Condition: used, very good, serviced and inspected with inspection protocol according to factory specifications Technical details Turning diameter: 250 mm Turning length: 650 mm Center height: 160 mm Swing diameter over bed slide: 320 mm Max. swing diameter over cross slide: 190 mm Main spindle: Speed range – main spindle: 30 – 4,000 rpm Power output – main spindle: 10 / 6.0 kW Number of gear stages: 1 Spindle head: 5 / DIN 55027 Spindle diameter in front bearing: 70 mm Spindle bore: 40 mm Usable bar diameter: 40 mm Tool holder: System: MultiFix B Turning tool shank cross-section: 20 x 20 Tailstock: Quill travel: 85 mm Quill diameter: 40 mm Tailstock taper: MK 3 Feeds: Number of feeds: 24 Longitudinal feed: 0.02 – 0.63 mm/rev Cross feed: 0.006 – 0.2 mm/rev Fsdpfx Asxd Tknofpogh Thread cutting: Metric: 0.25 – 8 mm Inches: 80-2 1/” Module: 0.25 – 4 mm Travel distances: Cross slide travel: 150 mm Top slide travel: 110 mm Swivel movement: 180 ° Total power requirement: 15 kVA Machine weight: approx. 1.0 t Space requirements: approx. 2.5 x 2.0 x 2.0 m Scope of delivery: – Weiler Praktikant VC precision lathe – Machine lamp – Documentation – Three-jaw chuck – Tailstock – Multifix tool holder – 8x machine feet – Original tool set

Condition: like new (used), Year of construction: 2008, functionality: fully functional, Weiler Praktikant VC precision lathe Manufacturer: Weiler Type: Weiler Praktikant VC precision lathe Year of manufacture: 2008 Condition: used, very good, serviced and inspected with inspection protocol according to factory specifications Technical details Turning diameter: 250 mm Turning length: 650 mm Center height: 160 mm Swing diameter over bed slide: 320 mm Max. swing diameter over cross slide: 190 mm Main spindle: Speed range – main spindle: 30 – 4,000 rpm Power output – main spindle: 10 / 6.0 kW Number of gear stages: 1 Spindle head: 5 / DIN 55027 Spindle diameter in front bearing: 70 mm Spindle bore: 40 mm Usable bar diameter: 40 mm Tool holder: System: MultiFix B Turning tool shank cross-section: 20 x 20 Tailstock: Quill travel: 85 mm Quill diameter: 40 mm Tailstock taper: MK 3 Feeds: Number of feeds: 24 Longitudinal feed: 0.02 – 0.63 mm/rev Cross feed: 0.006 – 0.2 mm/rev Thread cutting: Metric: 0.25 – 8 mm Inches: 80-2 1/” Module: 0.25 – 4 mm Travel distances: Cross slide travel: 150 mm Top slide travel: 110 mm Swivel movement: 180 ° Total power requirement: 15 kVA Machine weight: approx. 1.0 t Space requirements: approx. 2.5 x 2.0 x 2.0 m Scope of delivery: – Weiler Praktikant VC precision lathe – Machine lamp – Documentation – Three-jaw chuck – Tailstock – Multifix tool holder Fodpexd Tkbjfx Afpsgh – 8x machine feet – Original tool set

Condition: excellent (used), Year of construction: 1992, Lathe Colchester Master 3250, year of manufacture 1992, manual lathe, several chucks and holders, digital readout in 3 axes Technical Data: Turning diameter: 300 mm Centre height: 170 mm Centre distance: 650 mm Fgodpfxsxdxa Ue Afpjh Swing over bed: 350 mm Swing over cross slide: 196 mm Spindle bore: 42 mm

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, Weiler Commodor 230 Lead and Feed Spindle Lathe with 3-Axis Digital Readout K&C NEW Excellent Condition Technical Data: - Year of manufacture: 1992, Machine No. 239 - Centre height: 230 mm - Centre distance: 1000 mm - Spindle speeds: from 13 to 2000 rpm - Spindle bore: 56 mm - Short-taper spindle nose DIN 55027 size 6 with bayonet lock - Tailstock: MT 4 - Feeds from 0.026 to 0.888 mm/rev - Possible threads: Metric, Inch, Module, and Diametral Pitch - Metric thread pitches from 0.35 to 12 mm - Weight approx. 2000 kg - Spindle brake engageable - Drive power: 7.5 kW - Length 2.2 m, Height 1.5 m, Depth 1 m Fgjdpfoxdi Shex Afpoh Accessories and Equipment: - 3-axis digital readout by K&C, new, 12 months manufacturer warranty with user manual Functions: mm/inch toggle, coordinate selection ABS/INC, value halving, reference mark, tool programming for 200 tools, taper calculation, radius/diameter, rapid zeroing, counting direction selection - NEW 200 mm 3-jaw chuck, 2 sets of jaws - Multifix size B with 2 tool holders - Bed stop - Machine lamp - Coolant system About the Machine: Offered is a Weiler Commodor 230 lathe in excellent condition. The Commodor 230 is one of the largest manual lathes manufactured by Weiler—a very robust and powerful machine. The new K&C 3-axis digital readout makes operation even easier and more precise. The machine has been electrically and mechanically tested by us and a complete oil change has been performed. This newer generation of Weiler lathes is very user-friendly. Take the opportunity to inspect and test the machine under power at our location.

Condition: excellent (used), Year of construction: 1999, Used lead and feed screw lathe COLCHESTER MASTER 3250 Center height: 170 mm Distance between centers: 650 mm Spindle bore: 42 mm Infinitely variable speed from 15 to 3250 rpm incl. accessories Fsdpfx Afsxdhubspsgh

Condition: good (used), WEILER CONDOR VS 2 from university (test laboratory) - Guideways "as new" - Centre height: 165 mm - Swing diameter over bed: 330 mm - Distance between centres: 800 mm - Speed range: 28-2800 rpm - Automatic longitudinal / cross feeds - Spindle bore: 40 mm - Threads / Metric / Inch etc. - Collet quick-change system incl. collets - Four-jaw chuck Röhm - Face plate - Four-jaw face plate - Chuck guard - Multifix with inserts Fgjdpfxexc H Tys Afpsh - Emergency stop - Documentation Dimensions: LxWxH 2x0.8x1.6 m / Weight 900 kg Subject to errors / input mistakes.
