GS Werkzeugmaschinen

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, turning diameter over cross slide: 490 mm, spindle bore: 155 mm, center height: 400 mm, turning length: 3,000 mm, spindle speed (max.): 1,250 rpm, spindle speed (min.): 6 rpm, bed width: 700 mm, Turning diameter in gap: 1,050 mm, rotational speed (max.): 1,250 rpm, overall weight: 7,500 kg, three-jaw chuck diameter: 630 mm,

Condition: used, Year of construction: 1971, functionality: fully functional, Center distance: 2.000 mm turning diameter: 1.200 mm Kdsdpjxx S Tksfx Ad Ijw turning diameter in the gap (with guide spindle pulled out to the right): approx. 1.460 max. width of the adjustable bed: 900 mm spindle bore: 85 mm turning rate: 14 - 710 U/min dimensions: 4.705 x 2.060 x 2.000 mm equipment: 4 fold tool clamping system, HEIDENHAIN three-axis digital readout, Three jawchuck FORKARDT F400, Vibration damping elements

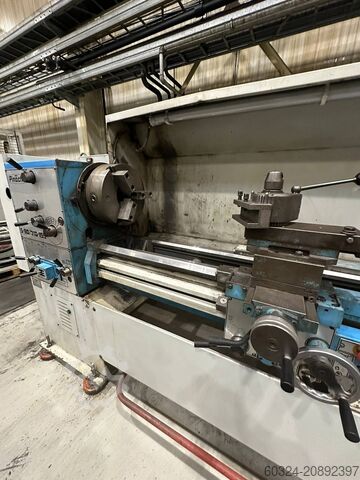

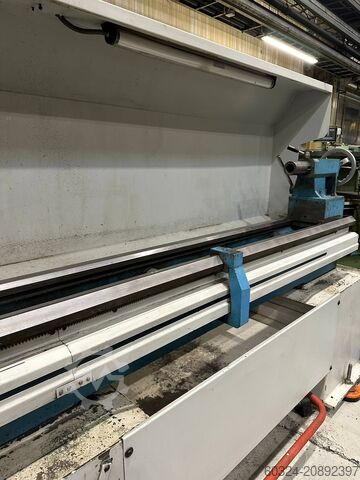

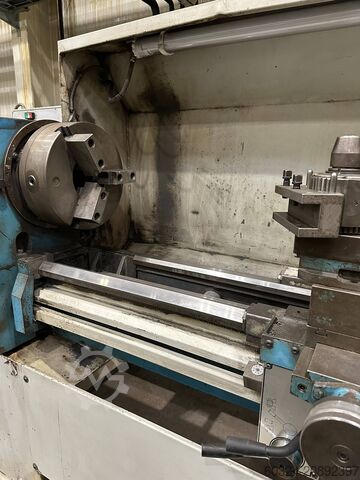

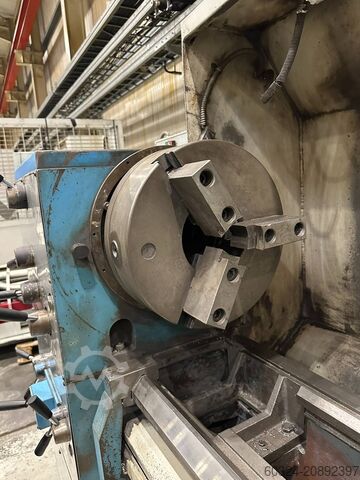

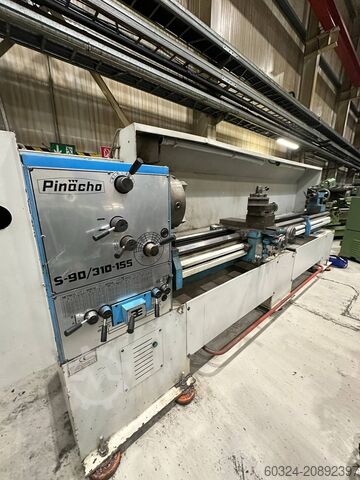

Condition: good (used), Year of construction: 2005, Ref. -No.: 10314 Manufacturer: PINACHO Type: S-90/ 310-155 Year of construction: 2005 Type of control: Konventionell Storage location: Halberstadt Country of origin: Spain Bar passage: 90 mm Travel quill: 180 mm Turning Diameter: 630 mm Turning Length: 3000 mm Kdsdsxxn Uwspfx Ad Iow Turning Diameter Over Bed: 620 mm Tip length: 3000 Cross Movement. (X-Axis): 365 mm Spindle Bore: 155 mm Tailstock Quill Diameter: 72 mm Turning diameter over cross slide: 880 mm Jaw chuck diameter: 380 mm Turning Speed Range: 16 - 750 rpm Further information: - The lathe has two jaw chucks on the headstock - metric, Whitworth and inch trapezoidal threads can be turned - adjustable feeds for cross face and longitudinal face turning (0.05 to 1.5 mm/u)

Condition: used, Year of construction: 1996, functionality: fully functional, turning diameter: 710 mm, turning length: 3,000 mm, Universal lathe Kjdpfjxxm A Hex Ad Iedw FAT Poland Model: TUR 710 x 3000 Year of manufacture: 1996 Accessories: Digital readout 3-jaw chuck Tool holder Steadies Live centre

Condition: new, Bernardo Universal Lathe Titan 660 x 3000 Technical Specifications Distance between centers: 3000 mm Center height: 330 mm Swing over bed: 660 mm Swing over gap: 900 mm Swing over cross slide: 460 mm Bed width: 400 mm Spindle bore: 105 mm Spindle mount: DIN 55029, D1-8 Speed range: (16) 25 - 1600 rpm Longitudinal feed range: (25) 0.044 - 1.48 mm/rev Cross feed range: (25) 0.022 - 0.740 mm/rev Metric threads: (54) 0.45 - 120 mm Inch threads: (54) 7/16 - 80 TPI Tailstock quill diameter: 90 mm Tailstock quill travel: 235 mm Tailstock taper: MK 5 Motor power: 7.5 kW (10.0 HP) Machine dimensions (W x D x H): 4630 x 1200 x 1520 mm Approx. weight: 3300 kg Features • Versatile use in general mechanical engineering, production, single-part manufacturing, etc. • Central, user-friendly control for feeds and threading with leadscrew and feed shaft • Prism bed made of cast iron, inductively hardened and precision ground • Modern main spindle bearings with precision angular contact roller bearings • Hardened and ground gears and shafts, also in the feed gearbox Kodpoxxayfofx Ad Iedw • Rapid traverse longitudinal and cross as standard to reduce non-productive times • Large spindle bore (105 mm) for machining workpieces with large diameter • Smooth start-up via mechanical multi-plate clutch • Electromechanical foot brake to reduce non-productive times • Optimal cutting performance even during facing operations • Bed reinforced with robust ribs to stiffen the guideway and minimize vibration influences Scope of Delivery • 3-axis digital readout ES-12 V with LCD display • Slip clutch • Rapid traverse longitudinal and cross • LED machine light • 3-jaw steel chuck PO3-315 mm / D8 • Face plate 450 mm • Fixed steady rest – through hole diameter max. 180 mm • Travelling steady rest – through hole diameter max. 120 mm • 2 live centers • Motor with magnetic brake to CE standard • Foot pedal with brake function to CE standard • Initial filling with Shell Tellus 46 • Coolant system • Quick-change tool post with 4 holders • Safety device for quick-change tool post • Change gears • Reducing sleeve • Chip guard rear panel • Cable management via energy chain • Operating tools

Condition: new, Bernardo Production Lathe Goliath 660 x 3000 incl. 3-Axis Digital Readout Technical Specifications Centre distance: 3000 mm Centre height: 330 mm Swing over bed: 660 mm Swing over gap*: 870 mm Swing over cross slide: 420 mm Bed width: 400 mm Spindle bore: 105 mm Spindle mounting: DIN 55029, D1-8 Speed range (16 steps): 36 – 1600 rpm Longitudinal feed range (65 steps): 0.063 – 2.52 mm/rev Cross feed range (65 steps): 0.027 – 1.07 mm/rev Metric threads (22): 1 – 14 mm Inch threads (26): 2 – 28 TPI (G/1") Quill diameter: 75 mm Quill travel: 150 mm Quill taper: MT 5 Motor power: 9.0 kW (12.0 HP) Machine dimensions (W x D x H): 4500 x 1280 x 1650 mm Kdedpexxaxnsfx Ad Ijw Approx. weight: 3990 kg * Removable bed gap: 240 mm Features • Versatile applications in general engineering, production, single-part manufacturing, etc. • The one-piece cast machine bed offers extremely high rigidity and low vibration, fulfilling a key requirement for precision turning • Modern headstock bearing with precision angular contact ball bearings • Central, user-friendly control for feeds and threading, with lead and feed screws • Rapid traverse (longitudinal and cross) as standard to minimize non-productive times • Large-dimensioned, hardened, and precision-ground gears • Removable gap bridge enables machining of large-diameter workpieces • Adjustable tailstock for taper turning, handwheel with adjustable fine scale (0.02 mm) • Electromechanical foot brake to reduce non-productive times • Excellent machining performance even during facing operations Scope of delivery • Slip clutch • Rapid traverse (longitudinal and cross) • LED machine lamp • 3-axis digital readout ES-12 V with LCD display • 3-jaw chuck PS3-315 mm / D8 • Face plate 630 mm • Fixed steady rest – max. bore diameter 250 mm • Travelling steady rest – max. bore diameter 110 mm • 1 live centre / 1 revolving centre • Motor with magnetic brake according to CE standard • Foot pedal with brake function to CE standard • Factory fill with Shell Tellus 46 • Coolant device • Quick-change toolpost with 4 holders • Safety guard for quick-change toolpost • Reducing sleeve • Chip guard (swarf back panel) • Operating tools

Condition: excellent (used), Mostana 1M65 x 5000mm Centre Lathe Year 1991 Serial Number 3892 Distance Between Centres 5000mm Swing Over Bed 1000mm Kjdpfxjxwkvhe Ad Iodw 3 Point Steady Sliding Chuck Guard Tailstock Power feed to compound

Condition: like new (used), A very well-preserved L&Z lathe by MASHSTROY, model C11MTM, with a turning length of 2000 mm. A steady rest is included. Kdjdsxt Hanspfx Ad Ijw

Condition: good (used), Centre height: 360 mm Centre distance: 5000 mm Swing diameter over bed: 720 mm Swing diameter over cross slide: 560 mm Swing diameter in gap: 1000 mm Spindle bore: 82 mm Speed range: 16 - 800 rpm Bed width: 445 mm Tailstock taper: MT 6 Drive power: 11 kW Dimensions (L x W x H): 6750 x 1500 x 1700 mm Weight: 6500 kg Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 Ksdpfx Asxtu Duod Iedw DE - 44143 Dortmund - Wambel

Condition: new, Year of construction: 2025, functionality: fully functional, spindle bore: 105 mm, turning length: 2,000 mm, Brand new TMD 66/2000 series by MultiMasz comes with the same standard equipment, as liste below. However, our customers can always rely on customizing the machine and adding the necessary components and attachments to fully unlock its capabilities. Lathe in the video is additionally equipped with: Quick-change tool post (Multifix) Taper turning attachment Grinding attachment TECHNICAL PARAMETERS Turning diam. over bed [mm] 660 Turning diam. over support [mm] 400 Turning diam. over the gap [mm] 870 Max workpiece lenght in the gap [mm] 240 Turning between the centres [mm] 2000 Bed width [mm] 390 Max tool top size [mm] 25×25 Max distance from the tool post to spindle axe [min] 265 Max travel of cross slide [mm] 295 Max travel of saddle [mm] 145 Distance from the spindle axe to the bed surface [mm] 330 Distance from the spindle axe to the shelf of the tool post [mm] 25 Spindle rotation range [rpm] 36-1600 [12] Spindle bore [mm] 105 Spindle taper MT6, fi 113mm, 1:20 Metric threads range 1-14 [22] Inch threads range 2-28 [25] Module threads range 0,5-7 [18] DP threads range 4-56 [24] Max travel of the tailstock sleeve [mm] 150 Tailstock sleeve taper MT5 Tailstock sleeve diameter [mm] 75 Main motor power [kW] 7,5 Rapid travel motor power [W] 300-370 Coolant pump motor power [W] 120 Width [mm] 1100 Height [mm] 1600 Lenght [mm] 3200 / 3700 STANDARD EQUIPMENT: Digital readout system (DRO) for 3 axes based on optical scales 3-jaw chuck Ø 315 mm with driving plate Ksdpfx Adexqf D Hj Iedw 4-jaw chuck Ø 400 mm with driving plate Steady rest Ø 20-120 mm Follow rest Ø 20-80 mm Safety guards (chuck, tool post, lead screw and driving shafts) Reduction sleeve 110/6 Dead centre 6 i 5 Lighting and cooling system Tool box We guarantee spare parts availability for 10 years from the date of purchase and provide expert technical support for the full lifetime of your machine. Other new lathes you can find on our website. More info on request.

Condition: excellent (used), Voest DA 180 Ksdpfx Adsxp I D To Iedw Voest Alpine DA 180 Conventional Lathe with Digital Readout, Year of Manufacture 1981, in Very Good Original Condition The machine comes from the training workshop of a renowned German mechanical engineering company. Technical Data: VOEST ALPINE Lathe Lead and feed screw lathe, Type DA 180/1, Year of Manufacture 1981 Swing over bed: 380 mm Swing over cross slide: 185 mm Turning length: 1,000 mm Centre height: 180 mm Bed width: 330 mm Spindle bore: 52 mm Tailstock taper: MK 4 Coolant system Motor: 380 Volt, 5.5 kW 12 spindle speeds: 44 - 2,000 rpm 66 longitudinal feeds: 0.072 - 4.038 mm/rev 66 cross feeds: 0.036 - 2.019 mm/rev 66 metric threads: 0.5 - 28 mm 66 inch threads: 1 - 32 TPI 66 module threads: 0.25 - 14 66 DP threads: 2 - 112 3-jaw chuck Weight approx. 1,200 kg Accessories and Equipment: 1 piece Röhm 3-jaw chuck 200 mm Multifix size B Digital readout About the Machine: We offer a Voest Alpine DA 180 conventional lathe with digital readout, year of manufacture 1981, in very good condition. The machine is, of course, fully functional. All slides run very smoothly and evenly. The Voest also runs very quietly, even at high speeds. This newer generation of lathes is very operator-friendly and can produce grind-finish-quality surfaces. Take the opportunity to inspect this machine under power at our premises and see its condition for yourself. You can find further drilling machines from reputable manufacturers on our website.

Condition: ready for operation (used), Year of construction: 1969, Centre height: 355 mm Centre distance: 3000 mm Max. swing diameter over bed/gap/cross slide: 715/790/520 mm Spindle bore: 86 mm Spindle mount according to DIN 55027: Size 11 Quill taper of tailstock: MK 5 21 spindle speeds: 5.6 - 560 rpm 42 feeds longitudinal/cross: 0.09 - 5.6/0.045 - 2.8 mm 22 Whitworth threads: 2 - 28 TPI 28 metric thread pitches: 1 - 14 mm 27 module thread pitches: 0.25 - 3.5 module 32 module threads: 4 - 56 module 32 diametral pitch threads: 8 - 112 DP Kodpfjxpuu Eox Ad Ijdw Drive motor, pole-changeable: 380 V, 7/11 kW Weight approx.: 7 t Space requirement approx.: 6000 x 2300 mm

Condition: used, Year of construction: 1995, functionality: fully functional, spindle bore: 80 mm, turning diameter: 600 mm, distance between centers: 3,000 mm, Solid and powerful conventional lathe from Johnford (Taiwan), model 30120, year of manufacture 1995. The machine offers a turning length of 3 meters and is supplied complete with the original Multifix quick-change tool post, steady rest, follow rest, and backplate. A faceplate is currently installed on the machine. A 3-jaw chuck can be supplied at additional cost. This lathe features a 2-axis digital readout (DRO) and a clear, user-friendly control panel. Offer reference: 3643436 The machine will be cleaned, inspected, and serviced prior to delivery. Safety covers over the chuck and compound slide will be installed before shipping. Sold as a used machine in good technical condition. Technical data (approx.): • Model: Johnford 30120 • Year of manufacture: 1995 • Turning length: approx. 3000 mm Kdsdpfxexn I S Uj Ad Iow • Swing over bed: approx. 600 mm • Swing over cross slide: approx. 350 mm • Spindle bore: approx. 80 mm • Speed range: 20–1500 rpm • Threading and feed combinations: see chart on the machine • 2-axis digital readout (DRO) • Quick-change tool post: Multifix (original Swiss type) • Accessories: Steady rest, follow rest, faceplate, tailstock • Optional: 3-jaw chuck available at extra cost The machine will undergo a complete service prior to delivery. Please allow approximately 3–4 weeks from order until the machine is ready for shipment. All specifications and details are provided in good faith but are subject to possible errors or omissions.

Condition: used, Parallel Lathe RAMO A75 Between points: 1500 mm Maxi Ø on bench: Ø 750 mm Maxi Ø over saddle: Ø 500 mm Spindle diameter: Ø 90 mm Spindle speed: from 31 to 1600 RPM Square turret 4-jaws chuck Ø 700 mm Threadings: Metric + Whitworth Tailstock CM5 Scale: 2 axes ANILAM Kdjdpfoxnpudex Ad Ijw Supplied with one 3-jaws chuck Ø 400 mm + 1 fixed steady Supplied with some pulleys + tools + various accessories Lubricant pump Voltage: 380 V Dimensions (L x W x H): 3000 x 1500 x 1800 mm Weight: approx 4 T

Condition: used, Parallel Lathe CAZENEUVE HB 725 Between points: 1500 mm Maxi Ø on bench: 725 mm Maxi Ø over saddle: 400 mm Spindle diameter: Ø 80 mm Rotation: from 16 to 1250 RPM Square turret 4-jaws chuck Ø 450 mm Spindle motor power: 13,2 kW Threadings: Metric + Whitworth Tailstock: CM6 Rapid advances Supplied with some sets of hard and soft jaws + one 3 points steady max Ø 250 mm Lubricant tank Lubricant pump Voltage: 220 V Tri Ksdsxnpnkjpfx Ad Ijdw Length: 3200 mm Depth with tank: 1600 mm Height: 1800 mm Weight: approx 4,5 T

Condition: good (used), Year of construction: 1970, Ref. -No.: 10575 Manufacturer: VDF BOEHRINGER Type: T 11 Kdedpfx Adoxmd Uvo Ijw Year of construction: 1970 Type of control: Konventionell Control: n/a Storage location: Halberstadt Country of origin: Germany Machine-No.: 40XXX Turning Diameter: Ø 700 mm Turning Length: 3000 mm Spindle Diameter: Ø 750 mm Spindle Bore: 70 mm Swing diameter over cross slide: Ø 450 mm

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, turning diameter over cross slide: 340 mm, spindle bore: 71 mm, turning diameter: 630 mm, turning diameter over bed slide: 630 mm, spindle speed (max.): 1,000 rpm, overall weight: 3,190 kg, Refurbished Universal Centre Lathe SN 63 Classic-2000mm Main Features: - Simple and ergonomic operation - Hand-scraped precision guideways – high machining accuracy - Long service life - Low operating costs - Easy maintenance - Capability to cut various types of threads with a wide pitch range Technical Parameters: Swing over bed: 630 mm Swing over cross slide: 340 mm Distance between centres: 2000 mm Spindle: Speed range: 10-1000 rpm Spindle bore: 71 mm Drives: Total power input: 15 kVA Main motor power: 11 kW Coolant pump power: 0.1 kW Rapid feed motor: 0.95 kW Dimensions: Overall length: 4000 mm Width: 1440 mm Height: 1100 mm Weight: 2940 kg Standard Machine Equipment: CE version: Chuck guard Ø 315 mm with safety interlock, front chip guard, rear movable guard, leadscrew cover Metric configuration Spindle nose: Bayonet B8 Spindle bore: Ø 71 mm Four-position tool post Electrical system for 3×400 V / 50 Hz (breaker version) Right-hand carriage operation Bed gap for increased swing (Ø 880 mm over 300 mm length from spindle nose) Rapid traverse Tailstock Main drive motor 7.5 kW Chip tray + coolant system LED work light Foldable X and Z axis handles Colour: RAL 7035-3 / 7016-3 / 6153 Kdsdpfx Adexftrhj Isw Thread cutting gear set Shear pins (3 pcs) Printed user manual

Condition: good (used), Year of construction: 1986, functionality: fully functional, machine/vehicle number: 01093.01-808, A used L&Z lathe, manufacturer: VDF BÖHRINGER, type: DUE 630, year of manufacture: 1986, machine number: 01093.01.-808. Turning length: 3000 mm Turning diameter: 630 mm. Equipped with 2 steadies, chuck, faceplate, and Multifix toolholder. Kodsxd Df Nspfx Ad Iedw

Condition: used, total length: 3,000 mm, total width: 1,300 mm, total height: 1,800 mm, Empty weight: 1.000 kg - Documentation available: No - CE certificate present: No - Drive system: Conventional - Swing over bed [mm]: 630 - Distance between centres [mm]: 950 - Bed width [mm]: 400 - Options: Three-jaw chuck, Digital readout - Type of digital readout: Sony - Transport dimensions: 3000mm x 1300mm x 1800mm (l x w x h) - Transport weight [kg]: 1000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum Kdjdpfsxdb Hwox Ad Ijw

Condition: new, turning length 3000 mm turning diameter 660 mm turning dia. in gap 870 mm turning diameter over slide 420 mm turning speeds 36 - 1600 U/min quill: 5 MK quill travel 150 mm spindle bore 105,0 mm Kedpfx Asxabyced Isdw engine output 7,5 kW spindle taper DIN 55029 D 1-8 weight of the machine ca. 3990 kg. dimensions 4500 x 1280 x 1650 mm Scope of delivery - Slip clutch - Rapid traverse longitudinal and planar - LED machine light - 3-axis digital display ES-12 V with LCD display - 3-jaw chuck PS3-315 mm / D8 - Clamping disk 630 mm - Fixed steady rest - passage diameter max. 250 mm - Follow-on steady rest - passage diameter max. 110 mm - 1 centering point / 1 follow-on punch point - Motor with magnetic brake in accordance with CE standard - Foot pedal with brake function in accordance with CE - Initial filling with Shell Tellus 46 - Coolant system - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - Reducing sleeve - Chip back wall - Operating tool

Condition: new, turning length 2000 mm centre height 330 mm swing diameter over bed slide 660 mm turning dia. in gap 900 mm swing diameter over slide rest 460 mm spindle bore 105 mm turning speeds 25 - 1600 U/min bed width 400 mm spindle taper 55029 D 1-8 taper in tailstock 5 MK quill travel 235 mm total power requirement 7,5 kW weight of the machine ca. 2900 kg. range L-W-H 3630 x 1200 x 1520 mm Scope of delivery : - 3-axis digital display ES-12 V with LCD display - Slip clutch - Rapid traverse longitudinally and flatly - LED machine light - 3-jaw chuck PS3-315 mm / D8 - Clamping disk 450 mm - Fixed bezel - Passage diam. max. 180 mm - Revolving bezel - Passage diam. max. 120mm - 2 centering points - Motor with magnetic brake according to CE standards - Foot pedal with braking function according to CE - Initial filling with Shell Tellus 46 - Coolant device - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - Interchangeable wheels - reducing sleeve Kjdpsxabpqjfx Ad Iedw - Chip back wall - Cable routing via energy chain - Operating tool

Condition: new, turning length 3000 mm turning diameter 800 mm turning dia. in gap 1000 mm turning diameter over slide 540 mm turning speeds 25 - 1600 U/min quill: 5 MK quill travel 235 mm spindle bore 105,0 mm engine output 7,5 kW spindle taper DIN 55029 D 1-8 weight of the machine ca. 3820 kg. dimensions 4800 x 1320 x 1580 mm Scope of delivery - 3-axis digital display ES-12 V with LCD display - Cable routing via energy chain - 3-jaw chuck PS3-315 mm / D8 - Clamping disc 500 mm - Fixed steady rest - passage diameter max. 180 mm - Follow-on steady rest - passage diameter max. 100 mm - 2 centering points - Motor with magnetic brake in accordance with CE standard - Foot pedal with brake function in accordance with CE - Initial filling with Shell Tellus 46 - Rapid traverse lengthwise and facewise - Slip clutch - Coolant system - Quick-change tool holder with 4 inserts Kjdpfx Adsxabcds Ijdw - Protective device for quick-change tool holder - LED machine light - Change gears - Reduction sleeve - Chip back wall - Operating tool

Condition: new, turning length 3000 mm turning diameter 660 mm turning dia. in gap 900 mm turning diameter over slide 460 mm turning speeds 25 - 1600 U/min quill: 5 MK quill travel 235 mm spindle bore 105,0 mm engine output 7,5 kW spindle taper DIN 55029 D 1-8 weight of the machine ca. 3.300 kg. dimensions 4.630 x 1.200 x 1.529 mm Scope of delivery - 3-axis digital display ES-12 V with LCD display Kdjdpfxexaahle Ad Iow - Slip clutch - Rapid traverse longitudinal and planar - LED machine light - 3-jaw steel chuck PO3-315 mm / D8 - Clamping disk 450 mm - Fixed steady rest - passage diameter max. 180 mm - Follow-on steady rest - passage diameter max. 120 mm - 2 centering points - Motor with magnetic brake in accordance with CE standard - Foot pedal with brake function in accordance with CE - Initial filling with Shell Tellus 46 - Coolant system - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - Change gears - Reduction sleeve - Chip back wall - Cable routing via energy chain - Operating tool

Condition: new, turning diameter 360 mm turning length 1000 mm swing diameter over bed slide 360 mm Ksdpfx Aow U U Tmed Iedw centre height 180 mm turning speeds 70-2400 U/min total power requirement 2,2 kW weight of the machine ca. 680 kg dimensions of the machine ca. 2000x1500x900 mm

Condition: used, Year of construction: 2021, turning diameter over cross slide: 440 mm, turning diameter: 680 mm, center height: 340 mm, turning length: 3,000 mm, total length: 4,700 mm, total height: 1,450 mm, spindle speed (min.): 1,000 rpm, metric thread diameter (min.): 14 mm, bed width: 458 mm, rotational speed (max.): 1,000 rpm, rotational speed (min.): 12 rpm, type of input current: three-phase, swing diameter over bed slide: 680 mm, overall weight: 4,500 kg, quill mount: MK 6, spindle mount: MK 6, center height over top slide: 220 mm, EQUIPMENT of the used machine Machine No. WAG-C1-188 year of construction 2021 STANDARD EQUIPMENT : - Complete electrical equipment 400 V. / 50 Hz. - Chuck protection electrically fused - Quadruple tool holder or optional Quick change tool holder (Multifix system) Kdjdpfjw Rpd Eox Ad Iow - Rapid traverse in X and Z axis - Fixed steady rest - Moving steady rest - Complete coolant system - Spindle brake - Rear chip guard - Machine light - Operating tool and instruction manual - CE standard Additional equipment of the used machine - Three-axis digital display Article 601233 - 3-jaw chuck diameter 400 mm - Faceplate diameter 500 mm - Fixed steady rest 70 - 250 mm - Fixed steady rest 150 - 380 mm Quill ends adapted for sliding inserts Article 601223 - Quick change tool holder head Multifix size C Article 605934 TECHNICAL DATA center height 340 mm Swing over bed 680 mm Swing diameter over cross slide 440 mm center width 3000 mm spindle bore 105 mm (option 155 mm) spindle nose ASA A1-11 (D-11) Number of spindle revolutions 12 spindle speed 12 - 1000 rpm. (opt. 10 -800 rpm for KK 15) Longitudinal feeds 0.05 - 0.7 mm/rev. transverse feeds 0.025 - 0.035 mm/rev. Bed width 458 mm cross travel 390 mm Top slide travel 255 mm Thread pitches: metric 0.8 - 14 mm Withworth Gg/1" 2 - 28 Module, mod. 0.5 - 7 Diametral Pitch, DP 4 - 56 Lead screw dia. 105 mm Number of stages 28 Tailstock quill MK6 Drive power 11,25 kW (opt. 15 kW) Transport dimensions 4700 x 1240 x 1450 mm weight 4500 kg Transport costs on request. You have the possibility to visit the offered machine in our demonstration center Renchen, by appointment.
