Condition: excellent (used), Year of construction: 2007, Main Technical Specifications Specifications of the large plate to be processed (entry side): • Length min. mm 1500 max. mm 3000 • Width min. mm 400 max. mm 1600 Specifications of the processed piece (exit side): • Length min. mm 200 • Width min. mm 150 Drilling capacities: • Vertical drill heads no. 1 • Spindles per vertical drill head no. 1 • Maximum hole diameter mm 40 (50) • Maximum thickness that can be drilled mm 130 • Spindle rotation motor (a.c.) kW 19 • Spindle rotation speed with continuous adjustment from program RPM Itodpexx Ugmjfx Ad Dop from 180 to 3000 Other Specifications: • Thickness of the large plate min. mm 10 max. mm 130 • Positioning weight max. kg. 5000 • Linear weight of the large plate max. kg/m 750 • Longitudinal transferring speed max. m/min. 30 • Cross positioning speed m/min. 30 • Working level’s height mm 850

Condition: used, Year of construction: 2020, controller model: , _____ Description: Year of manuf. : 2020 Technical specifications Working surface:2000 mm x 15000 mm Total width:5070 mm Height:1980 mm equipment :-Global Control S with 15" colour touchscreen :-Joystick and handwheel for Global Control S panel :-Cooling for the control cabinet :-Laser diode :-Drives up to a maximum of 35 m/min. AC :-Heat shield without air cooling :-Runway for double-sided longitudinal drive HEB :-OmniFlow oxyfuel supply up to 70 m'/h (gas flow control) :-ALFA machine cutting torch (internal ignition) :-Smartlifter 300 :-SensoMat ARKI :-Full addressing of gases Iedoxw A Icspfx Ad Detp :-Light barriers :-Safety device for wheel housing (foot switch)

Condition: good (used), functionality: fully functional, Used plasma cutting machine – for detailed information, see the images. Itjdpfexv T Rlox Ad Djp

Condition: used, Year of construction: 2020, controller manufacturer: Sonstige, controller model: Global ControlS, _____ Description: Year of manuf. : 2020 technical data Working area:3000 mm x 6000 mm Itedpfx Adexv Nk Uo Dsp Total width:5070 mm Height:1980 mm equipment :-Global Control S with 15" colour touchscreen :-Joystick and handwheel for Global Control S panel :-Cooling for the control cabinet :-Laser diode :-Drives up to a maximum of 35 m/min. AC :-Heat shield without air cooling :-Runway for double-sided longitudinal drive HEB :-OmniFlow oxyfuel supply up to 70 m3/h (gas flow control) :-ALFA machine cutting torch (internal ignition) :-SmartLifter 200 :-SensoMat ARKI :-Full gas addressing :-Light barriers :-Wheel housing safety device (foot switch)

Condition: like new (used), Year of construction: 2020, functionality: fully functional, machine/vehicle number: 01, type of input current: three-phase, sheet thickness (max.): 70 mm, sheet thickness steel (max.): 70 mm, input voltage: 400 V, total width: 3,069 mm, total height: 3,200 mm, total length: 5,700 mm, track width: 2,150 mm, table height: 867 mm, table length: 4,250 mm, working width: 2,000 mm, compressed air connection: 12 bar, positioning speed: 40 m/min, working length: 4,000 mm, space requirement length: 7,700 mm, input current: 400 A, space requirement height: 3,200 mm, space requirement width: 4,300 mm, feed length X-axis: 4,000 mm, feed length Y-axis: 2,000 mm, feed length Z-axis: 289 mm, year of last overhaul: 2024, MicroStep CNC cutting system from the MasterCut Compact series with the following features: - 2D plasma support with Kjellberg HiFocus 280i neo plasma power source - High-performance Donaldson DFPRO 8 Cyclopeel filtration system Machine designation: MasterCut Compact 4001.20P Itjdpfoxuh A Hsx Ad Djp Working area: 4000 x 2000 mm Permissible sheet thickness: up to 100 mm Guides/drives: high-quality linear guides and backlash-free drive on both sides Axis control: digital, maintenance-free AC servos with IRC Positioning speed: up to 40,000 mm/min Measuring system: IRC 2500 (incremental encoder) LCD control unit Laser pointer for automatic offset transfer Automatic height control Dust extraction unit suitable for indoor installation Machine is as new and fully operational, can be inspected at any time! Collection ex works, unpacked.

Condition: like new (used), Year of construction: 2020, Ficep Raz 601 (also known as Nozomi) Automatic 9-axis CNC thermal coping robot Itedjxq Rpnepfx Ad Dsp Section size [min. mm]: 80x10 Section size [max. mm]: 610x450 Plasma torch [qty]: 1 Infeed length: 16 m Outfeed length: 16 m

Condition: like new (used), Year of construction: 2017, Ficep Gemini G32 Automatic gantry CNC drilling, milling, and thermal cutting systems for large plates Iedexq Rndjpfx Ad Djtp Plate size [max. mm]: 3100 x 8000 Plate thickness with plasma [max. mm]: 80 Plasma straight torches [max. no.]: 1 Plate thickness with oxy-fuel [max. mm]: 100 Oxy-fuel torches [max. no.]: 2 Drilling heads [no.]: 1 Drilling tools per head [no.]: 8 Drilling diameter [max. mm]: 40 Drilling thickness [max. mm]: 80 Spindle power [kW]: 15 Spindle speed [max. RPM]: 7000 Machine weight [kg]: 4500–4800

Condition: used, Year of construction: 2007, functionality: fully functional, plasma cutting torch PT36 with inclined mounting, straight oxy-fuel torch, height sensor, Precision plasma source 400 with CC-11 cooling unit, spare oxy-fuel cutter, Marlborough extraction table 14x3.5 meters, Vision control software, Columbus compatible, sheet thickness 3-300mm Itedpfx Adexqn S Te Dop

Condition: like new (used), Year of construction: 2015, Ficep TIPO B254 Automatic CNC punching & thermal cutting systems for heavy plates Technical specifications Plate size [max. mm]: 2540x6000 Punching nominal force [kN]: 1000 Punching tool [no.]: 8 Punching diameter [max. mm]: 32 Punching thickness [max. mm]: 25 Drilling heads [no.]: 1 Drilling tools per head [no.]: 8 Drilling diameter [max. mm]: 40 Itsdpfx Adjxn T H Dj Djp Drilling thickness [max. mm]: 100 Spindle power [kW]: 20.1 Spindle speed [max. RPM]: 4000 Plasma torches [max. no.]: 2 Oxy-fuel torches [max. no.]: 1 Machine weight [kg]: 24000

Condition: used, Year of construction: 2019, CNC portal plasma cutting machine Manufacturer: Microstep Model: MasterCut Compact 4001.20Ptk Year of manufacture: 2019 CNC control Working area: 2 x 4 m Iodpoxnmbnofx Ad Dstp Plasma rotator "MasterCut" with fully automatic support for weld seam preparation 1 plasma torch with Kjellberg HiFocus 280i power source Filtration system TEKA 31125

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, table length: 1,400 mm, table width: 1,200 mm, With steel table 1400x1200 mm Itedpfx Asxlabpsd Dsp

Condition: defective spare-parts repository (used), Year of construction: 2004, machine/vehicle number: 20404881, Offer 23906 CNC - Flame Cutting Portal for Dismantling Technical data approx.: - CNC flame cutting portal with 4 torches as shown, for dismantling. - 4 x torches with automatic height adjustment - Torches feature tilt adjustment - CNC control unit NCE - Control cabinet - Track gauge approx. 3.5 m - Space requirement approx. 5 x 2.4 m Iodpfxew Nwucj Ad Detp

Condition: used, Photo-optical flame cutting machine ESAB type ULTRAREX UXC 15/20 Serial no.: 73839 Year of manufacture: 1993 Track length: 4000 mm Cutting width: 1530 mm Cutting length: approx. 3300 mm Cutting speed: approx. 100 - 900 mm/min Cutting thickness: 3 - 200 mm Number of torches: 2 units Power supply: 230 Volt, 50 Hz - Photo-optical tracer control A5-AK5 - Drawing table movable on guide rails (width 1500 mm) - Motorized torch height adjustment - Manual torch lateral adjustment - Electric valves for acetylene and cutting oxygen - 2 autogenous cutting torches for acetylene and oxygen Isdpfx Adew Nrhqo Djtp - Track length 4000 mm, split in the middle (2 x 2 meter sections) - Flame cutting table 4000 x 2000 mm, height 750 mm - Length of the machine bridge: 4000 mm - Dimensions (L x W x H): 4000 x 4000 x 2100 mm - Weight of flame cutting machine: 420 kg (without the blue plate) - Weight of flame cutting machine: approx. 400 kg - Weight of cutting table: approx. 500 kg - Total weight: approx. 900 kg Good condition The blue base plate is not included in the scope of delivery (weight of the plate: 475 kg)

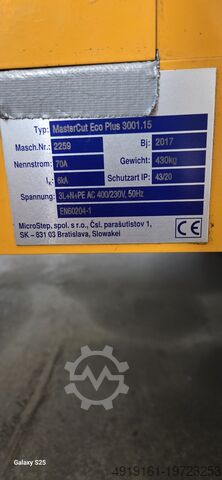

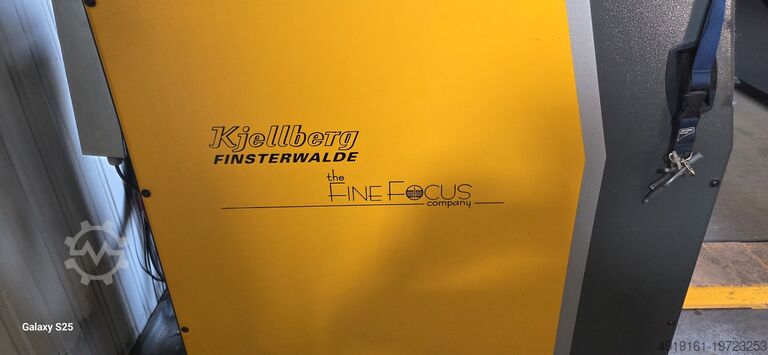

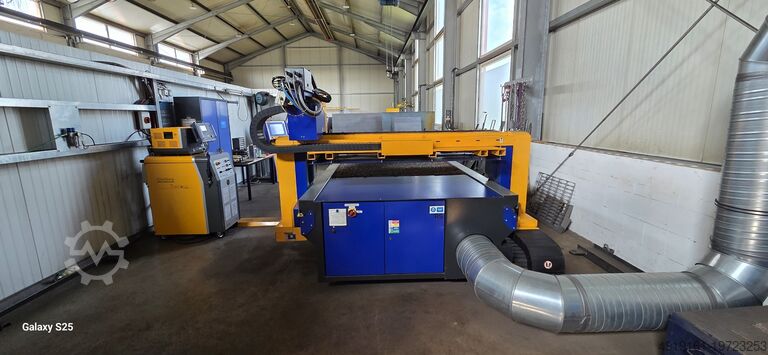

Condition: used, Year of construction: 2017, operating hours: 159 h, functionality: fully functional, machine/vehicle number: 2259, MicroStep CNC Plasma Cutting System MasterCut Eco (A) Plus 3001.15 with the following features: - Kjellberg HiFocus 161i neo with automatic gas console and Contour Cut Speed technology - High-performance TEKA Eco75 filtration system with 7.5 kW and spark pre-separator Itsdpjw H R Uzjfx Ad Dsp - Prepared for future retrofitting with an oxy-fuel torch Complete scope of the system: * MicroStep CNC guiding machine MasterCut Eco (A) Plus 3001.15 (3,000 x 1,500 mm) * MicroStep CNC control iMSNC with integrated network card * LCD operator panel mounted on the gantry * Laser pointer with automatic offset transfer * iMSNC Module I Expert System * iMSNC Module I Assistant for loading CNC programs * iMSNC Module I Automatic Calibration of mechanical sensing * iMSNC Module I Assistant for service and maintenance operations * "AsperWin Basic" programming system for direct programming at the machine control * "AsperWin Select" macro library module * "AsperWin NC-Sim" NC simulator module * "Plasma Marking" module (for centering punch) via plasma source * "THC" Module I Automatic height control via arc voltage * CNC cutting table with sectional extraction I 3,000 x 1,500 mm * USB 3.0 interface for storage device * MicroStep RemoteDiagnostics remote maintenance module * HiFocus 161i neo plasma source from Kjellberg with automatic gas control and Contour Cut Speed technology * Module for controlling the HiFocus 161i neo automatic gas console * CNC interface for HiFocus 161i neo I connection to CNC control * TEKA filter unit ECO75 – 7.5 kW with control unit * TEKA spark pre-separator TK-FVS 7000 – 12000 * Remote control for the filtration system * KAESER Aircenter 8 compressed air compressor * System prepared for future retrofitting with an oxy-fuel torch The system can be inspected on site by prior arrangement. Disassembly and transport are the responsibility of the buyer.

Condition: used, Year of construction: 2006, CNC portal flame cutting machine Manufacturer: Bach Model: ACK-2D Year of manufacture: 2006 Iedow El Udepfx Ad Djtp CNC control: NBS300 Worktable: 1.5 x 6 m 2 oxy-fuel torches

Condition: ready for operation (used), Year of construction: 2014, operating hours: 26,400 h, functionality: fully functional, machine/vehicle number: 1530PG, Submission of a bid obligates timely collection by 29.07.! No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Table dimensions Table width: 1,500 mm Itodjwzw Injpfx Ad Dsp Table length: 3,000 mm MACHINE DETAILS Control: Control panel Generator: Hypertherm 130XD EQUIPMENT Consumables and nozzle set Central vacuum system

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, track width: 3,000 mm, working range: 6,000 mm, total width: 3,800 mm, total length: 11,000 mm, product height (max.): 70 mm, cutting height (max.): 60 mm, Lind plasma cutting system with HiFocus 360I Hypertherm cutting unit incl. KWE 360, PGV 3. Cutting table with complete extraction system. The plant is fully operational and in excellent condition. Demonstration possible. Original price €190,000.00. The plant is immediately available. The price is valid for purchase decisions made by the end of November!! Dismantling possible in January 2026. Isdpswmq Tzjfx Ad Detp

Condition: used, Year of construction: 2011, FICEP GEMINI MODEL HP25 BED SIZE 10000mm x 2500mm DRILLING HEAD with 6 station automatic tool changer. 80mm CAPACITY. HYPERTHERM HPR 260XD 65mm MILD STEEL CAPACITY. Itjdpswfhknefx Ad Dep GE FANUC CNC CONTROL DUST EXTRACTION SYSTEM

Condition: good (used), 1 used mobile flame cutting system. Make: MÜLLER. Model: Perfecta "Quicky / MESSER GRIESHEIM" - Continuously adjustable speed - Forward/reverse operation - 1 adjustable torch Ijdsv N Hhbspfx Ad Detp - 230 V connection Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Condition: like new (used), Year of construction: 2020, functionality: fully functional, Kronos KR25SP Automatic gantry CNC Thermal cutting systems for large plates Plate size ( max.MM ) 2540 x 6000 Plate thickness with plasma ( max.no.) 50 Plasma straight torches ( max.no) 1 Plasma bevel torches ( max.no.) 1 Plate thickness with oxy-fuel ( max.no.) 150 Iodpfx Adjv Iaqyo Dstp Oxy-fuel-fuel torches [max.no.] 4 Machine weight [kg] 2500 This machine has been completely cleaned and checked. For more information, please contact us.

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, machine/vehicle number: 0401-240027, product height (max.): 50 mm, product height (min.): 8 mm, product length (max.): 6,000 mm, product width (max.): 600 mm, product width (min.): 80 mm, TECHNICAL DETAILS Maximum workpiece size: 600 x 50 x 6000 mm Minimum workpiece size: 80 x 8 mm Drilling system Number of drilling spindles: 3 pieces Maximum drilling diameter: 8 - 40 mm Drilling tool: HSS cooling channel drill Cutting system Cutting process: Autogenous Iedpfovytiyox Ad Djtp Cutting gases: Acetylene and oxygen (conversion to other media possible) Material transport Transport mechanism: Roller measuring feed Control and software Control: Fagor 8055i CNC CAD data formats: DSTV, DXF MACHINE DETAILS Total power requirement: 30 kW Machine weight: 6.5 t Machine dimensions (L x W x H): 2,000 x 1,900 x 2,800 mm Additional equipment: Filter system for cutting smoke extraction

Condition: good (used), Year of construction: 2002, table width 2000 mm table length 2 x 3000 mm burner heads 2 (3) Control Version 5T gangway length 9000 mm sheet thickness max. 100 mm output 2 KVA weight of the machine ca. 3 t Technical details: CNC portal flame cutting machine Manufacturer: ESAB Type: Suprarex SXE-P 3500 Year of manufacture: 2002 CNC control: Vision T5 (installed in 2014) Working area: 2 cutting tables, each L=3m, W=2m Gantry track width: 3.5m Track length: 9 m Max. sheet thickness that can be cut (autogenous): 100 mm 2 oxyfuel torches 1 plasma torch with ESAB ESP 200 power source Extraction/filter system: Kappa Separator KS2/3 flame cutting table + Mykron Fine dust filter Ijdpfx Aevwgndod Detp

Condition: new, The Topaz plasma cutting machine is an advanced solution that is perfect for manufacturing operations where precision, efficiency and compact design are important. It offers reliability and high cutting quality and thus perfectly meets the requirements of modern companies. Main features: - Innovative technology solutions: Developed in cooperation with ECKERT and TEKA, offer modern functions and high performance. - Exceptional quality and reliability Iodpfx Adsvmg N Hs Detp The machine is manufactured in Germany with components from well-known manufacturers, which ensures exceptional precision, durability and reliability. Thanks to the robust manufacturing according to demanding standards, the operating costs of the system are reduced to a minimum. - Intuitive user interface: The machine's clear and easy-to-use control system speeds up work and increases the operator's productivity. - Excellent cutting quality: Thanks to the plasma systems from leading manufacturers such as Hypertherm and Kjellberg, the machine offers the best cutting quality. - The TEKA filter system: Provides clean air, which is especially important in small operations where space saving and air quality are crucial. During periods when the machine is not working, the system can act as an extraction system for welding or grinding work, eliminating the need for additional systems and reducing costs.

Condition: good (used), Year of construction: 2016, FICEP 1201 FRC Minimum Profile mm 80 x 42 Maximum Profile mm 1220 x 60 1 x OXY FUEL Cutting Head 1 x HYPERTHERM HPR 260XD Plasma Torch. Dust extraction system. Ijdeva Hfnspfx Ad Detp

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, machine/vehicle number: 1513, working range: 6,000 mm, type of input current: AC, input voltage: 230 V, working width: 2,000 mm, overall weight: 450 kg, input current: 25 A, MicroStep OxyCut 6001.20 G: Itsdpfx Adsu Sqfye Djp - Working area: 6000 x 2000 mm - 1x master torch carriage for oxy-fuel cutting - New PCs since 2024 (Windows 11) - Without filter unit Price EXW Wouters Cutting & Welding
