Condition: new, Year of construction: 2025, Dimensions: 2000x1000mm Ljdpfxjxyywtj Agmjrw Side wall: 200mm Weight of the table: approx. 370 kg Load capacity: 2 000 kg Number of legs: 4 Sturdy and solid construction Highest quality finish Perfect flatness of the table [+/- 0.5 mm per meter] Material S355J2+N System of holes 16 or 28 in a grid of 100 x 100 mm Three rows of holes on the side walls Chamfered and milled holes for easy tool mounting Engraved scale in 100 x 100 mm grid Height adjustment with standard feet approx. 880 - 930 mm Possibility of using stainless steel supports Possibility of connecting the tables for a larger working area All tables are reinforced with ribs Designed in accordance with the ISO 2768-1 standard Milled edges of the worktop Worktop thickness 12 mm Table legs made from 80x80mm profiles Load capacity: 500kg/leg*

Condition: excellent (used), SEVERT Double-Column Rotary Positioner S 40.1-1HH Can also be used as a single-column elevating rotary device (Mono) Total load capacity: 2,000 daN Load capacity per column: 1,000 daN Clamping plate 1 torque: 1,400 Nm Clamping plate 2 free-rotating, without drive Clamping plate rotation speed: 2.0 min⁻¹ Clamping plate 1: W1070 x H720 x D30 mm, Part no. 20452-001 Lredpfexxx Nrsx Agmsw Clamping plate 2: W1070 x H720 x D30 mm, Part no. 20453-001 Vertical travel: 680 mm Lifting speed: 2,200 mm/min Welding current return: 400 A B2 Dimensions: Column 1 with base: Length: 970 mm Width: 885 mm Height: 2,350 mm Net weight: 1,200 kg Column 2 with chassis: Length: 970 mm Width: 1,030 mm Height: 2,350 mm Net weight: 1,600 kg Excellent condition, complete documentation available We have several column elevating rotary devices in stock with capacities from 1 tonne up to 15 tonnes.

Condition: excellent (used), load capacity: 5,000 kg, IMG 5-ton Double Column Lifting and Rotating Device with 3rd Axis Multifunctionality Extreme travel distance Tilting moment 6,500 Nm Rotary disc torque 1,200 Nm; rotation speed approx. 2 rpm Total load capacity 6,000 kg There are 4 versions: - Mono: single column lifting and rotating device - Duo: double column lifting and rotating device - Duo: double column lifting and rotating device with 5.5 m cross beam for bolting - Duo: double column lifting and rotating device with cross beam for bolting and additional 3rd rotary axis with 5-ton load capacity With EC Declaration of Conformity User manual and technical documentation available Optional: foot switch and cable remote control, as well as speed regulation on request Ledpexxx Dvefx Agmsrw

Condition: excellent (used), 3-Axis Positioner, 7 Ton Technical Data: - Maximum load capacity: 7,000 kg - Faceplate diameter: 1,100 mm - Speed: 0.03 - 1.0 rpm - Minimum table height in horizontal position: approx. 999 mm, maximum 2,218 mm Ljdpfsxxw Rnox Agmjrw - Minimum table height in tilted position to center: approx. 818 mm, maximum 1,673 mm - Motorized and tiltable/rotatable faceplate - Infinitely variable rotary motion (electric control) - Forward and reverse rotation - Welding current transmission: approx. 1,400 A - Maximum torque: 9,000 Nm - Tilting angle: 135° - Drive: 400 V - Power supply: 3 x 400 V - Handheld remote controller for rotation direction and tilting - Dimensions (L x W): approx. 2,620 x 1,490 mm - Weight: approx. 3,500 kg

Condition: good (used), functionality: fully functional, load capacity: 1,500 kg, 3-axis PEMA welding positioner APS 1500 - stepless height adjustment - includes handheld remote control - maximum load 15,000 N - 1,500 kg - rotation speed 0.07 - 1.3 rpm - rotation torque 1,000 Nm - hydraulic tilting up to 135° Lsdpfx Aoxxv Rtjgmjrw - tilting moment 3,000 N - max welding current 700 A - table diameter 700 mm - height 780 - 1,550 mm - dimensions 1,640 x 810 mm - connection 3 x 400 V / CEE 16A - weight 730 kg We have several of these tables available

Condition: good (used), functionality: fully functional, load capacity: 300 kg, Equipment: foot remote control, Welding positioner KT 600, Horizontal load capacity 600 kg, tilted 300 kg Power supply AC 380V, 50 Hz Drive motor AC 400W Table diameter 700 mm Height 700 mm, width 800 mm, length 800 mm Weight 155 kg Infinitely variable electric tilt 0–90° Speed 0.1–2.0 rpm Max. welding current transmission 400 A Includes hand and foot remote control Optional at extra cost: Quick-change 3-jaw chuck Lodpfoxxvwtex Agmjrw Diameter 400 mm, €550 CE mark/approval

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, Kistler Pipe Rotator U 500, 2 units available Price is per unit Speed infinitely adjustable via foot pedal control APPLICATION For clamping, rotating, and tilting workpieces with round cross-sections during manual or automatic welding, primarily in pipeline construction (prefabrication and on-site assembly) as well as in apparatus engineering. Alongside a high degree of efficiency (eliminates the need for an assistant and interruptions when rotating segments), there are also qualitative improvements: no weld seam interruptions, consistently optimal welding position. Lrjdpfexxvr Rox Agmew DESCRIPTION The stator, constructed as a solid-walled design, houses both the electrical control system and the tilting drive. Tilting is manual via hand crank (U 150 and U 500), (electromechanical tilting is standard for U 1000); for U 500, tilt angle is approx. 135°. Electromechanical tilting is also optionally available. The tiltable section includes the drive and roller housing, clamping column, clamping arm, and clamping roller. The unit is also available in a non-tiltable version under the model designations U 150 H, U 500 H, and U 1000 H. In general, with all U-series machines, the drive and electrical control are securely housed within the stand or roller housing.

Condition: ready for operation (used), load capacity: 750 kg, 3-axis welding positioner, 750 kg load capacity, control panel Tilt and speed infinitely adjustable from 0.05 to 1.0 rpm Lrodexxvgzspfx Agmjw Clamping plate diameter: 0.8 meters Height when tilted to center min. approx. 0.45 m + 0.1 m base, max. 1.1 + 0.1 m base Height horizontal min. approx. 0.56 m + 0.1 m base Length 2.0 m, width 1.05 m

Condition: good (used), load capacity: 2,000 kg, 3-axis welding positioner, 2-ton load capacity, in good condition Lrodpfxoxxvabe Agmow Incl. hand remote control (foot control available on request) Inclination and rotation speed continuously adjustable 0.05 - 1.0 rpm Clamping plate diameter: 1.0 meter Height tilted to center min. approx. 0.7 m, horizontal 0.9 m Height tilted to center max. 1.6 m, horizontal 1.8 m Length 2.2 m, width 1.35 m

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, load capacity: 5,000 kg, Welding positioner with 5-ton load capacity, in excellent condition, complete set including dual foot remote control and hand remote control. Tilt and rotation speed steplessly adjustable from 0.05 – 1.0 rpm. Clamping plate diameter: 2.0 meters. Height when tilted to center approx. 1.18 m (plus pedestal 0.1 m). Height horizontal approx. 1.4 meters. Length 2.2 m, width 2.0 m. Lrsdpfx Aoxxu Drjgmsw

Condition: excellent (used), Year of construction: 2018, load capacity: 500 kg, max. load capacity 500 kg table diameter 700 mm table rotation speed 0.11 - 1.2 rpm net weight 750 kg foot pedal (start-stop/left-right) Lredpfx Asxxlhbsgmjw Little used, very good condition Remote control (wired)

Condition: new, number 10 Positionen weight 30 kg condition neu 28 mm 5 screw clamps Lrsdoxwzfaspfx Agmow Thrust length 155 mm Length 300 mm Condition: new Hole diameter 28 mm

Condition: new, table length 3000 mm table width 1500 mm table height 850 mm Vertikal stroke 50 mm weight of the machine ca. 1,5 t dimensions 3,0 x 1,5 x 0,9 m Welding table with accessories - Table size: 3000x1500x200 mm - High-quality steel S355J2+N + plasma nitriding - Material thickness approx. 24.5 - 27 mm - Bore Ø 28 mm - Surface bores 100x100 mm grid - Corners, edges and bores chamfered at 45° - Side wall height 200 mm - Side wall bores in diagonal grid - Construction reinforced with ribs Accessories: - 6x 280610.N screw clamp - 12x 280511 quick-release bolts - 8x 280420.N universal stop - 2x 280110.N stop and clamping angle Lrsdoxwzd Njpfx Agmsw - 2x 280162.N stop and clamping angle - 1x 283999 care set

Condition: new, table length 2400 mm table width 1200 mm table height 850 mm Lredpjxwzdiofx Agmow Vertikal stroke 50 mm weight of the machine ca. 0,99 t Welding table with accessories: - Table size: 2400x1200x200 mm - high-quality steel S355J2+N + plasma nitriding - Material thickness approx. 24.5 - 27 mm - Bore Ø 28 mm - Surface bores 100x100 mm grid - Corners, edges and bores chamfered at 45° - Side wall height 200 mm - Side wall bores in diagonal grid - Construction reinforced with ribs Accessories: - 6x 280610.N screw clamp - 12x 280511 quick-release bolts - 8x 280420.N universal stop - 2x 280110.N stop and clamping angle - 2x 280162.N stop and clamping angle - 1x 283999 care set

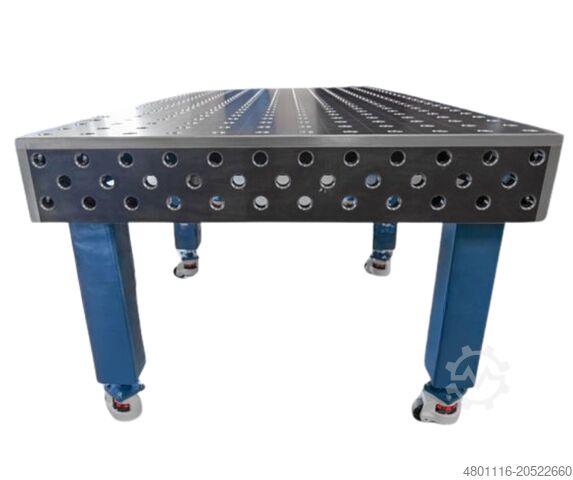

Condition: new, Year of construction: 2025, functionality: fully functional, load capacity: 2,000 kg, total length: 2,400 mm, total width: 1,200 mm, PROFESSIONAL WELDING TABLES – 12 mm Available sizes: 1000x600, 1200x800, 1500x1000, 2000x1000, 3000x1480 – D28/16 mm We offer high-quality welding tables made of hardened steel, manufactured with exceptional precision and stability. Perfect for production, assembly, and welding operations. All models feature a perforated work surface that allows easy clamping and precise positioning of workpieces. Sizes and models (incl. VAT and free delivery): Welding table with legs 1000x600 mm, D28/16 mm, grid 100x100 – Price: €1,095 Welding table with legs 1000x1000 mm, D28/16 mm, grid 100x100 – Price: €1,280 Welding table with legs 1200x800 mm, D28/16 mm, grid 100x100 – Price: €1,310 Welding table with legs 1200x1200 mm, D28/16 mm, grid 100x100 – Price: €1,645 Welding table with legs 1500x1000 mm, D28/16 mm, grid 100x100 – Price: €1,750 Welding table with legs 2000x1000 mm, D28/16 mm, grid 100x100 – Price: €1,960 Welding table with legs 3000x1480 mm, D28/16 mm, grid 100x100 – Price: €3,695 Advantages: Exceptional stability and precision Laser-cut working surface for maximum accuracy Compatible with various clamping and fixing systems Lrjdpfxjxwlzfo Agmsw High wear resistance and long service life Available models with wheels for easier movement

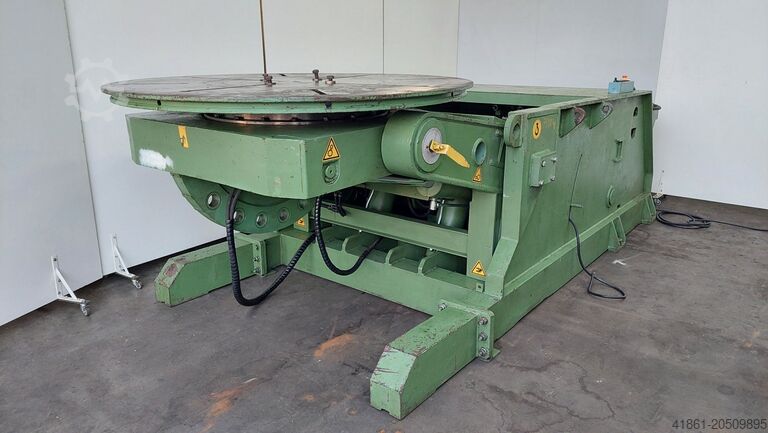

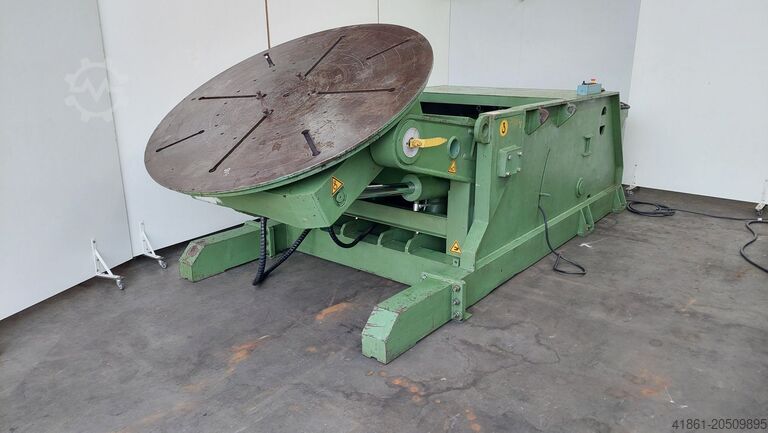

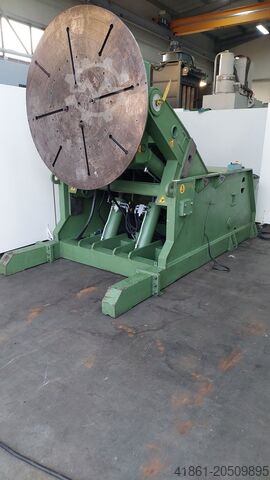

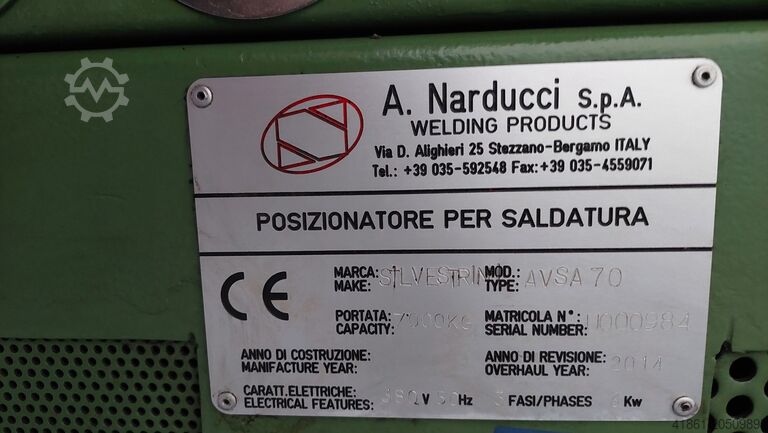

Condition: good (used), Year of construction: 2014, machine/vehicle number: U 000984, Offer 25355 Hydraulic Positioner – Welding Rotating and Tilting Table Technical Data approx.: - Max. load capacity approx.: 7,000 kg - Faceplate diameter approx.: 1,650 mm - Faceplate hydraulically tiltable - Hydraulic height adjustment of the faceplate - Min./max. table height in horizontal position: approx. 1,290 / 2,100 mm - Rotation electrically powered with clockwise and counterclockwise operation - Electric foot switch for clockwise/counterclockwise operation - Electric controller for rotation speed, clockwise/counterclockwise rotation, lift/lower, tilt - Drive: 400 V / 6 kW Lsdjxv Shiopfx Agmerw - Required space approx.: W 4,000 x H 1,300 x D 2,000 mm - Weight approx.: 7,500 kg

Condition: ready for operation (used), The machine has been tested and is fully functional. Includes some tools (see photo). Ledpfoxvp Itox Agmjrw

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, load capacity: 80,000 kg, rotary table diameter: 2,500 mm, table load: 60,000 kg, disc diameter: 6,500 mm, DIESSE Positioner model DS 2A 60T Load capacity in all positions: 80 T Workable capacity: 6,500 mm Load capacity in all positions with clamping equipment mounted: 59 T Rotary table diameter: 2,500 mm Min.–max. diameter of spherical shells: 2,500 – 6,500 mm Min.–max. thickness of spherical shells: 30 – 200 mm Neck height of spherical shells: 0 – 600 mm Tilting speed for 6,500 mm diameter: 0 – 1,000 mm/min Tilting speed for 2,500 mm diameter: 0 – 850 mm/min Rotation speed for 450 mm diameter: 0 – 350 mm/min Installed power: 130 kW Complete with: - Dished end clamping device - Rotating platform, max load 2,000 kg Lsdpfx Agoxuq D Homorw USED EQUIPMENT

Condition: excellent (used), functionality: fully functional, load capacity: 45,000 kg, total height: 4,450 mm, total length: 4,600 mm, total width: 11,800 mm, table load: 45,000 kg, pivoting range: 360 °, N.02 AVAILABLE BODE CRADLE-TYPE WELDING POSITIONER Capacity: 50 t Maximum workpiece diameter: 5,000 mm Table with through central hole Ø 500 mm Table diameter: 5,814 mm, 8 guideways Lsdpfx Agoxuq Acsmjrw Table rotation: 360° Table tilting: +90° / -30° Eccentricity: 300 mm Variable rotation speed: 0.0045–0.18 rpm Variable table tilting speed: 0.0030–0.12 rpm Overall dimensions approx.: 10,200 x 4,300 x 3,700 mm USED EQUIPMENT BODE CRADLE-TYPE WELDING POSITIONER Capacity: 45 t Maximum workpiece diameter: 6,500 mm Table with through central hole Table diameter: 7,314 mm, 8 guideways Table rotation: 360° Table tilting: +105° / -30° Eccentricity: 230 mm Variable rotation speed: 0.00675–0.27 rpm Variable table tilting speed: 0.003–0.12 rpm Overall dimensions approx.: 11,800 x 4,600 x 4,450 mm USED EQUIPMENT

Condition: good (used), Year of construction: 2013, machine/vehicle number: KA 046062, Offer 25357 Technical Data: - Max. load capacity including work table: 4000 kg Ljdpfx Agsxufxfjmsrw - Faceplate hydraulically tiltable: 0 - 180° - Hydraulic height adjustment of the faceplate - Faceplate with holes D 28 + threaded holes, Ø 1600 mm - Table travels in the last driven tilt angle or in the horizontal position - Rotational movement electrically hydraulically actuated, reversible (right/left rotation) - Min. / max. rotational speed: 0.1 - 1.4 rpm - Min. / max. table height in horizontal position: approx. 1040 / 2140 mm - Welding current transmission: approx. 600 A - Drive: 400 V - Manual remote control + electric footswitch - Space required: approx. W 2000 x H 1100 x D 3200 mm - Weight: approx. 5000 kg

Condition: good (used), Year of construction: 2012, machine/vehicle number: 038491-01, Offer 25352 Hydraulic Manipulator - Positioning - Welding Turn and Tilt Table Technical Specifications: Ledpsxufntjfx Agmsrw - Max. load capacity incl. worktable: 2,000 kg - Effective payload: 1,700 kg - Face plate hydraulically tiltable: 0 - 180° - Hydraulic height adjustment of the face plate - Table can be moved in the last positioned angle or horizontal position - Rotation electrically hydraulic with clockwise and counterclockwise motion - Min. / max. rotational speed: 0.75 – 2.0 rpm - 3D worktable DEMMLER: 800 x 800 mm - Min. / max. table height in horizontal position: approx. 600 / 1,550 mm - Welding current transmission: approx. 600 A - Drive: 400 V - Hand remote control + electric foot switch - Space requirements: approx. W 2,100 x H 600 x D 1,500 mm - Weight: approx. 1,200 kg

Condition: good (used), Year of construction: 2017, machine/vehicle number: KA 061957-01, Offer 25347 Hydraulic Manipulator – Positioning – Welding Rotating and Tilting Table Technical Data: - Max. load capacity incl. work table: 4000 kg - Faceplate hydraulically tiltable: 0 – 180° - Hydraulic height adjustment of faceplate - Faceplate with holes D 28 + threaded holes, Ø 1600 mm - Table operates in the last set tilt position or horizontal - Rotational movement electrically hydraulic with clockwise & counterclockwise rotation - Min. / max. rotational speed: 0.1 – 1.4 rpm - Min. / max. table height in horizontal position: approx. 1040 / 2140 mm - Welding current transfer: approx. 600 A - Drive: 400 V - Hand remote control + electrical foot switch - Space requirement: approx. W 2000 x H 1100 x D 3200 mm Lsdjxufhgepfx Agmerw - Weight: approx. 5700 kg

Condition: new, Year of construction: 2025, load capacity: 10,000 kg, pivoting range: 135 °, Equipment: foot remote control, 3-axis welding positioner Protec KT 10 000 HV Complete set incl. hand and dual foot remote controls Lsdpfx Agjxt Tgnemerw Digital speed display Hydraulic height adjustment Tilting range 0 to 130° Dimensions: Min. tilted height: 1050 mm Max. tilted height: 2200 mm Min. horizontal height: 1360 mm Clamping plate diameter: 2000 mm Length: 3250 mm, width: 1700 mm Speed from 0.05 to approx. 0.6 rpm (range from 0.05 to 1.2 rpm possible)

Condition: good (used), Offer 25332 Technical specifications: - Length approx. 1500 mm - Width approx. 1000 mm - Thickness of top plate approx. 50 mm - Plate thickness incl. ribbing approx. 200 mm - Table height approx. 900 mm - Table base frame Ljdoxta Eqspfx Agmjrw - Total weight approx. 550 kg

Condition: good (used), Offer 25349 Technical data: - Length approx.: 3000 mm - Width approx.: 2000 mm - Ribbed plate height approx.: 400 mm - Top plate thickness approx.: 80 mm Ledpfx Aextazrogmorw - Table height with substructure approx.: 820 mm - Weight approx.: 6500 kg
