CASSLAM CASS LAMINIERUNGS-GmbH

Condition: ready for operation (used), Year of construction: 1998, Working width: 650-1305mm, exception PET/ALU/PE and ALU/PE: max. 1100mm, production speed: 120-220m/min, max. operating speed: 300m/min, max. primary unwinding roll diameter: 1000mm, core inner diameter cardboard core: 76/152mm, steel core: 150mm, adhesive application 2K for film/film: approx. 1.5-2.5g/m², 1K for paper/film: approx. 2.5-4g/m², max. secondary unwinding roll diameter: 1000mm, core inner diameter cardboard core: 76/152mm, steel core: 150mm, max. rewinding roll diameter: 1200mm, core inner diameter cardboard core: 152mm, steel core: 150mm, processable materials, min. polyester film: 10µm, min. aluminum foil: 6.6µm, min. PE film primary unwinder: 40µm, min. PE film secondary unwinder: 30µm, max. paper: 150g/m², length: 8625mm, complete documentation vorhanden. An on-site inspection is possible. Dedpfxsy Uydfj Aktekn

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, PAPERPLAST DRY 70 - 102, Samal 102X114, including 70 pallets of BOPP film. Year 2007 Currently in production in the UK Automatic thermal film laminator Automatic sheet feeder Vacuum infeed table Laminating unit with heated chrome cylinder ICS heating unit Sheet separation unit, pile delivery unit Dedpfsy Iy Nhsx Aktekn Usable working width (mm): 1020 Minimum size (mm): 250 x 280 Maximum size (mm): 1020 x 1400 Mechanical speed: 70 m/min. Size: 102 mm x 116 mm Minimum size: 30 x 28 cm, speed up to 70 m/min. + approximately 70 pallets of film (list of offered films in the attachment).

Condition: new, Year of construction: 2025, YB-1300E Year 2025.12 Available immediately in Europe Max Sheet Size 1300×1250mm Min Sheet Size 400×400mm Top Sheet Thickness 150-600g Dkodpfey Iycuox Aktjn Bottom Sheet Thickness A、B、C、E、F (Corrugated paper), (Industrial paperboard) Max Speed 6000Sheets/hour Dimensions 11.5×2×2.4M Machine Weight 5000kg Machine Power 10KW/380V

Condition: used, Year of construction: 1995, working width: 1,300 mm, compressed air connection: 7 bar, Machine type: Coating and laminating line for coating, lacquering, and laminating from roll to roll using solvent-free adhesives. Manufacturer: NORDMECCANICA Type: Duplex Compact Model: Duplex C - SL1300 Year of manufacture: 1995 Web width: 650 to 1,310 mm Laminating width: Up to 1,300 mm Speed: Mechanical up to 300 m/min. Materials for coating: BOPP 15 - 80 µm PETP 12 - 30 µm LDPE, LLDPE 40 - 200 µm OPA 12 - 18 µm NYLON CAST 50 - 80 µm ALUMINIUM 15 - 40 µm PP CAST 60 - 150 µm SATIN PAPER 40 - 300 g/m2 Materials for lamination: BOPP 12 - 80 µm PETP 12 - 30 µm LDPE, LLDPE 20 - 200 µm OPA 12 - 18 µm NYLON CAST 20 - 80 µm ALUMINIUM 7 - 40 µm PP CAST 25 - 150 µm EVOH 12 - 20 µm CAST MATERIALS 25 - 200 µm SATIN PAPER 40 - 300 g/m2 Unwind A: Model 850 Roll change Automatic up to 300 µm Roll diameter 90 to 850 mm Roll weight Up to 900 kg Core diameter 70/76/150/152 mm Web tension 2.5 to 55 kg Coating thickness Up to 300 µm Pre-treatment Corona Unwind B: Model 850 Roll change Automatic up to 300 µm Roll diameter 90 to 850 mm Roll weight Up to 900 kg Core diameter 70/76/150/152 mm Web tension 2.5 to 55 kg Coating thickness Up to 300 µm Pre-treatment Corona Coating and laminating unit: For solvent-free adhesives. Coating section with 4 rollers, 2 of which are heated. Laminating section with 3 rollers. Rewind: Model 850 Roll change Automatic up to 300 µm Roll diameter 170 to 850 mm Roll weight Up to 900 kg Core diameter 150/152 mm Web tension 6 to 55 kg Coating thickness Up to 500 µm Mixing and dosing unit: Manufacturer: DOPAG, Switzerland Model: Variomix Heating elements. 1 trolley for mounting transfer rollers for adhesives. Electrical connection: 220 / 3 x 400 V, 50 Hz Installed power: 180 kW Maximum current draw: 90 A Average power: 35 kW Compressed air connection: Input pressure: 7 and 10 bar Dedpfx Aoy Hgwpsktskn Max. consumption: 400 l/min Water consumption: 2,000 l/h Various spare parts included. Standards: CE, CEE 89 / 392 ff. EN 60 204-1, SUVA Condition: Used (occasion) Availability: Immediately

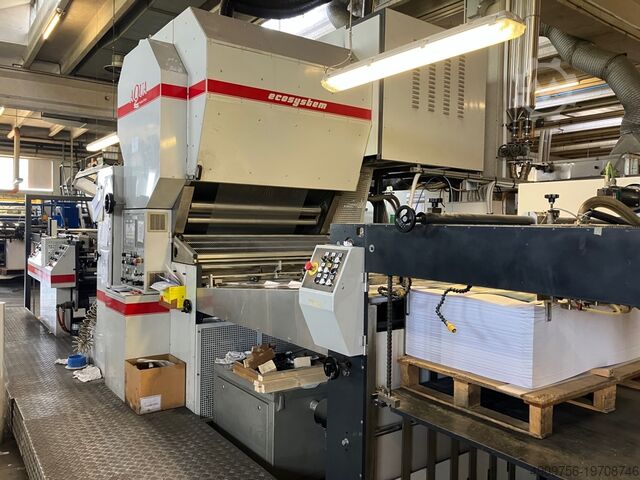

Condition: ready for operation (used), Year of construction: 1999, Ecosystem DRY USA 76 Dksdpfx Ajy Emq Hskten Age:1999 Working span: 88 Max plasticizing dimensions: 76 Min sheet size: 25 x 25 Max sheet size: 88 x 106 Max production speed: 35 Mechanical speed: 40 Max number of copies/h: 6000 Installed power:13 Working power: 9.5 Dimensions: w/l/h 1850x4540x1800 Total weight: 2220 kg Thermal energy: Heating-electric resistance Max temperature:115-130C Available: immediately

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, working width: 720 mm, Model: SFML-720C Weight: 840 kg Power: 8.5 kW Voltage: 220 V Date of manufacture: 2011 Dsdpfx Ajyxl Tyoktskn CE certified

Condition: used, Year of construction: 2019, Working Width: 1315 mm Materials: ALU, LDPE, LLDPE, OPA, PET, PAPER, BOPP Unwinder Diameter: 1000 mm Rewinder Diameter: 1500 mm Mechanical Speed: 500 m/min Primary Unwinder Max roll Ø: 1000 mm | Core: 76 / 152 mm | Max weight: 1000 kg Web width: 1330 mm | Max lamination width: 1315 mm | Min web width: 500 mm Secondary Unwinder Max roll Ø: 1500 mm | Core: 76 / 152 mm | Max weight: 2000 kg Web width: 1330 mm | Max lamination width: 1315 mm | Min web width: 500 mm Hydraulic loading, BST OPG web guide, photocell edge detection Rewinder Max roll Ø: 1500 mm | Core: 76 / 152 mm | Max weight: 2000 kg Web width: 1330 mm | Max lamination width: 1315 mm Working Width: 1315 mm Materials: ALU, LDPE, LLDPE, OPA, PET, PAPER, BOPP Unwinder Diameter: 1000 mm Rewinder Diameter: 1500 mm Mechanical Speed: 500 m/min Adhesive Systems Single-component Monodispenser (VEA) for paper laminations Two-component solventless PU dispenser Heating belts for 200 kg adhesive drums Materials: ALU 6.35–50 μm | LDPE/LLDPE 30–200 μm | OPA 12–50 μm | PET 10–30 μm | Paper 40–200 gsm | BOPP 12–80 μm Controls & Accessories Dkodpfx Aksyiu I Tetjn PLC Siemens Simatic DP IM 151-8F PN/DP CPU ET200S Semi-automatic roll trolley 1000 kg

Condition: good (used), working width: 850 mm, total width: 4,500 mm, total length: 14,300 mm, total height: 4,200 mm, overall weight: 10,000 kg, Equipment: CE marking, Coating and laminating line for the production of multilayer materials such as BOPP, PET, CPP, paper, and aluminum foil. Equipped with double turret unwinders and winder, coating unit, laminating unit, and electric dryers. Full specification available in the photos. Dedpfxoyfuhlj Aktjkn

Condition: refurbished (used), Year of construction: 2016, functionality: fully functional, working width: 520 mm, compressed air connection: 6 bar, type of input current: AC, overall weight: 500 kg, KOMFI AMIGA 52 Commercial Print Laminator. Production Speed: 25 meters per minute. Maximum sheet size B2. Dodsx Ry H Eepfx Aktskn Digital Metallic Foiling attachment fitted. Deep plie suction feeder with Becker pump. Auto sheet separation and delivery into the reception tray. Power supply: 400v 50Hz 3 Phase

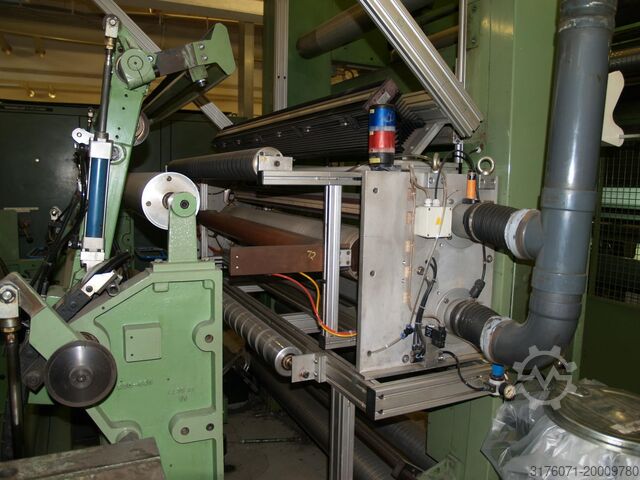

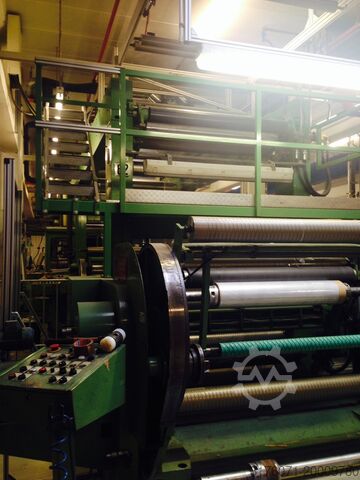

Condition: ready for operation (used), Year of construction: 1996, A laminating machine Windmöller und Hölscher, without adhesive and coating unit, is available. Web width: 1420mm, coating width: 1400mm, max. roll diameter: 1000mm, max. roll weight: 1300kg, core inner and outer diameter: 76mm/95mm, max. mechanical speed: 460m/min, min. material thickness: 15mm, max. material thickness: 250µm, total machine dimensions X/Y: 19500mm/2500mm. The machine was used as a rewinder. Documentation available. On-site inspection is possible. Dkedpfx Asx I Rprjktjn

Condition: excellent (used), Year of construction: 2001, Jumbo roll diameter paper max. 1600 mm Jumbo roll width min. 560 mm Jumbo roll width max. 1400 mm Jumbo roll diameter PE, PET max. 1000 mm Core chucks diameter 76 mm, 100 mm, 150 mm, and 300 mm Speed depending on material: 200 to 300 m/min. The laminating machine Bielloni Castello Julia 2 SL is able to process single-component polyurethane (PU) adhesives with 100% solids content (solvent-free). The adhesive is applied using a sleeve system. Dispersion adhesives cannot be processed. The system does not include a drying unit. The PU adhesive is applied to the carton web with heated rollers (approx. 70–90 °C). Bonding between carton and film is achieved by pressure and subsequent self-curing. Paper grammage: 120 to 600 g/m², laminated with PET: min. 8 microns to max. 75 microns PE: min. 20 microns to max. 75 microns Dodpfx Asxlkckoktskn

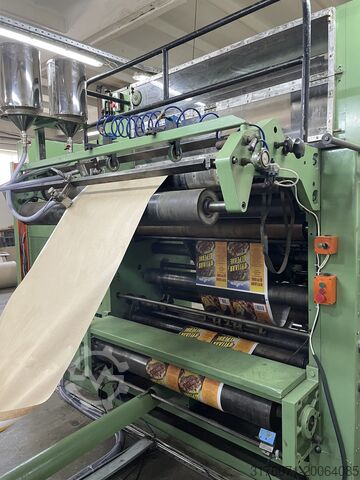

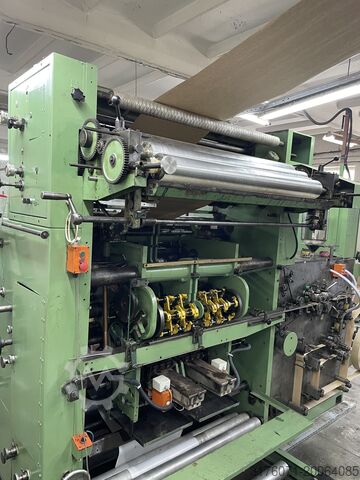

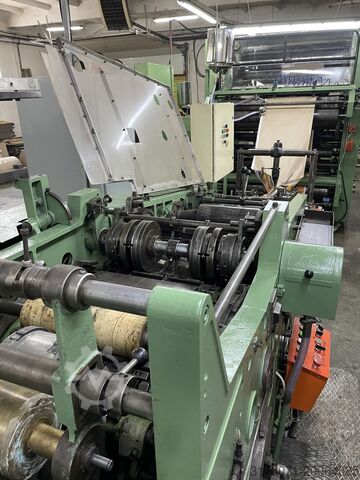

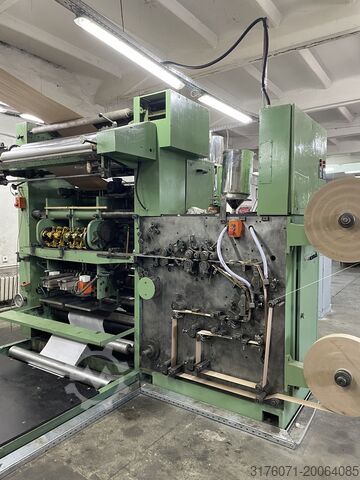

Condition: good (used), Year of construction: 1991, Very good condition. Fully overhauled in 2023. Flat handle unit installed. The machine offers both 1-ply and 2-ply operation modes. It is equipped with slit equipment for the bag bottom formation. Bag width (without handle): min. 160 mm – max. 320 mm Bag width (with handle): min. 250 mm (between handle centers) – max. 320 mm Bag gusset (without handle): min. 60 mm – max. 180 mm Bag gusset (with handle): min. 250 mm (between handle centers) – max. 180 mm Bag cutting length (without handle): min. 350 mm – max. 610 mm Bag cutting length (with handle): min. 350 mm – max. 580 mm Roll width: min. 460 mm – max. 1020 mm Maximum roll diameter: outer layer – 1500 mm / inner layer – 1300 mm Core diameter (paper roll): 76 mm Paper grammage: 1 ply – 50-120 gsm / 2 ply – up to 100 + 80 gsm (as produced) Number of forming plates (for bag width): 7 Forming plate sizes: 160, 180, 240, 260, 280, 300, 320 mm Gear sizes (for cutting length): 35, 36, 41, 45, 48, 50, 55, 56, 57, 58, 62 Approximate production speed with handle: 100 pcs/min Approximate production speed without handle (1 ply): 150 pcs/min Approximate production speed without handle (2 ply): 120 pcs/min Total electrical load: 25 kW Dedsxfl Izepfx Aktjkn Paper roll loading mechanism: automatic for outer layer, by forklift for inner layer Machine dimensions (W x L x H): 4.5 m x 13 m x 3.3 m

Condition: ready for operation (used), Year of construction: 1986, functionality: fully functional, working width: 1,420 mm, Year: 1986 Width/mm: 1420 Thickness/µm: 14-400 Material: PO, PE, paper, HDPE, LDPE Detail: Plant consists of: 2x Fife edge trim control 2x Ahlbrand MFD 2000 pre-treatment units (year 2001) 1x Print Concept UV unit type PC 2w-1600-2x1 (year 2001) Coating unit with individually temperature-controlled rollers. Dkodpfx Asxcy Hyjkten Sleeve system D: 76mm. Several spare parts included.

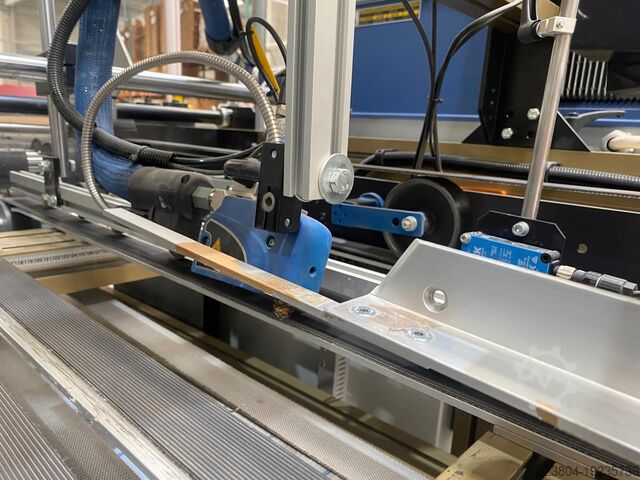

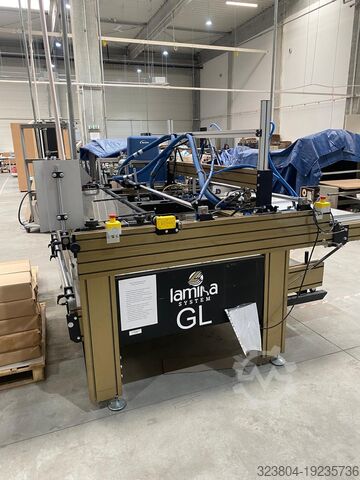

Condition: excellent (used), Year of construction: 2017, operating hours: 100 h, functionality: fully functional, Lamina GL 1400 Almost as new Year: 2017 Max size: 1400 x 2150 mm Min width: 70 mm Glue type: 2 guns with hot melt by Nordson Dksdpfx Ajwna R Ejkton Extras: 2 cold tape guns adhesive Very good condition Available immediately Located: Europe Eastern

Condition: as good as new (ex-display), Year of construction: 2019, operating hours: 50 h, functionality: fully functional, machine/vehicle number: 19101105, roller width: 1,100 mm, Equipment: full service history, type plate available, The SDFM-1100 roll-to-roll laminator is a multifunctional laminating machine. It is designed for cold and hot laminating. The paper is laminated on one side with the foil. Then the web is re-rolled onto the roll. For cold laminating, the foil is coated with a water-based glue and dried using a heating roller with a warm air drying system. The winding system sends the paper to the laminating section, where the paper is covered with the foil by heating and roller pressure. The rollers use a heated water circulation system with constant temperature control. The paper roll is held by pins, which are controlled by a pneumatic brake. The paper is unrolled to the leveler, which is equipped with automatic leveling of the paper web before laminating, which ensures even coverage of the web with foil. In the laminator, the non-adhesive film is coated with a water-based adhesive and then dried with a heating cylinder or the film already coated with adhesive is unrolled into the laminating cylinder. The laminating cylinder is heated using induction heaters. Under the laminating cylinder, the paper is joined to the film using temperature and pressure generated by the lower rubber roller, which presses the film with the paper against the laminating cylinder. The laminated web is wound onto a core on a shaft in the receiving section, after which it can be transported to subsequent production processes. Specification SDFM-1100 Maximum roll width 1100 mm Maximum roll diameter 1100 mm Paper weight 80 - 500 g/m2 Film thickness 10-50 microns Working speed 10 - 65 m/min Djdpfxovy Aips Aktjkn Electrical voltage 380V 50Hz Total power 78 kW Maximum power consumption 30 kW Total weight 8000 kg Machine dimensions 10130×2130×2960 mm

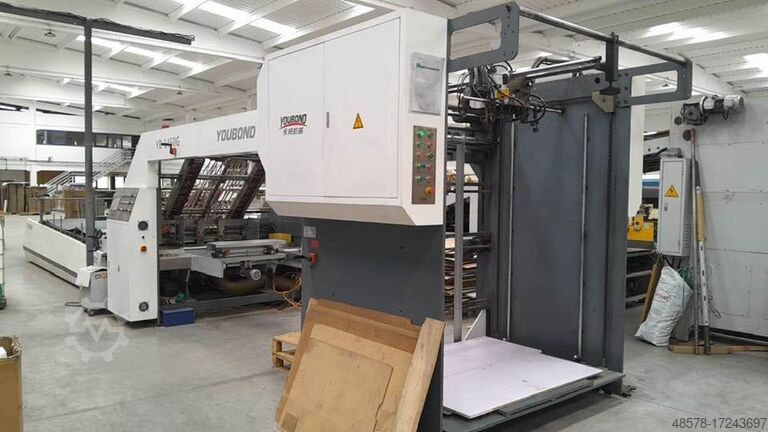

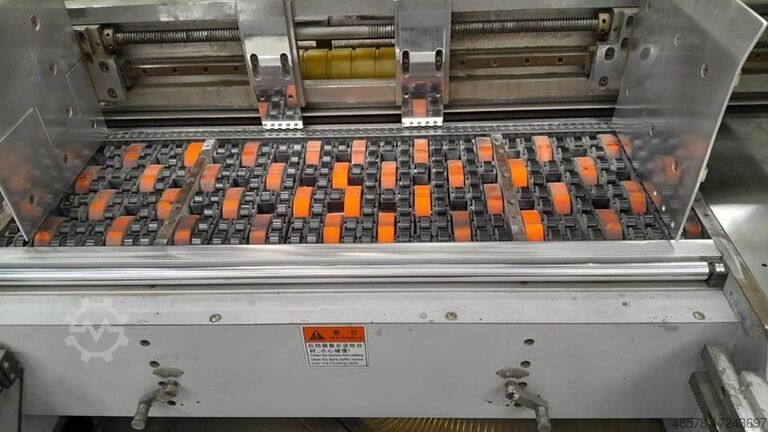

Condition: good (used), Year of construction: 2017, working width: 1,450 mm, 1450 Automatic backlapping machine Automatic sheet feeder Automatic carton feeder Automatic register with servo motor Dksdpfx Asurivvokton Output blanket

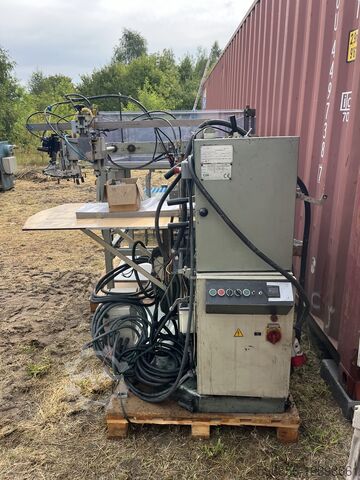

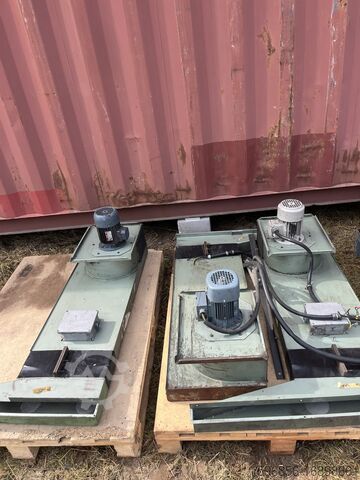

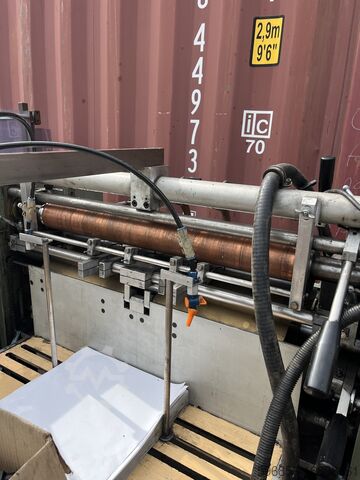

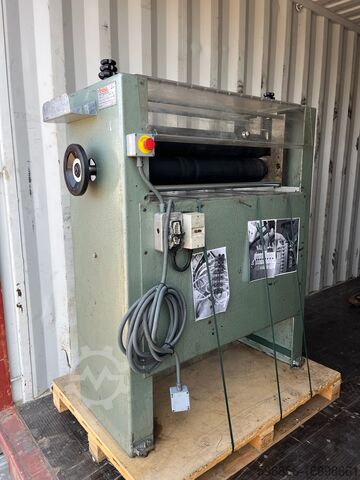

Condition: good (used), Selling CRATHERN, PERONDI IA630, NA 900. Dkodeud Axgjpfx Aktsn

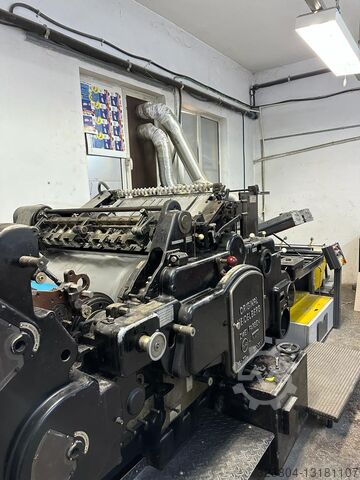

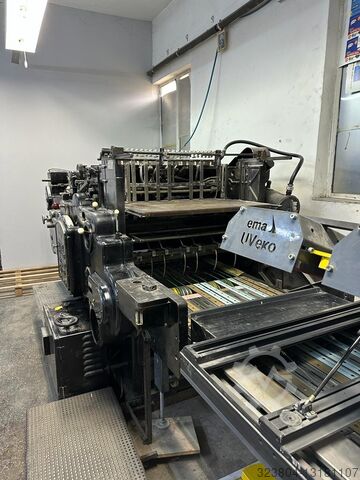

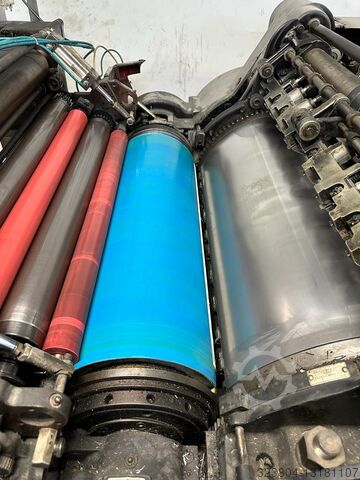

Condition: good (used), Heidelberg SBGZ for UV coating with dryer Max size: 56 x 77 cm Machine has roller for UV varnish Can make spot varnish and full varnish Dkedpjpwkgxofx Akten EMA UV Eko dryer Very good condition
