Bale wrapping machine

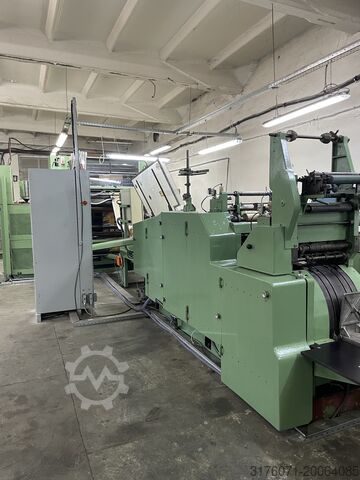

Windmöller & Hölscher Triumph 3С

Very good condition. Fully overhauled in 2023.

Flat handle unit installed.

The machine offers both 1-ply and 2-ply operation modes. It is equipped with slit equipment for the bag bottom formation.

Bag width (without handle): min. 160 mm – max. 320 mm
Bag width (with handle): min. 250 mm (between handle centers) – max. 320 mm
Bag gusset (without handle): min. 60 mm – max. 180 mm
Bag gusset (with handle): min. 250 mm (between handle centers) – max. 180 mm
Bag cutting length (without handle): min. 350 mm – max. 610 mm
Bag cutting length (with handle): min. 350 mm – max. 580 mm
Roll width: min. 460 mm – max. 1020 mm
Maximum roll diameter: outer layer – 1500 mm / inner layer – 1300 mm
Core diameter (paper roll): 76 mm
Paper grammage: 1 ply – 50-120 gsm / 2 ply – up to 100 + 80 gsm (as produced)
Number of forming plates (for bag width): 7
Forming plate sizes: 160, 180, 240, 260, 280, 300, 320 mm
Gear sizes (for cutting length): 35, 36, 41, 45, 48, 50, 55, 56, 57, 58, 62
Approximate production speed with handle: 100 pcs/min
Approximate production speed without handle (1 ply): 150 pcs/min
Approximate production speed without handle (2 ply): 120 pcs/min
Total electrical load: 25 kW
Paper roll loading mechanism: automatic for outer layer, by forklift for inner layer
Chedsxfl Izjpfx Abwsc
Machine dimensions (W x L x H): 4.5 m x 13 m x 3.3 m
