Maschinenhandel Bernd Wöllner

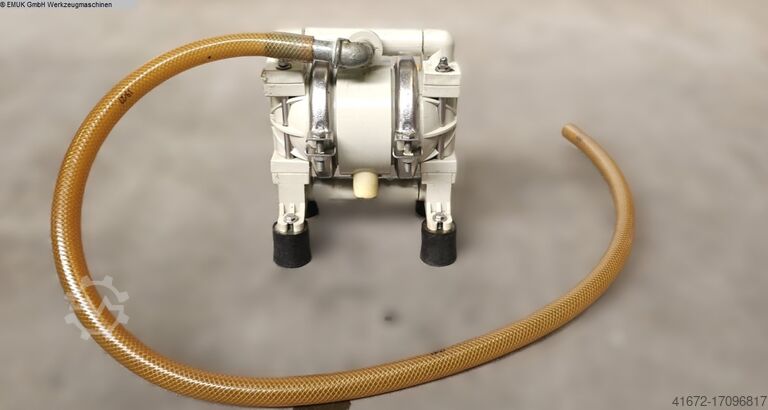

Year of construction: 2021, condition: like new (used), Required air-pressure 7 bar weight 3 kg dimensions of the machine ca. 212 x 265 X 200 mm BxHxT Air Operated Diaphragm Pump Type(s) DL15-PM-TTT Technical data: - Connection size medium - 1/2" BSPT female thread - Material housing - PP polypropylene - Center section - PP polypropylene - Diaphragm material - PTFE - O-ring material - PTFE - Check valve material - PTFE - Max. flow rate - 2.2 m³/h - Max. medium pressure - 7 bar Fgjdpfxeul Edvj Afpoh - Compressed air supply - up to 7 bar - Solid size max. - 2.5 mm - Dry suction max. - 2.5 m - Dimensions WxHXT - 212 x 265 X 200 mm - Net weight - 3.5 kg PTFE diaphragm for the highest chemical requirements, very good resistance to aggressive media and chemicals, temperature range: -5 °C - +130 °C. PP polypropylene housing is highly resistant to acids, many water-soluble, inorganic acids and bases. Also available as electrically conductive housing material. Temperature range: 0°C - +60°C

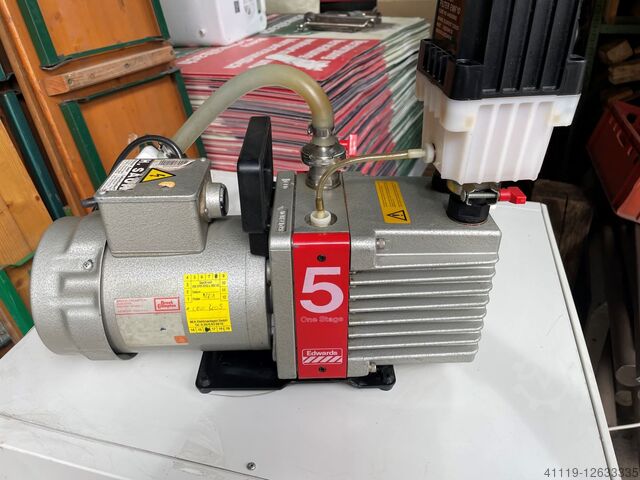

Condition: good (used), Machine number: 06363 Type / Model: E1M5 Vacuum: Displacement: 5.6 cm³ Inlet connection: KF 25 Exhaust port: 15 mm nozzle Engine oil: H/C Cooling: Air Connection: 0,25 kW 240V Condition: Weight: 17 kg Fgedpjpbvi Dsfx Afpeh Dimensions: 450 x 150 x 220 mm

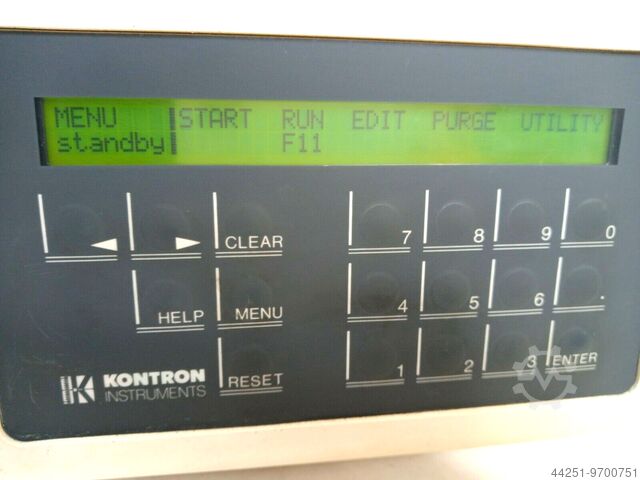

Condition: excellent (used), Kontron 325 Tenary Low-Pressure Gradient Pump HPLC up to 10 mL - Pump system for tenary low-pressure gradients - All low-pressure gradient devices integrated into one solution system - 10 programs with customized instructions - Column shock protection extends shelf life - Intelligent compressibility compensation - Stackable with other/additional HPLC modules - Full control of the AUtosampler 360 via the keypad with a display Type: Double series-piston wetted Materials: SS 316, PTFE, KEL-F, ceramic, ruby, and sapphire Flow rate: 0.05 to 10 mL per minute Flow rate precision: 0.3% RSD (at 1.5 mL/min) Flow rate accuracy: 2% (at 1.5 mL/min) Flow linearity: r2 > 0.998 Pressure: 40 MPa or 7500 psi (flow-dependent) Pressure sensor: Piezoelectric sensor Fodpfxolkbptj Afpogh Display: 2x40-character LCD External control: RS-232C Inputs: Injection synchronization, flow stop Outputs: Pressure and drive alarm, pressure signal, relay injection, relay step, RS-232 (for Autosample 360) Power supply: 110/220 V +-10%, 50/60 Hz, 120 VA Dimensions: 40 cm wide, 54 cm deep, and 17 cm high Find more items - new and used - in our shop! International shipping costs upon request!
