Frank Vogt

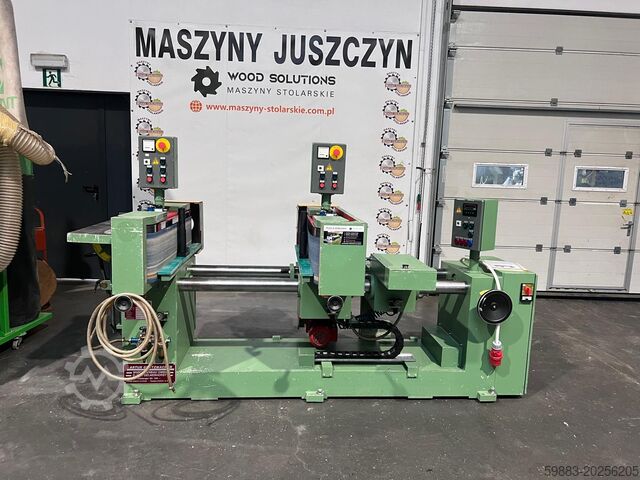

Condition: excellent (used), Double-sided grinder Grützmacher GSP10 Dodpsxmgrqsfx Afpowc Working width: 200-1000 mm Working height: 230 mm Number of units: 2 Mechanical oscillation of sanding belts Pneumatic head approach Grinding motor power: 2×7.5 kW Oscillation motor power: 2×0.15 kW Sanding belt: 2500x250 mm Exhaust ports: 2x140 mm

Condition: used, Year of construction: 2018, functionality: fully functional, overall weight: 1,750 kg, power: 13 kW (17.68 HP), The grinder is in perfect condition, fully functional, and has been used very little. Ready for immediate pickup. Dwedpfx Afexl Hw Dopoc

Condition: excellent (used), functionality: fully functional, total length: 1,440 mm, total width: 720 mm, total height: 1,470 mm, table height: 840 mm, SAMCO Unilev150 Double-Sided Edge Sander Specification: • Condition: used, after inspection • Manufacturer: SAMCO • Model: Unilev 150 • Working height: 150 mm • Sanding belt dimensions: 150 x 2150 mm • Two sanding belt speeds • Additional shaft, roller for sanding internal curves • Table dimensions: 22 x 144 cm • One table adjustable in the range of 0-30 degrees • Motor power: 3.0 kW • Pneumatic belt tensioning and oscillation • Adjustable shoe for veneer sanding on one side and "back" 15x75 cm on the other • Angle sanding attachment • Extraction port - diameter 140 mm Dwsdpfsxl D Nwjx Afpoc • Weight: approx. 450 kg • Documentation for the machine in Italian • Overall dimensions: 144 x 72 x 147 cm (L x W x H) Additional information: • Very good factory technical and visual condition • The presented photos show the actual sale item • Possibility to connect and test the machine on site

Condition: used, The Volpato LS 1N is a universal machine designed for sanding edges, profiles, and shaped components made of wood as well as other materials. It combines user-friendly operation with high versatility – it can be equipped with a sanding belt, sanding disc, or milling unit. The robust construction and high-quality Italian workmanship ensure long service life and reliable performance even under demanding conditions. The machine features chain feed with stepless speed control from 4 to 20 m/min, pneumatic belt tensioning, and an oscillation system for even abrasive utilization. Precise adjustment of the pressure shoe allows for both fine contour sanding and precise calibration. Technical Data Sanding Belt Belt size: 2450 × 80 mm Unit tilt: 0–135° Belt speed: 7–14 m/s (2 speeds) Motor: 1.5 kW Oscillation: 0–20 mm Extraction port: Ø 100 mm Net weight: approx. 100 kg Sanding Disc Max. diameter: 220 mm Max. width: 90 mm Unit tilt: 0–180° Dwsdpfjxlqutjx Afpec Rotational speed: 900 rpm Motor: 1.5 kW Extraction port: Ø 100 mm Net weight: approx. 90 kg Milling Unit (optional) Cutter diameter: 140–160 mm Unit tilt: 0–90° Rotational speed: 0–6000 rpm (with inverter) Motor: 4 kW Spindle diameter: 35 mm Extraction port: Ø 100 mm Net weight: approx. 90 kg Feed System Type: Chain drive with rubber inserts Feed speed: 4–20 m/min (infinitely variable) Dimensions and Weight (LS 1N model) Length: 2450 mm Height: 1400 mm Depth: 1900 mm

Condition: good (used), Year of construction: 2000, Special-purpose machine, not a through-feed machine but a support machine, approximately 150 cm long where the workpiece is clamped. 4 units positioned transversely to the feed direction. It was used for intermediate sanding of polyester lacquer to achieve high-gloss finishes on dashboard panels for luxury cars. The total machine length is 12 m. Dsdpexivbmsfx Afpowc

Condition: good (used), Year of construction: 1997, Manufacturer: MABO Model: BABY S.A.S. BABY 80 Machine type: Edge sanding machine Technical Data Distance between rollers: 1,050 mm Max. sanding belt width: 120 mm Number of speed settings: 1 Main motor: 1.1 kW Sanding belt horizontal Sanding belt tiltable Vertical upwards Weight approx.: 95 kg Space requirement length: 2.65 m Dodpfx Afexgvcxspjwc Space requirement width: 0.55 m Space requirement height: 1.1 m Location: from stock 54634 Bitburg - Immediately available -

Condition: excellent (used), Year of construction: 2020, Holzkraft edge sanding machine type: KSO 1500 with base frame Dodpoxgvcfjfx Afpewc Year of manufacture: 2020, in excellent condition Belt width: 150 mm Belt length: 2270 mm Veneer sanding device: no Oscillation: yes Roller diameter: 38 mm, 50 mm, 76 mm Swiveling sanding unit: yes / 90° - 0° Worktable: 680 mm x 310 mm Additional table: 260 x 260 mm Belt speed: 16 m/sec Extraction connection: 100 mm x 2 Motor power: 1.5 kW / 400V Machine length: 1350 mm Machine width: 585 mm Weight: 162 kg Location: from stock 54634 Bitburg - immediately available -

Condition: used, Year of construction: 1973, functionality: fully functional, ARMINIUS profile sanding machine type 171/2, year 1973, with 3 units. All spindles 30 mm diameter. Spindles adjustable in depth and height. 1 spindle 7900 rpm. Accessories: various profile grinding wheels, feed unit with 3 rollers. Sold without warranty. Dsdpfx Aoxgp E Hsfpowc

Condition: used, Edge sanding machine Gartner FLK 4 - used - including mitre fence ----- Technical Data ----- Sanding belt width: 200 mm, sanding belt length: 2,350 mm, worktable dimensions: 870 x 400 mm, belt speeds: 4, extraction nozzle Ø: 80 mm, motor: 3 kW Dwsdpjxd U Uhofx Afpoc

Condition: excellent (used), Samco Unilev 15 Edge Sander Belt dimensions 150 x 2170 mm Two belt speeds Adjustable shoe Dedpsxd Rl Nefx Afpswc Tabletop adjustable at an angle of 0-30 degrees Adjustable grinding height Pneumatic sanding belt tension Sanding belt oscillation Motor power 3kw

Condition: excellent (used), Catalogue number 7733 TECHNICAL DATA - Belt width: 150mm - Oscillation - Vertical oscillation stroke - 2 rotation speeds - Worktable: 1180x370mm - Worktable adjustments: up/down, front/back, and angled - Motor: 3kW - Pad – for precision grinding - With fan - Working grinding length on belt: 700mm - Top/bottom cutters for edge chamfering - Extraction port diameter: 70mm - Dimensions (L/W/H): 1550/1400/1300mm - Weight: 490kg ADVANTAGES – With oscillation – With pad – With fan – Set includes cutters for edge joining/chamfering – Suitable for contour and straight grinding – Not painted – Used sander, very good condition Dwsdpfexdc Enox Afpoc Net price: 7500 PLN Net price: 1760 EUR (based on exchange rate 4.25 EUR) (Prices may vary depending on significant currency fluctuations)

Condition: excellent (used), functionality: fully functional, TOMESANI T45/B Edge Sander Specification: • Condition – used • Manufacturer – TOMESANI • Model – T 45/B • Working height – 150 mm • Left/right rotation • Tables measuring 17 x 144 cm and 27 x 120 cm, extendable • Rotating sander body • Motor power – 2.5 HP • Mechanical belt tensioning and oscillation • Own integrated sawdust extraction • Weight – approx. 250 kg Dedpfxexb D Acs Afpowc • Overall dimensions: 145 x 85 x 120 cm (L x W x H) Additional information: • Very good factory technical and visual condition • The provided photos show the actual condition of the item for sale • Possibility to power up and test the machine on-site

Condition: ready for operation (used), Double-sided edge sanding machine Radius sanding device (see image) Veneer sanding attachment Sanding belt oscillation Dwjdpsxat Uxofx Afpsc Length of worktables: 1440 mm Overall height of worktables: 710 mm Tilting adjustment of the worktable Motor for sanding belt: 2.25 - 3 kW Oscillation of the sanding belt: 0-25 mm Sanding belt length: 2170 mm Sanding belt width: 150 mm Weight of the machine: approx. 460 kg Air consumption: 25 L/min The data was taken from a brochure; therefore, no guarantee is given.

Condition: new, Year of construction: 2025, New machine Year of manufacture 2025 Edge sanding machine with integrated dual conveyor feed system for solid wood parts, veneered edges, and curves, featuring oscillation of the entire sanding unit. Processing of solid and veneered edges either manually or with automatic feeding: - On the veneer sanding side, along the two stop plates (with infeed stop including integrated extraction slots and fine adjustment according to removal scale) onto the elastic sanding pad (oscillating for uniform use of the graphite lining, including grit compensation adjustment and belt tension relief via two deflection rollers), with infeed stop extension, table size 1180 x 325 mm. Manual processing of straight and curved solid wood parts: Dedpfxsw Tfx De Afpjwc - On the solid wood sanding side against the continuous, glide-backed sanding belt support, table size 1180 x 325 mm including miter fence with scale. - On the front side with an optionally quick-mountable semicircular table (with dust extraction holes) against the rubberized belt drive roller Ø 90 mm, support radius 300 mm. - On the drive roller, optionally with a quickly mountable auxiliary cast iron table (with dust extraction holes) 400 x 500 mm on an oscillating spindle for use of sanding drums Ø 25, 30, 40 and 45 x 100 mm for external and internal curves, with spindle safety cover. Design: Robust machine frame with heavy cast iron tables, sanding unit motorized height adjustment up to 120 mm and tiltable up to 45° without any table adjustments (patented construction), belt drive motor 3 kW (4 HP), 400 V/50 Hz, with motor protection switch, separate motor for belt oscillation, oscillation stroke programmable from 10 - 90 mm, control box integrated in frame, constant belt tension with length compensation, belt tracking adjustable, safety guard, dust extraction via two extraction hoods, flexible hoses and common internal pipe to 150 mm connection, recess in frame for easy transport with pallet or forklift, belt width 150 - 200 mm, belt length 2000 mm, working height 830 mm (solid sanding table) or 900 mm (veneer sanding table), net weight 750 kg, footprint 1150 x 800 mm. Feed system: Integrated in the frame, two parallel transport belts 50 mm wide, spaced 250 mm apart on the underside, 20 mm wide top pressure rollers, 0.55 kW (0.75 HP) motor, continuously adjustable speed 3 - 15 m/min. COMFORT version Kündig UNIQ-S Including table extension UNIQ/UNIQ-S/Flash Including upper extraction duct UNIQ without slide Including semicircular table for belt drive roller UNIQ-S Availability: short-term Location: Flörsheim

Condition: used, Year of construction: 2008, Grinding width: 3000 mm Depth: 1100 mm Weight: 589 kg Storage location: supplier Dwjdpfsw Sy Haex Afpsc

Condition: good (used), Radii from 2 mm to 12.5 mm. Expandable up to 25 mm. 45° bevels up to 16 mm wide. Workpiece support extendable up to 380 mm. Optional feed system available. You will receive an invoice with VAT shown separately. Price applies ex stock Haldensleben. Dwodpfxew Sw Sye Afpjc

Condition: excellent (used), Edge sander Volpato LBK 160S Dedpfx Aow Ng A Asfpjwc Sanding height: 150 mm Mechanical oscillation Two belt speeds Additional unit for profile sanding 6-roller feed (machine can also be sold without it) Total power: 4.5 kW

Condition: used, Year of construction: 2002, Used machine Year of manufacture 2002 Edge sander with electromechanical oscillation with a 15 mm pendulum stroke of the motorized disc Swivel of the sanding unit by 90° using a hand crank (continuous angle adjustment; read off the scale) Additional table with extraction system for using sanding rolls Height-adjustable table for utilizing the sanding belt Motor 2.2 kW Dodpfxow I U Aho Afpewc Oscillation motor 0.11 kW Table size 880 x 370 mm Belt dimensions 150 x 2580 mm Dimensions 1700 x 1000 x 1150 mm Weight 250 kg Availability: Short-term Storage location: Flörsheim

Condition: used, Year of construction: 1991, Used machine Used profile sanding machine of the company Arminius type ST 10 Year of construction: 1991 MNo.: 0-290-02-1567 Engine power: 1.1 kW Spindle adjustment: 0° - 135° Table surface: 1000 x 800 mm Djdpow I Unksfx Afpewc without visible objects on the table surface Availability: short term Location: Röllbach

Condition: new, Year of construction: 2022, New machine Year of manufacture: 2022 Scope of delivery: - Table extension - Rubber rollers With veneer edge sanding device with contact shoe With fine adjustment and fence rulers With grooved infeed fence for veneer overhangs Quick switch between veneer edge and solid wood sanding possible Approximate dimensions: Dwjdow I Up Uspfx Afpsc Length (product): 1900 mm Width/Depth (product): 900 mm Height (product): 1350 mm Net weight: approx. 290 kg Oscillation motor power: 0.25 kW Extraction port diameter: 140 / 100 mm Height adjustment of longitudinal table: 230 mm Min. cross table height: 720 mm Working table length: 960 mm Working table width: 350 mm Working table height adjustment: 230 mm Connection voltage: 400 V Phase(s): 3-phase Current type: AC Mains frequency: 50 Hz Sanding belt length: 3000 mm Sanding belt width: 200 mm Belt running speed(s): 20 m/s Oscillation stroke: 20 mm Sanding surface length: 1050 mm Sanding surface width: 200 mm Includes: 1 pack sanding belts K 80 1 pack sanding belts K 120 Availability: short-term Location: Hochheim

Condition: new, Year of construction: 2022, New machine Year of manufacture: 2022 The top section is made of heavy cast construction, equipped with a built-in three-phase motor 380 V, 2.2 kW, 2850 rpm. The machine is fitted with an integrated switch-plug combination, motor protection switch, and main switch according to VDE standards. Dimensions of the sanding belt backing plate: 850 x 150 mm. Steel table height adjustable by spring pressure. Belt size: 150 x 2280 mm. The sanding belt backing plate is covered with a graphite slip lining. The machine is supplied with an assortment of sanding belts. Also included in the scope of delivery are a mitre gauge and an angle stop. When connected to a central extraction unit with an air velocity of at least 20 m/s, the machine is dust-certified (GS) by Holz-BG Stuttgart. Standard equipment: Dsdow I Uqxjpfx Afpswc - Swivels 90-180° - Motorized belt oscillation - Small support table at the deflection roller - Pneumatic belt tensioning Technical data: Motor power: 2.2 kW Sanding belt size: 150 x 2280 mm Sanding belt speed: 22 m/sec Table size: 750 x 350 mm Required space: 1000 x 800 mm Weight: from 180 kg Extraction connection Ø: 100 & 80 mm Availability: short-term Location: Solingen

Condition: new, Year of construction: 2022, Exhibition machine Year of manufacture: 12/2022 Features and technical data: DESCRIPTION • Grinding unit tiltable by hand crank • The machine frame made of welded steel ensures high torsional rigidity and vibration-free operation • Oscillating sanding belt with a separate geared motor for improved sanding results • Oscillation can be switched on or off as needed • Sanding platen with graphite coating for longer belt life • Height-adjustable sanding table to utilize the entire belt width • Auxiliary table for sanding radii with integrated extraction ports • Sleeve sanding device with attachable work table • Spring-loaded belt tension automatically compensates for belt length differences • Equipped with adjustable stops, ideal for veneer sanding • Veneer overhang can be sanded off effortlessly TECHNICAL DATA Dimensions and weights Product length approx. 1700 mm Product width/depth approx. 1000 mm Product height approx. 1150 mm Net weight approx. 300 kg Drive power Oscillation motor power: 0.11 kW Extraction connection Extraction port diameter: 2 x 100 mm Work tables Table length: 950 mm Table width: 450 mm Table height adjustment: 110 mm Electrical data Connection voltage: 400 V Mains frequency: 50 Hz Grinding unit Sanding belt length: 2640 mm Sanding belt width: 150 mm Belt speed: 14 m/s Oscillation stroke: 15 mm Sanding area length: 800 mm Sanding area width: 150 mm Tilt range of grinding unit: 0–45° SCOPE OF DELIVERY • 1x sanding belt K100 • 5x rubber rollers Ø25, Ø30, Ø40, Ø45, Ø50 mm • 6x sanding sleeves K80 – Ø25, Ø30, Ø35, Ø40, Ø45, Ø50 mm • Standard tool kit • Mitre gauge Location: Hochheim Dodpfx Aow I Uvzefpewc Availability: Immediately

Condition: like new (used), Year of construction: 2022, operating hours: 300 h, functionality: fully functional, Description see PDF file very little used, like new. Dwjdpjw I S Nrefx Afpec

Condition: used, Year of construction: 1978, Abrasive belt length: 2350 x 200 mm without oscillation Storage location: Nattheim Dedpsw I A Nvjfx Afpjwc

Condition: used, Year of construction: 1997, machine/vehicle number: 971845, input voltage: 400 V, Machine in the condition shown in the photo, removed from production, operational. Dwsdpfx Aew Ixn Uefpec
