Maschinenteile24 Servicebetrieb für Umformtechnik

Condition: ready for operation (used), Hydraulic Press Machine, Used Machine Manufacturer: Hydrauma Type: PYE 100 Overall dimensions: Width: 1250 mm Depth: 1680 mm Gsdpoxacm Rjfx Afpsbu Height: 2800 mm Max. operating pressure: 100T Table size: 710 × 510 mm Clearance: 710 × 500 mm Stroke length: 500 mm Electrical data: 400V

Condition: new, pressure: 150motor: 15daylight: 500stroke lenght (max.): 400table diamension: 900 x 600tappet area: 900 x 600table height: 850messurements (LxWxH): ca. 1300 + (300 Schaltschrank) x 2000 x 3200weight approx.: 8000oil filling: 400Hydraulic C-Frame PressType: C-Frame, hydraulicCapacity: Pressing force: 150 tons at 240 bar Return force: 30 tons at 150 bar Control ModesMode 1: Setup mode without light sensor Mode 2: Automatic single stroke with light sensor Hydraulic SystemMain cylinder: Ø 270 mm Auxiliary cylinders: 2 pcs Ø 70 x 40 mm Guiding columns: 4 pcs Ø 50 mm Main motor: 15 kW / 22 HP (IE3) Pump: 45 cc, 65 l/min – REXROTH Tank capacity: 500 liters Oil volume: 400 liters Auxiliary motor: 2.2 kW / 3 HP Auxiliary pump: included Oil tank air cooler: included Adjustable Speeds (via PLC)Advance stroke: 120 mm/s Return stroke: 140 mm/s Pressing phase: 13 – 5 mm/s Mechanical DataDaylight (open height): 500 mm (distance between ram and table) Stroke length: 400 mm Table depth: 650 mm Throat depth: 350 mm Table height: 850 mm (floor to top of table) Plate DimensionsTable plate: 900 x 600 x 120 mm (with T-slots – customizable) Ram plate: 900 x 600 x 300 mm (with T-slots & spring welding) Hydraulic AccessoriesHydraulic block & valves by REXROTH Pre-fill valve Hydraulic and mechanical ram locking at TDC Pressure & speed adjustable via PLC Gbjdpfewzzzfex Afpju Side safety doors (slidable towards rear) Control & ElectronicsMain control cabinet PLC: Siemens S7–1200 Safety PLC: SICK Swiveling control panel with soft starter Mobile two-hand control Light sensors: SICK (700 mm + 130 mm) Stroke measurement: 500 mm linear scale HMI: 9 Siemens display (storage for up to 500 tools) Remote maintenance module: Secomea Dual LED work area lighting 8 free I/O ports on PLC (for external systems like robot or coil feeder) General SpecificationsPower supply: 400 V / 50 Hz Standards: Complies with EN 693 machine directive Control safety: Dual-channel secured Valves: Hydraulic proportional valves Documentation: Operating manual, parts list & maintenance plan (in German) Warranty: 12 months (optional 24 months) Paint color: Main frame RAL 7035 – light grey Dimensions & WeightOverall dimensions (W x D x H): approx. 1300 mm + 300 mm control cabinet x 2000 mm x 3200 mm Weight: approx. 8,000 kg

Condition: new, pressure: 100motor: 11daylight: 500stroke lenght (max.): 400Tappet adjustment: 790 x 600table height: Fußboden zu Tischplatte Oberkannte - 850messurements (LxWxH): 1.300 x 2.000 x 2.750weight approx.: 5.500oil filling: 200Demonstration machine, year of manufacture 2023 Type: Hydraulic C-Frame PressCapacity: 100 tons at 230 barControl / Key Switch Modes:Setup Mode – Manual operation without light sensor Automatic Mode – Full speed with integrated light sensor Hydraulic System:Main Cylinder: Ø 230 mm Auxiliary Cylinders: 2 pcs, Ø 50 x 30 mm Auxiliary Guides: 2 pcs, Ø 50 mm Motor: 11 kW / 15 HP Pump: 16 cc, 23 L/min – Helical gear pump Speed:Approach: 110 mm/sec Return: 200 mm/sec Pressure phase: 9 mm/sec Godpfxewrkcto Afpebu Machine Dimensions:Daylight Opening: 500 mm Stroke Length: 400 mm Ram Plate: 790 x 600 mm (with T-slots) Table Plate: 790 x 600 mm (with T-slots) Table Height: 850 mm (from floor to top of table) Hydraulic Equipment:REXROTH hydraulic control block & components Pressure adjustable via PLC (20 – 100 tons) Speed adjustable via PLC Air oil cooler Pre-fill valve Pressure hold valve Control System:Siemens S7-1200 PLC Main control cabinet Safety PLC (SICK) Light curtains (SICK – 700 mm) Linear encoder for stroke adjustment 10” PLC touchscreen – BEIJER (German & English) Movable two-hand control unit Ethernet connection for remote support Visual and acoustic fault alarms Dual work area lighting In full compliance with EN 693 machine safety regulations Side safety doors (outward opening) Hydraulic proportional valves Dual-channel safety control User manual & parts list (German) Oil Volume: 220 L (Tank capacity: 250 L)Total Weight: approx. 5,500 kgOverall Dimensions: 1300 x 2000 x 2750 mmColor: RAL 7035 Light Grey & RAL 7016 Anthracite Grey Besichtigung unter Strom bei uns in Böheimkirchen 3071 (Neustiftgasse 34) möglich.

Condition: used, Year of construction: 1978, pressure 100 t stroke 150 mm throat 345 mm dayligth 400 mm table surface area 1200 x 600 mm table height over floor 850 mm ram surface 560 x 500 mm feed down 350 mm/s Gbedsvzxp Ujpfx Afpju feed up 350 mm/s working feed 25 mm/s oil volume 560 l power requirement 22,0 kW Weight 8,3 t dimensions of the machine ca. 2,1 x 1,7 x 2,8 mxmxm permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, light guard (Sick), mechanical depth stop with hydraulic cutting impact cushioning, two-hand operation

Condition: new, Year of construction: 2025, table height: 850 mm, throat depth: 325 mm, pressing force: 100 t, table width: 650 mm, table length: 850 mm, Equipment: safety light barrier, STANDARD FEATURES - Vibration method stress / welding tension relieved steel construction body and parts - 8-surface slide / bearing for high precision and long-lasting use - PLC control and touch panel - Argon application for fixing elements and steel drawn pipes - EN ISO 15614-1/2017 welding application certificate accredited by TÜRK-AK and approved by WPQR and WPS. (Welding applications are supervised by "welding coordination engineers" certified according to EN ISO 14731) - Parallelism and perpendicularity tolerances are applied according to ISO AND DIN Norms. (≤ 120 microns/meter) - PARKER / REXROTH hydraulic unit - SIEMENS / SCHNEIDER electrical consumables Godpfx Afsvzku Aepjbu - Automatic central lubrication system - Two-hand control - Cooling system TECHNICAL SPECIFICATIONS MODEL CHCP 100 PRESSURE (TONS) 100 STROKE (MM) 600 THROAT DEPTH (MM) 325 TABLE – RAM DISTANCE (MM) 700 TABLE DIMENSION (MM) 650X850 PRESS DEPTH (MM) 1300 PRESS WIDTH (MM) 750 TABLE HEIGHY FROM FLOOR (MM) 850 PRESS HEIGHT (MM) 2700 MAIN CYLINDER DIAMETER (MM) 230 ENGINE POWER (KW) 15 WEIGHT (KG) 8500 COUNTRY OF ORIGIN: TURKEY WARRANTY PERIOD: 24 MONTHS DELIVERY PERIOD: 2 (TWO) MONTHS DEPENDING ON ORDER PRODUCTION FROM 40 TONS TO 200 TONS IS AVAILABLE.

Condition: used, Year of construction: 1996, pressure 100 t throat 510 mm stroke 600 mm dayligth 1000 mm table surface area 1025 x 650 mm die cushion capacity 25 t die cushion stroke 200 mm die cushion area 600 x 400 mm table height over floor 970 mm ram surface 1025 x 650 mm feed down 350 mm/sec feed up 330 mm/sec working feed 30 - 43 mm/sec oil volume 540 l total power requirement 48,0 kW weight of the machine ca. 12,0 t Gsdpfx Ajvuunmofpsbu required space 1,2 x 2,7 x 3,9 m permitted for manual loading according to the CE Regulations with oil-hydraulic drive, hydraulic drawing cushion in table Video of the finished 'sister machine' - with new electrical control - available

Condition: used, Year of construction: 1993, pressure 100 t throat 320 mm stroke 160 mm dayligth 480 mm table surface area 630 x 550 mm hole in the table 200 mm table height over floor 860 mm ram surface 560 x 450 mm oil volume 500 l total power requirement 30,5 kW Gbjdpsvuufljfx Afpsu weight of the machine ca. 6,4 t required space 1,6 x 2,0 x 2,9 m year of manufacture 1979 - overhaul 1993 permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, controllable dependent on pressure/time and way, hydraulic cutting impact cushioning, mechanical depth stop, two-hand operation press can be inspected in running condition in our warehouse - can also be offered with new control on request

Condition: used, Year of construction: 1985, pressure 100 t stroke 650 mm throat 380 mm dayligth 950 mm table surface area 800 x 700 mm table height over floor 920 mm ram surface 630 x 600 mm Gbsdsvuk Ezepfx Afpsu feed down 16 - 65 mm/s feed up 375 mm/s working feed 0 - 16 mm/s oil volume 350 l power requirement 18,5 kW Weight 9,0 t dimensions of the machine ca. 1,5 x 2,5 x 4,0 mxmxm permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, controllable dependent on pressure/time and way, speed adjustable, two-hand operation can be offered with putting into operation in given condition or alternatively with new control Siemens S 7-1500 F

Condition: excellent (used), Year of construction: 1979, functionality: fully functional, Description 100 TON C FRAME PRESS WITH BOTTOM FORCE BACK UP 40 TON Machine is great working condition, was overhauled cilinder, sealings. AWAILIBLE 3 MACHINES Godpfsvldxisx Afpsbu BOTTOM FORCE 40 TON Specifications Manufacturer MULLER 100T Model CEZ 100 Year 1979 Condition Used Press force 100 TON Travel up doen 0-560mm Travel bottom up 0-200mm Power 15Kw

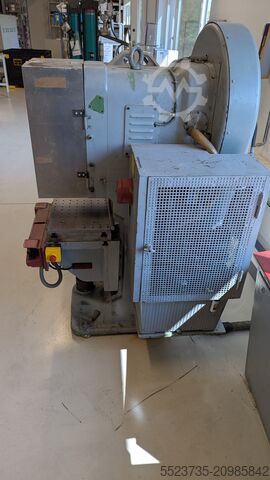

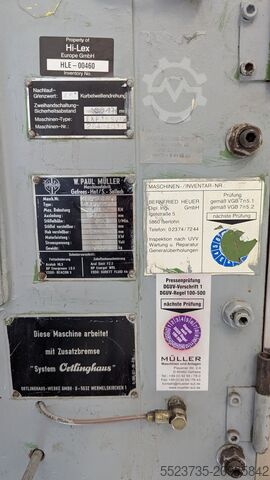

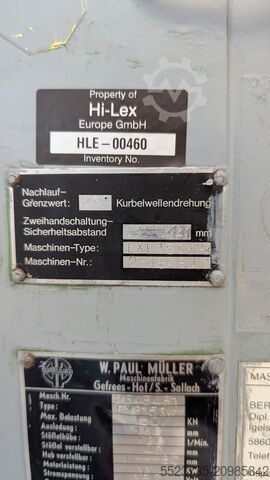

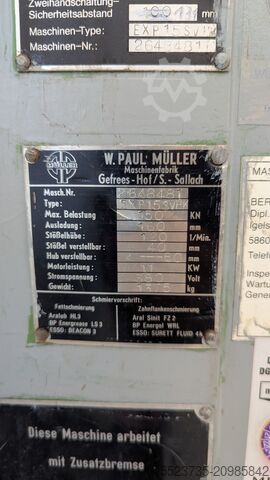

Condition: used, Year of construction: 1983, resistance 15 tons Gjdpfx Ajupkkcjfpsbu State: Good conditions Strength: 15 tons

Condition: ready for operation (used), Press Machine, Traveling Head Cutting Machine, Punching Machine, Stamping Press, Hydraulic Gantry Press,Sanson Chiesa Turbo, Used Machine Manufacturer: Sanson Model: Chiesa Turbo Overall Dimensions: 3480 x 1040 x 2420 mm Weight: 5500 kg Electrical Data: 380V, 50 Hz Working Cylinder Diameter: 250 mm Operating Pressure: 200 bar Stroke Length: 120 mm Pressing Surface: 900 x 1000 mm Cutting Table: 1040 x 2500 mm Gbjdpfx Asukpcysfpsu

Condition: new, pressure: 100motor: 15daylight: 500stroke lenght (max.): 400table diamension: 800 x 600tappet area: 800 x 600table height: 850messurements (LxWxH): 1.300 x 2.000 x 2.750weight approx.: 5.500oil filling: 200 Control / Key switch:         1. setup mode Manual without light sensor(max. 10mm. /sec. speed). 2. automatic (full speed) with light sensor Main cylinder: Ø 230mm. Auxiliary cylinder: 2 pcs. Ø 50 x 30mm. Auxiliary guide: 2 pcs. Ø 50mm. Motor: 11kw. - 15hp. ( IE-3 ) Pump: 23Liter / ASC. Speed : flow 110mm./sec. - return 200mm./sec. - Pressure : 9 mm/sec. Installation height: 500mm. Stroke length: 400mm. Table top: 800 x 600 - (with T - grooves) Gbjdpfx Afem Nntyopeu Plunger plate: 800 x 600 - (with T - grooves) Table height: 850mm. (Floor to table top upper edge) ----- Accessories Hydraulics:           Hydraulic control block & accessories: REXROTH Pressure adjustment via PLC.  (10 - 60 tons) Speed adjustable via PLC. Air cooler Pre-fill valve Accessories control: Siemens S7-1200 Main control box   Swivel control panel Safety PLC. - SICK Light sensors SICK 700 + 150mm. Linear scale for adjusting the stroke length 9 PLC screen - Siemens (German & English) Movable two-hand control Ethernet connection for remote maintenance Alarm annunciator for malfunctions (candlestick & sound) 2-fold workspace lighting 8 free ON & OFF buttons on the PLC. for external connections The press complies with the machine directives Hydraulic proportional valves Dual channel cable protection Instruction manual & parts list (German + English) With side safety door (doors can be moved backwards)

Year of construction: 1990, condition: used, pressure 100 t Gbodpfx Afolp U Tuopsu throat 275 mm stroke 150 mm table surface area 860x550 mm ram surface 600x400 mm table height 810 mm tool hole in ram Ø 50 mm dayligth max. 475 mm weight of the machine ca. 7 t dimensions of the machine ca. BxTxH 2000x2500x3300 mm

Year of construction: 1978, condition: used, pressure 100 t throat 380 mm Gbodslp U Dpjpfx Afpeu stroke 400 mm power capacity 22 kW dayligth 600 mm ram surface 600x500 mm table surface area 720x600 mm weight of the machine ca. 9 t

Year of construction: 1990, condition: good (used), Used Bemco 300ton C frame hydraulic press for sale Gedpfx Afog S Uc Djpsbu Bed size 1200 x 900 Daylight 1150 Stroke 700 Cylinder dia 300 New c frame presses available for sale 30ton 60ton 100ton 150ton 200ton 250ton and 300ton

Condition: new, Year of construction: 2019, pressure:110 t stroke:400 mm weight of the machine ca.:4,5 t dimensions:ca. 1650 x 1150 x 2800 mm return capacity:11 t total power requirement:11 kW Max Working height:500 mm :10 mm :10 mm/sec. speed rapid traverse:10 mm/sec :400 mm pestle plate:600 x 500 mm table plate:800 x 700 mm Table cut-out:150 x 150 mm table height over floor:900 mm :250 l Monitor SIEMENS:7 Zoll Side trim:2.800,- ? :4.800,- ? Gjdpfx Afofxygtepebu Light barriers front and back:2.400,- ?

Condition: new, pressure: 100stroke: 300total power requirements: 7,5weight approx.: 5400messurements (LxWxH): 1900 x 1300 x 2750table diamension: 1100 x 600tappet area: 680 x 420drilling on table: 120daylight: 500working speed: 5,5retracting speed: 37rapid traverse: 17,5 Gbodsd Ab Iyopfx Afpeu

Condition: new, drilling on table: 120die cushion returning speed: 52die cushion stroke: 200die cushion press capacity: 30motor power: 11retracting speed: 165working speed: 8,5rapid traverse: 100daylight: 750pressure: 100tappet measurements: 900 x 600table diamension: 1100 x 700messurements (LxWxH): 2.180 x 1.600 x 3.350weight approx.: 9300total power requirements: 11stroke: 500 Gbjdpfxsd Ab Ims Afpou

Condition: new, pressure: 100stroke: 300tappet area: 600 x 900table area: 700 x 1100daylight: 550rapid traverse: 100working speed: 8Return speed: 165motor: 11 - ight curtain Gbsdpfxsd Ab Ihs Afpju - manual and automatic working - manual stroke adjustment by camshaft switch - maintenance free self lubricating 4-fold ram guiding - polster plate with T-slots - according to CE rules press force:100 tohydraulic pressure:240 bartable:1100 x 700 mmram dimension:900 x 600 mmhole in table:120 mmstroke:300 mmdistance ram-table:550 mmrapid speed:100 mm/sworking speed:8,5 mm/sreturn speed:165 mmmotor:11 kWlength:2.180 mmwidth:1.600 mmheigth:3.150 mmweight:6.500 kg
