Pinter Möbel+Objektbau GmbH & Co. KG

Condition: excellent (used), functionality: fully functional, Year of construction: 2006, operating hours: 5,475 h, BMD RA 700/6 / Jaw Crusher / Magnet / Vibrating Feeder Fgjdewzlyrspfx Afpsh • Manufacturer: BMD Baumaschinendienst Heidelberg • Model: RA 700/6 • Year of manufacture: 2006 • Operating hours: 5,475 hrs • Single-toggle jaw crusher 700 x 500 mm • Hydraulic gap adjustment: 30 - 80 mm • Maximum feed size: 600 mm • Straight bunker length: 3.40 m • Extendable magnetic belt • Additional vibrating chute • Telescopic conveyor belt, hydraulically extendable to a height of 2.20 m • Smallest gap: mixed grain 0 to 45 mm approx. 30 - 40 t/h • Largest gap: mixed grain 0 to 80 mm approx. 50 - 70 t/h • Ultrasonic sensor monitors crusher fill level • John Deere engine • Total weight: 14,300 kg • Documentation included • German machine • Immediately available for use • This offer is subject to change and non-binding. - Subject to prior sale - Errors and/or typographical mistakes excepted - Sale according to our terms and conditions.

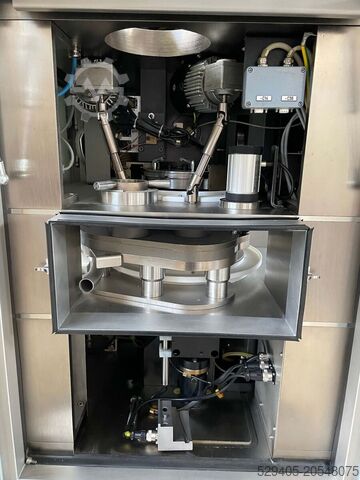

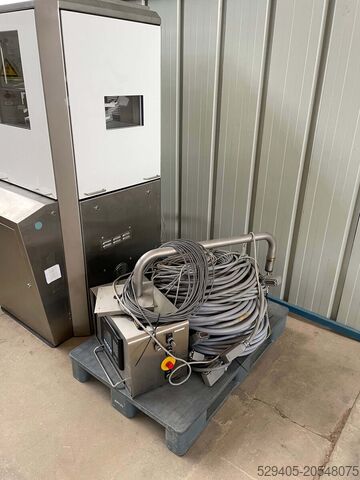

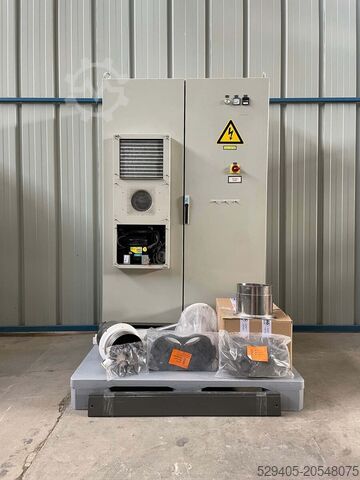

Condition: used, GEA Courtoy R 090/18 rotary tablet press with electrical cabinet R090XT13 Number of positions / stations: 18 Punch type: EU D Max. compression force: 100 kN Max. precompression force: 10 kN Fgodpfx Asvlzydjfpoh Production speed: 15,900 – 79,200 tablets / hour. Ø Max. tablet diameter: 25 mm Outer diameter of dies: 56 mm Die height: 23.81 mm Ø Punch body diameter: 25.35 mm Height of the press: 1955 mm Net weight: 1800 Kg Full technical file. Feeding device / Loading hopper / Discharge chute / Allen Bradley control system. Small size. Equipment in excellent condition and low operating hours.

Condition: used, Year of construction: 1985, Perfecta 1000 rotary tablet press with electrical cabinet   Manufacturer: Fette Model: Perfecta 1000 / P1000 Year : 1985 Fodpjvly Dbjfx Afpsgh Number of pressing stations: 22 Maximum compression force: 80 kN Maximum pre-compression force: 20 kN Maximum tablet diameter: 25 mm Maximum tablet thickness: 10.5 mm Maximum hourly throughput: 72,600 tablets Maximum filling height: 22 mm Pitch diameter: 315 mm Die plate speed: 15-55 rpm Punch shape: EU 1 Die diameter: 38.1 mm Die height: 23.8 mm Punch body diameter: 25.4 mm Upper punch length: 133.6 mm Length of lower punches: 133.6 mm Depth of punch insertion into die: 2 – 6 mm Machine footprint: 1030 x 1090 mm Net weight: 1800 kg Documentation available

Condition: as good as new (ex-display), Year of construction: 2021, Hydraulic 20 T single-column production press for the manufacture of lightweight concrete parts. Here are the technical data of the offered machine: If the press does not exactly meet your requirements, please click here to request an individual offer exactly according to your wishes: Contact us for an individual offer HIDROBRASIL manufactures presses exactly according to your wishes at surprisingly favourable prices! Technical data + information: a) Closing speed up to 10 mm/sec b) Opening speed up to 20 mm/sec c) Maximum open height 300 mm d) Pressing speed 4 - 10 mm/sec. ( adjustable via rotary control ) e) Die size 600x800 mm f) Ram size 950x600 mm g) Manual lubrication (via grease nipple) h) Pressure setting from 5 T to 20 ( adjustable via rotary control ) i) Travel 300 mm j) Installation, commissioning, instruction at extra charge Technical Data Press type C Press, hydraulic Thermal neutral 80 - 120 °C Number of operating sides 1 side Forces Pressing force max. 200 kN Free ripping force max. 10 kN Pressure build-up time Closed die Steel on steel Max. 3 sec. Dimensions Max. Opening width 350/50 mm Stroke 300 mm Table height above floor, approx. 900 mm Height above floor (headroom) approx. 1900 mm Hall height min. 2,500 mm Parallel deviation at 20°C +/- 0.4 mm Deflection Determined at max. clamping force with 2/3 occupancy < = 0.6 mm/m Weight Total weight of the press without operating materials approx. 2.2 to Speeds Fast closing with 10 mm sec. Press speed 10-5 mm sec. Sound pressure Sound pressure level, measured at 1.5m height at the control panel according to max. 78 db(A) DIN 45635-T16-KL3 Hydraulics Number of press cylinders 1 pc. Plus 1 ejector, 110 mm stroke, max. operating pressure 255 bar Pressing pressure build-up time 03. apr sec. Pressure accuracy during pressing stroke +/- 5 bar Main pump BOSCHREXROTH/ASC approx. 6 L/min Oil volume approx. HLP 46 D 100 litres Ambient temperature max. 40 °C Oil temperature max. 55 °C Flow temperature °C Electrical system Main supply 400 V AC Control voltage 24 V Fsdjia Nc Tjpfx Afpegh Frequency 50 Hz Hydraulic connection Main motor 3 kW Total connection Approx. 4 kW (C-press, hydraulic press, hydraulic press, concrete press) Are you looking for a customised machine? Contact us for an individual offer. Our hydraulic presses are manufactured in accordance with German machinery directives, as well as European machinery directives (Directive 2006/42/EC), the EC standards and EU safety regulations. Furthermore, our presses exceed the Canadian and European safety requirements, as they comply in all points with the national Brazilian safety directive NR 12, which is based on these. Our great strength is the construction of special machines and press automation. We sell customised hydraulic presses, press brakes and impact shears at surprisingly favourable prices. For the hydraulics of the presses, we mainly use components from leading European manufacturers.

Condition: new, Year of construction: 2017, machine/vehicle number: DF0149, pressure:2x 75 / 150 t passage width:2050 x 965 mm stroke:800 mm total power requirement:Hauptmotor 22 kW Fjdpfed Aftpjx Afpegh weight of the machine ca.:6,5 t dimensions of the machine ca.:1500 x 1025 m :150 mm :150 mm :72 mm :2 kW :870 x 350 x 150 mm :1500 x 600 x 150 mm :1500 x 1025 x 75 mm :1500 x 1025 x 150 mm :120 mm :80 mm :350 l demand for oil:320 l :350 mm max. open height:1600 mm :15-0 mm/sec :100 mm/sec :2050 x 965 mm :6 mm :0,5 mm
