Condition: good (used), Year of construction: 1990, Pressure: 1200 t Stroke height: 800 mm Ksdpfxexx Tvts Ag Iodw Table size: 1600 x 4000 mm

Condition: good (used), Year of construction: 1990, total height: 7,200 mm, total width: 4,200 mm, total length: 14,500 mm, throat depth: 700 mm, Bending length: 14,000 mm Column width: 10,500 mm Control: CYBELECCNC 7000 with graphic Table width: 1,000 mm Distance between table and press beam: 1,800 mm Controlled axes: Y1; Y2; X1; X2 Control system was renewed in 2012 Total power requirement: 75 kW Machine weight approx. min.: 465 t Kdodpfxexx Tvaj Ag Iow Space requirement approx.: 14,600 x 4,200 x 7,200 mm Additional information - Distance between table and press beam: 1,800 mm

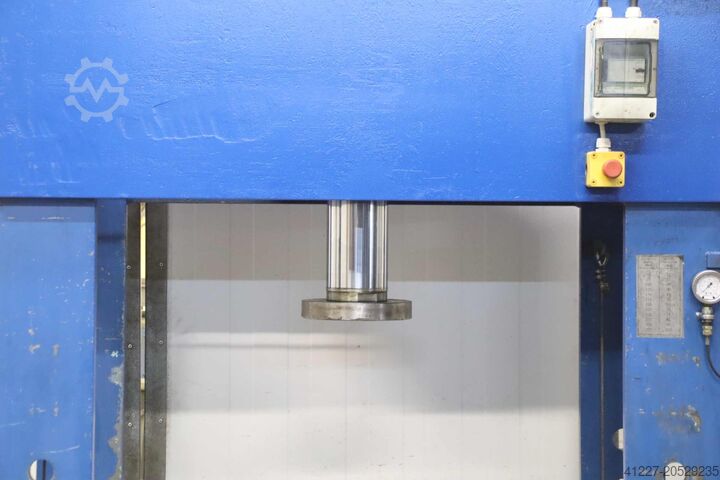

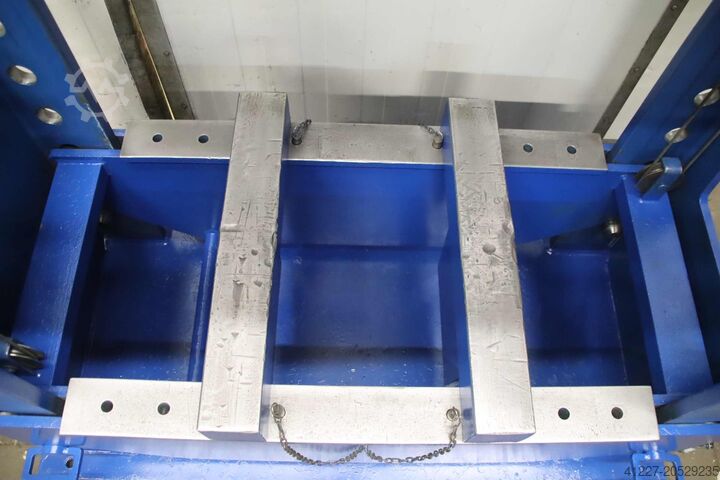

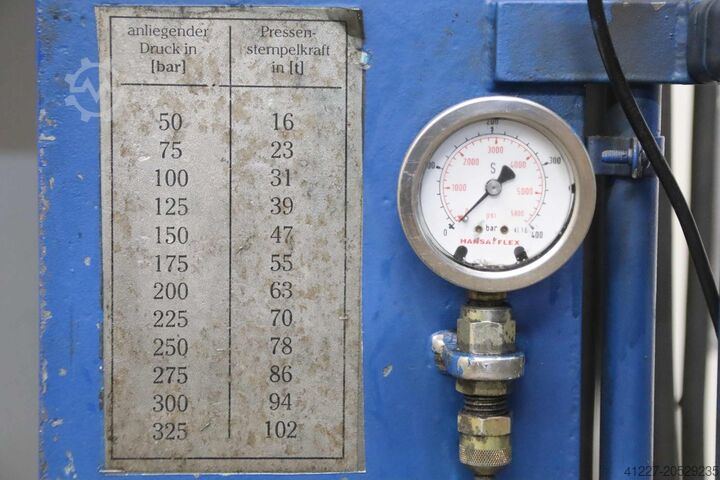

Condition: good (used), Hydraulic press, workshop press, two-column press, oil hydraulic press Kdodpfxoxwucxj Ag Ijw -Hydraulic press: pressing force 102 t -Stroke: 220 mm -Operation: Hand lever -Hydraulic unit: VEM 5.5 kW / 325 bar -Clamping table: 1050 x 670 mm -Insertion height: 295 to 1130 mm, lockable in 8 stages via cable pull -Dimensions: 1820/950/H2580 mm -Weight: 2500 kg

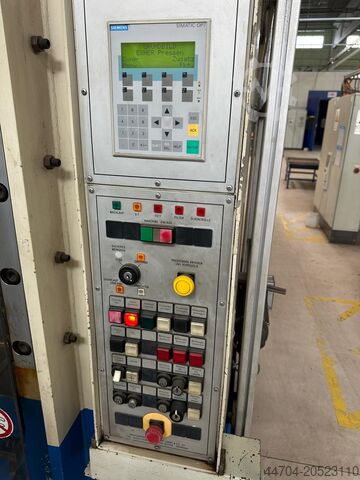

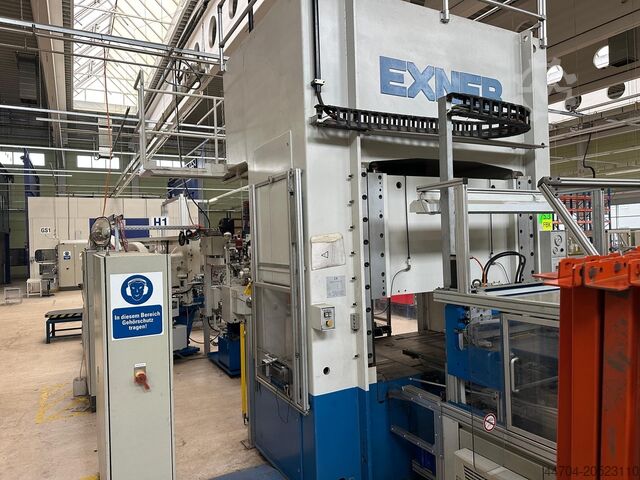

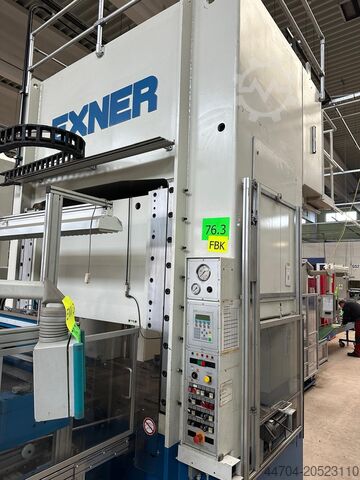

Condition: good (used), Manufacturer: EXNER Type/Model: EXSB 150 Serial No.: 10473 Year of manufacture: 03/2002 Press force: 1,500 kN Power: 41.81 kW Tool dimensions: 1,400x1,200 mm Kjdpfsxwmdhjx Ag Ijdw

Condition: used, Year of construction: 1982, pressure 200 t Kdsdjxwdrvepfx Ag Ijw distance between columns 1650 mm stroke 600 mm distance table/ram, max. stroke up, adjustment up 1200 mm table surface area 1600 x 1250 mm die cushion capacity 80 t die cushion stroke 300 mm die cushion area 1300 x 900 mm table height over floor 800 mm ram surface 1600 x 1250 mm oil volume 2000 l power capacity 43,0 kW weight 25,0 t Dimensions (WxDxH) 2,9 x 2,3 x 5,8 m height beneath floor 0,85 m permitted for manual loading according to the German Safety Regulations (UVV) with oilhydraulic drive, controllable dependent on pressure/time and way, hydraulic drawing cushion in table, ejector in ram, hydraulic cutting impact cushioning with motoric adjustable depth stop, ram interlocking, two-hand operation as is where is, WITHOUT putting into operation in our warehouse

Condition: excellent (used), Pressing force ... 400 T Kdodpfxjxvqbzo Ag Iew Stroke ... 3400 mm Weight ... 32000 kg

Condition: excellent (used), Year of construction: 1983, pressure 630 t Kdjdpfx Aoxvdr Hsg Ijw diameter 320 mm stroke 310 mm weight of the machine ca. 3500 t

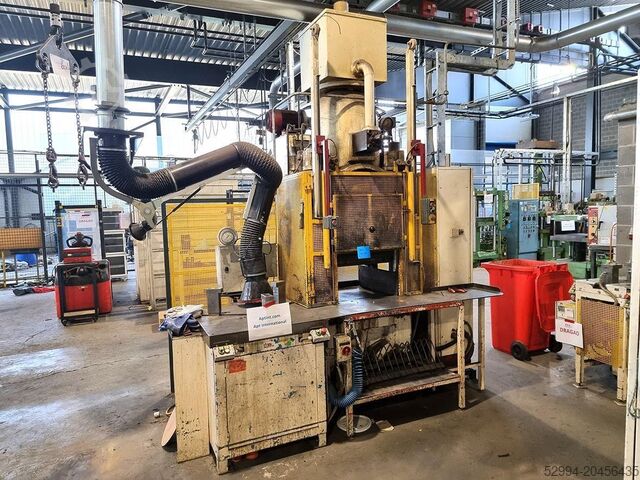

Condition: ready for operation (used), total height: 3,400 mm, operating speed: 1 mm/s, load capacity: 300,000 kg, Hot press for manufacturing grinding wheels max temperature: 500° C Capacity: 300 ton Max stroke: 300 mm Drawning speed: 15 mm/sec Kdodsxuk Uxspfx Ag Ijw Working speed: 1 mm/sec Distance between table -- ram: 300 mm Table area: 550 x 550 mm Height: 3400 mm Max ram adjustment: 300 mm Drawning speed: 15 mm/sec Distance between table -- ram: 300 mm Table area: 550 x 550 mm

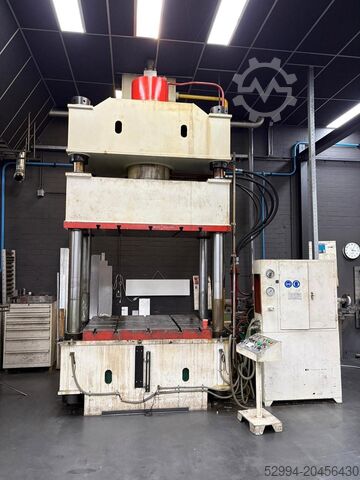

Condition: ready for operation (used), passage width: 1,500 mm, power: 22 kW (29.91 HP), empty load weight: 16,000 kg, load capacity: 320,000 kg, Hydro 320 ton Max ram adjustment: 800 mm Kdodpfx Agexuk Ure Ijw Distance between table -- ram: 1170 mm Table area: 1500 x 1200 mm Max counter-pression in table: 80 ton

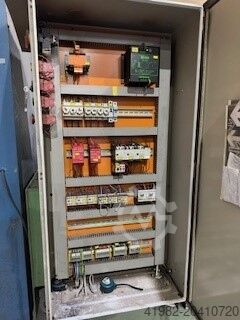

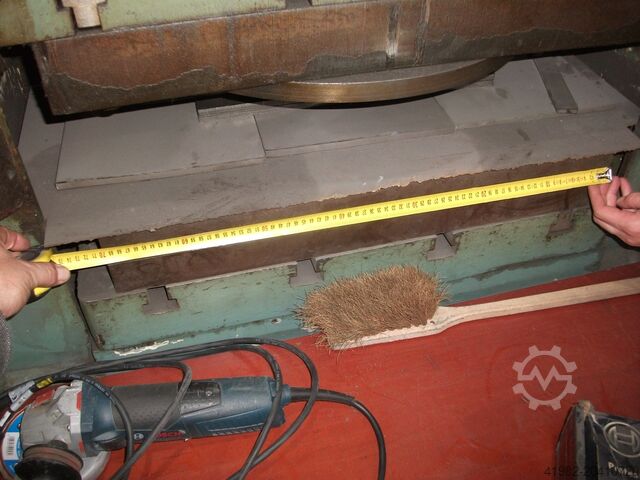

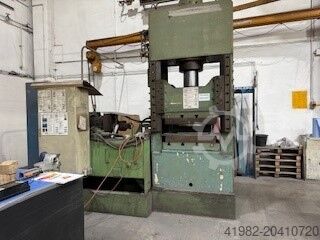

Condition: good (used), Year of construction: 1992, functionality: fully functional, machine/vehicle number: 50 /92-NG 600/15 kW/32Liter, pressing force: 130 t, operating speed: 80 mm/s, overall weight: 3,500 kg, Hydraulic straightening press Manufacturer: G +K Year of manufacture: 1992 Max. pressing force: 130 t Kedpfx Agjxr Rnao Ijdw Lower table size: 800 x 500 mm with T-slots Upper table size: 800 x 500 mm with T-slots Installation dimension: 1000 mm System pressure: 250 bar Electric motor: 15 kW Weight: 3400 kg Operating voltage: 380 V AC, 24 V DC

Condition: good (used), Year of construction: 1982, Press force: max. 200 kN Safety distance: 100mm Post-travel: max. 10 mm Kdsdjxr Ay Uepfx Ag Iew Motor power: 3 kW

Condition: like new (used), Year of construction: 2007, functionality: fully functional, Machine in excellent condition. Pressing force 200 t Table 1350 x 880 mm Stroke 320 mm Passage 1100 mm Kdodpfxoxrfkvs Ag Iow Machine length 2430 mm Machine width 2210 mm Machine height 3800 mm Machine weight 15000 kg

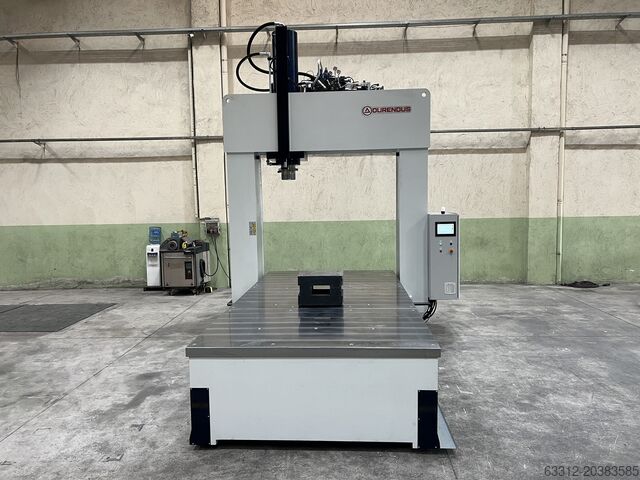

Condition: like new (used), Year of construction: 2024, pressing force: 200 t, Main Cylinder Press Capacity: 200 T - Maximum working pressure: 285 bar - Cylinder stroke: 1500 mm - Clear width / clear height: 1500 mm - Distance between columns: 2050 mm - Maximum lateral cylinder displacement: 1450 mm - Maximum longitudinal frame displacement: 2800 mm - Table plate dimensions: 4000 x 2000 mm - Hydraulic power unit output: 5.5 kW - Approach speed: 20 mm/s - Working speed: 2 mm/s - Hydraulic oil is not included in the delivery scope - Hydraulic power packs are mounted on top of the press - Hydraulic manifold and valves by Rexroth - Air filter brand: FILTREC - Oil filter brand: FILTREC - Hydraulic cooling by air and water cooler - Stroke cylinders integrated into the working table Rod diameter: 25 mm - Stroke: 80 mm - Control via cylinder control system or hydraulic power unit with manual lever control - 10 stroke cylinders installed Kdsdpjxrb Nbofx Ag Isw - Digital control with stroke measurement via encoder and pressure measurement with digital readout - Siemens KTP 900 – 9" touchscreen for programming (up to 99 programs): - Maximum up and down stroke of the cylinder - Pressure holding time at the lower table - Decompression time - Working pressure setting - Piece counter - Pre-stop up/down stroke with accuracy of 0.1 mm - Alarm management - Frame-mounted display for real-time operating parameter monitoring - Wireless remote control with two buttons for simultaneous operation - Control cabinet with Siemens CPU - Hydraulic power pack with solenoid valves (replaces pendant control panel) - Air/oil heat exchanger with decompression valve 5. ELECTRICAL INSTALLATION AND SAFETY - PLC system by SIEMENS (S7-1200 series) - Siemens LCD touchscreen (9") MTP900 fitted in the control cabinet - Electrical components from SIEMENS, ALLEN BRADLEY and PHOENIX - System pressure of the pressure cylinder adjustable via LCD touchscreen - Operating mode (semi-automatic and automatic), power, vertical stroke, and dwell time of the upper cylinder are programmable - 99 recipes storable; all aforementioned values can be programmed per recipe - Activation via wireless remote - Dual button for slow/fast up and down movement, emergency stop, and movement confirmation - Touch-sensitive safety strip mounted at the bottom of portal columns for safety - Control cabinet mounted to bridge sidewall - Anti-rotation device for the cylinder - Oil temperature displayed on LCD touchscreen - Overheat warning for hydraulic oil displayed on LCD touchscreen - Filter contamination status displayed on LCD screen - System faults displayed on LCD touchscreen - Pressing status information displayed on LCD display - Once oil temperature reaches 45°C, the air cooler begins operating to cool the oil. If 65°C is reached, the machine stops operation until it cools back to operating temperature. - Operating manual included - System complies with all essential safety and health requirements according to CE regulations.

Condition: like new (used), Year of construction: 2024, functionality: fully functional, pressing force: 40 t, table width: 1,000 mm, table length: 600 mm, 40T H-Frame Press with Ram Table • Press capacity: 6-40 T (adjustable) • Maximum installation height: 700 mm • Usable area, lower table: 1000 x 600 mm • Usable area, ram: 1000 x 600 mm • Frame type: H-frame • Guide column diameter: Ø 100 mm (4 pcs, at the corners) • Table height from floor: 800 mm • Overall dimensions approx. (W x D x H): 2,100 x 1,600 x 3,500 mm • Total weight approx.: 3,500 kg • T-slots and drill holes made to customer specification. HYDRAULIC CYLINDER: • Piston stroke: 0-500 mm (adjustable) • Cylinder diameter: Ø 140 mm (1 pc) • Piston rod diameter: Ø 80 mm (1 pc) • Max. operating pressure: 260 bar • Return speed: 90 mm/sec • Ram speed: 9 mm/sec • Idle speed: 80 mm/sec HYDRAULIC UNIT: • Hydraulic pump (brand: ASC): 67+8 L/min (1 pc) • Motor power: 4 kW (1 pc) • Pressure accuracy during pressing stroke: +/- 5 bar • Hydraulic unit is mounted at the rear upper section of the press. • Hydraulic manifold and valves by DUPLOMATIC. • Manometer for pressure display. • Air filter and oil filter brand: FILTREC. • Equipped with an electronic oil level switch. • Air cooling (cooler) is used for hydraulic cooling. • Pressure adjustable via pressure switch. • Control via sensor. • Safety cover (door) located at the rear of the press. • Safety light sensors and internal lighting included. ELECTRICAL CONNECTION: • Main supply: 400V AC • Control voltage: 24V DC • Frequency: 50 Hz • Hydraulic unit main motor connection: 4 kW • Total power supply: Approx. 6 kW CONTROL CABINET EQUIPMENT: • Protection class: IP 54 • Reserve space: 30% • Cooling: Yes (air cooling) Kodpfx Agoxrby Hs Iodw • Internal lighting: Yes • Mode selector switch: Yes (lockable) • Electrical equipment brands used: SIEMENS, ALLEN BRADLEY, SICK.

Condition: used, Year of construction: 2011, operating hours: 1,000 h, functionality: fully functional, total height: 4,200 mm, table height: 700 mm, total width: 3,000 mm, total length: 2,000 mm, pressing force: 1,200 t, table width: 3,000 mm, table length: 2,000 mm, overall weight: 60,000 kg, ram plate width: 800 mm, ram plate length: 600 mm, distance table to ram: 700 mm, type of input current: three-phase, distance between stands: 2,200 mm, stroke length: 600 mm, oil tank capacity: 700 l, control cabinet width: 400 mm, input voltage: 380 V, control cabinet height: 2,000 mm, Equipment: safety light barrier, H-frame, 4 columns, daylight 700 mm, stroke 600 mm, distance between columns 2200 mm x 1260 mm, dimensions (LxWxH) 3000x2000x4200 mm, 380V-15kW, weight 60,000 kg Ksdpexn Rvcjfx Ag Iedw

Condition: good (used), functionality: fully functional, machine/vehicle number: 151/6, Hydraulic Straightening Press Manufacturer: WALTER Type: WP Machine No.: 151/6 The press has a table size of Length Width Thickness 1000 390 60 mm Cylinder stroke: 400 mm Kedpfsxl Tmfsx Ag Isdw The current distance between cylinder and table is 450 mm. When the table adjustment is set to the lowest notch, the gap between table and cylinder is 850 mm. (See the attached sketch for details) The machine is also equipped with an appropriate control system. Max. Pressing force: 60 tons 180 bar Table height adjustment approx.: 1000 mm (installation dimension) Motor power: 4 kW Two-hand control Emergency stop Foot pedal Stroke limitation via limit switch

Condition: new, The KNUTH KP 100 A is a robust Hydraulic Press from the H-Frame Hydraulic Presses category, crafted in Europe with high-quality components for superior performance in deep drawing, forming, and notching processes. This powerful machine offers force capabilities ranging from 40 to 400 tons, making it suitable for both test and series production. Designed with a perfectly welded frame for high rigidity, it features a large hydraulic cylinder that moves the solid ram plate with excellent stability, supported by heavy-duty self-lubricating circular guides. The KP 100 A includes user-friendly amenities such as a mobile two-hand control panel, adjustable limit switches, and T-slots on the work table for easy tool clamping. Additionally, it is equipped with a low-maintenance hydraulic system and precision-machined components that ensure minimal wear and long-lasting reliability. You can benefit from custom solutions tailored to your needs while enjoying the flexibility of multi-shift operation and the potential for Industry 4.0 integration. To explore the possibilities of this H-Frame Hydraulic Press or to request a quote, contact us today. Kjdpfexhdzfjx Ag Iedw

Condition: ready for operation (used), total height: 2,110 mm, total width: 2,240 mm, total length: 900 mm, passage width: 1,500 mm, power: 2.2 kW (2.99 HP), empty load weight: 1,250 kg, load capacity: 125,000 kg, width of table: 420 mm movable cylinder electro hydraulic two speed: fast slow Max ram adjustment: 400 mm Drawningspeed: fast 9mm/sec - slow 2,5 mm/sec Returningspeed: 12 mm/sec Kdodpfx Agexgv Nfo Ijw Max distance between table - ram: 925 mm Courant needed: 380/400V

Condition: ready for operation (used), Year of construction: 1991, operating hours: 20,242 h, functionality: fully functional, machine/vehicle number: 6538, pressing force: 163 t, overall weight: 25,000 kg, retraction force: 22 t, stroke length: 500 mm, actuation type: hydraulic, TECHNICAL DETAILS Ram Pressing force: 1,600 kN Return force: 220 kN Stroke: 500 mm Drive power: 37 kW Drawing Device Drawing force: 400 kN Stroke: 100 mm Ejector in Ram Ejector force: 50 kN Stroke: 50 mm MACHINE DETAILS Weight: 25,000 kg Electrical Data Pump Unit Ram + Drawing Cushion Rated power: 37 kW Rated current: 72/66 A Voltage: 660/380 V Frequency: 50 Hz Protection class: IP 54 Pump Unit Control Circuit + Ejector Rated power: 7.5/15.5 kW Rated current: 15.5/26.5 A Voltage: 660/380 V Frequency: 50 Hz Kodpfx Ajxgt Tzeg Iedw Protection class: IP 54 Cooling-Filter Circuit Rated power: 2.2 kW Rated current: 5 A Voltage: 380/220 V Frequency: 50 Hz Protection class: IP 54 Oil Cooler Rated power: 0.37 kW Rated current: 1.2 A Voltage: 380/220 V Frequency: 50 Hz Protection class: IP 54 Tool Clamping Rated power: 0.55 kW Rated current: 2.6 A Voltage: 380/220 V Frequency: 50 Hz Protection class: IP 54 Stop Spindle Rated power: 0.75 kW Rated current: 2.3 A Voltage: 380/220 V Frequency: 50 Hz Protection class: IP 54 Oil Circulation Lubrication Rated power: 0.3 kW Rated current: 1.3 A Voltage: 380/220 V Frequency: 50 Hz Protection class: IP 54 Operating hours: 20,242 h EQUIPMENT Decoiler (Year: 1999) Straightening machine (Year: 1999) Feed unit (Year: 2004) Tool breakage monitoring system Note: The seller strongly recommends a prior inspection of the machine, as the press cannot be removed from the hall in its assembled condition. If required, the seller can possibly arrange a specialized company for relocating the machine.

Condition: used, functionality: unexamined, pressing force: 3,200 t, For sale: Used Dieffenbacher hydraulic press with a pressing force of 3200 tons. Originally designed for heavy-duty forming applications in the metal and automotive industries. Condition: used. Location: Montenegro. Kodpfx Ajxft S Isg Ijdw Contact us for more information.

Condition: excellent (used), Year of construction: 2014, Hydraulic Press Bunorm 4S-500 Kdodpfxexfl Axj Ag Isw Manufacturer: Bunorm AG Model: 4S-500 Year of Manufacture: 2014 Pressing Force: 500 kN Maximum Pressure: 225 bar Weight: 3,200 kg Electrical Connection: 3×400 V + N + PE Frequency: 50 Hz Protection: 20 A Control System: Siemens Simatic HMI Touch Safety System: SICK C4000 Light Curtain SCOPE OF DELIVERY Includes, among others (non-exhaustive list): Hydraulic Press Bunorm 4S-500 Exact scope of delivery as shown in the photo series. The Bunorm 4S-500 hydraulic press impresses with its robust construction and a pressing force of 500 kN at a maximum pressure of 225 bar. With its solid build and a weight of 3,200 kg, the press is suitable for demanding production applications. The integrated Siemens Simatic HMI Touch control system enables precise and user-friendly operation. Thanks to the modern SICK C4000 light curtain safety system, a high level of operator protection is ensured. This machine is the ideal solution for companies that value reliability, precision, and safety. No guarantee is given for the correctness, completeness, or currentness of the information provided.

Condition: ready for operation (used), total height: 2,140 mm, total width: 865 mm, total length: 1,665 mm, passage width: 1,100 mm, power: 2.2 kW (2.99 HP), empty load weight: 970 kg, load capacity: 100,000 kg, Arlo 100 T / 1000 Vario Kdsdpfxexc Rbbs Ag Ijw Max ram adjustment: 380 mm Drawningspeed: 7,54 mm/sec Workingspeed: 2,47 mm/sec Returningspeed: 9,06 mm/sec

Condition: used, functionality: fully functional, pressing force: 150 t, pressure: 250 bar, Double-column hydraulic press equipped with two side cylinders connected by a platen for the pre-pressing and pressing of rotors and stators, and a central cylinder for the extraction of the mandrel and fitting of the rotor shaft, as well as shaft removal during repair operations. Features a retractable table for stacking and handling rotors and stators. MAIN CYLINDERS 150 t - 2 hydraulic cylinders of 75 t each, with a stroke of 750 mm, joined by a slotted platen with a central bore of 250 mm diameter. - Maximum usable height between cylinder platens: 1,300 mm. - Minimum usable height between cylinder platens: 550 mm. EXTRACTION CYLINDER - 1 central cylinder of 80 t, with a 1,200 mm stroke. - Prepared to fit an extraction clamp; rod end threaded M 35 x 1.50 pitch, 40 mm length. - Maximum usable height of extraction cylinder: 1,300 mm to the root of the rod thread. - Minimum usable height of extraction cylinder: 100 mm to the root of the rod thread. TABLE AND STRUCTURE - Mechanically movable slotted table, 1,200 x 800 mm, with a 600 mm stroke, fitted with a worm gear reducer and 0.5 HP electric motor with brake. - Central bore on the table: 250 mm diameter; max. depth 550 mm. - Effective lifting capacity of the table for movement: 4 t. - Table traverse speed: 2,600 mm/min. - Internal front width: 1,250 mm. - Working height: 600 mm. HYDRAULIC POWER UNIT Kdedpexc Ekdefx Ag Iew - Two-speed hydraulic unit, 5.5 HP, with automatic disengagement of rapid speed and independent speeds. Maximum pressure: 250 bar. - Digital control for maximum force during pre-pressing, pressing, and fitting; digital tonnage display. Pressure adjustment system via proportional valves. - Selector for approach and measuring speeds.

Condition: ready for operation (used), total height: 4,900 mm, total width: 5,900 mm, total length: 8,500 mm, passage width: 3,900 mm, power: 11 kW (14.96 HP), empty load weight: 85,000 kg, load capacity: 400,000 kg, Portaalrichtpers 400 ton Voor het gericht van assen, gietstalen producten, gewalste producten, smeedstukken met vrije matrijs, vlak staal maar ook voor het in- en uitpersen van lagers, bussen, krimpringen,... 14 individuele tegendrukcilinders in de tabel - 3 ton dop per cilinder - 100 mm slak per cilinder - Druk 300 kg/cm² - Doorgang tussen de staanders: 3990 mm Werksnelheid – bij max. druk: 2 mm/sec Terugloopsnelheid: 50 mm/sec Sluitsnelheid: 30 mm/sec Max ram adjustment: 1550 mm Kodsxcqkpjpfx Ag Isdw Drawningspeed: 30 mm/sec Workingspeed: 2 mm/sec Returningspeed: 50 mm/sec Max distance between table - ram: 1550 mm Dimensions of the table: 7000 x 3200 mm

Condition: good (used), pressure 250 t passage width 700 mm stroke 850 mm table surface area 2000 x 1000 mm mould height - Max./min. 355 / 1200 mm Kdsdpfjxcblwjx Ag Ijw total power requirement 30 kW weight of the machine ca. 25 t dimensions of the machine ca. 4,2 x 2,1 x 5,5 m
