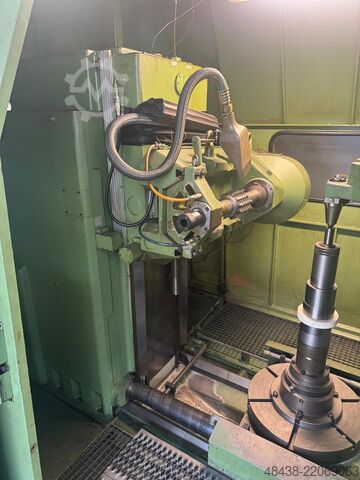

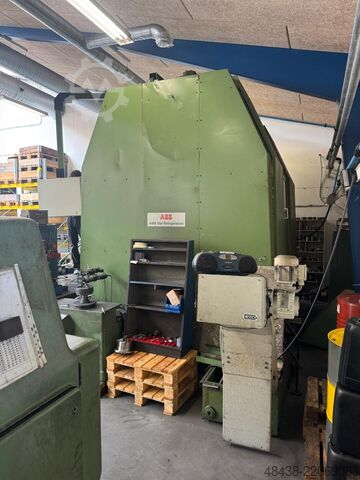

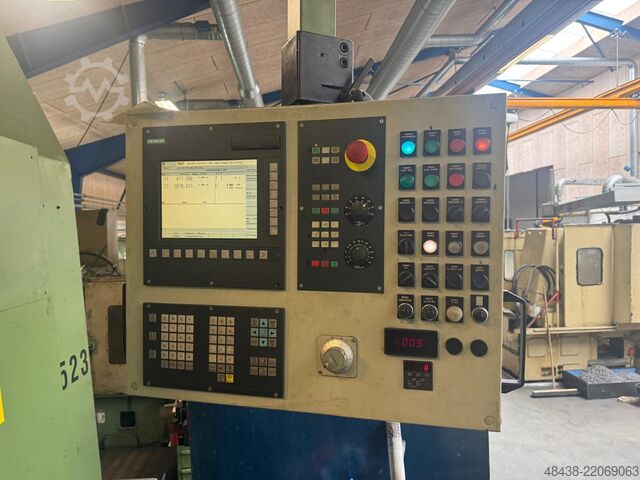

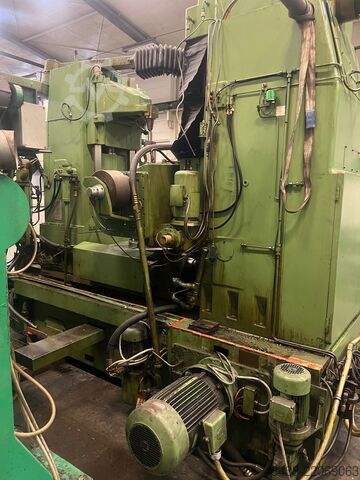

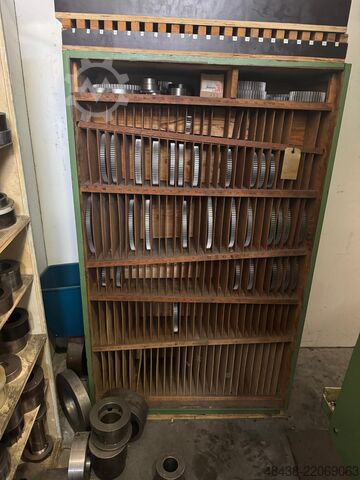

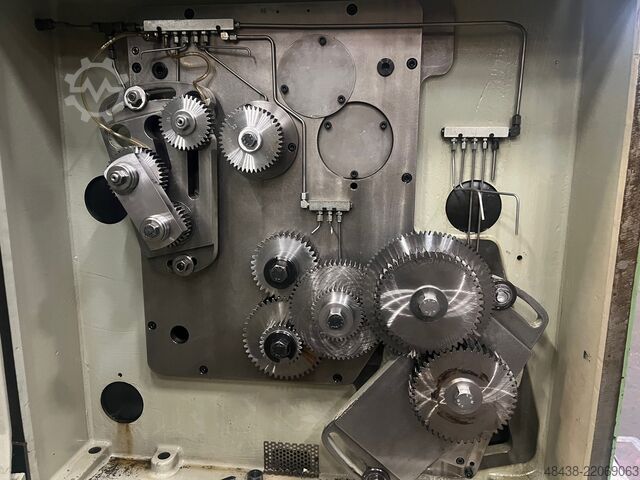

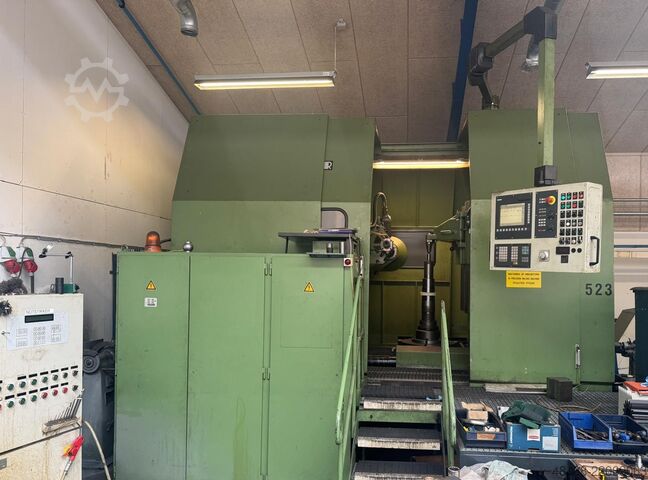

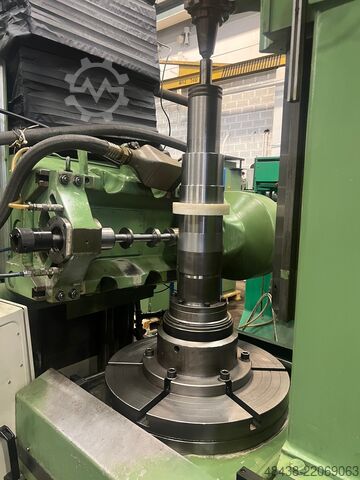

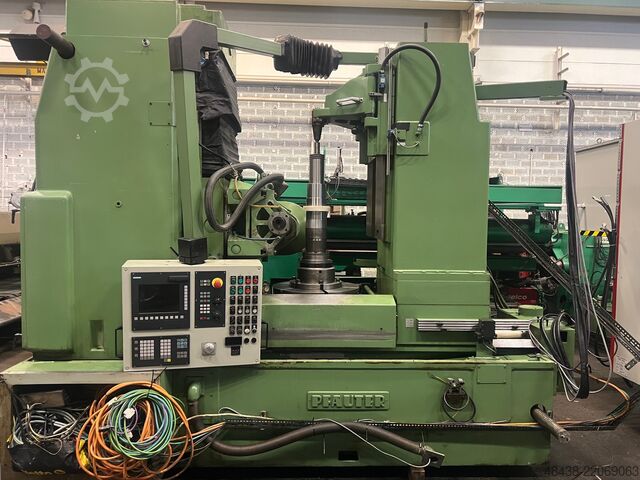

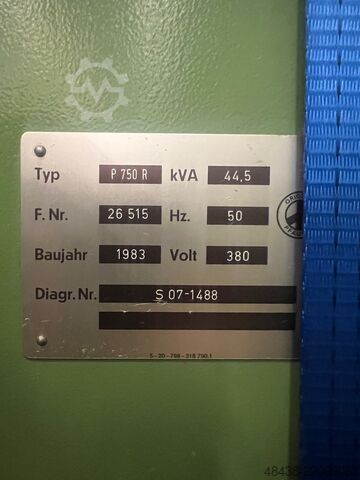

Condition: excellent (used), Year of construction: 1983, functionality: fully functional, Gear and Rotor Hobbing Machine Cgsdszbt Iispfx Af Hou

Condition: excellent (used), max. wheel diameter 130 mm Cgedpfoy Umizsx Af Heu gear width 180 mm max. module 2,5 min. module 0,3 turning speeds 140 - 900 U/min min. number of teeth 4 clamping length max. 200 mm Control Siemens max. workpiece diameter 80 mm total power requirement 3,5 kW weight of the machine ca. 2,9 t dimensions of the machine ca. 1,8 x 1,6 x 1,9 m

Condition: ready for operation (used), Horizontal gear hobbing machine with master hob, Precimo model HR 3-ND-15. Maximum workpiece diameter: 250 mm. Maximum module: 7. Maximum diameter for module 7: 135 mm. Maximum diameter 250 mm for module 5. Maximum hobbing length: 335 mm. Minimum number of teeth to cut: z6. Maximum distance between centers: 735 mm. Maximum hob speed: 435 rpm. Estimated weight: 3500 kg. Cjdpfoy Swl Uex Af Hjgu

Condition: new, Maximum processing diameter: 200 mm Maximum processing length: 2300 mm Distance between centers: 2500 mm Number of machinable keyways: 4–50 Number of milling cutter speeds: 6 Milling cutter speed range: 50–160 rpm Number of feed rates: 12 Feed range: 0.41–2.97 mm/rev (workpiece) Distance between the workpiece centerline and milling cutter centerline: 50–165 mm Maximum installed milling cutter diameter: 130 mm Maximum installed milling cutter length: 110 mm Milling cutter shank diameter: 22, 27, 32 mm Milling cutter spindle hole taper: Morse 4 Axial travel of milling cutter spindle: 40 mm Headstock bushing bore taper: Morse 5 Tailstock bushing bore taper: Morse 5 Maximum tailstock sleeve travel: 60 mm Handwheel increment for moving milling head (per revolution): 0.02 mm Handwheel increment for moving milling head (per turn): 2.5 mm Rapid traverse of table: 2.24 m/min Main motor power: 4.0 kW Main spindle speed: 950 rpm Rapid traverse motor power: 1.1 kW Cgodpfx Afey N Rbdo Hsu Rapid traverse motor speed: 940 rpm Coolant pump motor power: 0.15 kW Coolant pump speed: 2700 rpm Lubrication pump motor power: 0.15 kW Lubrication pump speed: 2700 rpm Machine dimensions (L×W×H): 4225 × 1607 × 1640 mm Total machine weight: 6800 kg

Condition: good (used), max. wheel diameter 145 mm gear width 110 mm max. module 2 min. module 0,3 turning speeds 112 - 1000 U/min min. number of teeth 6 Codpfxoy Ivdhe Af Hegu clamping length max. 150 mm total power requirement 3,5 kW weight of the machine ca. 1,3 t dimensions of the machine ca. 1,3 x 0,8 x 1,4 m

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 090200220, Equipment: documentation/manual, For sale due to business closure - URGENT Very fine, rare, high-quality machine in working condition. Gear cutting machine for high-precision machining, providing great accuracy and reliability. It allows for the cutting of straight and helical gears. Straight-toothed gears with a diameter of 0 to 120 mm Straight-toothed gears with a diameter of 120 to 200 mm See the technical sheet photo. Documentation accompanying the machine: Original operating manual: 150 pages Mikron representative training course (February 25 - March 1, 1963) Technical data sheet available upon request, as well as a list of available cutters: Mikron (12), L. Carpano (23), K. Schnyder-ks (27), Piltz (4) (PDF). H: 1.515 m L: 0.97 m W: 0.526 m Three-phase Cjdpfx Afoy Iqkpj Hjgu Machine weight: 680 kg To be picked up; removal is the responsibility of the buyer.

Condition: good (used), Year of construction: 1995, functionality: fully functional, The perfect retrofit machine! Mechanically in phenomenal condition! This machine can be inspected under power until 12.05.2026 and will then be dismantled due to space constraints. Please refer to the attached KLINGELNBERG inspection reports available for download. Gleason P 800 Year of manufacture: 1995 Control: SIEMENS 840 C (discontinued) Condition: Mechanically in excellent condition Functionality: Fully operational Inspection: Available under power Technical Data: Nominal workpiece diameter: 800 mm Max. workpiece diameter: 800 mm Max. workpiece diameter, special version: 1,200 mm Nominal module: 20 / 30 mm Nominal module, special version: 25 / 35 mm Drive power: 35 kW Drive power, special version: 52 kW Cutter head speed range: 20 - 200 rpm Cutter head speed range, special version: 26 - 265 rpm Additional cutter head speed range, special version: 36 - 360 rpm Cutter head swivel range: +30 / -45 degrees Cutter head dimensions (standard cutter head), diameter/length: 350 / 375 mm Min./max. center distance workpiece/tool: 50 / 600 mm Center distance workpiece/tool, special version: 50 / 800 mm Max. axial slide travel: 700 mm Max. axial slide travel, special version: 1,000 mm Max. axial slide travel, special version: 1,300 mm Lowest cutter head position above table: 450 mm Table diameter: 800 mm Table bore diameter: 245 mm Table bore depth: 875 mm Max. table speed: 15 rpm Max. table load: 10,000 kg Machine dimensions: Width A: 5,800 mm Length B: 6,900 mm Height C: 4,700 mm Machine weight: 22,000 kg Regarding the current KLINGELNBERG gear inspection data BEFORE grinding: Cedpfx Asy Hfm Nef Hjgu "Pitch and lead are inconspicuous. One measurement shows a borderline or slightly out-of-tolerance fHα deviation in the profile. Please check whether this value is permissible according to the drawing/customer approval or if correction/rework is required. The gears were always forwarded for grinding to the RZ 1000 REISHAUER and processed accordingly. Nevertheless, overhaul of the C-axis is recommended. A cost estimate from GLEASON PFAUTER LUDWIGSBURG is available. Estimated cost: 10,000 EUR."

Condition: good (used), Description: The machine is in good technical condition; testing is possible by prior agreement. Application: production of gears (spur gears, helical gears, shafts) CAPACITY Max. gear diameter: approx. 400 mm Max. module: typically 6–8 (sometimes up to 10 for newer versions) Max. gear width: approx. 275–400 mm SPINDLE AND TOOL Cutter speed: up to approx. 500 rpm Tool diameter: approx. 160–240 mm Motor power: approx. 15–17 kW TABLE Table diameter: approx. 380–400 mm Table bore: approx. 80 mm Load capacity: up to approx. 1000 kg DIMENSIONS AND WEIGHT Length: approx. 4680 mm Codpey Amiqjfx Af Hjgu Width: approx. 2395 mm Height: approx. 2515 mm Weight: approx. 5–6.5 t (standard version)

Condition: good (used), Year of construction: 1974, total length: 2,000 mm, total height: 1,430 mm, total width: 1,600 mm, milling length: 135 mm, spindle speed (max.): 1,120 rpm, spindle speed (min.): 140 rpm, overall weight: 1,420 kg, tool diameter: 150 mm, Gear hobbing machine, maximum tool diameter 150 mm, maximum hobbing length 135 mm, maximum module 2, motor 2.2 kW, with hydraulic unit, change gears, various milling tools, operating manual. Csdpeyzqryefx Af Hjgu

Condition: used, TECHNICAL DETAILS - Maximum workpiece diameter : 80 [mm] - Z-axis travel : 220 [mm] - Max module : 2.5 - Max workpiece-holding spindle speed : 3000 [rpm] - Max dimensions of the hob (diameter x length) : 118 X 120 [mm] - Speed of the hob-holding spindle : 200-5000 [rpm] - Shifting travel : 140 [mm] Cgjdpfxoyuzggj Af Heu - Angular travel of hob-holding headstock : -45/+115 [°] - Machine floor space : 2700/2180 [mm] - Machine height : 2310 [mm] - Machine weight : 4800 [kg] EQUIPMENT - CNC : Siemens 840D PowerLine - Loading manipulator

Condition: used, TECHNICAL DETAILS - Maximum workpiece diameter : 80 [mm] - Z-axis travel : 220 [mm] - Max module : 2.5 - Max workpiece-holding spindle speed : 3000 [rpm] - Max dimensions of the hob (diameter x length) : 118 X 120 [mm] - Speed of the hob-holding spindle : 200-5000 [rpm] - Shifting travel : 140 [mm] - Angular travel of hob-holding headstock : -45/+115 [°] - Machine floor space : 2700/2180 [mm] - Machine height : 2310 [mm] - Machine weight : 4800 [kg] Cgsdjyuzgaopfx Af Hju EQUIPMENT - CNC : Siemens 840D PowerLine - Loading manipulator

Condition: used, KAPP Model AS 203, Serial No 263.18.11, Year 1972 Wet Hob Sharpener for Hobs up to 200mm OD x 440mm. Fully Automatic and Programmable. Straight and Helical Gash Cgjdpfx Afoyrrqko Heu

Condition: used, functionality: fully functional, Maximum working diameter: 2100 mm Table size: 1800 mm Minimum diameter: 200 mm Cgodpfx Afsylprfs Hou Maximum number of teeth: 45 Max. module: 20 Weight: 40 tons

Condition: used, Year of construction: 2000, Technical details: max. wheel diameter: 180 mm gear width: * mm max. module: 4 total power requirement: 14 kW weight of the machine ca.: 8 t slide travel axial ( Z-axis ): 300 mm Codpfx Afeyk Ur Uo Hegu work piece - max.: 490-640 mm

Condition: excellent (used), Year of construction: 1992, max. wheel diameter 130 mm gear width 400 mm max. module 3 min. module 0,5 Control Bosch CC 220 milling spindle speeds (infinitely variable) 300 - 1200 U/min clamping length max. 1160 mm swivel angle for work spindle +/- 45 ° x-travel 230 mm y-travel 170 mm z-travel 400 mm spindle speeds 1 - 125 mm total power requirement 52 kW Cjdpjyb S R Asfx Af Hegu weight of the machine ca. 7,5 t dimensions of the machine ca. 4,8 x 3,8 x 2,5 m Machine in very nice condition!

Condition: used, TECHNICAL DETAILS - Part diameter : 100 [mm] - Nominal module * gear hobbing : approx. 3.0 [mm] * endless screw milling : approx. 5.0 [mm] - Max. axial movement : 320 [mm] - Cutting head orientation : -45 / + 115 [°] - Main mill max. diameter : 118 [mm] - Max. cut out length of the mail mill : 180 [mm] - Max. mill movement (Shifting) : 160 [mm] - Max. part-holder spindle speed : 3000 [t/mm] - Min./max. distance between axes : 10/100 [mm] Cedpfx Aex Ed A Rof Hjgu - Cutting head motor power : 14 [kW] - Main mill speed : 50-12000 [t/mm] - Weight : 5000 [kg] EQUIPMENT - CNC Siemens 840D - Cooling tank - Chip conveyor

Condition: like new (used), functionality: fully functional, workpiece weight (max.): 3 kg, feed length X-axis: 100 mm, feed length Y-axis: 100 mm, feed length Z-axis: 200 mm, workpiece diameter (max.): 180 mm, milling length: 200 mm, overall weight: 5,000 kg, rotational speed (max.): 3,000 rpm, rotational speed (min.): 400 rpm, tool diameter: 80 mm, Equipment: documentation/manual, rotational speed infinitely variable, This machine is completely dismantled and rebuilt from the ground up. During the overhaul, it undergoes comprehensive modernization with state-of-the-art technology and the latest premium-quality components. Following refurbishment, the machine is presented in a technical and visual condition equivalent to new – reliable, high-performance, and future-proof. Cedpfxjx Af A Ho Af Hogu The equipment and configuration can be tailored individually to your requirements, ensuring maximum productivity in your production environment.

Condition: excellent (used), Year of construction: 1972, functionality: fully functional, For sale: this gear hobbing machine. Wired and ready for testing. Comes with extensive accessories. Technical specifications: Maximum gear diameter: 7,100 mm Gear width: 1,500 mm Maximum module: 45 Table diameter: 4,000 mm Hob diameter x width: 400 x 500 mm Cjdpfsxwlthjx Af Hegu Maximum helix angle: 45 degrees Planing cutter diameter: 500 mm Planing cutter speed: 9–63 rpm Total power consumption: 47 kW Machine weight: 160,000 kg

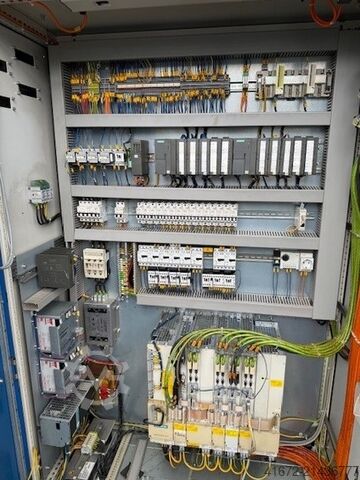

Condition: used, Year of construction: 2001, Technical details: max. wheel diameter: 80/120 mm max. module: 2,5 max. top circle diameter: 65 mm : 22 mm : 140 mm : 120 mm slide travel axial ( Z-axis ): 320/400 mm Dimensions (L/W/H): 3270 x 3240 x 2020 mm weight of the machine ca.: 6 t Codpfx Aoxrwpkjf Hsgu P60 - The compact all-rounder for wheels, shafts and worms The P60 is the smallest machine in the Gleason line of horizontal hobbing machines. The all-rounder not only mills spur gears with all rollable profiles, but is also the optimal solution for machining steering pinions and worms. with automatic loading system, extraction unit, chip conveyor, with balancing device with 2 tailstocks, with Artec process monitoring system, type CTM-BT1.1 *

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, machine/vehicle number: 28 958, travel distance X-axis: 100 mm, travel distance Y-axis: 160 mm, TECHNICAL DETAILS Maximum permissible pitch circle diameter: 80 mm Maximum gear length: 170 mm Total length: 240 mm Mounting diameter: 32 mm Radial slide travel (X-axis): 100 mm Tangential slide travel (Y-axis): 160 mm Axial movement Z-axis: 300 mm/min Workpiece spindle - bore: 45 mm MACHINE DETAILS Approx. machine weight: 7,000 kg Approx. dimensions (LxWxH): 9,130 x 3,895 x 3,450 mm Voltage: 400 V Cedpfxow T Rz De Af Hsgu Frequency: 50 Hz Connected load: 45 kVA

Condition: good (used), Year of construction: 1987, operating hours: 2,685 h, functionality: fully functional, feed length X-axis: 240 mm, feed length Y-axis: 200 mm, feed length Z-axis: 400 mm, total length: 5,235 mm, total height: 3,045 mm, total width: 3,990 mm, spindle speed (max.): 640 rpm, spindle speed (min.): 55 rpm, overall weight: 11,000 kg, Equipment: documentation/manual, Gear cutting machine Pfauter PE 300 Model: SK07E 20100 Control: Sinumerik System 3 Codpfsw Dcx Rsx Af Hegu Fully functional machine, which was completely overhauled just a few years ago. Investments made: - Overhaul including milling head (2021) approx. €70,000 - All hydraulic hoses renewed (2021) approx. €3,500 - New oil mist separator (2021) approx. €5,000 Numerous tools and clamping devices available, see pictures and attachment.

Condition: good (used), Year of construction: 2003, functionality: fully functional, workpiece weight (max.): 12,000 kg, feed length Y-axis: 300 mm, feed length Z-axis: 1,080 mm, table diameter: 1,200 mm, feed rate X-axis: 3 m/min, feed rate Y-axis: 500 m/min, feed rate Z-axis: 3 m/min, input current: 195 A, workpiece diameter (max.): 1,600 mm, milling spindle length: 450 mm, table bore: 400 mm, spindle speed (min.): 250 rpm, overall weight: 51,000 kg, power: 115 kW (156.36 HP), Equipment: documentation/manual, Liebherr high-performance gear hobbing machine LC1502 in good condition Controller Liebherr LH90 V4, Bosch Rexroth drives Extensive accessories such as BHG, cooling unit for lubrication and coolant, extractor, cutter arbors, various software packages/limit value extensions, and complete documentation. We can also assist with setup and commissioning up to production, depending on effort! Cgedpfxjwqm A Tj Af Heu

Condition: good (used), Year of construction: 2002, workpiece dia. 40 mm max. module 2 min. module 0,1 workpiece length - max. 665 mm weight 4,5 t spindle bore diameter 82,5 mm Control Siemens total power requirement 5,5 kW Technical data max. module 2 Pitch 0.5 - 25 mm Number of speeds multi-speed / multiple Cedpsv Ucdvsfx Af Hsgu max. workpiece diameter40 mm max. workpiece length180 mm Milling cutter diameter max.80 mm max. milling cutter width12 mm Z-axis (milling length with counter point)90 mm Z-axis (milling length without counter point)113 mm Milling head swivelling angle30° / 30° Description Gear hobbing and thread cutting machine. LAMBERT - 124 CNC The machine is in a well-maintained condition.

Condition: used, Year of construction: 1969, max. wheel diameter 160 mm gear width 355 mm max. module 4,5 min. module 0,5 centre distance 450 mm total power requirement 11 kW weight of the machine ca. 3,8 t dimensions of the machine ca. 2x17,1,6 m Wheel diameter - max. 160.175 mm Wheel width 355 mm Module - max. 4.5 Spindle bore 75 mm Center distance 410 mm Cgedpfx Afovz Ec Io Hou Number of teeth - min. 2, 3 Cutter diameter max. 115 mm Cutter length max. 105 mm Center distance between milling cutter and workpiece - max. 138 mm Center distance between milling cutter and workpiece - min. 30 mm Milling head - swivels 120 ° Milling cutter speeds 70 - 400 rpm Axial feeds 0.25 - 4.0 mm/rev Radial feeds 0.09 - 1.5 mm/rev Total power requirement approx. 9.5 kW Machine weight approx. 3.5 t Space requirement approx. 1730x1400x1440 mm Equipment/accessories: - Changing wheels - milling arbors - Clamping device Dra8M7 - documentation

Condition: used, Year of construction: 1969, max. wheel diameter 160,175 mm gear width 355 mm max. module 4,5 spindle bore 75 mm centre distance 410 mm min. number of teeth 2, 3 cutter diameter max. 115 mm cutter length max. 105 mm axis distance between cutter and workpiece - max. 138 mm axis distance between cutter and workpiece - min. 30 mm milling head -swivable 120 ° milling spindle speeds 70 - 400 U/min axial-feeds 0,25 - 4,0 mm/U radial feeds 0,09 - 1,5 mm/U total power requirement ca. 9,5 kW weight of the machine ca. 3,5 t dimensions of the machine ca. 1730x1400x1440 mm Equipment/accessories: - Interchangeable wheels Cgodpfx Ajvzhf Sjf Hou - Milling arbors - Clamping devices - Documentation
