Blape,S.l.

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: Q0EC156, travel distance X-axis: 450 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 300 mm, controller model: Fanuc 0i MD, spindle speed (max.): 10,000 rpm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel X: 450 mm Tjdox Agtyspfx Agcsf Travel Y: 300 mm Travel Z: 300 mm Tool changer: 12-position Spindle taper: BT30 Spindle speed: 10,000 rpm MACHINE DETAILS Controller: Fanuc 0i MD EQUIPMENT Various tool holders Operating manual

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: 14599631, travel distance X-axis: 500 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 610 mm, spindle speed (max.): 18,000 rpm, number of slots in tool magazine: 24, The tool measurement system and the touch probe were retrofitted in 2022 for a total of EUR 15,000. The machine is prepared for 4th and 5th axis operation! TECHNICAL DETAILS Travel X: 500 mm Travel Y: 350 mm Travel Z: 610 mm Spindle speed: 18,000 rpm Spindle taper: SK30 Tool changer: 24 positions MACHINE DETAILS Operating hours Tjdsx Agp Iopfx Agcef Program run: 13,613 h Machine on-time: 39,034 h Control on-time: 38,758 h EQUIPMENT Connection and drives for 4th/5th axis 3D touch probe Heidenhain TS642 Tool measurement Heidenhain TT140 Spindle chiller unit Heidenhain HR410 electronic handwheel Approx. 30 tool holders Collets Complete documentation 3D touch probe

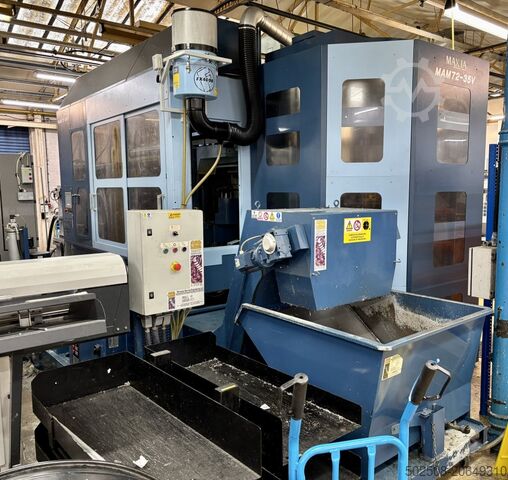

Condition: excellent (used), Year of construction: 2010, 2010 Matsuura MAM72-35V PC32 5 Axis Multi Pallet Loading Vertical Machining Centre With G-Tech 30i Control Todpjx Agm Tofx Agcof Maximum Component Dimension Ø350 x 240mm High. Maximum Pallet Load 60kg. Maximum Workpiece Dimension Ø350mm x 300mm High. Axis Travel 'X'=550mm, 'Y'=440mm, 'Z'=580mm, 'B'= +65/-125°, 'C'=360°. Rapid Traverse 'X,Y,Z'=60m/min, 'B'=50rpm, 'C'=100rpm. Maximum Maxia Spindle Speed 20,000rpm (11/15kW Motor). Spindle Taper BT40. 240 Position ATC. Maximum Tool Ø80mm (Ø150mm Non Adjacent Tool). Maximum Tool Length 260mm. Maximum Tool Weight 8kg. Tool Changing Time Tool to Tool 1.7sec. S/No. 18082. With Renishaw NC4 Laser Tool Measure and Breakage Detection Probe, Renishaw Spindle Inspection Probe interfaces, Auger To FSE Chip Conveyor, Filtermist FX4000 Mist Extraction Unit, SMC IDF8E Air Dryer, Daikin AKZ567 Oil Cooler, FSE Through Coolant System, Axis Scale Feedback, Visiport Spin Window, Signal Tower, Oil Skimmer, Wash Gun & Manuals. Note: Tooling Not Included. Note: Spindle Drive Needs Attention, Spindle Seems Free Running, Possibly Motor Needs Inspection.

Condition: excellent (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: 1188877, Specification Tsdpfxox Afpge Agcsf Table size 1016mm x 356mm X axis traverse 508mm Y axis traverse 406mm Z axis traverse 356mm Spindle BT40 Spindle speeds 0-10,000rpm Spindle motor 11.2kW Rapid feed rate 30.5m/min Toolchanger capacity 20 Tools Approximate weight 2313Kg   Machine Equipped with Haas CNC Control HRT 160 4th axis 11 off BT40 toolholders High flow coolant system Lighting Enclosed guarding Manual

Condition: excellent (used), Year of construction: 2008, Dugard Eagle 450 XP VMC, Siemens Control - Machine from a Training School - Excellent Condition X Axis Traverse - 450mm Y Axis Traverse - 350mm Z Axis Travel - 380mm Table Size 700 x 320mm Spindle Nose To Table Surface 135 - 515mm Max Feed Rate - 10 m/min Tjdpfjxz Dpvex Agcsf Max Table Load - 150kgs Spindle Taper - BT40 Spindle Power 8.5kW Spindle Speeds - 10,000RPM Machine Weight - 2,200kgs Tool Changer Time - 6 Seconds Machine Footprint - 1500mm Left To Right x 2050mm Front to Back x 2050mm High

Condition: used, TECHNICAL DETAILS - Number of axes : 4 MILLING SPINDLE Todpoxzu T Sefx Agcsf - Tool holder type : BT30 - Spindle power : 4,9 [kW] - Spindle speeds : 16.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 700 x 400 x 300 [mm] - Rapid traverses rates (X/Y/Z) : 50 / 50 /56 [m/min] - Cutting feed rates (X/Y/Z) : 1 - 30.000 [mm/min] - Distance table / spindle nose (min./max.) : 330 - 630 [mm] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 21 - Tool exchange time : 0,8 [sec] TABLE - Table dimensions : 800 x 400 [mm] - Maximum weight upon table : 250 [kg] POWER SUPPLY - Supply voltage : 220 [V] - Total installed power : 9,5 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.050 x 2.220 [mm] - Machine height : 2.497 [mm] - Machine weight : 2.400 [kg] MACHINE HOURS - Number of hours under power : 23.456 [h] - Number of working hours : 16.703 [h] EQUIPMENT - CNC : Brother CNC-C00 - Interface : Ethernet / USB - Electronic handwheel - CNC option : extanded Memory 500 Mo - CNC option : High accuracy mode BⅡ - Type of divisor : 4e axe CNC intégré * manufacturer : YUKIWA * model : DRC170-EU * travel 4th axis : 360 [°] * indexing precision 4th axis : 0,001 [°] * clamping diameter : 140 [mm] * center height : 135 [mm] * with counter bearing * Coolant tank : 150 [l] * with high-pressure pump : 15 [bars] * With cabin washing - Coolant through spindle - Tool probe - Electric transformer

Condition: used, Year of construction: 2015, functionality: fully functional, controller manufacturer: FANUC, controller model: 0i-MD, Equipment: chip conveyor, documentation/manual, Milling spindle up to 15,000 rpm "In-Line" direct drive Power 7.5 kW (S6/40%) Travel distances X=450mm Y=400mm Z=400mm; 36m/min Todpoxzntrofx Agcof Tool taper size 40 according to DIN 69871-A, pull stud according to DIN 69872-A Spindle taper air blast device High-speed automatic tool changer as double-arm changer for 24 tools Linear guides on all three axes Required leveling elements at machine bed for adjustment Fully enclosed splash guard + coolant system + work area light Documentation: Spinner manual and Siemens manuals in digital format on CD-ROM Two-tone paint finish RAL 7035/5008 Chip conveyor

Condition: used, Year of construction: 1999, x-travel 505 mm y-travel 355 mm Todpexzk N Nefx Agcjf z-travel 610 mm control Heidenhain TNC 430 weight of the machine ca. 4000 kg

Condition: used, Year of construction: 2017, x-travel 550 mm y-travel 400 mm Tsdpfx Aexzk N Aogcef z-travel 400 mm weight of the machine ca. 9000 kg

Condition: good (used), Year of construction: 2022, spindle speed (min.): 12,000 rpm, Machine type: CNC-BAZ vertical Model: M1 Pro with 4th axis including tailstock Manufacturer: DMGMORI Control: Siemens 828 D Year of manufacture: 2022 Location: Germany Technical data Travel range X-axis approx. 550 mm Y-axis approx. 550 mm Tjdpfx Agsxyt S Decjf Z-axis approx. 510 mm Table size approx. 850 x 650 mm Max. workpiece weight approx. 600 kg Max. speed approx. 12,000 rpm Spindle motor approx. 13/9 KW Number of tool positions approx. 24 Rapid traverse X / Y / Z approx. 24 m/min Holder taper approx. SK40 Footprint L x W x H approx. 3.1 x 2.7 x 2.9 m Machine weight approx. 5,600 kg Equipment Main spindle 12,000 rpm 13/9 kW - Separate electronic handwheel - 24-place chain magazine - SK40 - Coolant tank - IKZ pump 20 bar - Filter for coolant - Bed flushing switchable via M function - Coolant spray gun - Spindle blowing air switchable via M function - Cabin roof - Measuring probe - 4th axis (Errors in the technical data and information excepted)

Condition: excellent (used), Year of construction: 2022, DMG MORI CMX 50 U 3+2 Year 2022 Control: Siemens SlimLine Travels: X-500 mm Y-450 mm Z-400 mm B -5 / +110 ° C 360 ° Spindle max. 15,000 rpm Tool magazine for 60 tools BBT40 Through-spindle coolant 70 Bar Chip conveyor Filter paper High-pressure coolant pumps Workpiece probe, tool probe Quickset (rotary axis calibration) Tedpfoxyi Hwsx Agcjf Machine in very good condition, available end of December.

Condition: used, Year of construction: 2011, travel distance X-axis: 1,270 mm, travel distance Y-axis: 635 mm, travel distance Z-axis: 635 mm, controller model: Heidenhain TNC 530 i, total height: 3,000 mm, total length: 4,000 mm, total width: 3,050 mm, table width: 600 mm, table length: 1,370 mm, table load: 950 kg, number of slots in tool magazine: 20, The Hartford VMC-1270 is a robust and precise CNC machining center, ideal for demanding milling operations. With a generous travel range of 1270 x 635 x 635 mm, the machine offers versatile applications in metalworking. It is equipped with a Heidenhain TNC 530i control system, a BT-40 tool taper, and a spindle speed of up to 8000 rpm. The table measures 1370 x 600 mm, enabling the machining of larger workpieces as well. With a machine weight of approximately 7200 kg, the VMC-1270 stands for stability, precision, and reliability. The machine was built in 2011 and is designed for operation with 380 V power. Tsdpfsxyh Itsx Agcsf

Condition: used, Year of construction: 2010, x-travel 508 mm y-travel 356 mm z-travel 508 mm table dimensions 508 x 324 mm spindle tunring speed 10.000 U/min Tool cone CAT 40 spindle drive 15 kW tool magazine 24 Stationen rapid traverse 25,4 m/min feed 18,03 m/min weight 6,5 t In our opinion, the machine is in good used condition and can be inspected condition and can be inspected under power by appointment. Operating hours approx. 20,851 hours Accessories, illustrated tools and clamping devices are only included in the scope of delivery if this is noted in the additional information . Tsdpsxyafwsfx Agcjf Changes and errors in the technical data and information as well as prior sale reserved. subject to prior sale

Condition: good (used), Year of construction: 1996, Details X-axis travel: 400 mm Y-axis travel: 300 mm Z-axis travel: 400 mm Table clamping surface: 500 x 300 mm Max. workpiece weight: 100 kg Rapid traverse – longitudinal/cross/vertical: 30 m/min Spindle taper: ISO 40 Speeds: steplessly adjustable 50 – 8000 rpm Tool magazine with 16 positions Tjdpfx Asxx Rz Hjgcef Control: TRAUB M X 8 F Feed rates: 12 mm/min Total power requirement: 5.5 kVA Machine weight approx.: 3,000 kg Space requirement approx.: 2.5 x 2 x 2.2 m Control system: CNC

Condition: used, TECHNICAL DETAILS - Number of axes : 5 MILLING SPINDLE - Tool holder type : BBT 30 (Big-Plus) - Spindle power : 12 [kW] - Spindle speeds : 24.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 500/400/330 [mm] - Rapid traverses rates (X/Y/Z) : 54 [m/min] - Cutting feed rates (X/Y/Z) : 1-30.000 [mm/min] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 21 TABLE - Table dimensions : 650 x 400 [mm] - Maximum weight upon table : 300 [kg] - Distance table / spindle nose (min./max.) : 250-580 [mm] POWER SUPPLY Tjdpsxx Dacsfx Agcef - Supply voltage : 380 [V] - Total installed power : 11 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 1565 X 2027 [mm] - Machine height : 2325 [mm] - Machine weight : 2200 [kg] EQUIPMENT - CNC : Fanuc 31i-Model B5 - 3 colors status lamp - Type of divisor : 4e-5e axe intégré * manufacturer : LEHMANN * model : Serie 500 - Coolant tank * with high-pressure pump : 70 [bars] - Coolant through spindle - Chips conveyor : ARRIERE - Tool probe : HEXAGON - Workpiece probe : HEXAGON - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Electric transformer - Chuck 3 jaws : SCHUNK

Condition: used, TECHNICAL DETAILS - Number of axes : 5 MILLING SPINDLE - Tool holder type : BBT 30 (Big-Plus) Tsdpexx A U Sjfx Agcef - Spindle power : 12 [kW] - Spindle speeds : 24.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 500/400/330 [mm] - Rapid traverses rates (X/Y/Z) : 54 [m/min] - Cutting feed rates (X/Y/Z) : 1-30.000 [mm/min] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 21 TABLE - Table dimensions : 650 x 400 [mm] - Maximum weight upon table : 300 [kg] - Distance table / spindle nose (min./max.) : 250-580 [mm] POWER SUPPLY - Supply voltage : 380 [V] - Total installed power : 11 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 1565 X 2027 [mm] - Machine height : 2325 [mm] - Machine weight : 2200 [kg] EQUIPMENT - CNC : Fanuc 31i-Model B5 - 3 colors status lamp - Type of divisor : 4e-5e axe intégré * manufacturer : LEHMANN * model : Serie 500 - Coolant tank * with high-pressure pump : 70 [bars] - Coolant through spindle - Chips conveyor : ARRIERE - Tool probe : HEXAGON - Workpiece probe : HEXAGON - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Electric transformer - Chuck 3 jaws : SCHUNK

Condition: used, Year of construction: 2005, A 2005 Built The Dah Lih MCV 720 Fanuc controlled VMC in lovely condition, super clean and well maintained…fitted with 4th axis unit, rear exiting swarf auger & mist extractor Make: Dah Lih Model: MCV 720 YOM 2005 Todpfxjxxv E Rj Agcsf Control Fanuc Series 0i Table Size (L x W) 950 mm x 560 mm (approx. 37.4 x 22.05 in) Axis Travel (X/Y/Z) 720 mm / 460 mm / 510 mm (approx. 28.3 / 18.1 / 20.1 in) Max. Table Load 500 kg (approx. 1100 lbs) Spindle Taper BT 40 Spindle Speed 8,000 RPM Spindle Motor Power 11 kW (15 hp) Automatic Tool Changer 24 Tool Side Mount Machine Weight Approx. 4400 kg (approx. 9680 lbs) Control: Fanuc 0iM Spec: Travel X720 Y460 Z510 mm | 8000RPM | BT40 Accessories: 4th axis unit, Mist Extractor, Swarf auger

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: P082WG406, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 330 mm, table load: 300 kg, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Travel distances X-axis: 500 mm Y-axis: 400 mm Z-axis: 330 mm Spindle speed: max. 10,000 rpm Rapid traverse (axes): max. 54 m/min Tsdpfx Agjxxvi Ajcsf Table & Loads Permissible table load: 300 kg Maximum tool weight: max. 2 kg Maximum total tool weight: max. 23 kg Tool dimensions Overall length: 200 mm Shank length: 120 mm Tool diameter: 80 mm Maximum height: 440 mm MACHINE DETAILS Weight: 2,100 kg Mains supply: 3-phase Power rating: 11 kVA

Condition: repair required (used), Year of construction: 2017, functionality: not functional, machine/vehicle number: P177ZG753, Technical characteristics: # Machining Workspace: X 500 mm; Y 400 mm; Z 330 mm # Axis Description: 3 LINEAR AXES (X, Y, Z) + 1 rotary table axis (A-axis) with index dividing head, direct angular measurement system, number of revolutions 50 min⁻¹, accuracy +/- 5" # A-axis Swivel Range: +/-170˚ # Maximum Clamping/Workpiece Dimensions: 650 x 400 mm; max. weight 300 kg # Rapid Traverse: X/Y/Z 54 m/min # Spindle Speed: 100–10,000 rpm, spindle motor power 11 kW # Spindle Taper: BBT30 (with internal cooling) # Automatic Tool Changer: 1x21 tools, chip-to-chip average time 1.5 sec # Maximum Tool Size: Ø40 mm / length max. 200 mm / 2 kg Electrical connection: # Voltage: 3x400V/50Hz # Installed Power: approx. 20 kVA / 22A Dimensions: # Installation space: approx. 1.65 x 3.2 m (with chip conveyor) x 2.8 m # Weight: approx. 8,500 kg Equipment includes: # This 4-axis FANUC Robodrill α-D21LiB5 was manufactured in 2016. Ideal for precision machining, this vertical machining centre offers robust performance and reliability. # CNC Control: Model 31i model b5 # 4th axis and tailstock: Fanuc DDR-TiB 178DU039 2017/08 and TSUDAKOMA tailstock # Chip extractor & coolant filtration unit max. 40 bar: Mosnic model 1641/2010 # Spindle, Guideways, and Electrical Cabinet Cooling Systems # Oil Vapor Absorption/Recovery System: Bristol model B 1000 EF # Fire suppression: Kraft & Bauer # Part presence detection: with low pressure air sensors # Automation: Lateral door automatic and interface ready for automation # In-process inspection: Renishaw TRS2 # Documentation: incomplete Tjdpfxsxxt Ehs Agcjf Machine condition: NOT WORKING # Hydraulic unit defective # Two emulsion pumps # Guideway lubrication pump # Safety switch Euchner

Condition: used, Year of construction: 2017, functionality: fully functional, machine/vehicle number: P17XZG 044, Technical characteristics: # Machining workspace: X 500 mm; Y 400 mm; Z 330 mm Tsdpfxexxrb Ij Agcsf # Axis description: 3 LINEAR AXES (X, Y, Z) + 1 rotary table axis A (indexing divider head) with direct angular measuring system, max. rotational speed 50 rpm, precision +/- 5 seconds # Axis A swivel range: +/-170˚ # Maximum clamping/workpiece dimensions: 650 x 400 mm; max. weight 300 kg # Rapid traverse speed (X/Y/Z): 54 m/min # Spindle speed: 100–10,000 rpm; spindle motor power: 11 kW # Spindle interface: BBT30 (with through-spindle coolant) # Automatic tool changer: 1x21 tools / chip-to-chip average time 1.5 sec # Maximum tool size: Ø40 mm / length max. 200 mm / 2 kg Electrical connection: # Voltage: 3x400V/50Hz # Installed power: approx. 20 kVA / 22A Dimensions: # Installation space: approx. 1.65 x 3.2 (with chip conveyor) x 2.8 m # Weight: approx. 8,500 kg Equipment includes: # This 4-axis FANUC Robodrill α-D21LiB5 was manufactured in 2016. Ideally suited for precision machining, this vertical machining center delivers robust performance and high reliability. # CNC control: FANUC Series 31i-B5 # 4th axis and tailstock: FANUC DDR-TiB 178DU039 (2017/08) and TSUDAKOMA tailstock # Chip conveyor & high-pressure coolant filtration unit (max. 40 bar): Mosnic model 1641/2010 # Spindle cooling system, guideways and control cabinet cooling # Oil mist extraction/recovery system: Bristol model B 1000 EF # Fire suppression system: Kraft & Bauer # Part presence detection: with low-pressure air sensors # Automation: automatic side door and interface, automation-ready # In-process control: Renishaw TRS2 # Documentation: incomplete Machine status: WORKING

Condition: like new (used), FANUC ROBODRILL α-D21SiB5, 4th axis Todpfx Agsxxkzascef

Condition: repair required (used), Year of construction: 2007, functionality: not functional, machine/vehicle number: 191-89, Technical characteristics: Todjxxi Rmspfx Agcjf - Machining workspace: X 550 mm; Y 400 mm; Z 360 mm - Axis configuration: 3 linear axes (X, Y, Z) + 1 rotary table axis A and 2 rotary divider head axes B, equipped with direct angular measuring system, max rotation speed 50 rpm, accuracy +/- 5" - Axis A swivel range: +/- 110° - Max. clamping/part dimensions: Ø 247 x 830 mm; max. weight 360 kg - Rapid traverse rate: X/Y/Z 40/40/40 m/min - Distance between divider heads B1/B2: 250 mm - Spindle speed: 1–10,000 rpm - Spindle interface: DIN69893-HSK-A63 (with internal coolant supply) - Automatic tool changer: 1x48 positions / chip-to-chip average 2.5 sec - Max. tool diameter: 82 mm / max. tool length: 250 mm / max. tool weight: 5 kg Electrical specifications: - Supply voltage: 3x400V/50Hz - Installed power: approx. 45 kVA / 80A Dimensions: - Installation space: approx. 4.4 x 2.3 x 3.1 m - Weight: approx. 8,500 kg Equipment includes: - CNC control: Siemens 840D Power Line - Chip conveyor: Spring Knoll - Oil cooling system - High-pressure oil filtration system (max. 80 bar): Knoll HL 450/1200 - Shaft cooling system, guideways and control cabinet - 2 oil lubrication units - Oil mist extraction/recovery: LTA - Fire protection: Kraft & Bauer - Part presence P/Y detection: with low-pressure air sensors - In-process inspection: Marposs T25 - Tool holder presence detection in spindle - Documentation: incomplete Machine status: NOT OPERATIONAL: Hydraulic power unit motor burned out.

Condition: repair required (used), Year of construction: 2009, functionality: not functional, machine/vehicle number: 281-06, Technical Specifications: # Machining Workspace: X 550 mm; Y 400 mm; Z 360 mm # Axis Description: 3 linear axes (X, Y, Z) + 1 rotary axis (rotary table A) and 2 rotary axes (B, indexer head) with direct angular measuring system, maximum 50 rpm, accuracy +/- 5 seconds # A axis swivel: +/-110˚ # Max. clamping/part dimensions: Ø 247 x 830 mm; max. weight 360 kg # Rapid traverse rate: X/Y/Z 40/40/40 m/min # Distance between divider heads B1/B2: 250 mm # Spindle speed: 1–10,000 rpm # Spindle taper: DIN69893-HSK-A63 (with internal coolant) # Automatic tool changer: 1x48 tools / chip-to-chip time approx. 2.5 sec # Max tool diameter: Ø82 mm / max. length 250 mm / 5 kg Electrical connection: # Voltage: 3x400V/50Hz # Installed power: approx. 45 kVA / 80A Dimensions: # Installation area: approx. 4.4 x 2.3 x 3.1 m # Weight: approx. 8,500 kg Equipment includes: # CNC control: Siemens 840D Powerline # Chip conveyor: Spring Knoll # Oil cooling system # High-pressure oil filtration system, max. 80 bar: Knoll HL 450/1200 # Shaft, guideways, and electrical cabinet cooling system # 2 oil lubrication systems # Oil mist extraction/recovery: LTA AC3002 # Fire protection: Kraft & Bauer # Presence detection: with low pressure air sensors (part present) Tjdpfx Agjxxivcocef # In-process control: Marposs T25 # Tool breakage monitoring: Blum Novotech # Tool presence detection system in spindle # Documentation: incomplete Machine condition: NOT OPERATIONAL # Cover for tool magazine # Tool magazine presence sensor (BERU)

Condition: ready for operation (used), Year of construction: 2014, Movement X-Axis Movement 560 mm Z-Axis Movement 450 mm Y-Axis Movement 410 mm Main Drive Number of axis 3 Spindle Speed 12000 RPM Tsdpfxjxxdquo Agcjf This 3-axis YCM NXV560A was manufactured in 2014. It features a direct-drive spindle with a speed of 12,000 rpm, a 28-station arm-type tool changer, and a belt-type chip conveyor. The CNC control is iTNC530 HSCI, and it has XYZ travels of 560, 410, and 450 mm respectively. Consider the opportunity to buy this YCM NXV560A vertical machining center. Contact us for more information. Application Types Milling

Condition: repair required (used), Year of construction: 2007, functionality: not functional, machine/vehicle number: 191-88, Technical specifications: # Working area: X 550 mm; Y 400 mm; Z 360 mm # Axis configuration: 3 linear axes (X, Y, Z) + 1 rotary table axis A and 2 rotary axes B with indexing head, direct angular measuring system, max. speed 50 rpm, accuracy +/- 5" # A-axis swivel: +/-110˚ # Max. clamping/part size: Ø247 x 830 mm; max. weight 360 kg # Rapid traverse rate: X/Y/Z 40/40/40 m/min # Distance between dividing heads B1/B2: 250 mm # Spindle speed: 1-10,000 rpm # Spindle interface: DIN69893-HSK-A63 (with internal coolant supply) # Automatic tool changer: 1x48 tools, tool-to-tool average 2.5 sec # Max. tool diameter: Ø82 mm / max. tool length: 250 mm / max. tool weight: 5 kg Electrical system: # Voltage: 3x400V/50Hz # Installed power: approx. 45 kVA / 80A Dimensions: # Installation footprint: approx. 4.4 x 2.3 x 3.1 m # Weight: approx. 8,500 kg Equipment includes: # CNC control: Siemens 840D Power Line Todpoxw Uplsfx Agcsf # Chip conveyor: Spring Knoll # Oil cooling unit # Oil filtration system up to 80 bar: Knoll HL 450/1200 # Shaft, linear guide and electrical cabinet cooling system # 2 oil lubrication systems # Oil mist extraction/recovery unit: LTA AC3002 # Fire suppression: Kraft & Bauer # Part presence check with low-pressure air sensors # In-process control: Marposs T25 # Tool support monitoring system at spindle # Documentation: incomplete Machine condition: NOT OPERATIONAL # Operator protection screen damaged – operator panel functional # Tool magazine chain # Ballbar X # Ballbar Y # Pullbar spindle # Axis drive power supply X # Axis drive power supply Y # Main drive power supply # Complete hydraulic unit defective
