Condition: good (used), Year of construction: 2006, 9-axis CNC turning and milling centre * Fanuc MSX-701 CNC control * Milling spindle at top (B axis), as full 4th axis, positioning 0.0001 deg. * 40-position tool magazine * 10-position turret at bottom, all positions driven * 2 x 3-jaw quick-change chuck KNCS-N 315/91 * KNOLL high-pressure coolant system, pressure setting 12/25/35/45/55/62 and 72 bar, with maintenance-free rotary filter system * Chip conveyor * Drain system for main spindle chuck (controlled via M function) * Drain system for tool cutting edge (controlled via M function) * Coolant gun incl. accessories * Oil mist extraction * Direct measuring system X1, X2, Y-axis * Bar loader interface * Double foot switch for both spindles * Islands and pocket programming for MAPPS * High-speed fixed cycle for MAPPS * Programm memory extension to 8 MB * Programm restart * 3-stage signal lamp * 512 MB memory card (CF card) Swing diameter via cross slide (tool spindle 1): 750 mm Swing diameter over cross slide (turret 2): 400 mm Max. turning diameter (tool spindle 1): 660 mm Max. turning diameter (turret 2): 275 mm Max. machined workpiece length: 1498 mm Dkjdpfx Ajx S Ip Djh Ssg Max. bar material: 90 mm Travels: X1 axis (tool spindle): 750 mm Y axis (tool spindle): 420 (+/- 210) mm Z1 axis (tool spindle): 1635 + 100 mm for tool change B axis (tool spindle): +/- 120 deg., full B-axis 1 deg. indexed and 0.0001 deg. braked X2 axis (turret): 195 mm Z2 axis (turret): 1525 mm SZ axis (subspindle): 1610 mm Rapid traverse: (X1,Z1) 50 m/min. / (Y,X2,Z2,SZ) 30 m/min. Main and subspindle: Spindle speeds infinitely variable (spindle 1 + 2): 30-3000 rpm. C axis (spindle 1 + 2): 0.001 deg. Main spindle motor: 22/18.5 kW Subspindle motor: 22/18.5 kW Torque (spindle 1 + 2): 1000 Nm Disc turret: Number of tool positions: 10 Speed of driven tools: 6000 rpm. Drive power: 5.5/3.7 kW Milling spindle head: Tool holder: HSK A63 Max. speed: 12,000 rpm Drive power: 18.5/11 kW Torque: 120/44 Nm Tool changer: 40-stations Tool diameter 70/140 mm Tool length 400 mm Tool weight 8/10 kg Total power requirement 90 kVA Main dimensions Length x width x height 5301 x 2997 x 2788 mm Machine weight 26.6 t Accessories: Measuring arm (picture) tool measurement in machine Tool holder + box, reduction sleeves, driven tools Clamping jaws package Collets package

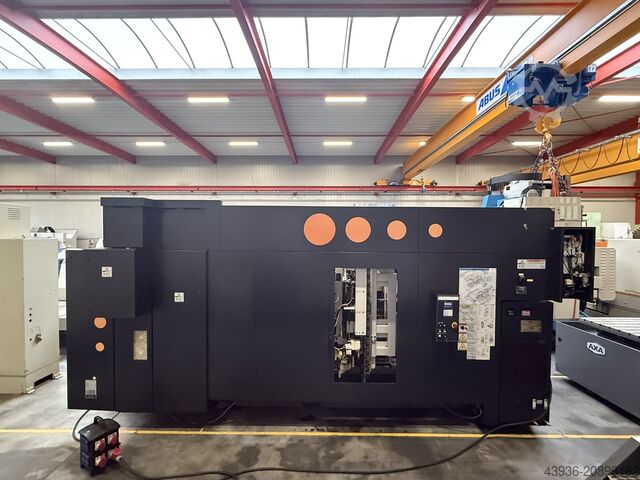

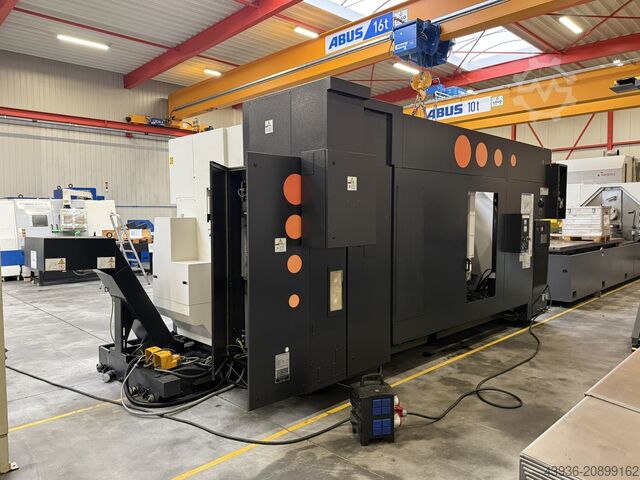

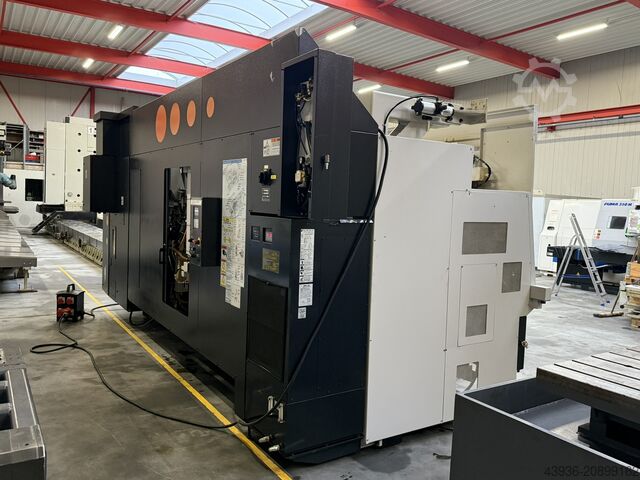

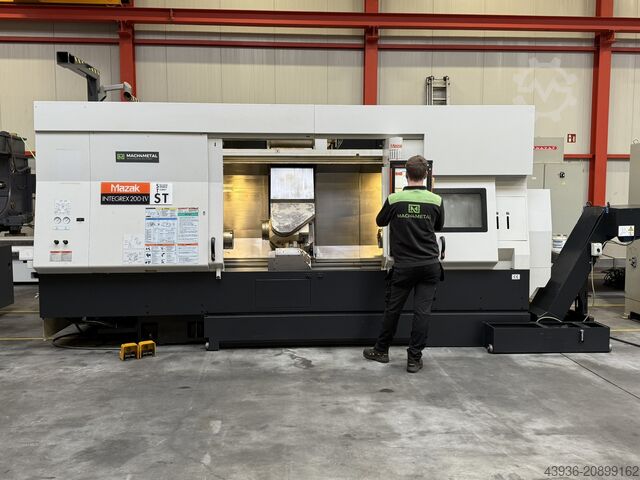

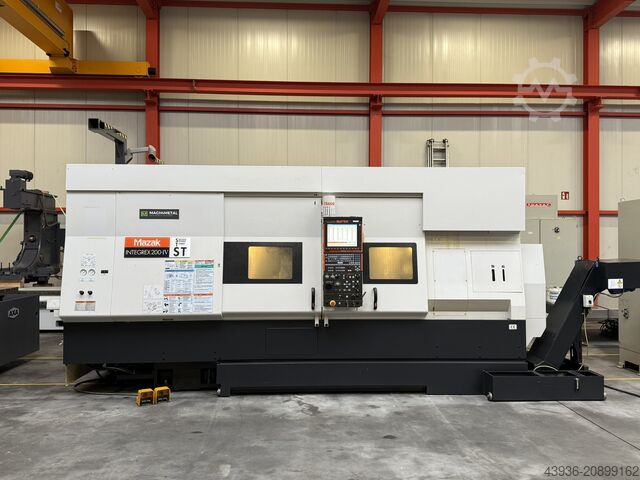

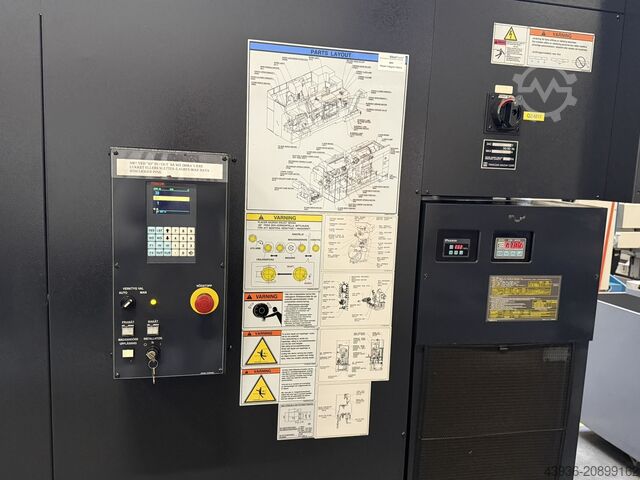

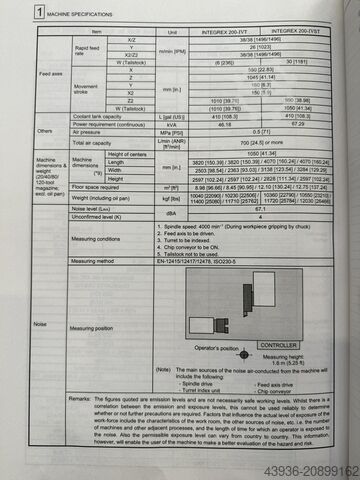

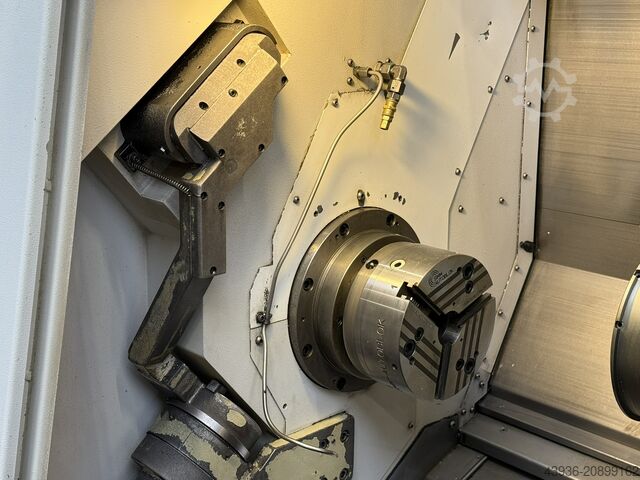

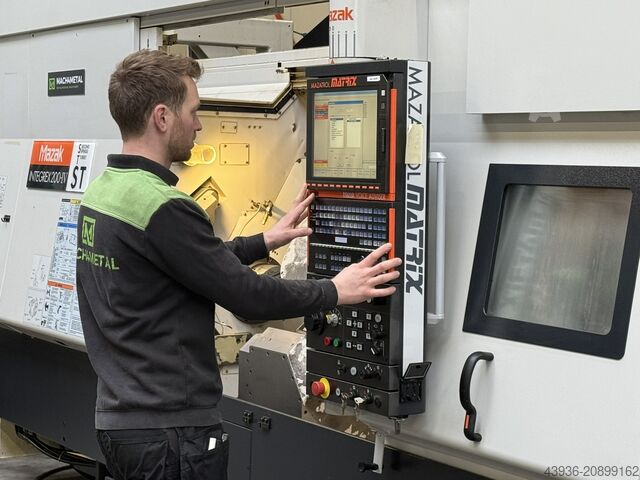

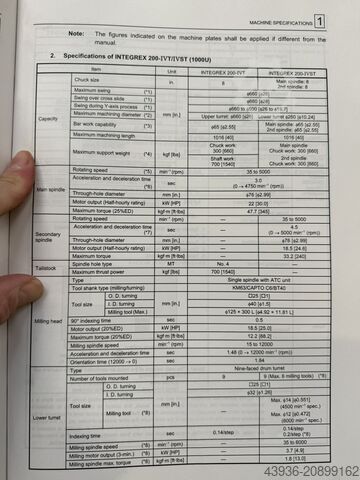

Condition: excellent (used), Year of construction: 2007, turning length: 1,545 mm, turning diameter over cross slide: 660 mm, spindle bore: 65 mm, travel distance X-axis: 580 mm, travel distance Y-axis: 160 mm, travel distance Z-axis: 1,545 mm, Make: MAZAK Type: INTEGREX 200-4 ST Control: MAZATROL MATRIX Dksdpox S Hm Iofx Ah Ssg Year: 2007 Multi-Tasking Machining in a Single Machine Setup Sub spindle for overtaking with full C-Axis The INTEGREX IV series can finish all machining processes. High speed, advanced milling spindle that can tilt up to 240 degrees swiveling. Lower turret with rotary tool spindle so livew tooling Chip conveyor with coolant and 15 Bar iKZ Double chuck KNCS-N 210-53 SMW Autoblock MAZAK Flex -GL150F Gantry Loader Gripping range 200 x 120 length x 15 Kg Max. turning Ø: 660mm X-Axis: 580mm Y-Axis: 160mm Z-Axis: 1545mm B Axis: 270° Spindle bore: 65mm Speedrange: 5000Rpm Spindle power: 22kW Subspindle speeds:5000Rpm Subspindle bore: 65mm Subspindle power: 18.5kW ATC / revolver: 40 B-Axis Toolsystem:Capto C6 B-Axis Speedranges:12000Rpm Length: 5200mm Width: 2550mm Height: 2600mm Weight: 14000kg

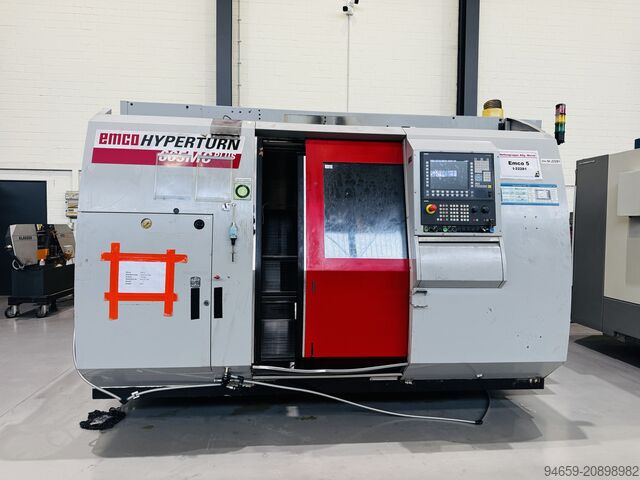

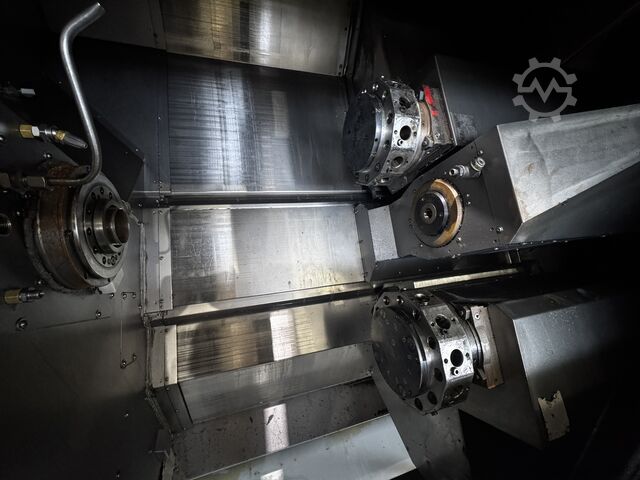

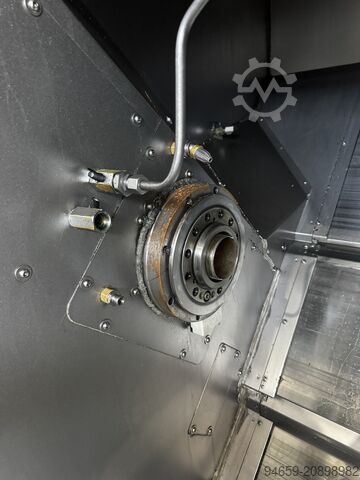

Condition: excellent (used), Manufacturer, Emco. Machine type, Hyperturn 665 CNC lathe. Inventory number, 22281. Machine designation, Drehmaschine Emco Hyperturn 665. Machine number, serial number R7A Q 2701. Year of manufacture, 2002. Control system, Siemens Sinumerik 840D with PCU 50 V1. Programming, DIN ISO, Siemens ShopTurn capable. Axes configuration, X axis and Z axis. Max turning diameter over bed, approx. 665 mm. Max turning diameter over cross slide, approx. 500 mm. Max turning length, approx. 1,000 mm. Swing diameter, approx. 665 mm. Main spindle. Spindle speed range, up to approx. 4,000 rpm. Spindle nose, DIN standard spindle interface. Spindle motor power, approx. 30 kW. Spindle torque, high torque for soft turning applications. Tool system. Tool turret, CNC controlled turret. Number of tool stations, typically 12 positions. Tool holder type, VDI standard. Live tooling, not included, soft turning configuration. Tailstock, CNC controlled tailstock. Quill diameter, approx. 100 mm. Quill travel, approx. 120 mm. Coolant system, included. Chip conveyor, included. Machine accuracy. Positioning accuracy, approx. 0.01 mm. Repeatability, approx. 0.005 mm. Electrical supply data. Supply voltage, 400 V. Frequency, 50 Hz. Dodpfx Asx S Hghjh Sskg Rated current, 110.00 A. Backup fuse, 125.00 A. Connected load, 56.00 kW. Compressed air requirement, approx. 6 bar. Machine dimensions. Machine length, approx. 4,500 mm. Machine width, approx. 2,200 mm. Machine height, approx. 2,100 mm. Machine weight, approx. 8,000 to 9,000 kg depending on configuration. Application, precision soft turning of steel, aluminum, and non hardened materials.

Condition: refurbished (used), Year of construction: 2012, functionality: fully functional, turning length: 2 mm, Cnc GE Fanuc Series 31i-TB Max. bar machining diameter mm 67.5 Max. machining length mm 250 MAIN SPINDLE Max. rotation speed rpm 4000 Spindle nose ASA 6" Spindle bore mm 75 Bearing internal diameter mm 80 Motor power kW 15 SUB-SPINDLE Max. rotation speed rpm 5000 Spindle nose ASA 5" Spindle bore mm 55 Useful through hole mm 45 Bearing internal diameter mm 80 Djdpfxsx S Eyae Ah Sokg Motor power kW 7.5/11 Offset travel mm 120 TURRET 1 & 2 Number of positions 12 Rotation time (1 position) sec 0.15 Driven tool stations No. 12 Max. driven tool speed rpm 4000 Driven tool motor power kW 3.7 Y-axis rapid traverse 100-6 COOLANT Tank capacity l 250 Total electric pump power kW 3.7 DIMENSIONS – WEIGHT Overall dimensions with chip conveyor mm 4150 x 2100 x 2200 h Weight with conveyor kg 6800

Condition: used, Year of construction: 2019, travel -x axis 900 mm travel -y axis 200 mm travel -z axis 800 mm Dkodsx Szmvopfx Ah Sog B-axis swival range ° positioning accuracy C: 9 '' control SIEMENS number of spindle speeds 0 - 6.000 CNC turning and milling center vertical | PITTLER - PV 315 The machine is in very good condition. Technical data of the machine will follow soon. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: PV315 | PV-315

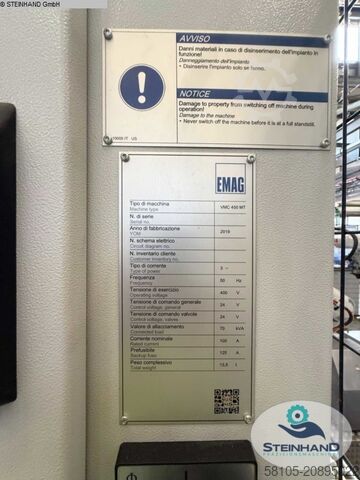

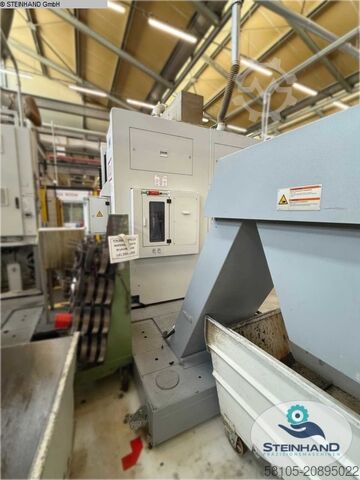

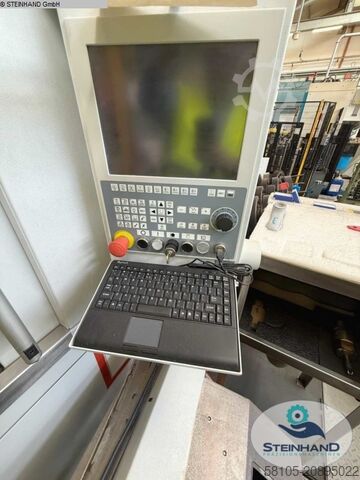

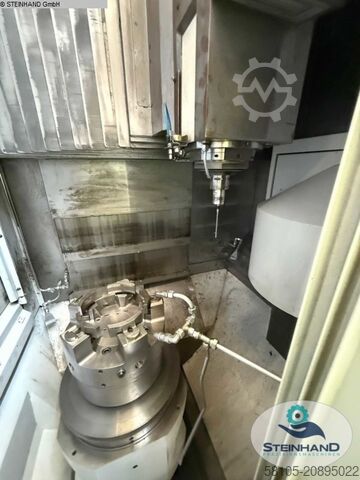

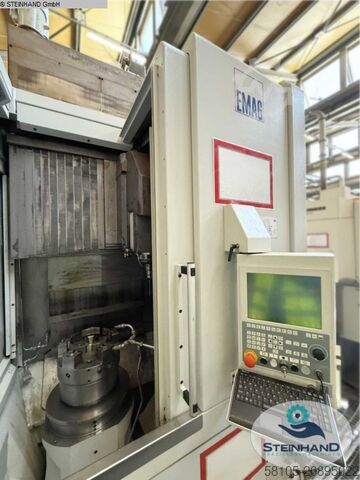

Condition: used, Year of construction: 2019, chuck diameter 500 mm swing diameter over bed slide 700 mm control Siemens travel -x axis 630 mm travel -z axis 500 mm CNC turning and milling center vertical | EMAG - VMC 450 MT The machine is in very good condition. Please note that the technical details were added from comparable machines. Dedpjx Szlrjfx Ah Sskg - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VMC450MT | VMC 450MT | VMC-450 | VMC-450MT

Condition: like new (used), Year of construction: 2023, operating hours: 1,000 h, functionality: fully functional, turning length: 640 mm, turning diameter: 460 mm, spindle motor power: 15,000 W, spindle speed (max.): 4,000 rpm, spindle bore: 65 mm, travel distance X-axis: 230 mm, travel distance Y-axis: 120 mm, travel distance Z-axis: 640 mm, Driven tool speed: 12,000 rpm Driven tool power: 8 kW 15-position turret Automatic tailstock Tool length measurement Chip conveyor Djdox Sy Daepfx Ah Sskg Automatic door Robot interface prepared Set of fixed and driven tool holders

Condition: used, Year of construction: 2005, operating hours: 60,683 h, functionality: fully functional, turning length: 1,524 mm, turning diameter: 820 mm, spindle speed (min.): 3,300 rpm, spindle bore: 104 mm, travel distance X-axis: 870 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 1,598 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 40 m/min, Equipment: rotational speed infinitely variable, MAZAK CNC Turning Machine MODEL: INTEGREX e-500 HS /U1500 with Mazatrol 640M PRO Control for sale. The machine is in good condition and can be inspected under power on site. The machine maintenance can be documented. In 2025, the X and Y axes were replaced. The milling spindle and gearbox were replaced in 2024. Technical Data - Max. swing diameter: 820 mm - Max. turning diameter: 820 mm - Max. turning length: 1524 mm Main spindle: - Speed range: 0-3300 rpm - Drive power: 30 kW / 22 kW - Max. torque: 588 Nm - Spindle nose: A2-11" - Spindle bore: 104 mm - Indexing: 0.0001 Sub spindle: - Speed: 0-3300 rpm - Drive power: 30 kW / 22 kW - Max. torque: 588 Nm - Spindle nose: A2-11" - Indexing: 0.0001 Milling spindle: Dsdpfsx Syldsx Ah Sjkg - Drive power: 37 kW - Max. torque: 260 Nm - Speed range: 0-10,000 rpm - Tool holder: SK50 Tool magazine: - Number of tool pockets: 120 Travel: - X: 870 mm - Z: 1598 mm - Z2: 2458 mm - Y: 500 mm - B axis: -30 to 210°, 0.0001° Feed rate: - X/Y/Z: 40 mm/min Machine data: - Connected load: 104 kVA - Operating voltage: 400V / 50 Hz - Required footprint (L x W): 7 x 3.5 m Special accessories: - 120-position tool magazine - High-pressure coolant 70 bar - Renishaw - Laser measurement system for rotating tools - Interface set - Air/water through-spindle cooling - Overload monitoring system - Mayfran Consep 2000 chip conveyor - SMW quick-change chuck

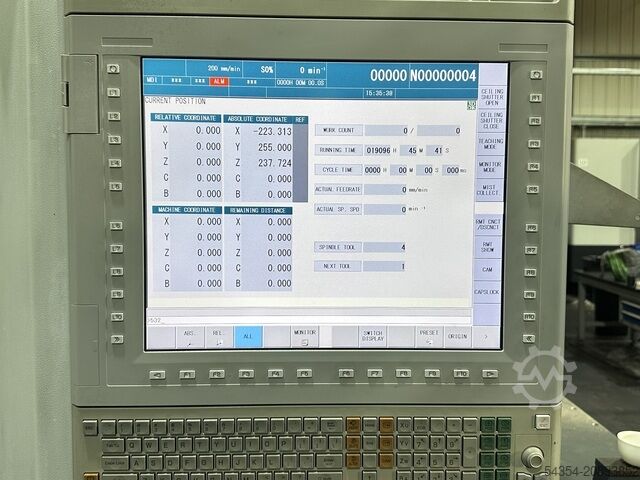

Condition: used, Year of construction: 2011, Mori Seiki NMV5000 DCG 5-Axis Machining Centre with F31iA5 Control, Spindle Taper BT40, Max Spindle Speed 12,000rpm (22/18.5kW), 61 Position ATC, Hydrajet WP10-1000 High Pressure Through Spindle Coolant. S/No. NM501JK0592 (2011) Djdpfxsx Syf Rj Ah Sokg Location: These lots are located in Tamworth, UK. Unfortunately there are no loading facilities on-site, dismantling and loading will be at the cost of the Purchaser. All/Any tooling is being offered as specifically described.

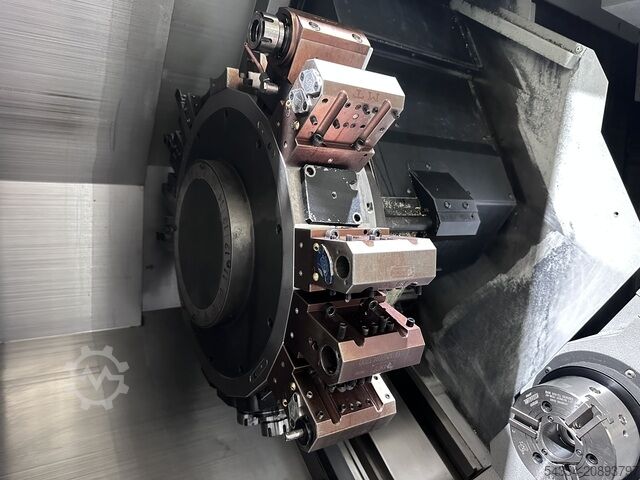

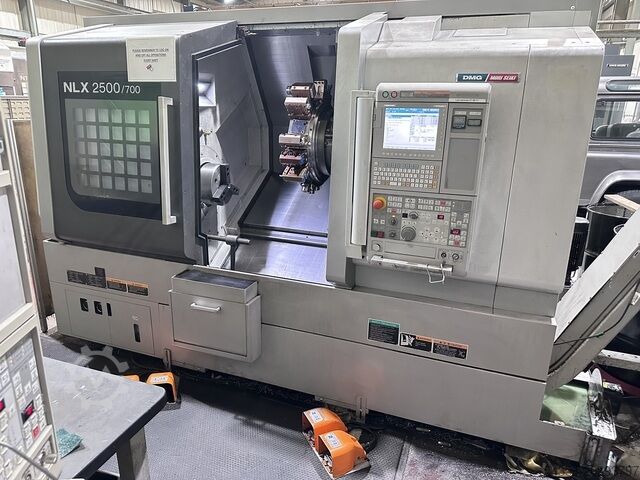

Condition: used, Year of construction: 2012, Mori Seiki NLX2500SY/700 Turning Centre with MAPPS IV/M730BM Control, Swing Over Bed 920mm, Max Swing Over Cross Slide 742mm, Max Turning Length 705mm, Main Spindle Kitagawa 10” dia Chuck at 4000rpm, Sub-Spindle Kitagawa 6” dia Chuck at 6000rpm, 12 Station Turret, High Pressure Coolant, Bar Feed Interface, Swarf Conveyor, Machine Weight 6,360kgs, Floor Space (L x W x H). S/No. NL254120730 (2012) Dedpfx Ajx Sydgoh Sokg Location: These lots are located in Tamworth, UK. Unfortunately there are no loading facilities on-site, dismantling and loading will be at the cost of the Purchaser. All/Any tooling is being offered as specifically described Auction 3444 - Ends on 22/01/2026 at 3pm (UK Time) Visit our website for more details...

Condition: used, Year of construction: 2013, Mori Seiki NLX2500SY/700 Turning Centre with MAPPS IV/M730BM Control, Swing Over Bed 920mm, Max Swing Over Cross Slide 742mm, Max Turning Length 705mm, Main Spindle Kitagawa 10” dia Chuck at 4000rpm, Sub-Spindle Kitagawa 6” dia Chuck at 6000rpm, 12 Station Turret, High Pressure Coolant, Bar Feed Interface, Swarf Conveyor, Machine Weight 6,360kgs, Floor Space (L x W x H). S/No. NL254130936 (2013) Dksdpfxox Syahs Ah Sog Location: These lots are located in Tamworth, UK. Unfortunately there are no loading facilities on-site, dismantling and loading will be at the cost of the Purchaser. All/Any tooling is being offered as specifically described.

Condition: good (used), Year of construction: 1995, Centre height: 330 mm Centre distance: 2000 mm Working area: Max. turning diameter over bed cover: 650 mm Max. turning diameter over cross slide: 360 mm Main spindle: Spindle diameter at front bearing: 140 mm Spindle bore: 107 mm Main drive: 58.5 kW 2-speed spindle range: 4 – 750 rpm / 750 – 3060 rpm Feed drive: Rapid traverse X-/Z-axis: 10/10 m/min Turret: Number of tool positions: 12 Driven tool positions: 6 Tool shank holder: VDI 50 mm Dimensions / Weight: Required floor space (L x W x H): approx. 6400 x 2150 x 2000 mm Weight: 9400 kg Accessories / Special features: • CNC path control GRUNDIG EPL 2 with color monitor • Spindle orientation C-axis Dedsx Sx Htspfx Ah Sekg • 12-station turret, VDI 50, with 6 driven tools, SAUTER brand • Hydraulic 3-jaw chuck • Hydraulic tailstock • Chip conveyor • Extraction unit, LTA brand • CE-compliant Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, turning length: 550 mm, spindle speed (max.): 4,000 rpm, spindle bore: 50 mm, travel distance X-axis: 190 mm, travel distance Z-axis: 445 mm, rapid traverse X-axis: 20 m/min, rapid traverse Z-axis: 24 m/min, spindle nose: A2-6, Equipment: documentation/manual, rotational speed infinitely variable, This HAAS TL-15HE is exceptionally well-equipped in terms of options and comes with an LNS bar feeder and numerous accessories! This machine is supplied including: - LNS Sprint 555 bar feeder with corresponding accessories and guide tubes - Full C-axis on both spindles - Sub-spindle / tailstock - Driven tooling - Tool setting arm - Workpiece collection bin - Auger system for chip removal - Foot pedal - 7 pcs driven WTO toolholders - 12 pcs static HAAS toolholders - Various 3-jaw chucks with matching jaws and collet fixtures - Various spare wear parts Dksdpfex Sx Eiex Ah Ssg - Original HAAS documentation.

Condition: ready for operation (used), Year of construction: 2018, Control Unit Brand MAZATROL Model SMOOTH X Main Drive Number of spindles 2 Spindle speed range 1 - 3300 rpm Spindle bore ø112 mm (ø4.41 inches) Number of axis 5 Movement X-Axis Movement 615 mm X-Axis Rapid Traverse 50 m/min Y-Axis Movement 260 mm Y-Axis Rapid Traverse 40 m/min Z-Axis Movement 2563 mm Z-Axis Rapid Traverse 40 m/min W-Axis Rapid Traverse 30 m/min Dkjdox Stk Tspfx Ah Sjg Tools Number of index 72 Max weight 12 kg Max tool diameter 90 mm Type of tool holder HSK-A63 (T63) This 5-axis Mazak Integrex i-400S-2500U was manufactured in 2018, featuring Mazatrol SMOOTH X Control and a Hydrafeed MSV110 Barfeed. It offers a maximum machining diameter of ø658 mm and a length of 2,497 mm. Equipped with a milling spindle speed of 12,000 rpm and a tool storage capacity of 72 tools, this turn-mill centre is ideal for complex machining tasks. If you are looking to get high-quality turning and milling capabilities, consider the Mazak Integrex i-400S-2500U machine we have for sale. Contact us for more information. Application Types Turning

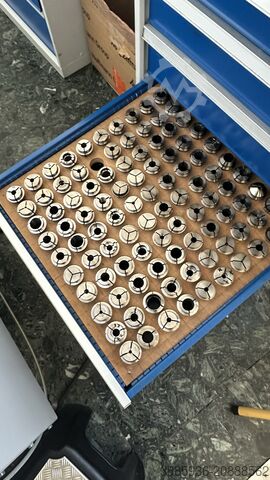

Condition: excellent (used), Year of construction: 2014, operating hours: 43,000 h, functionality: fully functional, For sale is a high-precision CNC turning and milling center Spinner TC300-52, manufactured in 2014. The machine is in very well-maintained condition and was primarily used for prototype and small batch production. It has never been subjected to heavy-duty, maximum-load 3-shift continuous operation, which is reflected in its excellent mechanical condition. The machine is under power and ready for demonstration at the Freiburg location! The spindle hours are significantly lower than the total operating hours! This machine is sold including a comprehensive tooling package and a wide range of tool holders, numerous collets for main and sub spindle, as well as several reduction sleeves. The tooling and accessories alone (including numerous driven double tool holders) have a new replacement value of approximately €15,000 to €20,000. This makes the machine the ideal solution for companies aiming to start highly complex production immediately, without lengthy additional investments. Documentation: The original order confirmation, detailing the complete equipment specification, is available for inspection. - Location: 79115 Freiburg (DE) - Availability: The machine is under power, available for demonstration, and can be delivered immediately. - Scope of delivery: Includes tool holders, collets, and complete documentation. • Year of manufacture: 2014 • Control: Siemens 840D-SolutionLine with 15" color display and ShopTurn (conversational programming) • Working area: X 180 mm / Z 450 mm / Y +/- 40 mm • Spindles: main spindle (5,000 rpm) & sub spindle (7,000 rpm), both liquid-cooled motor spindles • Tool turret: 12 stations (VDI25), all driven (up to 6,000 rpm) • Bar capacity: up to Ø 52 mm • Coolant package: Switchable 15 bar high-pressure pump for internally cooled tools • Measurement systems: Integrated tool probe arm for quick setup Djdpfx Ahsx Sr Uws Sokg • Workholding: Collet chucks from SMW Autoblok (185E and 164E) incl. reduction sleeves • Safety & convenience: Clamping force regulation via differential pressure on the sub spindle (ideal for delicate parts), parts catcher with catch box, and hinged belt chip conveyor • Precision guide concept: Unlike standard machines, Spinner utilizes hardened and ground slideways on all axes, providing superior vibration damping, excellent surface finishes, and longer tool life • Fully equipped (All-Inclusive): The machine features a Y-axis (+/- 40 mm) and a full-fledged sub spindle, enabling complete machining of complex parts in a single setup • Advanced measurement technology: Absolute measuring systems (glass scale in X1) eliminate the need for referencing after startup

Condition: good (used), Year of construction: 2003, For sale is a high-quality CNC lathe from the renowned manufacturer INDEX, model G200. Technical specifications: • Model: INDEX G200 • Suitable for turned parts up to Ø 200 mm • Year of manufacture: 2003 (according to nameplate) • Quantity: 2 available • Equipment: • Includes bar feeder • Includes measuring device Dsdpfx Ahox Srkfs Sekg The machines come from the production facilities of a German automotive manufacturer and have been regularly and professionally maintained by in-house maintenance staff. Accordingly, the condition is rated as very well maintained. Location: Germany Collection of the machine is possible in January 2026. Machine demonstrations under power can be arranged at any time. If you are interested or require further information or an inspection appointment, please contact me directly.

Condition: used, Year of construction: 2008, Mazatrol Matrix CAM PC workstation with full-featured 5-axis license (incl. PCI card & PC) Description: A complete, ready-to-use PC workstation with the powerful Mazatrol Matrix CAM software is for sale. The license is perpetual and hardware-bound via a PCI card. The system was used on 5-axis machines (Integrex e-1060 V8/II) and includes rare high-end options. The PC has been recently reinstalled and is fully functional. Ideal for companies with an older Mazak machine park looking for an independent programming solution. Dsdpfx Ahjx Sq Nms Sskg Details on license & options: The following key options are unlocked and active (see photos): - 40 SIMULTANEOUS 5 AXIS (simultaneous 5-axis machining) - 49 TILTED WORKING PLANE - 55 TOOL CENTER POINT CONTROL Additional basic options such as EIA, Smoothing Control, Spiral, etc. (see photo of the options menu) Scope of delivery: - PC system: Windows 7 Pro x86 (32 Bit), Intel i5-3470 3.2 GHz, 4 GB RAM, AMD Radeon HD7570 GPU. - The fully functional computer with installed operating system (Windows 7 Pro_x86) and pre-installed software. - PCI license card: The physical license hardware installed in the PC. - Original packaging: The original packaging of the software as shown. Documentation: Manual, original CDs/media

Condition: reconditioned (used), Year of construction: 2008, functionality: fully functional, turning length: 2,129 mm, turning diameter: 550 mm, spindle motor power: 26 W, spindle speed (min.): 30 rpm, spindle speed (max.): 3,000 rpm, spindle bore: 90 mm, travel distance X-axis: 362 mm, travel distance Z-axis: 2,155 mm, rapid traverse X-axis: 16 m/min, rapid traverse Z-axis: 18 m/min, type of input current: three-phase, total height: 2,305 mm, total length: 5,550 mm, total width: 2,300 mm, overall weight: 9,800 kg, Equipment: documentation/manual, rotational speed infinitely variable, USED ​​DOOSAN 2-Axis lathe with FANUC 21i-TB CNC Djdpfex Sqwwjx Ah Sekg

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, DOOSAN PUMA 3100ULY (2012) CNC LATHE WITH ROTARY TOOLS AND “Y” AXIS – “Z” TRAVEL: 3,000 mm SPECIFICATIONS: - FANUC i Series CNC, 10.4” LCD Color Manual Guide - Swing over bed: 850 mm - Swing over saddle: 670 mm - Maximum turning diameter: 420 mm - Maximum turning length: 3,125 mm - Axis travel: X 210 mm, Y ±60 mm, Z 3,125 mm - Chuck size: 400 mm (*) - Bar capacity: 102 mm - Spindle nose: ASA A2#11 - Main spindle: 2,800 rpm, 22 kW - Turret: 12 stations (indexing time per position: 0.25 sec) - Rotary tool motor: 7.5 kW, 5,000 rpm - C-axis indexing: 0.001 mm - Tailstock travel: 3,135 mm INCLUDED EQUIPMENT: - Samchully MH-212 315 mm hydraulic chuck - C axis: 360° (0.001° increments) - Automatic tool setter Dsdpfxjx Sqkwj Ah Sekg - Built-in tailstock - Programmable tailstock - High-pressure pump - Chip conveyor - Mechanical, hydraulic, and electrical preparation for automatic steady rest - SMW AUTOBLOK SLU-X-4-ZS hydraulic steady rest - Complete standard toolholder set for internal and external machining, including 4 rotary holders (2 straight, 2 angular) - Set of manuals (Doosan and Fanuc) (All specifications to be confirmed) CONDITION: Under power, in excellent condition. Ready for inspection. Immediate delivery.

Condition: reconditioned (used), Year of construction: 2018, functionality: fully functional, turning length: 400 mm, turning diameter: 420 mm, spindle motor power: 22 W, spindle speed (min.): 30 rpm, spindle speed (max.): 3,000 rpm, travel distance X-axis: 268 mm, travel distance Z-axis: 488 mm, rapid traverse X-axis: 20 m/min, rapid traverse Z-axis: 24 m/min, type of input current: three-phase, total height: 3,210 mm, total length: 3,600 mm, total width: 1,900 mm, overall weight: 6,000 kg, Equipment: documentation/manual, rotational speed infinitely variable, USED ​​DOOSAN 3-axis CNC vertical lathe with live tools and C-axis Dkjdpfxox Sqafe Ah Seg

Condition: like new (used), Year of construction: 2023, operating hours: 3,751 h, functionality: fully functional, turning length: 700 mm, turning diameter: 356 mm, spindle speed (min.): 6,000 rpm, spindle bore: 81 mm, travel distance X-axis: 260 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 795 mm, DMG MORI NLX2500/700 universal lathe with Y-axis, bar loader and driven tools. Main and counter spindle. Spindle bore diameter: 81 mm. An optional tooling package worth €60,000, which was purchased together with the machine, is available. Dsdjx Sp Izepfx Ah Sskg

Condition: used, SAMSUNG SMEC PL-60L Ø1,030 x 3,200 mm / 2016 Model Machining Capacity / Fanuc Oi TD CNC Controller • Swing over bed: Ø 1,030 mm (32 inch hydraulic chuck) • Swing over cross slide: Ø 800 mm • Maximum turning diameter: 530 mm • Maximum machining diameter: Ø 900 mm • Maximum turning length: 3,200 mm (Ø 45~310 mm with hydraulic steady rest) • Maximum chuck machining diameter: 139.5 mm Axis Travel • X-axis travel: 470 mm • Z-axis travel: 3,270 mm Dkjdpfx Ahjx Scprs Sjg Spindle • Spindle bore: 1,500 mm • Spindle nose size: 21" • Spindle nose type: A2-15 • Spindle through hole diameter: Ø152 mm Turret (Standard) • Number of tool stations: 12 (Standard) • Tool shank size: □32 mm • Boring bar shank size: Ø80 mm Tailstock • Tailstock travel: 3,270 mm • Quill diameter: Ø180 mm • Tailstock taper: MT-6 (built-in) • Tailstock stroke: 150 mm Power & Installation • Power requirement: 65 kVA • Machine dimensions (L × W): 7,400 × 2,760 mm • Machine weight: 22,000 kg

Condition: used, Haas Mini mill 2, year 2010, from Research & Development facility, vices and tooling not included in images. Dkjdpfsx Sauxex Ah Seg

Condition: used, XYZ SMX 2500, Year 2017, from research and development facility, tooling and vices in images not included. Dodpfsx Saulex Ah Sjkg

Condition: used, Year of construction: 2013, Mori Seiki NTX2000/1500SZM 5-Axis Mill/Turn with F31iB5 Control, Main Spindle Kitagawa 10”dia Chuck at 4,000rpm, Sub-Spindle Kitagawa 10”dia Chuck, 76 Position ATC, 10 Station Indexing Turret, Spindle Taper Capto C6, SMW SLU 3.2 Hydraulic Steady, High Pressure Coolant, Swarf Conveyor. S/No. NTX20130611 (2013) Location: These lots are located in Tamworth, UK. Unfortunately there are no loading facilities on-site, dismantling and loading will be at the cost of the Purchaser. All/Any tooling is being offered as specifically described. Djdpfxox R Uc Us Ah Sjkg
