Condition: excellent (used), Year of construction: 2023, saw blade diameter: 460 mm, cutting height (max.): 146 mm, TECHNICAL SPECIFICATION .. max. diameter of saw blade: 460 mm .. cutting capacity round: 146 mm .. cutting capacity square: 138 mm .. mitre cutting: no .. .. oblong: 250 mm .. .. .. x: 100 mm .. .. to: 220 mm/min DIMENSIONS / WEIGHTS .. space requirements -left/right-: 2200 mm .. space requirements -front/back-: 1950 mm .. total height: 2000 mm .. total weight approx.: 2700 kg High-performance automatic saw for cutting aluminium and non-ferrous metal profiles to length in 90° cuts. With feed conveyor and discharge / vibrating section and extraction system. - max. profile width / height to be processed: 250 / 148 mm - Min. profile width / height to be processed: 10 / 20 mm - Cut-off lengths from 10 mm Nlodpfexzbrnjx Aadei - Saw blade motor 12/18.5 KW, S6 60%

Condition: refurbished (used), Year of construction: 2010, functionality: fully functional, saw blade diameter: 680 mm, sheet thickness aluminum (max.): 200 mm, total length: 9,200 mm, total width: 7,300 mm, total height: 2,500 mm, type of input current: AC, rotational speed (min.): 500 rpm, rotational speed (max.): 4,500 rpm, cutting height (max.): 215 mm, warranty duration: 3 months, overall weight: 12,000 kg, workpiece weight (max.): 2,000 kg, section length (min.): 80 mm, section length (max.): 3,300 mm, working height: 1,050 mm, input voltage: 400 V, year of last overhaul: 2025, saw drive: 40,000 W, operating pressure: 6 bar, input current: 86 A, sheet thickness brass (max.): 200 mm, Equipment: CE marking, documentation/manual, rotational speed infinitely variable, Schelling FTM 330 DT Precision cut-to-size saw for aluminum and non-ferrous metals Year of construction: 2010 Operator software: MCS Evolution Operating system: Windows 10 Control system: Siemens TIA Cutting length max.: 3.333 mm Cutting width max.: 3.250 mm Cutting height max.: 160 mm with saw blade Ø 620 mm Cutting height max.: 200 mm with saw blade Ø 680 mm Saw blade projection max.: 185 mm with saw blade Ø 620 mm Saw blade projection max.: 215 mm with saw blade Ø 680 mm Saw blade diameter max .: 680 mm Main saw motor: 40 kW Saw aggregate forward: 0,1 up to 60 m/min Saw aggregate backward: up to 60 m/min Feeder reverse: up to 30 m/min Feeder forward: up to 25 m/min (Europe: acc. EN 1870-13) Number of material clamps: 9 pcs. Clamp opening max.: 220 mm Strip aligner before and behind the pressure beam Machine table with air cushion function Frequency converter for main saw motor 40 kW Block-cutting function up to 200 mm Cutting height Automatic cutting length adjustment Saw blade monitoring device Central cleaning system – saw machine Minimum lubrication system for saw blade with 3 nozzles Dust protection device Turn table with air cushion function Turn table with steel surface (3.200 x 1.600 mm) Turn table rotatable and slideable Nledpfoxx U Hgox Aadji This machine is in very good condition and in perfect working order. The machine has been refurbished, inspected and tested in our company. Errors and alterations in the technical datas and informations excepted!

Condition: used, Year of construction: 2006, cutting length (max.): 3,200 mm, saw blade diameter: 650 mm, cutting height (max.): 200 mm, cutting width (max.): 3,200 mm, saw drive: 35,000 W, input frequency: 50 Hz, type of input current: AC, input voltage: 400 V, compressed air connection: 6 bar, sheet thickness aluminum (max.): 200 mm, space requirement length: 6,855 mm, space requirement width: 6,280 mm, space requirement height: 2,400 mm, working height: 1,100 mm, Mayer AL 160 Panel beam saw for aluminum and non-ferrous metals with a maximum package height of 200 mm. Technical data: Year of manufacture: 2006 Cutting length: 3,200 mm Cutting width: 3,200 mm Maximum package height: 200 mm Maximum material clamp opening: 210 mm Saw motor power: 35 kW Saw blade diameter: 650 mm Saw unit forward speed: 0.2 - 60 m/min. Saw unit reverse speed: 60 m/min. Material pusher forward speed: 10 m/min. Material pusher reverse speed: 20 m/min. Extraction connections: 1 x Ø 140 mm, 1x Ø 160 mm Pneumatic operating pressure: min. 5 bar, max. 6 bar Pneumatic compressed air requirement: 720 Nl/min. Nledpfexx Anljx Aadji Working height: 1,100 mm Overall height: 2,400 mm Installation length: approx. 6,855 mm Installation width: approx. 6,280 mm Condition: The machine is largely functional and is currently in use in production.

Condition: excellent (used), Year of construction: 2007, Complete saw line consisting of loading unit, fully automatic circular saw, and unloading unit Nsdpoxvbvvefx Aadjli Loading Unit: Horizontal loading magazine model HLM 4-strand timing belt conveyor 6 compartments, each 285 mm wide, for holding profiles Maximum material height as per saw cutting area; round material max. diameter 130 mm 3 glide strips between timing belts provide additional support Profile length min. 2,700 mm, max. 6,500 mm Saw: Fully automatic circular saw Pressta-Eisele model PROFILMA 510 E-SA Maximum saw blade diameter: 500 mm Continuously variable speed adjustment Hydro-pneumatic saw blade feed, infinitely adjustable, from rear to front Siemens S7-300 controller with touchscreen Reversing device with five-fold stroke up to max. 5,000 mm Electric material feed 3 - 1,000 mm (single stroke) Cutting gap extension, both sides Pneumatic extraction slide Scrap flap after the saw for offcuts / remnants Cut-off length depends on profile, from 8 mm Menzel minimal quantity lubrication Clamping pressure regulation 2 extraction nozzles for dust collection Unloading: Table area 1,500 mm x 2,500 mm Pneumatic cross transfer

Condition: refurbished (used), Year of construction: 2025, Complete Overhaul 2025 Saw Blade: 350 - 400 mm Motor Power: 6.5 / 8.5 kW Speed: 1,500/3,000 rpm Cutting Speed: 1,650 – 3,800 m/min Saw Height Adjustment: Electronic Working Range Square, max.: 120x120 mm Working Range Flat, max.: 200x100 mm Working Range Flat, max.: 250x70 mm (for extra width only) Working Range Round, max.: 130 mm Saw Feed Rate: 0 – 40 mm/s, infinitely variable Cut Length: 5-600 mm (up to 9,999 mm with multiple strokes) Feed Speed, max.: 500 mm/s Weight: approx. 1,300 kg Dimensions (LxWxH): 1,800 mm x 1,300 mm x 1,950 mm The machine will be completely overhauled in our facility and will subsequently be in as-new condition. The following components, among others, will be renewed: - Conversion to PLC control - Conversion to Siemens HMI operator interface - Conversion to ball screw with servo drive - New electrical components - New pneumatic lines - New pneumatic components - Conversion to valve terminal - Optimization of extraction performance - New minimum quantity lubrication system - Replacement of general wear parts - Overhaul of the machine enclosure The machine additionally features: - Soundproof enclosure - Spacer extension (for high-quality cut surfaces without return marks) Optional: - Multiple clamping device for parallel sawing of multiple workpieces - Flat magazine for automatic feeding of raw materials up to 6 m long - 7.5 kW motor Nledjxpqzhepfx Aadoi - 12 kW motor - Delivery and installation at your site - Training for your staff

Condition: like new (used), Year of construction: 2024, operating hours: 9 h, functionality: fully functional, machine/vehicle number: 190551920245099737, saw blade diameter: 500 mm, We are selling a saw-drilling-threading automation machine, Profilma 540 BG, designed for cutting to length, drilling, and threading of aluminium profiles. This is a special-purpose machine that was purchased for the production of solar components. The scope of delivery includes: Nodpfoxmhhgsx Aadjli - Roller conveyor RD500, length 6000 mm - Pre-installation for chip extraction MG9 - Database for storing cutting data under profile number - 32 pcs combined machine taps M8x1.25 - 2 pcs carbide saw blades 500x3 mm The machine has only 9 operating hours.

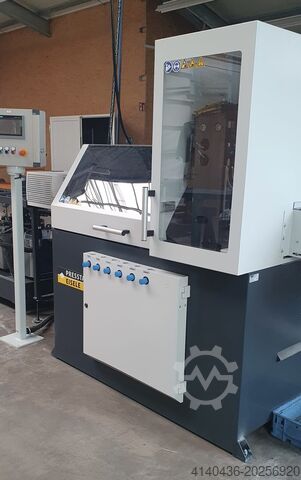

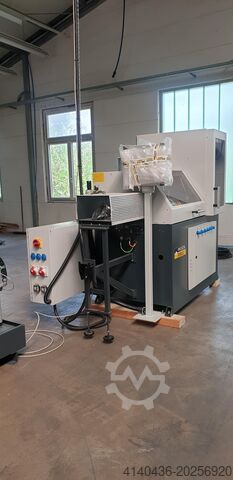

Condition: like new (used), Year of construction: 2024, operating hours: 190 h, functionality: fully functional, machine/vehicle number: 190551920245099676, saw blade diameter: 500 mm, We are selling a saw automatic saw-punching solution Profilma 502ST-V for cutting to length and punching aluminium profiles. This is a special-purpose machine that was acquired for the production of solar mid clamps. Nledoxmhf Ejpfx Aadei

Condition: used, Year of construction: 1997, saw blade diameter 350 mm capacity 90 degrees: round 120 mm capacity 90 degrees: square 110 mm capacity 90 degrees: flat 200x88 mm capacity 45 degrees: round 115 mm capacity 45 degrees: square 110 mm capacity 45 degrees: square 150x80 mm Nlsdpoxf I U Defx Aadei total power requirement 1,5/1,8 kW weight of the machine ca. 0,59 t dimensions 1,9 x 1,4 x 1,8 m Fully automatic hydropneumatic machine · Left/right miter cuts · Head bevel cuts up to 45° (shifter) · Material feed unit with material clamp · Integrated coolant spray system · MPS control: · Saves cut start/end times · Displays power consumption, workpiece count, cutting time, etc. · Adjustable water cooling · Cutting pressure regulator

Condition: new, saw blade diameter 350 x 32 mm capacity 90 degrees: round 120 mm capacity 90 degrees: square 105 x 105 mm capacity 90 degrees: flat 180 x 70 mm capacity 45 degrees: round 120 / 110 mm capacity 45 degrees: square 100x100 / 95x95 mm capacity 45 degrees: flat 135 x 60 mm turning speeds 1700 / 3400 U/min Control MEP CNC total power requirement 2.6 / 3.5 kW weight of the machine ca. 605 kg range L-W-H 2210 x 1680 x 2150 mm Features: - Semi-automatic high-performance circular saw * For cuts from 45° right to 45° left * In aluminum and light metal alloys - MEP microprocessor control * Simple user interface with display and mechanical buttons * Start and end positions of the saw head can be saved - Manually opened safety cover - Mechanical stops at -45°, +0°, and +45° * Enable quick positioning of the saw head - Pneumatic vise with quick-release clamp * Pneumatic clamping system allows adjustment of the clamping pressure * Depending on the hardness of the material to be cut * A pneumatic vertical vise is available as an option - Heavy-duty cast iron construction ensures . vibration-free operation and maximum precision - The saw head can also be tilted up to 45° - 2 sawing speeds - Base frame with lockable door - Pneumatic cooling and lubrication Njdpfxexaa Uxo Aadjli - Machine base frame Included in delivery: - Adjustable length stop 600 mm - Tool kit - Mounting adapter for feed roller conveyor including 1 support roller - Tool kit - Detailed operating instructions, maintenance manual, etc. - Machine is delivered without a saw blade!

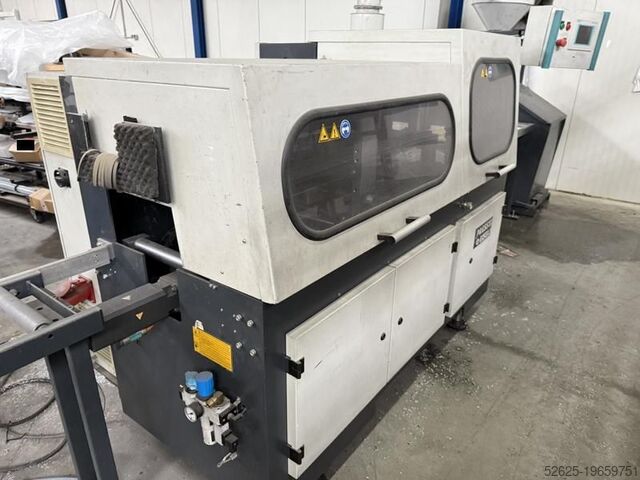

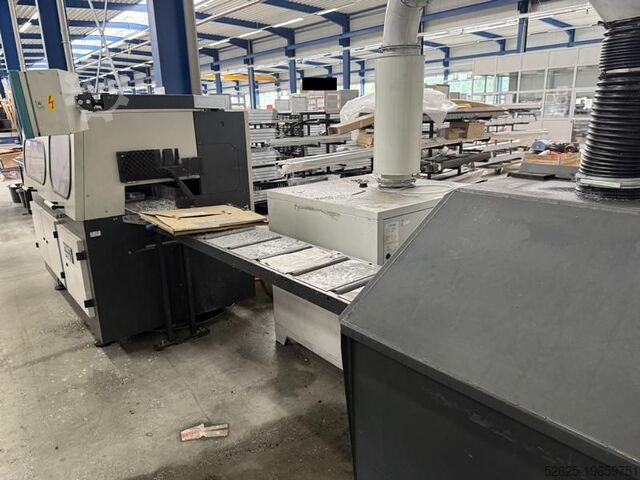

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, High-performance automatic sawing machine / Brand: PRESSTA-EISELE Type: Profilma 510 / Year of construction: 09/2008 Description: * High-performance automatic sawing machine with fully automatic operation, * Very high cutting accuracy, * Low cycle times, * Burdere-free sawing, * High reliability, * Low maintenance Suitable for aluminum and plastic, for cutting large quantities of small parts, length tolerance 1/10 mm. The automatic sawing machine can be inspected and tested by appointment. Previous use: Used for cutting corner connectors. Condition: Very well maintained, used, ready to use. Technical specifications: - Saw motor: 7,5 kW, S6 - Speed: 2.000 - 3.500 rpm - Cutting speed: up to 92 m/s - Material feed length: up to 1.000 mm / 5-fold reversal possible - Section length: from 8 mm depending on profile - Remaining piece length: from 90 mm depending on section length - Working pressure: 6 - 8 bar - Power supply: Standard: 400 V, 50 Hz - Weight: 1.750 kg Nsdpfxow D T Uis Aadeli - Dimensions Length/Depth/Height: 2.700 x 1.400 x 2.300 mm Equipment: - Control via Siemens S7 panel - Fully automatic bar feed - Roller conveyors - Extraction - Chip bunker - Various accessories - CE marking There is no guarantee for correctness and completeness of the technical details and accessories.

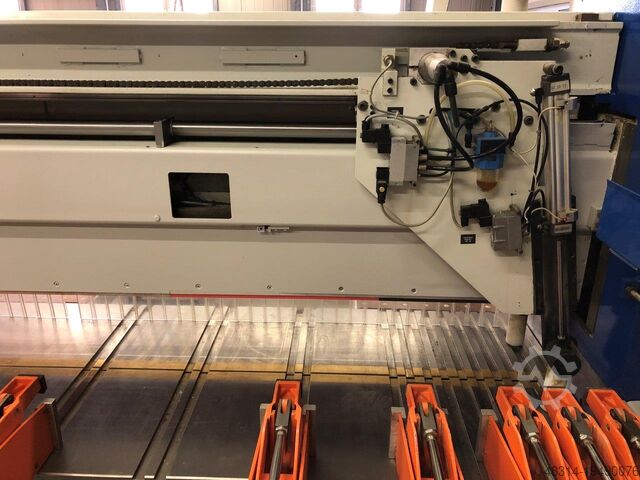

Condition: used, Year of construction: 2002, functionality: unexamined, cutting height (max.): 100 mm, cutting length (max.): 3,230 mm, power: 21 kW (28.55 HP), cutting width (max.): 3,100 mm, main saw diameter: 450 mm, Machine type: FLM 330-310 / MCS-F Cutting length: 3,230 mm Cutting width: 3,100 mm Year of construction: 2002 Saw blade projection max .: 130 mm Saw blade diameter max .: 450 mm Main saw motor: 21 kW Scorer aggregate Scorer saw blade diameter max .: 200 mm Package height max .: 100 mm Package height min .: 10 mm Saw aggregate forward: 0,2 up to 50 m / min Saw aggregate backward: up to 50 m / min Feeder: up to 25 m / min (Europe: forward 25 m/min acc. EN 1870-13) Number of clamps: 8 pcs grip push clamp Clamp opening: 130 mm Strip aligner before and after the pressure beam Air cushion tables: 2 pcs. (2200 x 700 mm) Roller table: Cross aligning device in the roller table Cross alignment stop at the roller table Machine table: Nsdeww Hk Ropfx Aadjli heavy-duty steel construction machine table surface is precision machined Brass table lips Automatic cutting length adjustment Errors and alterations in the technical datas and informations excepted! (displayed photos are symbol photos)

Condition: like new (used), Year of construction: 2017, Used automatic circular saw for aluminium MEP Cobra 352 nc 5.0 Year of manufacture: 2017 Blade dimensions: 350x32x3.4 mm Blade cutting speed: 1700/3400 rpm Cutting angle: from -45° to +45° Cutting capacity: at 0° – round: 120 mm, square: 105 mm, rectangle: 180x70 mm Nledpswu Tz Rjfx Aadsi Touchscreen Machine weight: 605 kg

Condition: used, Year of construction: 2011, functionality: fully functional, machine/vehicle number: 2875, saw blade diameter: 500 mm, feed length X-axis: 180 mm, feed length Y-axis: 155 mm, feed length Z-axis: 6,000 mm, total length: 9,000 mm, total width: 2,700 mm, total height: 1,700 mm, rotational speed (max.): 2,800 rpm, overall weight: 1,500 kg, pivoting range: 45 °, compressed air connection: 6 bar, Equipment: cabin, documentation/manual, rotational speed infinitely variable, The TK 804/1 is an automatic system for processing and cutting aluminum profiles, designed to minimize manual interventions by the operator throughout the entire work cycle, limiting them solely to loading and unloading the profiles. The machine can be equipped with up to four electrospindles, which enable drilling operations on the profiles before they are cut. Nedpswuuanofx Aadsli

Condition: new, Year of construction: 2023, SPECIAL PRICE, Stock machine Year 2023, Condition: new List price + option minimal lubrication system LUBETOOL: €15,370 STOCK MACHINE – Fully Automatic Aluminium Circular Saw 90° Cut With easy, safe operation and excellent cutting performance. This machine is only capable of 90° cuts! Technical data: ● Cutting capacity: 90° round: 100 mm / square: 100 x 100 mm / rectangular: 170 x 60 mm ● Drive power: 1.9 kW / 400 V / 50 Hz ● Speed: 3,000 rpm ● Feed: Single-stroke feed 300 mm (double stroke up to 600 mm) ● Max. cutting height: 100 mm ● Blade size: 350 x 32 mm Standard features: ● Machine for 90° cuts, equipped with a powerful drive motor ● Clear, large-sized control panel ● Adjustable cut-off length from 5 to 300 mm via handwheel and counter ● Main vice with 3 pneumatic clamping cylinders: 1 horizontal, 2 vertical ● Feed vice with horizontal and vertical pneumatic clamping cylinder ● Large safety guard, fully covering the working area, pneumatically lifted ● Adjustable cutting and feed speed ● Air gun for cleaning the machine ● Connections for extraction system Optional, mounted on stock machine: ● Minimum quantity lubrication system "LUBETOOL" with one pump and pressure regulation Nodpfx Asvurgysadjli

Condition: like new (used), Year of construction: 2023, functionality: fully functional, machine/vehicle number: G90230201, saw blade diameter: 350 mm, total length: 1,500 mm, total width: 970 mm, total height: 1,400 mm, cutting height (max.): 100 mm, overall weight: 350 kg, saw blade speed: 3,000 rpm, input voltage: 400 V, Automatic CNC controlled circular saw for cutting and drilling / tapping aluminium. Tronzadoras MG - GAA-350-90+CNC+TR12 • Automatic cycle. • 700 mm ballscrew feeder. • OMRON controller. • 10 programs with 30 lines. • 20 parts in memory. • Emergency stop. • Adjustable feeding and cutting speeds. • Automatic adjusted cutting length with multiple advances. • Cut to 90º. • Automatic air-oil cooling. Nljdpfxovl Eahs Aadei • Semi-automatic or fully automatic operation. The machine is inspected, serviced and ready for work.

Condition: good (used), Year of construction: 2015, functionality: fully functional, saw blade diameter: 600 mm, cutting range round steel at 90°: 220 mm, For sale: 1 used CNC fully automatic aluminum circular saw incl. suction unit Nljdpouyyhajfx Aadei Manufacturer: Tronzadoras MG Model: GAA-600 - CNC YEAR OF MANUFACTURE: 2015 TECHNICAL DATA - Cutting range round: 220mm, box: 300 x 90mm, square: 175mm - Drive power 4.1 KW / 400 V / 50 Hz - Speed 3000 rpm. - Cutting speed 55 m/sec. - Blade dimensions 600 x 50 mm - max. cutting height 220 mm - Dimension 2020 x 1510 x 975 mm - Weight 650 kg Machine comes incl. 6m infeed roller conveyor and the appropriate extraction system. The saw can be inspected in our warehouse in 09599 Freiberg.

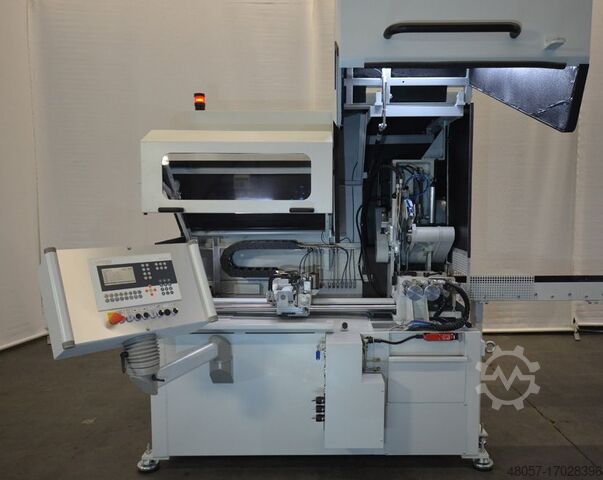

Condition: refurbished (used), Year of construction: 2024, Eisele VA-L-350 Retrofit Fully automatic high-performance sawing machine with feed chain magazine for non-ferrous metals and plastics Manufacturer: Eisele Type: VA-L-350 Overhaul year: 2024 Saw blade, carbide: 350-400 mm Nlodpfx Aaouizlpedoi Drive power, saw motor: 15 KW Saw motor speed: 1500 - 6000 min-1 Saw blade cutting speed: 1650 - 7500 m/min Saw blade feed steplessly adjustable: hydraulic Saw height control infinitely variable: fully electronic Working range square 90° max.: 130 x 130 mm Working range flat 90° max.: 200 x 100 mm Working range round 90° max.: 130 mm Feed length single stroke: 5-900 mm Multiple stroke 5-9999 mm Feed speed servo-controlled feed unit: 350 mm/s Compressed air connection on site: 6-8 bar Weight (saw)approx.:1600 kg (magazine)approx.:2200 kg (optional) Dimensions LxWxH (saw)approx.: 1800mm x1300mm x1950mm (magazine)approx.: 7300mm 3900mm x1200mm (optional) Installation dimensions LxWxH approx.: 9200mm x4800mm x2800mm Thanks to its equipment and design, the machine can be used very efficiently for a wide range of applications. The PLC control system ensures simple and very profitable operation of the machine. Thanks to the powerful motor, short cycle times can be achieved even when sawing thick-walled profiles or solid materials. The soundproof cabin reduces the resulting noise emissions to a minimum. The machine is overhauled in our company at the customer's request. Among other things, the following points will be renewed: - Conversion to Siemens S7 - Renewal of the ball screw drive - New hydraulic lines (hydraulic version) - New pneumatic lines (pneumatic version) - New pneumatic and/or hydraulic components - Overhaul of the control valves - Optimization of the suction performance - Overhaul of the Menzel minimum lubrication system - Replacement of general wear parts - Overhaul of the cab - Replacement of all bearings and wear parts - Replacement of servo and frequency converter The machine is also equipped with - Reinforced motor 15 KW - Minimization of the material residue - Soundproof cabin - Splitting extension (for a high-quality cut surface without return marks) Warranty: Unless otherwise agreed, we provide a 6-month guarantee on all parts overhauled or replaced by us. Working time and wearing parts are excluded from the warranty. Optional: - Mass clamping device for parallel sawing of several workpieces - Hydraulic clamping system - Flat magazine for automatic feeding of primary materials up to 6 m long - Roller conveyors on the infeed side - Roller conveyors on the outfeed side - Delivery and installation on your premises - Training of your employees

Condition: refurbished (used), Year of construction: 2024, Overhauled: 2024 Saw band 250-285 mm Motor power 5.5 KW Cutting speed 35-160 m/min Working range square max.: 15 - 60 mm Working range round max.: 15 - 70 mm Saw feed 2 - 100 mm/s infinitely adjustable Cutting length 5-250 mm Feed speed max. 1000 mm/s Weight (saw)approx.: 1500 kg (magazine)approx.: 800 kg Dimensions LxWxH (saw)approx.: 1100mm x 1600mm x 2300mm (magazine)approx.: 7500mm x 1400mm x 1600mm The machine is suitable for mass cutting of steel due to its equipment and construction and is the predecessor of the KASTOwa C7 and KASTOspeed C9. The machine will be in mint condition after a general overhaul (retrofit), which is guaranteed by our company. The machine will be generally overhauled in our company at the customer's request. Among other things, the following points will be renewed: - New PLC control Siemens S7 - Conversion to Siemens HMI - Conversion to fully electronic section length selection (optional) - New electrical components - New pneumatic lines - Overhaul or replacement of all pneumatic components - New hydraulic lines - Overhaul or replacement of all hydraulic components - Overhaul of Menzel minimum lubrication system - Replacement of general wear parts - Overhaul of the loading magazine - Extension of the safety concept Nljdpfx Aasuizlcodji The machine also has: - a slide-off magazine for 6m bars - Hydraulic material feed unit Warranty: Unless otherwise agreed, we provide a 6-month guarantee on all parts overhauled or replaced by us. Working time and wearing parts are excluded from the guarantee. Optional: - Conversion to spindle extraction - Conversion to trapezoidal spindle stop manual 0-800mm - Conversion to fully electronic ball screw stop 0-800mm - Conversion of main saw drive to 18 KW - Delivery and installation on your premises - Training of your employees

Condition: refurbished (used), Year of construction: 2024, Overhaul year: 2024 Saw blade VHM / HSS: 315 - 360 mm Drive power saw motor: 15 KW Infinitely variable speed: 15 - 130 min-1 Saw blade cutting speed (350 mm): 16.4 - 142.8 m/min Saw height control infinitely variable: electronic Working range square 90° max.: 100 x 100 mm Working range round 90° max.: 110 mm Feed length 5-970 mm (9999 mm multiple stroke) Feed speed AC servo max.: 300 mm/s Compressed air connection on site: 6 bar Saw weight approx.: 1800 kg Dimensions LxWxH: 1900mm x 1250mm x 2100mm Footprint LxW: 1900mm x 1250mm Thanks to its equipment and design, the machine can be used very efficiently for a wide range of applications. The HMI interface for controlling the machine ensures simple and problem-free operation of the system. Following a completed retrofit, the machine is in mint condition, both technically and visually. A viewing of this sawing system is possible at any time. The machine will be completely overhauled in our company at the customer's request. Among other things, the following points will be renewed: - Conversion to PLC control Siemens S7 - Renewal of the ball screw drive with servo control - New electrical components - Renewal of the pneumatic lines - New pneumatic components - Overhaul or renewal of the hydraulic lines - Overhaul or renewal of the hydraulic components - Overhaul of the cab - Overhaul of the motors - Replacement of all bearings Nodpfxouizins Aadsli - Replacement of general wear parts The machine also has - Reinforced motor 15 KW - Soundproof cabin - Splitting extension (for a high-quality cut surface without return marks) - Frequency control motor - Minimum quantity lubrication - Automatic central lubrication system - Pneumatic chip space cleaning on the saw blade Warranty: Unless otherwise agreed, we provide a 6-month guarantee on all parts overhauled or replaced by us. Working time and wearing parts are excluded from the warranty. Optional: - Mass clamping device for parallel sawing of several workpieces - Roller conveyor 4m/ 6m - Special roller conveyor 4m/ 6m for bundle clamping - Flat magazine for automatic feeding of up to 6m long primary materials - Online support connection - Delivery and installation on your premises - Training of your employees

Condition: refurbished (used), Year of construction: 2024, Saw blade solid carbide / HSS: max. 425 mm Drive power: - Two-stage with chain: 1.7/2.6 kW, - Two-stage with belt pulley: 3.7/4.5 kW Cutting speed saw blade (400 mm): - two-stage with chain: 10/20 m/min, 13/26 m/min, 15/30 m/min - two-stage with belt pulley: 20/40 m/min, 30/60 m/min Infinitely variable saw speed control fully electronic Working range square 90° max.:120 x 120 mm 45° max: Working range flat: 90° max.:230 x 80 mm 45° max: Working range round: 90° max.: 140 mm 45° max: Feed length single stroke:5-2000 mm Multiple stroke:5-9999 mm Feed speed AC servo max.: 500 mm/s Weight approx.:3600 kg Dimensions LxWxH:3500mm x 1300mm x 2100mm Installation area LxW: 3500mm x 1300mm Technical description Kaltenbach KKS 401/ KKS 451 NA 2000 Retrofit Kaltenbach KKS 401/ KKS 451 Retrofit High-performance automatic saw for steel. Thanks to its equipment and design, the machine can be used very efficiently for a wide range of applications. The HMI interface for controlling the machine ensures simple and trouble-free operation of the system. Due to the design of the sawing system, it is possible to realize a very precise length tolerance. The machine is generally overhauled in our company at the customer's request. Among other things, the following points will be renewed: - Conversion to Siemens S7 PLC control - Conversion to Siemens HMI operating panel - Replacement of the ball screw - Replacement of servo motor and servo inverter - Replacement of the frequency converter for the main saw drive - New electronic components - Maintenance or replacement of all hydraulic cylinders and valve terminals - Optimization and overhaul of the cooling system Nlsdeuiy Sbspfx Aadoi - Replacement of general wear parts - Overhaul of the machine body The machine also features - Fully automatic feed - Fully automatic miter adjustment +/- 60° Warranty: Unless otherwise agreed, we guarantee our machines for 6 months on all parts overhauled or replaced by us. Working time and wearing parts are excluded from the guarantee. Optional: - Scraper - Chain magazine for 6m materials - Removal gripper system for sorting the cut-off pieces - Removal gripper system for sorting the cut-off pieces and realizing a multiple recut at the end of the workpiece - Delivery and installation on your premises - Training of your employees

Condition: refurbished (used), Year of construction: 2024, Overhaul year: 2024 Saw blade max. carbide 500/550 mm Drive power saw motor: 6 KW Saw motor speed in 6 stages: 2400- 3200 min-1 Saw blade cutting speed (500-550 mm): 3800 - 5500 m/min Saw blade feed steplessly adjustable 0-40 mm/s Saw height control infinitely adjustable fully electronic Working area square 90° max.: 160 x 160 mm Working area flat 90° max.: 380 x 60 mm Working area round: 90° max.:165 mm Feed length: 10-9999 mm Feed speed AC servo max. 400 mm/s Compressed air connection on site 6 bar Weight(saw)approx.:2850 kg Dimensions LxWxH(saw)approx.:2900mm x 1725mm x 2200mm Footprint LxW 2900mm x 1725mm The machine is in mint condition, both technically and visually, after a completed retrofit. Thanks to its equipment and design, the machine can be used very efficiently for a wide range of applications. The positioning system ensures simple and very profitable operation of the machine. Thanks to the powerful motor, short cycle times can be achieved even when sawing thick-walled profiles or solid materials. The soundproof cabin reduces noise emissions to a minimum. The machine is generally overhauled in our company at the customer's request. Among other things, the following points were renewed: - Conversion to Siemens S7 PLC control - Conversion to Siemens HMI operating panel - Replacement of the ball screw - Replacement of servo motor and servo inverter - Replacement of the frequency converter for the main saw drive (optional) - New electrical components - New pneumatic lines - Maintenance or replacement of all hydraulic cylinders and valve terminals - Overhaul of the extraction system - Overhaul of minimum lubrication system - Replacement of general wear parts - Overhaul of the soundproof cabin The machine also has - Soundproof cabin - Zero point adjustment (manual) Warranty: Unless otherwise agreed, we provide a 6-month warranty on all parts overhauled or replaced by us. Working time and wearing parts are excluded from the warranty. Optional: - Chain magazine for 4/6m materials - Splitting extension (for a high-quality cut surface without return marks) - Horizontal clamping saw line - Cut stop in material feed unit Nodpfx Asuiy Rqsadsli - Reinforced motor 11 KW - Roller conveyors - Delivery and installation on your premises - Training of your employees

Condition: refurbished (used), Year of construction: 2024, Manufacturer: Elumatec Type SA/ SAS 142 Overhaul year: 2024 Saw blade max. carbide: 500 mm Drive power saw motor: 4 KW Saw motor speed: 2800 min-1 Cutting speed saw blade 500 mm: 4400 m/min Saw height control: infinitely variable, fully electronic Working range square 90° max.: 130 x 130 mm Working range flat: 90° max.: 190 x 130 mm Working range round: 90° max.:150 mm Pneumatic feed length: 5-560, 10-1120 mm Compressed air connection, on site 6 bar Weight(saw)approx.: 800 kg Dimensions LxWxH (saw)approx.:2900mm x 1400mm x 1500mm Installation area LxW: 2900mm x 1400mm Additional description Elumatec SA/ SAS 142 4KW Retrofit Elumatec SA 142 4KW Retrofit Fully automatic sawing machine for non-ferrous metal and plastic After completion of the retrofit, the machine is in mint condition, both technically and visually. The machine will be overhauled in our company at the customer's request. Among other things, the following points were renewed: - Conversion to Siemens S7 PLC control - Conversion to Siemens HMI control panel - New electrical components - New pneumatic lines - Maintenance or replacement of all pneumatic cylinders and valve terminals - Maintenance of minimum lubrication system - Replacement of general wear parts - Overhaul of the cab Warranty: Unless otherwise agreed, we provide a 6-month warranty on all parts overhauled or replaced by us. Working time and wearing parts are excluded from the warranty. Nedjuiy Nyopfx Aadoli Optional: - Extension of the sawing area to flat 90° max.: 300 x 120 mm - Splitting extension (for a high-quality cut surface without return marks) - Servo-controlled material feed - Saw blade feed Servo-controlled - Mass clamping device Feed vice - Delivery and installation on your premises - Training of your employees

Condition: refurbished (used), Year of construction: 2024, Overhauled: 2024 Control: SPS Siemens S7 Saw blade max: 500 mm motor power 4,0 KW Saw blade feed: 0-40 mm/ s continuously adjustable Saw height control electronic Working range square 90° max.: 130 x 130 mm Working range flat 90° max.: 190 x 130 mm Working range round 90° max.: 170 mm The machine has been completely overhauled in our company and is in mint condition. Among other things, the following points were renewed: Conversion to Siemens S7 PLC control Conversion to Siemens HMI user interface Conversion to pusher with servo control New electrical components New pneumatic lines New pneumatic components Conversion to valve terminal Optimization of the suction capacity New minimum lubrication system Replacement of general wear parts Overhaul of the cab The machine also has Minimum quantity lubrication Splitting extension (for a high-quality cutting surface without return marks) Pre-loading magazine for gentle handling of painted/anodized surfaces Offcut ejector in the pusher Foldable offcut tray Optional: Magazine width 3000mm Pusher length 6000mm Pusher length 8000mm Reinforced motor 5.5 kW Nodpfxeuiy Ngo Aadsli Mass clamping device for parallel sawing of several workpieces Online support connection Delivery and installation on your premises Training of your employees

Condition: repair required (used), Year of construction: 2024, Overhauled: 2024 PLC control: Siemens S7 Saw blade 60 - 250 mm Motor power 1.5 KW Saw blade feed 0-20 mm/min Cutting speed: 15 - 170 m/min (steel) 630 - 1885 m/min (non-ferrous metal) Max. working area: 70x40 mm (steel) Working area max.: 60x40 mm (non-ferrous metal) Working range round: 5 - 70 mm (steel) Working range round: 5 - 50 mm (non-ferrous metal) Feed length 5 - 500 mm 5-9999 (multiple stroke) Feed speed max. 500 mm/sec Weight (saw)approx.: 610 kg Dimensions LxWxH (saw)approx.:2500mm x 1000mm x 2000mm The machine will be overhauled in our company on customer request. Among other things, the following points will be renewed: Nlodpfx Aouiy I Aoadoi - Conversion to Siemens S7 PLC control - Conversion to Siemens HMI control panel - Replacement of the pneumatic feed or replacement of the ball screw spindle - Replacement of servo motor and servo inverter - Replacement of the frequency converter for the main saw drive - New electronic components - New pneumatic lines - Maintenance or replacement of all pneumatic cylinders and valve terminals - Optimization of the suction concept - Maintenance of the central and minimum lubrication system - Replacement of general wear parts - Overhaul of the machine body The machine also has: - Minimum lubrication for optimum sawing quality Due to its equipment and design, the machine is suitable for mass cutting of steel in the high-precision tolerance range. Guarantee: Unless otherwise agreed, we guarantee our machines for 6 months on all parts overhauled or replaced by us. Working time and wearing parts are excluded from the guarantee. Optional: - Conversion of the sawing unit to a gearless main drive for sawing non-ferrous metals and plastic materials (speed 1000 - 3000/1min.). - Feed unit 1000mm - Feed unit 2000mm - Screw magazine 4m - Screw magazine 6m - Servo-controlled material feed - Servo-controlled saw feed - Conversion to prismatic jaws (60°) for mass clamping of round materials - Discharge system - Delivery and installation on your premises - Training of your employees

Condition: like new (used), Year of construction: 2024, Overhauled: 2024 Year of manufacture: 1994-2000 Saw blade 560 mm Motor power 6,5 / 8,0 KW Speed 1500/3000 min-1 Cutting speed 2100 - 4200 m/min Saw height control: electronic Working range square max.: 170x170 mm Working range flat max.: 300x150 mm Working range round max.: 200 mm Saw feed 0 - 40 mm/s infinitely adjustable Cutting length 5-950 mm (9999 mm multiple stroke) Feed speed max. 500 mm/s Weight approx. 1900 kg Dimensions LxWxH 2200mm x2700mm x1950mm The machine is in mint condition, both technically and visually, following a completed retrofit. Due to its equipment and design, the machine can be used very efficiently for a wide range of applications. The programmed HMI control system ensures simple and very profitable operation of the machine. The soundproof cabin reduces noise emissions to a minimum. The machine is generally overhauled in our company at the customer's request. Among other things the following points will be renewed: - Conversion to Siemens S7 PLC control - Conversion to Siemens HMI user interface - Replacement of the ball screw - Replacement of servo motor and servo inverter - New electrical components - New pneumatic lines - New pneumatic components - Overhaul or replacement of all pneumatic cylinders - Renewal of the valve terminal Nledpfeuiy Hrjx Aadei - Optimization of extraction performance - Overhaul of minimum lubrication system - Replacement of general wear parts - Overhaul of the cab The machine also has: - Soundproof cabin - Splitting extension (for a high-quality cutting surface without return marks) - Height control fully electronic Warranty: Unless otherwise agreed, we provide a 6-month guarantee on all parts overhauled or replaced by us. Working time and wearing parts are excluded from the guarantee. Optional: - Mass clamping device for parallel sawing of several workpieces - Flat magazine for automatic feeding of up to 6 m long primary materials - Roller conveyors for primary material - Reinforced motor 18.0 KW (frequency-controlled) - Delivery and installation on your premises - Training of your employees
