SMTCL Deutschland GmbH

Condition: excellent (used), Year of construction: 1994, Arm Length: 1600mm Ihodsx Sx D Sopfx Ahust Max. drill Ø cast: 60mm Max. tap Ø: 42M Stroke pinole: 310mm Max. distance spindle - table:1505mm Min. distance spindle - table:320mm Floor / table area: 1470x986mm Speeds / ranges: 2500Rpm Spindle Taper: 6ISO/Bt/Mk Quill Ø: 55mm Power: 4kW Length: 2900mm Width: 1200mm Height: 3200mm Weight: 4700kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Year of construction: 1960, arm length 1600 mm tool adaptor ja fabric-no. 9787 weight 4,6 t Ihjdpfx Ajx Ik Unshuet with drill cube

Condition: used, Year of construction: 1973, total height: 2,700 mm, total width: 720 mm, total length: 2,300 mm, Empty weight: 3.000 kg - Year: 1973 - Documentation available: Yes - CE certificate present: No - Serial number: 95361 - Control: Conventional - Motor power: 3.0kW - Drilling depth: 330mm - Spindle speed max.: 1120rpm - Model: iaalboormachine - Tool holder: MK4 - Table width: 600mm - Table length: 750mm - Drilling capacity: 40mm - Travel X: 1000mm - Spindle diameter: 5mm - Travel Z: 900mm - Max. reach: 1300mm - Spindle speed min.: 28rpm - Transport dimensions: 2300mm x 720mm x 2700mm (l x w x h) - Transport weight [kg]: 3000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Iedpex Igczofx Ahuoht Lukas van Rossum

Condition: good (used), Year of construction: 2017, machine/vehicle number: N 16601, Offer 25387 Technical Data: - Drilling capacity in steel: 60 mm - Drill spindle taper: MT 5 - Drill spindle stroke: 300 mm - Digital positioning display for stroke and position Iodsx Ei D Aopfx Ahueht - Radius (throat): 1600 mm - Column diameter: 350 mm - Max. distance spindle – base plate: 350 – 1650 mm - Vertical travel of the arm: 1250 mm - Spindle speeds, stepless: 30 – 1500 rpm - Feeds, stepless: 1 – 600 mm/rev - Drive: 400 V / 8.9 kVA - 2 x cube tables - Coolant system - Required floor space approx.: W 2490 x H 2980 x D 1060 mm - Weight approx.: 3800 kg

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, throat depth: 1,600 mm, drilling capacity: 62 mm, column diameter: 350 mm, drilling depth: 315 mm, rotational speed (max.): 2,000 rpm, TECHNICAL DETAILS Drilling capacity in steel (diameter): 62 mm Thread cutting in steel (St 60): M46 Thread cutting in grey cast iron (GG 20): M52 Maximum drilling depth: 315 mm Machine table dimensions: 2,400 x 1,000 x 200 mm Throat: 1,600 mm Drill head travel (horizontal): 1,250 mm Arm stroke (vertical): 585 mm Column diameter: 350 mm Speed range: 38 – 2,000 rpm Spindle taper: MK 5 Feeds: 0.06 – 1 mm/rev MACHINE DETAILS Ihedpjxxrcxjfx Ahujt Total power requirement: 5.5 kW Dimensions & Weight Space requirement: approx. 2,490 x 1,050 x 2,780 mm Machine weight: approx. 3,800 kg

Condition: ready for operation (used), Year of construction: 1996, functionality: fully functional, throat depth: 1,600 mm, drilling capacity: 60 mm, spindle speed (max.): 1,450 rpm, spindle stroke: 350 mm, workpiece height (max.): 1,300 mm, TECHNICAL DETAILS Drilling capacity in steel (diameter): 60 mm Iedpfx Ahsxxrbnjusht Arm reach: 1,600 mm Workpiece height – max. approx.: 1,300 mm Reaming diameter in steel: 80 mm Reaming diameter in cast iron: 100 mm Thread cutting in ST 60: M55 mm Spindle speed: 29–1,450 rpm Drill spindle: 100 mm Morse taper: MK5 Spindle stroke: 350 mm MACHINE DETAILS Total power requirement: 7.5 kW Dimensions & Weight Space requirements (L x W x H): approx. 2,600 x 1,100 x 3,200 mm Machine weight approx.: 4,600 kg

Condition: used, Year of construction: 1990, Radial Drilling Machine Z3050 x 16 I Spindle: Ø 80 mm Spindle exit: 300 mm Spindle speed: from 25 to 2000 RPM Arm travel: 1600 mm Year of construction: 1990 Column diameter: Ø 320 mm Maxi distance spindle nose/table: 1800 mm Mini distance spindle nose/table: 1200 mm Table useful dimensions: 1700 x 1000 mm Tailstock CM5 Hydraulic clamping trolley + arm + column Auto advance non-functional Lubricant pump Voltage: 380 V Ijdpfx Aexxax Uehusht Dimensions (L x W x H): 2400 x 1200 x 3200 mm Weight: approx 4 T

Condition: used, Radial Drilling Machine GSP type 49S22 Ihjdexu H Uuepfx Ahust Spindle: Ø 125 mm Cone: CM6 Spindle exit: 600 mm Spindle speed: from 17 to 1050 RPM Arm travel: 1800 mm Maxi height column travel: 1800 mm Column diameter: Ø 600 mm Total column height: 3000 mm Spindle speed: 11 kW Drilling/tapping function Mechanical locking of the column Hydraulic locking of the trolley Auto descent Delivered with one cube Cube dimensions: L 800 x W 560 x H 600 mm Table size: L 3300 x W 1400 x H 320 mm Voltage: 380 V Weight: 12 T

Condition: used, Year of construction: 1984, bore capacity in steel (diameter) 80 mm arm length 2000 mm Ihodpsxqrc Nsfx Ahuet workpiece height max. ca. 1300 mm borehole diameter in Stahl 80 mm borehole diameter in Guss 100 mm threading in St 60 M 68 mm spindle turning speed range 16 - 1250 U/min Spindle Speed 32 Stück spindle bore diameter / taper 110 mm / MK 5 spindle stroke 550 mm number of feeds 18 feed 0,06 - 3,0 mm/U distance spindle/base plate 480 bis 1800 mm column diameter 500 mm spindle drive 11 kW stroke drive 4 kW total power requirement 15 kW weight of the machine ca. 8500 kg base area 3190 x 1250 x 3600 mm with work table 1200 x 1200 x 720 mm, weight approx. 800 kg

Condition: excellent (used), Year of construction: 2003, Model: G50 x 1600 Year: 2003 Radius of Arm: 1600mm Ihedpfoxphw Tox Ahust Spindle Taper: MT5 Spindle Speeds: 25 – 2000 RPM Max. drilling capacity: 75mm iron / 50mm steel

Condition: excellent (used), Year of construction: 1987, functionality: fully functional, Drilling capacity in steel: 50 mm Throat depth: 30 - 1650 mm Max. workpiece height: 940 mm Horizontal travel of drill head: 1300 mm Spindle taper: MT 5 Drill spindle stroke: 360 mm Spindle speeds: 31.5 - 1400 rpm in 12 steps Ihodpsxl Tqqofx Ahuet Weight: 3.8 t

Condition: used, total height: 2,500 mm, total width: 1,000 mm, total length: 2,400 mm, Empty weight: 3.000 kg Isdpfjxhcf Nex Ahueht - Documentation available: No - CE certificate present: No - Drilling depth: 580mm - Spindle speed max.: 2120rpm - Table width: 550mm - Table length: 750mm - Drilling capacity: 55mm - Spindle diameter: 70mm - Max. reach: 1200mm - Spindle speed min.: 47rpm - Transport dimensions: 2400mm x 1000mm x 2500mm (l x w x h) - Transport weight [kg]: 3000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

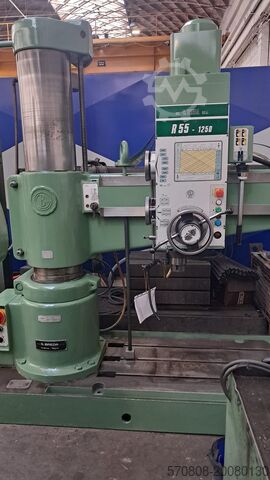

Condition: excellent (used), functionality: fully functional, RADIAL DRILL BREDA Iedpfxexf Hucj Ahueht 1250 x 55 MODEL R55 USED MACHINE INTERNAL CODE: SVR 319

Condition: excellent (used), Year of construction: 2018, Radial Drilling Machine Ihedpfsxdw Ukox Ahuet KNUTH R 40 V Year of manufacture: 2018 Very little used Clamping cube Digital depth display Technical Data: WORKING AREA Drilling capacity: 40 mm Tapping capacity, cast iron: M 40 Tapping capacity, steel: M 32 Max. drilling depth: 260 mm Machine table dimensions: 2050 mm x 920 mm x 180 mm Cube table dimensions: 620 mm x 450 mm x 450 mm Arm reach: 300 mm - 1300 mm Distance spindle nose to table surface: 300 mm - 1200 mm Vertical arm travel: 640 mm Column diameter: 280 mm TRAVEL Horizontal travel of drilling head: 1000 mm MAIN SPINDLE Speed range: 54 rpm - 2150 rpm Spindle taper: 4 MT FEED Feeds: 0.1 mm/rev - 0.63 mm/rev DRIVE POWER Main drive motor power: 2.2 kW Lifting motor: 1.1 kW DIMENSIONS AND WEIGHT Dimensions (L x W x H): 2.07 m x 0.85 m x 2.43 m Weight: 2300 kg

Condition: new, bore capacity in steel (diameter) 32,0 mm arm length 310 - 820 mm workpiece height max. 370 - 870 mm turning speeds 75 - 1220 U/min spindle taper MT 4 MK base plate 825 x 690 mm threading 24 M quill stroke 250 mm quill feed 0,1/0,16/0,25 mm/U travel x / y 500 / 510 mm total power requirement 2,25 kW weight of the machine ca. 1200 kg. range L-W-H 1470 x 750 x 2100 mm Description : - Large-sized base plate - ideal for processing large workpieces - Thick-walled, polished column for increased sliding properties of the boom - Extension arm and drill head with independent hydraulic clamping - Simple height adjustment of the extension arm using a lifting motor - Ideal for drilling, countersinking, reaming and thread cutting - Hardened and ground gears, running in an oil bath - Good sliding of the drill head on the boom thanks to the ground surface scope of delivery : - Cube table - Reducing sleeves MK 5/4, MK 4/3, MK3 / 2 - LED machine light Ihodpfx Ahjxabrleust - First filling with Shell Tellus 46 - coolant device - lifting motor - hydraulic motor - operating tool - Height-adjustable protective cover

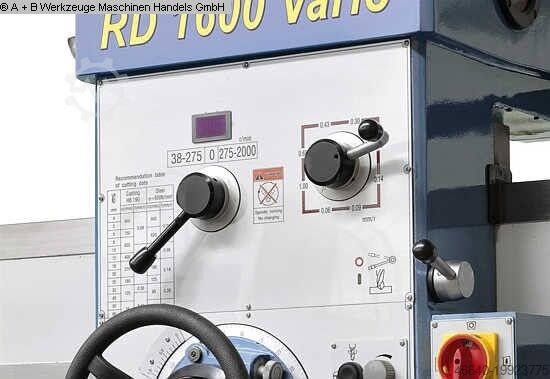

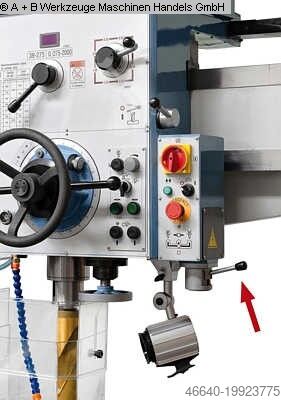

Condition: new, bore capacity in steel (diameter) 60,0 mm Iedpsxaa H Uofx Ahusht arm length 350 - 1.600 mm workpiece height max. 665 x 1.250 mm turning speeds 38 - 2.000 U/min spindle taper MT 5 MK base plate 960 x 1.760 mm threading 42 M quill stroke 325 mm total power requirement 4,0 kW weight of the machine ca. 3.800 kg. range L-W-H 2.600 x 1.100 x 2.770 mm scope of delivery : - Cube table - Drill chuck arbor MK 5 / B 16 - Reducing sleeves MK 5/4, MK 4/3, MK3 / 2 - LED machine light - First filling with Shell Tellus 46 - coolant device - Frequency converter - Digital speed display - lift motor - hydraulic motor - Height-adjustable protective cover - operating tool

Condition: new, bore capacity in steel (diameter) 50,0 mm arm length 350 - 1.590 mm workpiece height max. 645 - 1.240 mm turning speeds 25 - 2000 U/min spindle taper MT 5 MK base plate 980 x 1.600 mm threading 42 M quill stroke 320 mm total power requirement 4,0 kW weight of the machine ca. 3.500 kg. Ihodoxaad Tepfx Ahujt range L-W-H 2450 x 980 x 2840 mm Description : - Large-sized base plate - ideal for processing large workpieces - Thick-walled, polished column for increased sliding properties of the boom - Extension arm and drill head with independent hydraulic clamping - Simple height adjustment of the extension arm using a lifting motor - Ideal for drilling, countersinking, reaming and thread cutting - Hardened and ground gears, running in an oil bath - Good sliding of the drill head on the boom thanks to the ground surface scope of delivery : - Cube table - Reducing sleeves MK 5/4, MK 4/3, MK3 / 2 - LED machine light - First filling with Shell Tellus 46 - coolant device - lifting motor - hydraulic motor - operating tool - Height-adjustable protective cover

Condition: used, Year of construction: 2015, arm length 3000 mm taper MK 5 Ihjdpfxsw Syk Eo Ahuot hydraulic clamping ja dismantled nein

Condition: used, Year of construction: 1999, ja Ijdpfow Syf Ajx Ahueht Hydraulische klemmung weight of the machine ca. 3,3 t t

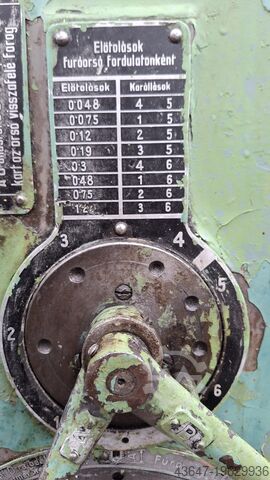

Condition: ready for operation (used), Radial Drill, Used Equipment Brand: CSEPEL Model: R.F. 2a Description: Column Diameter: 350 mm Vertical Travel of the Arm: 1200 mm Iedpfxjw Db Nus Ahuoht Horizontal Travel of the Drill Head: 1000 mm Vertical Travel of the Spindle: 400 mm Spindle Diameter: 65 mm 12 Spindle Speeds: 47.5 – 2100 RPM 8 Feed Rates: 0.048 – 1.2 m/min Motor Power: 9 HP

Condition: used, Technical details: bore capacity in steel (diameter): 50 mm arm length: 360-1600 mm workpiece height max.: 320-1220 mm spindle stroke: 315 mm spindle taper: MK 5 bore spindle turning speeds : 25-2000 U/min spindle speed levels: 16 table clamping surface:: 630 x 500 x 500 mm Ihsdpjwutvhofx Ahuot total power requirement: 4 kW dimensions of the machine ca.: 2600 x 1120 x 2600 mm weight of the machine ca.: 3,5 t 1 pc. radial drilling machine Z3050 x 16/2- Tradefair demonstration machine/NEW Special features: - Sturdy cast iron body - Cube table - Gearbox with hardened and ground gears in an oil bath - Thread cutting via spindle reversal - Hardened and ground heavy column - Right-left rotation - Drilling depth limitation - High spindle torque - Feed overload clutch - Quiet operation - Hydraulic, switched feed and spindle gear with preselection - Hydraulic clamping of the stop, column, and drill head *

Condition: new, column diameter: 320messurements (LxWxH): 2670 x 1120 x 2760weight approx.: 3200drilling performance: Stahl (S235JR) - 50Drilling table T-slot size: 14Drilling table T-slot spacing: 180Clamping table length: 630Clamping table height: 500connected load: 6,5Maximum spindle to drilling table distanc: 1420speed range: 44 - 1023Number of speed ranges: 12Maximum Spindle to Column Distance: 1600- Versatile application range, e.g., drilling, reaming, threading - Electrically braked motor - 24V DC electrical system and 2-channel safety circuit according to DIN EN 12717 - Heavy, massive, high-quality cast construction - Wide reach thanks to horizontally adjustable machine head - Clearly arranged control panel Iodpfxswruk Ie Ahusht - Smooth swivel and travel axes - Elaborately designed column swivel with optimized clamping for maximum stability and minimal clamping offset - Robust, torsion-resistant construction of the arm - Height adjustment of the arm is carried out via powerful motorized drive and lifting spindle - Gearbox of the drill head running in an oil bath - Arm guideways hardened and precision ground - Gear wheels made of chrome-nickel steel, hardened and precision ground, resulting in quieter and smoother operation - Drill head and column can be clamped or released together or separately - Right-left rotation - Massive, precise drill table, generously dimensioned - Hardened and ground worktable with parallel T-slots - Machine light - Overload protection - Thick-walled cast column ensures smooth running and stability - LED lamp - Coolant system with coolant tank in the machine base - RD 6 / RD 7 - The column is hydraulically clamped

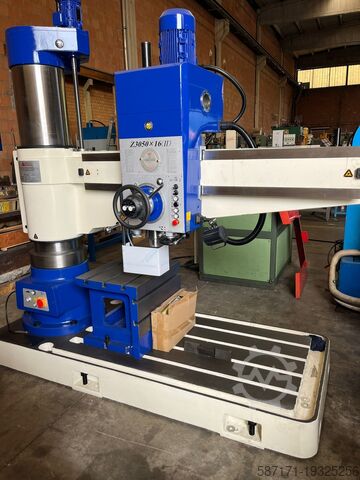

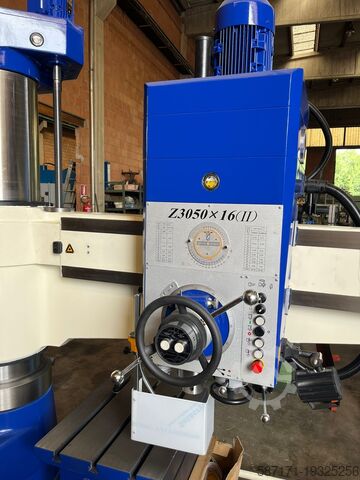

Condition: new, Year of construction: 2025, functionality: fully functional, ADRIA Radial Drill Model Z3050X16 Year 2024 Condition New Drilling capacity on steel 50 mm Threading capacity 25 mm Vertical arm stroke 580 mm Cube dimensions 500x500x630 mm Spindle attachment CM No 5 Spindle stroke 315 mm Number of speeds No 16 Number of feeds (16) 0.04/3.2 Distance spindle axis and column 1600/350 mm Distance spindle base 1220/320 mm Spindle speed 25/2000 Rpm Main motor 4 kw Hydraulic locks Ihedpfx Ahjwq Emkjujt Complete with Cube Dimensions 2500x1060x2655 mm Weight 3500 kg Complete with Instruction book and CE Cert. READY FOR DELIVERY

Condition: good (used), Year of construction: 2014, drilling capacity: 60 mm, spindle mount: MK 5, Manufacturer: WEILER MAS Type: VOM 50 Year of manufacture: 2014 Specifications Metric US Standard Arm length 1250 mm Max. drill Ø (iron) 50 mm Max. Tap diameter 48 M Quill stroke 350 mm Max. distance spindle - table 1555 mm Min. distance spindle - table 305 mm Speed 800 rpm Tool holder 5 ISO/Bt/Mk Isdpfjwpkr Nsx Ahueht Column diameter 400 mm Dimensions (estimated) Length 3200 mm Width 1325 mm Height 2970 mm Weight 6750 kg Please note: The information on this page has been provided by us to the best of our knowledge and, as far as possible, obtained from the manufacturer. The information is given in good faith, but accuracy cannot be guaranteed. Accordingly, no representation or contract conditions will be provided. We recommend that you verify all important details.

Condition: used, total height: 2,700 mm, total width: 1,000 mm, total length: 2,400 mm, Empty weight: 2.500 kg - Documentation available: No - CE certificate present: No - Motor power: 7.0kW - Drilling depth: 130mm - Spindle speed max.: 2500rpm - Model: iaalboormachine - Tool holder: MK4 - Table width: 750mm - Table length: 1400mm - Drilling capacity: 50mm - Travel X: 950mm - Travel Y: 900mm - Spindle diameter: 70mm - Max. reach: 950mm Isdpfswnnblsx Ahusht - Spindle speed min.: 28rpm - Transport dimensions: 2400mm x 1000mm x 2700mm (l x w x h) - Transport weight [kg]: 2500kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum
