Condition: excellent (used), functionality: fully functional, RÖCHER conversion 1991 (formerly SCHÖN) Pressing force: 1,600 kN Ram stroke: 160 mm Table dimensions: 850 x 650 mm Light curtain control system Next mandatory inspection: February 26 Clamping pin lock in the ram Rapid approach speed: 274 mm/s Working speed: 20/10 mm/s Fjdpfx Agox Sw Iismsft Return speed: 273 mm/s Drive power: 30 kW Operating voltage: 380 Volt/50 Hz Max. fuse rating: 100 A

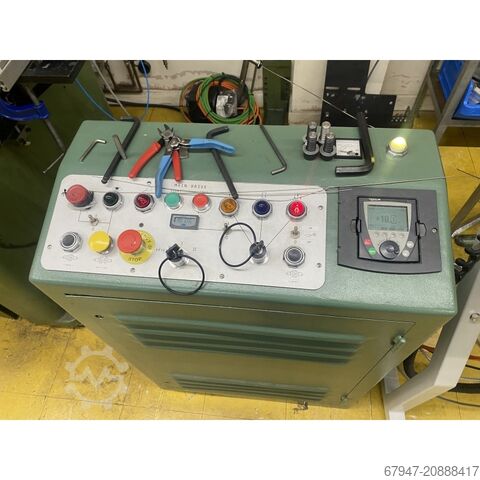

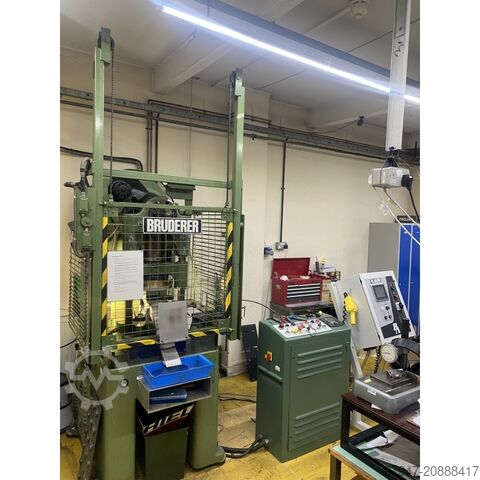

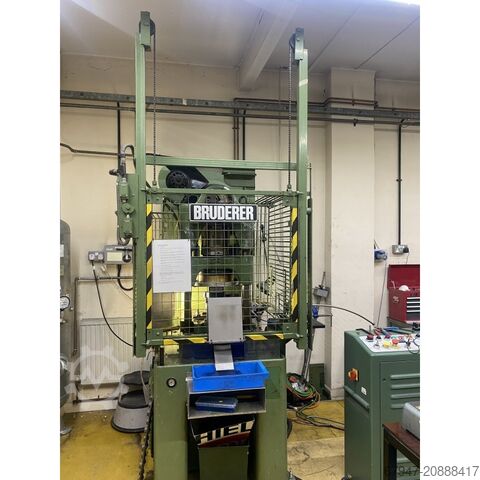

Condition: used, Bruderer Press BSTA30.  30 Ton Capacity, Digital Display. Variable Range 100-600 RPM Stroke Adjustment 8-40mm Ram adjustment 40mm Drive Motor 5.5KWMax material Width 120mmMax Material Thickness 3mm Fodpfsx Sr Nbsx Agmjft

Condition: used, Year of construction: 1950, pressure 120 t draw back pressure 20 t piston stroke 500 mm dayligth 600 mm usable table size 800 x 800 mm In our assessment, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Technical data and specifications are subject to change without notice and errors. Prior sale is reserved. Fodpex Sr Evefx Agmoft

Condition: good (used), Year of construction: 1990, total height: 7,200 mm, total width: 4,200 mm, total length: 14,500 mm, throat depth: 700 mm, Bending length: 14,000 mm Column width: 10,500 mm Control: CYBELECCNC 7000 with graphic Table width: 1,000 mm Distance between table and press beam: 1,800 mm Controlled axes: Y1; Y2; X1; X2 Control system was renewed in 2012 Total power requirement: 75 kW Machine weight approx. min.: 465 t Space requirement approx.: 14,600 x 4,200 x 7,200 mm Additional information Fsdpox Sd E Isfx Agmoft - Distance between table and press beam: 1,800 mm

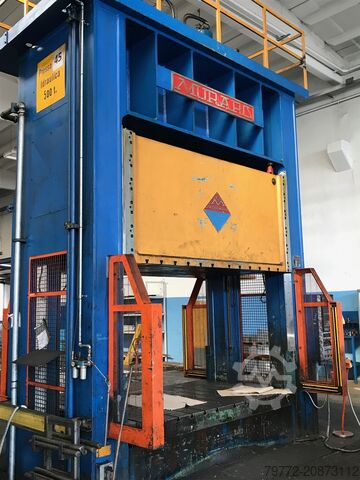

Condition: excellent (used), functionality: fully functional, Manufacturer: MURARO Model: ID500/250 Year: 2001 Condition: Used Stock number: Code 0114 Maximum upper slide pressure: 500 tons Slide stroke: 900 mm Maximum daylight: 1,500 mm Ffjdpfex R U R Esx Agmjt Table size: 2,700 x 1,600 mm Slide dimensions: 2,700 x 1,600 mm Blank holder table size: 2,450 x 1,250 mm Approach speed of slide: 650 mm/sec Blank holder cushion – total force: 250 tons Lower blank holder stroke: 400 mm Overall press height from floor: 5,600 mm

Condition: used, Year of construction: 1965, Make: MÜLLER, Model: BZE1600-35.2.1, Year of manufacture: 1965, Serial no.: 902, Max. press force: 1,600 t (ram 1,000 t + blank holder 600 t; can be coupled), Sliding table, 3,500 x 2,750 mm, Ram clamping area 3,500 x 2,750 mm, Ram stroke 1,400 mm, Ram adjustment 350 mm, Cushion force (table) 36 - 360 t, Cushion stroke (table) 250 mm, Hydraulic tool clamping on ram, Press control, Manufacturer: Siemens, Type: Simatic S7, Operator panel: Simatic OP37 +++ Attention: Machine is part of an online auction! +++ Fjdpjx Rzkxjfx Agmoft

Condition: used, Year of construction: 1994, Make: HYDRAP, Model: HPDZ b 1600, Year of manufacture: 1994, Serial No.: 6784, Max. pressure: 1,600 t (ram 1,000 t + blank holder 600 t, can be coupled), Sliding table, 3,600 x 2,200 mm, Ram clamping area 3,620 x 2,200 mm, Ram stroke 1,500 mm, Table draw cushion pressure 36 - 360 t, Table draw cushion stroke 450 mm, Press control, Operator panel, swiveling, Linear robot Strothmann +++ Note: Machine is part of an online auction! +++ Ffedex Ry Tfjpfx Agmot

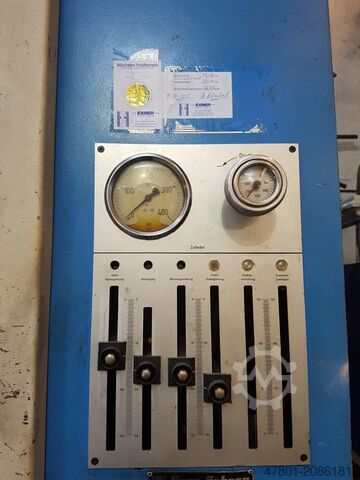

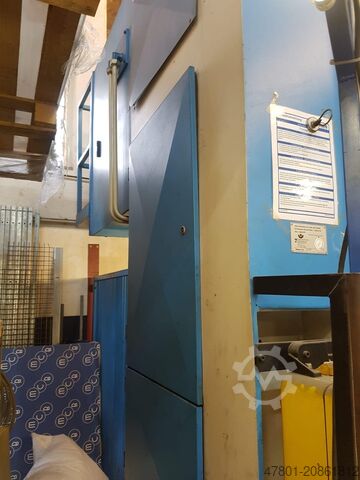

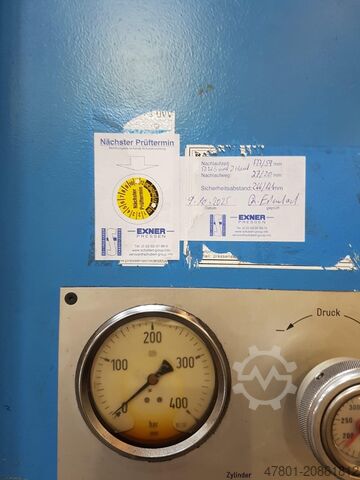

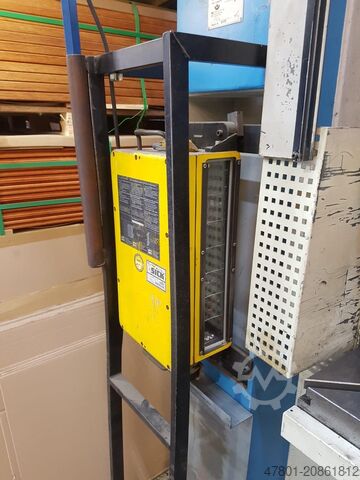

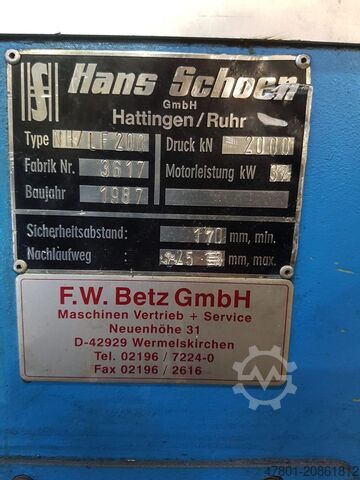

Condition: ready for operation (used), Year of construction: 1987, functionality: fully functional, pressing force: 200 t, Hans Schoen NH/LF 200 (UVV) – Powerful & Robust 🔧 Model: Hans Schoen NH/LF 200 📍 Type: Hydraulic Double-Column Press (UVV-certified) 📅 Year of manufacture: approx. 1988 (depending on the specific machine) 📦 Condition: used, fully functional ⸻ 💪 Technical Highlights • Pressing force: approx. 200 t – suitable for demanding forming and drawing applications • Hydraulic drive for precise force and stroke control • Column clearance: approx. 1,050 mm – generous working area • Stroke: approx. 150 mm – efficient travel distance • Table size: approx. 1,000 × 1,200 mm – large clamping area • Table height above floor: approx. 850 mm – ergonomic working height • Hydraulic control (often with PLC/Siemens control) possible • Safety and UVV certification for manual loading – increased operational safety 💡 Thanks to its robust construction, this press is ideally suited for series production, drawing and forming processes as well as machining and assembly tasks in metalworking operations. ⸻ 📌 Features & Equipment • Two-hand operation / safety control • Adjustable mechanical stop • Pressure cut-off • Pressure switch • UVV-compliant safety features → all for efficient and safe operation on the shop floor Ffsdpfxex Ry Nyo Agmot Currently UVV-certified. ⸻ 🛠️ Applications This press offers versatile usage, such as for: • Metal forming / drawing work • Assembly and joining part production • Testing and quality control processes • Series and small batch production ⸻ 📦 Size & Weight • Dimensions (approx.): Width × Depth × Height ≈ 4.0 × 3.6 × 3.4 m • Weight: approx. 16 t – robust industrial construction

Condition: used, Year of construction: 2001, Manufacturer: SCHULER SMG, Model: HZPU-T 1000-2500/2100, Year of manufacture: 2001, Serial No.: 7.5592, Pressing force: 1,000 t, Changeable table: 2,500 x 2,100 mm, Ram surface: 2,500 x 2,100 mm, Max. ram stroke: 1,300 mm, Drawing cushion table pressure: 30-200 t, Drawing cushion stroke: 300 mm, Press control with OP Siemens Simatic OP 37, Control and switch cabinets Fjdpfsx Ry Ntsx Agmoft

Condition: used, Year of construction: 1994, Make: MÜLLER WEINGARTEN, Model: BZE1600-45.1 1, Year of manufacture: 1994, Serial No.: 208019H1100, Beckhoff press control from 2013, Max. pressing force: 1,600 t (ram 1,000 t + blank holder 600 t, can be coupled), Table size: 4,500 x 2,500 mm, Ram area: 4,500 x 2,300 mm, Die height: 1,000 - 2,550 mm, Ram stroke: 1,550 mm, Table draw cushion force: 30 - 360 t, Draw cushion stroke: 400 mm, Control system, sliding door cabinet with accessories, adapter plate ram/table - Subject to prior sale - Ffsdpfx Agex Ry Eusmst +++ Attention! Machine is part of an online auction! +++

Condition: new, Year of construction: 2025, pressing force: 300 t, table width: 1,000 mm, table length: 1,000 mm, clearance between the columns: 1,000 mm, retraction force: 100 t, stroke length: 800 mm, operating pressure: 250 bar, Equipment: documentation/manual, safety light barrier, CRONOSSTECH 300 / 100 Ton Four-Column Hydraulic Deep Drawing Press General Description The CRONOSSTECH 300 / 100 ton four-column hydraulic deep drawing press is a high-rigidity, four-column hydraulic press solution developed for metal forming, deep drawing, and precision pressing applications. Fodpfx Aex N Unzegmjft Its St52 grade steel frame undergoes stress-relieving via vibration, ensuring stable parallelism and perpendicularity tolerances throughout the full stroke. The ram and bolster systems operate independently; stroke length and tonnage settings can be precisely controlled via the touch panel interface. Equipped with REXROTH or PARKER hydraulic components, an IE3 class motor, and PLC-controlled structure, the machine provides high efficiency and reliable operation. The automatic lubrication system and electronic filter contamination alerts minimize maintenance requirements. With a 300 / 100 ton capacity, this model is an ideal industrial press solution for medium to high tonnage metal forming, deep drawing, and die applications. Key Advantages - High-rigidity four-column press frame - Independent stroke and tonnage adjustment for ram and bolster - Full control via touch panel - High precision and repeatability - Long lifespan, low maintenance design Fields of Application - Metal forming applications - Deep drawing operations - Die testing and production lines - Auxiliary pressing processes ⚙️ STANDARD AND TECHNICAL SPECIFICATIONS TYPE: Four-Column FRAME MATERIAL: St52 – ERDEMİR COLUMN SHAFT DIAMETER: Ø 90 mm – 4 pcs, induction-hardened chrome-plated shafts SLIDE BEARING: Bronze Zr14 CAPACITY (RAM): 300 Ton CAPACITY (BOLSTER): 100 Ton DISTANCE BETWEEN COLUMNS: 1000 × 1000 mm PARALLELISM TOLERANCE: 120 micron/m PERPENDICULARITY TOLERANCE: 60 micron/m STROKE (RAM): 800 mm STROKE (BOLSTER): 200 mm MIN. CLEARANCE: 100 mm MAX. CLEARANCE: 900 mm WELDING STRESS RELIEF: Vibration stress relief WELDING PRACTICE: TÜRK-AK accredited WPQR & WPS – EN ISO 15614-1:2017 (EN ISO 14731) MAX. WORKING PRESSURE: 250 Bar TOTAL MOTOR POWER: 30 kW – IE3 MAIN PUMP: 45 cm³ – REXROTH or PARKER MOVING TABLE FAST DESCENT SPEED: 150 mm/s FORMING SPEED: 12 mm/s RETURN SPEED: 170 mm/s BOLSTER TABLE FORWARD SPEED: 30 mm/s MAIN CYLINDER BORE: Ø 390 mm – Ck45 BOLSTER CYLINDER BORE: Ø 230 mm – Ck45 AUXILIARY BOOSTER CYLINDERS: 2 Units APPROX. PRESS DIMENSIONS: 4000 × 1450 × 1450 mm BOTTOM TABLE HEIGHT FROM FLOOR: 1300 mm FRONT CHARGE VALVE: NG 125 HYDRAULIC UNIT: REXROTH or PARKER COOLING SYSTEM: EMMEGI – CIESSE – PARKER OFF-LINE FILTRATION: REXROTH or PARKER PLC: DELTA TOUCH PANEL: DELTA 7” SWITCHGEAR COMPONENTS: SIEMENS – SCHNEIDER APPROX. WEIGHT: 18 Ton Production Note This machine is manufactured in Turkey by CRONOSSTECH.

Condition: new, Year of construction: 2025, pressing force: 250 t, table width: 1,000 mm, table length: 1,000 mm, clearance between the columns: 1,000 mm, retraction force: 80 t, stroke length: 800 mm, operating pressure: 250 bar, Equipment: documentation/manual, safety light barrier, CRONOSSTECH 250 / 80 TON FOUR-COLUMN HYDRAULIC DRAWING PRESS General Description The CRONOSSTECH 250 / 80 ton four-column hydraulic drawing press is a high-rigidity hydraulic solution designed for precision metal forming, deep drawing, and press applications. The frame is constructed of St52 grade steel and undergoes stress relief through vibration, ensuring high parallelism and perpendicularity tolerances during long-term operation. The ram and cushion systems operate independently; stroke and pressure settings can be precisely adjusted via the touch panel. With hydraulic components from REXROTH or PARKER, an IE3 efficiency-class motor, and PLC-controlled system, it offers high performance and reliable operation. An automatic lubrication system and electronic filter contamination alerts minimize maintenance requirements. With its 250 / 80 ton forming capacity, this model is an ideal industrial press solution for medium- and heavy-duty metal forming, deep drawing, and die applications. Key Advantages - Four-column, high-rigidity press frame - Independent stroke and tonnage settings for the ram and cushion - Full control via touch panel - High precision and repeatability - Long service life with low maintenance costs Areas of Use - Metal forming applications - Deep drawing operations - Die testing and production lines - Auxiliary pressing processes ⚙️ STANDARD AND TECHNICAL SPECIFICATIONS TYPE: Four-column FRAME MATERIAL: St52 – ERDEMIR COLUMN SHAFT DIAMETER: Ø 90 mm – 4 pcs. induction hardened chrome-plated shafts SLIDE GUIDING: Bronze Zr14 CAPACITY (RAM): 250 Ton CAPACITY (CUSHION): 80 Ton DISTANCE BETWEEN COLUMNS: 1000 × 1000 mm PARALLELISM TOLERANCE: 120 micron/meter PERPENDICULARITY TOLERANCE: 60 micron/meter STROKE (RAM): 800 mm STROKE (CUSHION): 200 mm MIN. OPENING HEIGHT: 100 mm MAX. OPENING HEIGHT: 900 mm STRESS RELIEVING: Vibration stress relief WELDING APPLICATION: WPQR & WPS accredited by TÜRK-AK – EN ISO 15614-1:2017 (EN ISO 14731) MAX. WORKING PRESSURE: 250 Bar TOTAL MOTOR POWER: 22 kW – IE3 class MAIN PUMP: 36 cm³ – REXROTH or PARKER MOVABLE TABLE FAST DESCENT: 150 mm/sec FORMING SPEED: 12 mm/sec RETURN SPEED: 170 mm/sec CUSHION TABLE FORWARD SPEED: 30 mm/sec Ffjdpfjx N Um Rex Agmot MAIN CYLINDER BORE: Ø 360 mm – Ck45 CUSHION CYLINDER BORE: Ø 200 mm – Ck45 AUXILIARY BOOST CYLINDERS: 2 units APPROXIMATE PRESS DIMENSIONS: 4000 × 1450 × 1450 mm BOTTOM TABLE HEIGHT FROM FLOOR: 1300 mm FRONT CHARGING VALVE: NG 125 HYDRAULIC UNIT: REXROTH or PARKER COOLING SYSTEM: EMMEGI – CIESSE – PARKER OFF-LINE FILTRATION: REXROTH or PARKER PLC: DELTA TOUCH PANEL: DELTA 7” ELECTRICAL COMPONENTS: SIEMENS – SCHNEIDER APPROXIMATE WEIGHT: 16 Tons Production Note This machine is manufactured in Turkey by CRONOSSTECH.

Condition: new, Year of construction: 2025, pressing force: 200 t, table width: 1,000 mm, table length: 1,000 mm, clearance between the columns: 1,000 mm, retraction force: 70 t, stroke length: 800 mm, operating pressure: 250 bar, Equipment: documentation/manual, safety light barrier, CRONOSSTECH 200 / 70 TON FOUR-COLUMN HYDRAULIC DEEP DRAWING PRESS General Description The CRONOSSTECH 200 / 70 ton four-column hydraulic deep drawing press is a high-rigidity, four-column hydraulic press designed for metal forming, deep drawing, and precision pressing applications. The St52 grade welded steel frame is subjected to stress relief via vibration, ensuring high parallelism and perpendicularity tolerances are maintained over extended operation. The ram and blank holder (pot) systems are operated independently, with stroke and pressure settings precisely adjustable via touchscreen control panel. Equipped with REXROTH or PARKER hydraulic components, an IE3 class motor, and PLC-controlled structure, the system offers high efficiency and reliable operation. An automatic lubrication system and electronic filter contamination alerts minimize maintenance requirements. With its 200 / 70 ton capacity, this model provides an ideal industrial solution for medium and heavy-duty metal forming, deep drawing, and die applications. Key Advantages - Rigid four-column press frame - Independent stroke and tonnage adjustment for ram and blank holder - Full control via touchscreen panel - High precision and repeatability - Long-lasting, low-maintenance design Applications - Metal forming operations - Deep drawing applications - Die trial and production lines - Auxiliary pressing operations ⚙️ STANDARD AND TECHNICAL SPECIFICATIONS TYPE: Four-column FRAME MATERIAL: St52 – ERDEMIR grade COLUMN SHAFT DIAMETER: Ø 90 mm – 4 pcs, induction hardened and chrome plated SLIDE BEARING: Bronze Zr14 CAPACITY (RAM): 200 Ton CAPACITY (BLANK HOLDER): 70 Ton DISTANCE BETWEEN COLUMNS: 1000 × 1000 mm PARALLELISM TOLERANCE: 120 micron/meter PERPENDICULARITY TOLERANCE: 60 micron/meter STROKE (RAM): 800 mm STROKE (BLANK HOLDER): 200 mm MIN. OPENING HEIGHT: 100 mm MAX. OPENING HEIGHT: 900 mm WELDING STRESS RELIEF: By vibration WELDING PROCEDURE: WPQR & WPS with TURK-AK accreditation – EN ISO 15614-1:2017 (EN ISO 14731) MAX. WORKING PRESSURE: 250 Bar TOTAL MOTOR POWER: 22 kW – IE3 MAIN PUMP: 36 cm³ – REXROTH or PARKER MOVING TABLE FAST DESCENT: 150 mm/sec Ffodpox N Umqjfx Agmjt FORMING SPEED: 12 mm/sec RETURN SPEED: 170 mm/sec BLANK HOLDER FORWARD SPEED: 30 mm/sec MAIN CYLINDER BORE: Ø 320 mm – Ck45 BLANK HOLDER CYLINDER BORE: Ø 190 mm – Ck45 AUXILIARY SPEED-UP CYLINDERS: 2 units PRESS APPROX. DIMENSIONS: 4000 × 1450 × 1450 mm LOWER TABLE HEIGHT FROM FLOOR: 1300 mm MAIN CHARGE VALVE: NG 125 HYDRAULIC UNIT: REXROTH or PARKER COOLING SYSTEM: EMMEGI – CIESSE – PARKER OFF-LINE FILTRATION: REXROTH or PARKER PLC: DELTA TOUCHSCREEN PANEL: DELTA 7” CONTROL COMPONENTS: SIEMENS – SCHNEIDER APPROX. WEIGHT: 14.5 Ton Production Note This machine is manufactured by CRONOSSTECH in Turkey.

Condition: new, Year of construction: 2025, pressing force: 150 t, table width: 800 mm, table length: 800 mm, clearance between the columns: 800 mm, stroke length: 600 mm, operating pressure: 250 bar, Equipment: documentation/manual, safety light barrier, CRONOSSTECH 150/50 TON FOUR-COLUMN HYDRAULIC DEEP DRAWING PRESS General Description Fjdjx N Ul Tjpfx Agmeft The CRONOSSTECH 150/50 ton four-column hydraulic deep drawing press is an industrial press solution developed for metal spinning, deep drawing, and precision pressing applications, featuring a robust four-column frame construction. The St52 grade steel construction frame undergoes stress relieving via vibration. This ensures high parallelism and vertical tolerance are maintained during prolonged operations. Ram and blank holder systems operate independently; stroke and pressure adjustments can be made precisely via the touchscreen panel. Equipped with REXROTH or PARKER hydraulic equipment, an IE3 classified motor, and PLC control, the press delivers high efficiency, reliability, and long service life. Automatic lubrication and electronic filter contamination alerts minimize maintenance requirements. With a 150/50 ton capacity, this model is an ideal solution for mass production, mold testing, and medium to heavy-duty deep drawing applications. Key Advantages - Rigid four-column press frame - Independent stroke and tonnage adjustment for ram and blank holder - Full control via touchscreen panel - High precision and repeatability - Low maintenance cost and long service life Fields of Application - Metal spinning processes - Deep drawing applications - Die testing and production processes - Auxiliary pressing operations ⚙️ STANDARD AND TECHNICAL FEATURES TYPE: Four-column FRAME MATERIAL: St52 – ERDEMIR COLUMN SHAFT DIAMETER: Ø 90 – 4 pcs, induction-hardened, chrome-plated shafts SLIDE BEARING: Bronze Zr14 CAPACITY (RAM): 150 ton CAPACITY (BLANK HOLDER): 50 ton DISTANCE BETWEEN COLUMNS: 800 × 800 mm PARALLELISM TOLERANCE: 120 micron/meter PERPENDICULARITY TOLERANCE: 60 micron/meter STROKE (RAM): 600 mm STROKE (BLANK HOLDER): 200 mm MIN. DAYLIGHT: 100 mm MAX. DAYLIGHT: 700 mm WELDING STRESS RELIEF: Vibration stress relief WELDING STANDARD: TÜRK-AK accredited WPQR & WPS – EN ISO 15614-1:2017 (EN ISO 14731) MAX. OPERATING PRESSURE: 250 Bar TOTAL MOTOR POWER: 18.5 kW – IE3 MAIN PUMP: 36 cm³ – REXROTH or PARKER MOVABLE TABLE FAST DESCENT SPEED: 150 mm/s MOVABLE TABLE DRAWING SPEED: 12 mm/s MOVABLE TABLE RETURN SPEED: 170 mm/s BLANK HOLDER FORWARD SPEED: 30 mm/s MAIN CYLINDER BORE: Ø 280 mm – Ck45 BLANK HOLDER CYLINDER BORE: Ø 160 mm – Ck45 AUXILIARY ACCELERATION CYLINDERS: 2 units APPROXIMATE PRESS HEIGHT: 3800 mm APPROXIMATE PRESS WIDTH: 1150 mm APPROXIMATE PRESS DEPTH: 1150 mm DISTANCE FROM FLOOR TO LOWER TABLE: 1200 mm PRIMARY FILLING VALVE: NG 125 HYDRAULIC UNIT: REXROTH or PARKER COOLING SYSTEM: EMMEGI – CIESSE – PARKER OFF-LINE FILTRATION: REXROTH or PARKER LUBRICATION TYPE: Automatic (adjustable from screen) RAM / BLANK HOLDER STROKE AND TONNAGE ADJUSTMENT: Adjustable from screen SYSTEM & PRESS STATUS INFORMATION: Viewable on screen DIE MEMORY: Adjustable from screen LINEAR DISPLACEMENT TRANSDUCER: NOVATECHNIK or TURCK PLC APPLICATION: DELTA TOUCHSCREEN PANEL: DELTA 7” SWITCHGEAR COMPONENTS: SIEMENS – SCHNEIDER APPROXIMATE WEIGHT: 9 ton Production Note This machine is manufactured in Turkey by CRONOSSTECH.

Condition: new, Year of construction: 2025, pressing force: 100 t, table width: 800 mm, table length: 800 mm, clearance between the columns: 800 mm, retraction force: 40 t, stroke length: 600 mm, operating pressure: 250 bar, Equipment: documentation/manual, safety light barrier, CRONOSSTECH 100/40 TON FOUR-COLUMN HYDRAULIC DEEP DRAWING PRESS General Description The CRONOSSTECH 100/40 ton four-column hydraulic deep drawing press is an industrial press solution designed for metal forming, deep drawing, and precision pressing applications, featuring a rigid four-column body construction. The St52 grade steel frame is stress-relieved via vibration methods, ensuring long-term retention of high parallelism and squareness tolerances. The ram and bolster systems operate independently, with stroke and pressure settings precisely controlled via a touchscreen interface. Equipped with REXROTH or PARKER hydraulic components, IE3 class motor, and PLC-controlled systems, it provides high efficiency, reliability, and extended service life. The automatic lubrication system and electronic filter contamination alerts keep maintenance requirements to a minimum. This model is the ideal solution for medium-scale mass production, die testing, and precision forming applications. Key Advantages - Rigid four-column press frame - Independent stroke and tonnage adjustment for ram and bolster - Full control via touchscreen panel - High precision and repeatability - Low maintenance costs, long service life Areas of Application - Metal forming operations - Deep drawing applications - Die testing and prototype production - Auxiliary pressing operations ⚙️ STANDARD AND TECHNICAL SPECIFICATIONS TYPE: Four-column FRAME MATERIAL: St52 – ERDEMİR COLUMN SHAFT DIAMETER: Ø 90 mm – 4 pcs. induction-hardened chrome-plated shafts SLIDE BEARING: Bronze Zr14 CAPACITY (RAM): 100 Ton CAPACITY (BOLSTER): 40 Ton DISTANCE BETWEEN COLUMNS: 800 × 800 mm PARALLELISM TOLERANCE: 120 micron/m SQUARENESS TOLERANCE: 60 micron/m STROKE (RAM): 600 mm STROKE (BOLSTER): 200 mm MIN. DAYLIGHT: 100 mm MAX. DAYLIGHT: 700 mm WELDING STRESS RELIEF: Vibration stress relieving WELDING APPLICATION: TÜRK-AK accredited WPQR & WPS – EN ISO 15614-1:2017 (EN ISO 14731) MAX. OPERATING PRESSURE: 250 Bar TOTAL MOTOR POWER: 15 kW – IE3 MAIN PUMP: 22 cm³ – REXROTH or PARKER MOVABLE TABLE FAST DESCENT SPEED: 150 mm/s MOVABLE TABLE FORMING SPEED: 12 mm/s MOVABLE TABLE RETURN SPEED: 170 mm/s BOLSTER TABLE ADVANCE SPEED: 30 mm/s MAIN CYLINDER BORE: Ø 230 mm – Ck45 BOLSTER CYLINDER BORE: Ø 145 mm – Ck45 AUXILIARY ACCELERATION CYLINDERS: 2 pcs APPROX. PRESS HEIGHT: 3,500 mm APPROX. PRESS WIDTH: 1,150 mm APPROX. PRESS DEPTH: 1,150 mm BOTTOM TABLE HEIGHT FROM FLOOR: 1,200 mm PRE-FILL VALVE: NG 100 HYDRAULIC POWER UNIT: REXROTH or PARKER COOLING SYSTEM: EMMEGI – CIESSE – PARKER OFF-LINE FILTRATION: REXROTH or PARKER LUBRICATION TYPE: Automatic (adjustable via screen) RAM / BOLSTER STROKE AND TONNAGE ADJUSTMENT: Adjustable from screen SYSTEM & PRESS STATUS INFORMATION: Viewable on screen Ffodpsx N Ulyjfx Agmet DIE MEMORY: Adjustable via screen LINEAR POSITION ENCODER: NOVATECHNIK or TURCK PLC SYSTEM: DELTA TOUCHSCREEN PANEL: DELTA 7” SWITCHGEAR COMPONENTS: SIEMENS – SCHNEIDER APPROX. WEIGHT: 7.5 Ton Manufacturing Note This machine is manufactured by CRONOSSTECH in Turkey.

Condition: new, Year of construction: 2025, pressing force: 80 t, table width: 700 mm, table length: 700 mm, clearance between the columns: 700 mm, retraction force: 30 t, stroke length: 500 mm, operating pressure: 250 bar, Equipment: documentation/manual, safety light barrier, CRONOSSTECH 80/30 Ton Four-Column Hydraulic Deep Drawing Press General Description The CRONOSSTECH 80/30 ton four-column hydraulic deep drawing press is an industrial press solution designed for high-precision metal forming, deep drawing, and die testing applications. It features a rigid four-column body structure for superior accuracy and repeatability. The St52-grade steel frame is subjected to stress relief via vibration, ensuring excellent parallelism and perpendicularity tolerances are maintained during pressing operations. The ram and die cushion systems operate independently; stroke and pressure adjustments can be precisely controlled via the operator panel. Equipped with REXROTH or PARKER hydraulic components, IE3 class motor, and PLC-based control, this press ensures long-lasting, safe, and energy-efficient performance. Maintenance requirements are minimized thanks to the automatic lubrication system and filter contamination alerts. This model is ideal for small- and medium-scale serial production, die trials, and precision forming processes. Key Advantages - Rigid four-column press body design - Independent stroke and tonnage settings for ram and die cushion - Full control via touchscreen panel - High repeatability and precision - Low maintenance cost, long service life Areas of Application - Metal forming operations - Deep drawing processes - Die trial and prototype production - Auxiliary pressing operations ⚙️ STANDARD AND TECHNICAL SPECIFICATIONS TYPE: Four-column BODY MATERIAL: St52 – ERDEMİR COLUMN SHAFT DIAMETER: Ø 90 – 4 pcs, induction hardened, chrome-plated shafts SLIDE BEARING: Bronze Zr14 CAPACITY (RAM): 80 Tons CAPACITY (DIE CUSHION): 30 Tons DISTANCE BETWEEN COLUMNS: 700 × 700 mm PARALLELISM TOLERANCE: 120 micron/meter PERPENDICULARITY TOLERANCE: 60 micron/meter STROKE (RAM): 500 mm STROKE (DIE CUSHION): 150 mm MIN. DAYLIGHT: 100 mm MAX. DAYLIGHT: 600 mm WELDING STRESS RELIEF: By vibration WELDING PROCEDURE: TÜRK-AK accredited WPQR & WPS – EN ISO 15614-1:2017 (EN ISO 14731) Fedpfx Agex N Ultemeft MAX. OPERATING PRESSURE: 250 Bar TOTAL MOTOR POWER: 11 kW – IE3 MAIN PUMP: 22 cm³ – REXROTH or PARKER MOVABLE TABLE FAST DOWN SPEED: 150 mm/sec MOVABLE TABLE DRAWING SPEED: 12 mm/sec MOVABLE TABLE RETURN SPEED: 170 mm/sec DIE CUSHION FORWARD SPEED: 30 mm/sec MAIN CYLINDER BORE: Ø 200 mm – Ck45 DIE CUSHION CYLINDER BORE: Ø 125 mm – Ck45 AUXILIARY ACCELERATION CYLINDERS: 2 units APPROXIMATE PRESS HEIGHT: 3300 mm APPROXIMATE PRESS WIDTH: 1050 mm APPROXIMATE PRESS DEPTH: 1050 mm DISTANCE FROM FLOOR TO LOWER TABLE: 1100 mm PRE-FILL VALVE: NG 100 HYDRAULIC UNIT: REXROTH or PARKER COOLING SYSTEM: EMMEGI – CIESSE – PARKER OFF-LINE FILTRATION: REXROTH or PARKER LUBRICATION SYSTEM: Automatic (Adjustable from HMI) RAM / DIE CUSHION STROKE AND TONNAGE ADJUSTMENT: Adjustable from HMI SYSTEM & PRESS STATUS DISPLAY: Viewable on HMI DIE MEMORY: Adjustable from HMI LINEAR POSITION TRANSDUCER: NOVATECHNIK or TURCK PLC: DELTA TOUCH PANEL: DELTA 7” ELECTRICAL COMPONENTS: SIEMENS – SCHNEIDER APPROXIMATE WEIGHT: 5.5 Tons

Condition: new, Year of construction: 2025, pressing force: 60 t, table width: 700 mm, table length: 700 mm, clearance between the columns: 700 mm, retraction force: 20 t, stroke length: 400 mm, operating pressure: 250 bar, Equipment: documentation/manual, safety light barrier, CRONOSSTECH 60/20 TON FOUR-COLUMN HYDRAULIC DEEP DRAWING PRESS General Description The CRONOSSTECH 60/20 ton four-column hydraulic deep drawing press is a rigid and compact solution designed for precise metal forming, deep drawing, and metal spinning applications. Thanks to its four-column construction, the press maintains stable parallelism and perpendicularity tolerances throughout the pressing process. The frame is constructed from St52 grade steel and subjected to stress relieving via vibration. Ram and blank holder systems can be controlled independently; stroke and pressure settings are finely adjusted via a touchscreen panel. Equipped with REXROTH or PARKER hydraulic components, IE3 class motors, and an automatic lubrication system, it delivers long-lasting, safe, and efficient operation. The PLC-controlled system minimizes operator errors. This model is an ideal solution for small to medium scale metal spinning, deep drawing, die testing, and auxiliary pressing tasks. Key Advantages - Rigid four-column press body - Independent stroke and tonnage control for ram and blank holder - System parameters can be set via touchscreen panel - High precision and repeatability - Low maintenance requirements and long service life Applications - Metal spinning operations - Deep drawing processes - Die testing and prototype production - Metalworking and auxiliary production lines ⚙️ STANDARD & TECHNICAL SPECIFICATIONS TYPE: Four-column FRAME MATERIAL: St52 – ERDEMIR COLUMN SHAFT DIAMETER: Ø 90 – 4 pcs. induction-hardened and chrome-plated shafts SLIDE BEARING: Bronze Zr14 CAPACITY (RAM): 60 Ton CAPACITY (BLANK HOLDER): 20 Ton DISTANCE BETWEEN COLUMNS: 700 × 700 mm PARALLELISM TOLERANCE: 120 micron/m PERPENDICULARITY TOLERANCE: 60 micron/m Fjdpfox N Ulgex Agmoft STROKE (RAM): 400 mm STROKE (BLANK HOLDER): 100 mm MIN. CLEARANCE: 100 mm MAX. CLEARANCE: 500 mm WELDING STRESS RELIEF: Vibratory stress relieving WELDING APPLICATION: WPQR and WPS certified by TÜRK-AK per EN ISO 15614-1:2017 (EN ISO 14731) MAX. OPERATING PRESSURE: 250 Bar TOTAL MOTOR POWER: 7.5 kW – IE3 MAIN PUMP: 22 cm³ – REXROTH or PARKER MOVING TABLE FAST DOWN SPEED: 150 mm/s MOVING TABLE DRAWING SPEED: 12 mm/s MOVING TABLE RETURN SPEED: 170 mm/s BLANK HOLDER TABLE FORWARD SPEED: 30 mm/s MAIN CYLINDER BORE: Ø 175 mm – Ck45 BLANK HOLDER CYLINDER BORE: Ø 100 mm – Ck45 AUXILIARY FAST ADVANCE CYLINDERS: 2 units APPROX. PRESS HEIGHT: 3100 mm APPROX. PRESS WIDTH: 1050 mm APPROX. PRESS DEPTH: 1050 mm DISTANCE FROM FLOOR TO LOWER TABLE: 1000 mm MAIN FILLING VALVE: NG 100 HYDRAULIC UNIT: REXROTH or PARKER COOLING SYSTEM: EMMEGI – CIESSE – PARKER OFF-LINE FILTRATION: REXROTH or PARKER LUBRICATION METHOD: Automatic (adjustable from panel) RAM / BLANK HOLDER STROKE & TONNAGE CONTROL: Adjustable from panel SYSTEM & PRESS STATUS MONITORING: On-screen display DIE MEMORY: Adjustable via panel LINEAR POSITION SENSOR: NOVATECHNIK or TURCK PLC: DELTA TOUCHSCREEN PANEL: DELTA 7” ELECTRICAL COMPONENTS: SIEMENS – SCHNEIDER APPROX. WEIGHT: 5 Ton Production Note This machine is manufactured by CRONOSSTECH in Turkey.

Condition: new, Year of construction: 2025, pressing force: 40 t, table width: 700 mm, table length: 700 mm, clearance between the columns: 700 mm, retraction force: 15 t, stroke length: 400 mm, operating pressure: 250 bar, Equipment: documentation/manual, safety light barrier, CRONOSSTECH 40/15 TON FOUR-COLUMN HYDRAULIC DRAWING PRESS General Description The CRONOSSTECH 40/15 ton four-column hydraulic drawing press is a compact and robust press solution designed for precision metal forming, deep drawing, and metal spinning applications. Thanks to its four-column frame construction, parallelism and perpendicularity tolerances remain stable throughout the pressing cycle. The press frame, manufactured from St52 grade steel, undergoes stress relief via vibration treatment. The ram and punch systems can be controlled independently, with stroke and pressure adjustments performed precisely through the touchscreen panel. Equipped with REXROTH or PARKER hydraulic components, IE3 class motor, and automatic lubrication system, this machine ensures long-lasting, safe, and efficient operation. The user-friendly PLC-controlled design minimizes operator errors. This model is an ideal solution for small to medium-scale spinning, deep drawing, die trial, and precision pressing applications. Key Advantages - Rigid four-column press frame design - Independent stroke and tonnage control for ram and pot - Adjustable system via touchscreen panel - High accuracy and repeatability - Low maintenance requirements and long service life Areas of Application - Metal spinning applications - Deep drawing processes - Die testing and prototyping - Metalworking and auxiliary production lines ⚙️ STANDARD AND TECHNICAL SPECIFICATIONS TYPE: Four-column FRAME MATERIAL: St52 – ERDEMIR COLUMN SHAFT DIAMETER: Ø 90 – 4 pcs. Induction-hardened and chrome-plated shafts SLIDE BEARING: Bronze Zr14 CAPACITY (RAM): 40 Tons CAPACITY (POT): 15 Tons DISTANCE BETWEEN COLUMNS: 700 × 700 mm PARALLELISM TOLERANCE: 120 micron/m PERPENDICULARITY TOLERANCE: 60 micron/m STROKE (RAM): 400 mm STROKE (POT): 100 mm MIN. DAYLIGHT: 100 mm MAX. DAYLIGHT: 500 mm WELDING STRESS RELIEF: Vibration stress relief WELDING PROCEDURE: WPQR and WPS certified by TÜRK-AK, EN ISO 15614-1:2017 (EN ISO 14731) MAX. WORKING PRESSURE: 250 Bar TOTAL MOTOR POWER: 5.5 kW – IE3 MAIN PUMP: 22 cm³ – REXROTH or PARKER MOVING TABLE FAST DESCENT SPEED: 150 mm/sec Ffjdpfx Asx N Uk Negmst MOVING TABLE DRAWING SPEED: 12 mm/sec MOVING TABLE RETURN SPEED: 170 mm/sec POT TABLE FORWARD SPEED: 30 mm/sec MAIN CYLINDER BORE DIAMETER: Ø 145 mm – Ck45 POT CYLINDER BORE DIAMETER: Ø 90 mm – Ck45 AUXILIARY ACCELERATION CYLINDERS: 2 units APPROXIMATE PRESS HEIGHT: 3100 mm APPROXIMATE PRESS WIDTH: 1050 mm APPROXIMATE PRESS DEPTH: 1050 mm DISTANCE FROM BASE TO LOWER TABLE: 1000 mm PRE-FILL VALVE: NG 100 HYDRAULIC UNIT: REXROTH or PARKER COOLING SYSTEM: EMMEGI – CIESSE – PARKER OFF-LINE FILTRATION: REXROTH or PARKER LUBRICATION TYPE: Automatic (adjustable from the panel) RAM / POT STROKE AND TONNAGE ADJUSTMENT: Adjustable from the panel SYSTEM & PRESS STATUS INFORMATION: Viewable from the panel DIE MEMORY: Adjustable from the panel LINEAR MEASURING SCALE: NOVATECHNIK or TURCK PLC APPLICATION: DELTA TOUCHSCREEN PANEL: DELTA 7” SWITCHGEAR COMPONENTS: SIEMENS – SCHNEIDER APPROXIMATE WEIGHT: 4.5 Tons Production Note This machine is manufactured by CRONOSSTECH in Turkey.

Condition: new, Year of construction: 2025, pressing force: 2,500 t, table width: 1,800 mm, table length: 2,600 mm, retraction force: 800 t, stroke length: 1,000 mm, operating pressure: 250 bar, Equipment: documentation/manual, safety light barrier, CRONOSSTECH CHSP 2500/800 H-Type Hydraulic Deep Drawing (Forming) Press – 8-Gibbed General Description Fodpfx Agex N Uk Asmeft The CRONOSSTECH CHSP series H-type hydraulic forming presses are engineered for heavy-duty deep drawing applications that require extremely high tonnage, large bed dimensions, and precise blankholder force. The 8-gibbed H-frame structure ensures high rigidity throughout the pressing process, maintaining parallelism and perpendicularity tolerances over the entire stroke. The CHSP 2500/800 model provides maximum stability, controlled material flow, and repeatable production performance for large and deep drawing dies, with a 2500-ton main ram and 800-ton blankholder capacity. Its vibration-stress-relieved welded steel frame is designed for durability and reliability in heavy industrial conditions. ⚙️ Standard Equipment • Welded steel construction, 8-gibbed H-frame press body • Vibration stress-relieved frame • Bronze Zr14 gibbed slideways • WPQR- and WPS-approved welding applications with TÜRK-AK accreditation (EN ISO 15614-1:2017 / EN ISO 14731) • PLC-controlled hydraulic system • 7” touchscreen panel (DELTA) • Adjustable stroke control for ram and blankholder • Adjustable tonnage (pressure) control for ram and blankholder • Automatic lubrication system • Electronic filter contamination warning • Hydraulic oil temperature and system status monitoring on-screen • Off-line filtration and industrial cooling system • SIEMENS – SCHNEIDER switchgear components • Heavy-duty industrial safety systems 📐 Technical Specifications – CHSP 2500/800 Type: Welded steel construction, 8-gibbed H-frame press Frame Material: St52 – ERDEMİR Slideway Bearings: Bronze Zr14 Capacity (Ram / Blankholder): 2500 / 800 Ton Moving / Fixed Table: 1800 × 2600 mm Parallelism / Perpendicularity: 120 / 60 micron/meter Stroke (Ram / Blankholder): 1000 / 350 mm Daylight Opening (Min / Max): 200 / 1200 mm Max. Working Pressure: 250 Bar Total Motor Power: 180 kW – IE3 Main Pump: 140 cm³ – REXROTH or PARKER Main Cylinder: Ø565 mm – Ck45 (4 units) Blankholder Cylinder: Ø450 mm – Ck45 (2 units) Pre-fill Valve: NG 200 PLC / Panel: DELTA / DELTA 7” Approximate Weight: 132 Tons Production Note This machine is manufactured by CRONOSSTECH in Turkey.

Condition: new, Year of construction: 2025, pressing force: 2,000 t, table width: 1,500 mm, table length: 2,500 mm, retraction force: 600 t, stroke length: 1,000 mm, operating pressure: 250 bar, Equipment: documentation/manual, safety light barrier, CRONOSSTECH CHSP 2000/600 H-Type Hydraulic Deep Drawing (Stamping) Press – 8-Gib Design General Description The CRONOSSTECH CHSP Series H-type hydraulic deep drawing presses are engineered for heavy-duty deep drawing applications that require extremely high tonnage, large table dimensions, and controlled blank holder force. Thanks to its 8-gib H-frame construction, ram and table movements are carried out under high rigidity throughout the pressing cycle, maintaining strict parallelism and perpendicularity tolerances even across long strokes. The CHSP 2000/600 model offers high precision and repeatability in large-volume die, deep drawing, and stamping operations with its 2000-ton main ram and 600-ton blank holder capacity. Its stress-relieved, steel-welded frame structure is designed for longevity and reliability under heavy industrial conditions. ⚙️ Standard Features • Steel-welded construction, 8-gib H-frame press body • Stress-relieved frame through vibration methods • Zr14 bronze gib bushings • WPQR and WPS certified welding by TÜRK-AK accredited standards (EN ISO 15614-1:2017 / EN ISO 14731) • PLC-controlled hydraulic system • 7” DELTA touchscreen panel • Adjustable ram and blank holder stroke controls • Adjustable tonnage (pressure) control for ram and blank holder • Automatic lubrication system • Electronic hydraulic filter contamination warning • On-screen monitoring of hydraulic oil temperature and system status • Offline filtration and industrial cooling system • SIEMENS – SCHNEIDER electrical components • Industrial safety systems for operator protection 📐 Technical Specifications – CHSP 2000/600 Type: Steel-welded, 8-gib H-frame press body Frame Material: St52 – ERDEMİR Gib Bushings: Zr14 bronze Capacity (Ram / Blank Holder): 2000 / 600 tons Moving / Fixed Table: 1500 × 2500 mm Parallelism / Perpendicularity: 120 / 60 microns/m Stroke (Ram / Blank Holder): 1000 / 350 mm Daylight (Min / Max): 200 / 1200 mm Max. Working Pressure: 250 bar Total Motor Power: 180 kW – IE3 Main Pump: 140 cm³ – REXROTH or PARKER Main Cylinder: Ø720 mm – Ck45 (2 pcs) Blank Holder Cylinder: Ø390 mm – Ck45 (2 pcs) Pre-Fill Valve: NG 200 PLC / Panel: DELTA / DELTA 7” Ffodsx N Ukvjpfx Agmst Approximate Weight: 105 tons Production Note This machine is manufactured by CRONOSSTECH in Turkey.

Condition: new, Year of construction: 2025, pressing force: 1,500 t, table width: 1,500 mm, table length: 2,400 mm, retraction force: 500 t, stroke length: 1,000 mm, operating pressure: 250 bar, Equipment: documentation/manual, safety light barrier, CRONOSSTECH CHSP 1500/500 H-Type Hydraulic Deep Drawing (Forming) Press – 8-Guided General Description The CRONOSSTECH CHSP series H-type hydraulic deep drawing presses are engineered for maximum frame rigidity, precise parallelism, and long-lasting operation in high-tonnage deep drawing applications requiring large bolster dimensions. Thanks to the 8-guide H-frame body, the ram and table movements remain controlled and stable throughout the pressing process. The CHSP 1500/500 model, with 1500-ton main ram and 500-ton blank holder capacity, is developed for large-dimension dies, deep drawing, and precise forming operations. The vibration stress-relieved welded steel frame delivers high durability and reliability under heavy-duty industrial conditions. ⚙️ Standard Equipment • Welded steel construction, 8-guide H-frame design • Vibration stress-relieved frame structure • Bronze Zr14 slide bearings • WPQR and WPS certified welding procedures with TÜRK-AK accreditation (EN ISO 15614-1:2017 / EN ISO 14731) Fjdpfox N Ukijx Agmeft • PLC-controlled hydraulic system • Touchscreen panel (DELTA 7”) • Adjustable ram and blank holder stroke control • Adjustable ram and blank holder tonnage (pressure) control • Automatic lubrication system • Electronic contamination warning for the filter • Monitoring of hydraulic oil temperature and system status via display • Off-line filtering and industrial cooling system • SIEMENS – SCHNEIDER electrical components • Industrial safety systems for operator protection 📐 Technical Specifications – CHSP 1500/500 Type: Welded steel construction, 8-guide H-frame design Frame Material: St52 – ERDEMİR Guide Bearings: Bronze Zr14 Capacity (Ram / Blank Holder): 1500 / 500 tons Moving / Fixed Table: 1500 × 2400 mm Parallelism / Perpendicularity: 120 / 60 micron/meter Stroke (Ram / Blank Holder): 1000 / 350 mm Daylight Opening (Min / Max): 200 / 1200 mm Max. Operating Pressure: 250 bar Total Motor Power: 90 kW – IE3 Main Pump: 101 cm³ – REXROTH or PARKER Main Cylinder: Ø620 mm – Ck45 (2 units) Blank Holder Cylinder: Ø360 mm – Ck45 (2 units) Pre-Fill Valve: NG 200 PLC / Panel: DELTA / DELTA 7” Approximate Weight: 87 tons Production Note This machine is manufactured by CRONOSSTECH in Turkey.

Condition: new, Year of construction: 2025, pressing force: 1,200 t, table width: 1,500 mm, table length: 2,000 mm, retraction force: 400 t, stroke length: 1,000 mm, operating pressure: 250 bar, Equipment: documentation/manual, safety light barrier, CRONOSSTECH CHSP 1200/400 H-Type Hydraulic Deep Drawing (Stamping) Press – 8 Guideways General Description The CRONOSSTECH CHSP series H-type hydraulic stamping and deep drawing presses are designed to deliver maximum rigidity, precision, and process control in sheet metal forming applications requiring high tonnage. The 8-guideway H-frame structure ensures stable maintenance of parallelism and perpendicularity tolerances even with large table dimensions. The CHSP 1200/400 model, featuring a 1200-ton main ram and a 400-ton blank holder capacity, is tailored for heavy industry applications requiring deep drawing, stamping, and controlled material flow. Its vibration-stress-relieved steel construction frame guarantees long-lasting and reliable performance. ⚙️ Standard Equipment • Steel construction, 8 guideway H-frame press body • Vibration stress-relieved frame structure • Bronze Zr14 gib guides • WPQR and WPS certified welding by TURKAK-accredited institutions (EN ISO 15614-1:2017 / EN ISO 14731) • PLC-controlled hydraulic system • 7'' DELTA touchscreen panel • Adjustable ram and blank holder stroke control • Adjustable ram and blank holder tonnage (pressure) control • Automatic lubrication system • Electronically controlled filter contamination warning • Monitoring of hydraulic unit oil temperature and system status on screen • Offline filtration and industrial cooling system • SIEMENS – SCHNEIDER industrial switchgear • Industrial safety features for operator protection 📐 Technical Specifications – CHSP 1200/400 Type: Steel construction, 8 guideway H-frame body type Frame Material: St52 – ERDEMIR Gib Guide Material: Bronze Zr14 Capacity (Ram): 1200 Tons Capacity (Blank Holder): 400 Tons Moving / Fixed Table: 1500 × 2000 mm Parallelism / Perpendicularity: 120 / 60 micron/meter Stroke (Ram / Blank Holder): 1000 / 350 mm Clearance (Min / Max): 100 / 1100 mm Ffodpfjx N Uirsx Agmot Max. Working Pressure: 250 Bar Total Motor Power: 75 kW – IE3 Main Pump: 70 cm³ – REXROTH or PARKER Main Cylinder: Ø560 mm – Ck45 (2 units) Blank Holder Cylinder: Ø450 mm – Ck45 Pre-fill Valve: NG 200 PLC / Panel: DELTA / DELTA 7” Approximate Weight: 75 Tons Production Note This machine is manufactured by CRONOSSTECH in Turkey.

Condition: new, Year of construction: 2025, pressing force: 1,000 t, table width: 1,500 mm, table length: 2,000 mm, retraction force: 350 t, stroke length: 1,000 mm, operating pressure: 250 bar, Equipment: documentation/manual, safety light barrier, CRONOSSTECH CHSP 1000/350 H-Type Hydraulic Deep Drawing (Spinning) Press – 8-Guided Slides General Description The CRONOSSTECH CHSP series H-type hydraulic deep drawing presses are engineered with a double-acting (ram + blank holder) system architecture for high-tonnage sheet metal forming, deep drawing, and spinning applications. Thanks to its 8-guide H-frame structure, high rigidity is ensured during pressing operations, and parallelism and perpendicularity tolerances are consistently maintained even with large bed dimensions. The CHSP 1000/350 model, featuring a 1000-ton main ram and 350-ton blank holder capacity, is specifically designed for deep drawing processes requiring controlled material flow—ideal for applications in automotive, white goods, defense, and heavy industries. The welded steel construction, stress-relieved by vibration, guarantees long-term, reliable operation. ⚙️ Standard Equipment • Welded steel construction, 8-guide H-frame press body • Vibration stress-relieved frame structure • Bronze Zr14 slide bearings • WPQR and WPS certified welding, TÜRK-AK accredited (EN ISO 15614-1:2017 / EN ISO 14731) • PLC-controlled hydraulic system • 7” DELTA touchscreen control panel • Adjustable ram and blank holder (pot) stroke control • Adjustable ram and blank holder (pot) tonnage (pressure) control • Automatic lubrication system • Electronically monitored filter contamination warning • On-screen monitoring of hydraulic unit oil temperature and system status • Off-line filtration and cooling system • SIEMENS – SCHNEIDER electrical components • Safety systems for operator protection 📐 Technical Specifications – CHSP 1000/350 Type: Welded steel construction, 8-guide H-frame press body Frame Material: St52 – ERDEMİR Slide Bearing: Bronze Zr14 Capacity (Ram): 1000 tons Capacity (Blank Holder): 350 tons Moving/Fixed Table: 1500 × 2000 mm Parallelism / Perpendicularity: 120 / 60 micron/meter Stroke (Ram / Blank Holder): 1000 / 350 mm Daylight Opening (Min / Max): 100 / 1100 mm Max. Operating Pressure: 250 Bar Fodpex N Uilsfx Agmsft Total Motor Power: 75 kW – IE3 Main Pump: 70 cm³ – REXROTH or PARKER Main Cylinder: Ø500 mm – Ck45 (2 units) Blank Holder Cylinder: Ø370 mm – Ck45 Pre-Fill Valve: NG 200 PLC / Panel: DELTA / DELTA 7” Approximate Weight: 65 tons Production Note This machine is manufactured by CRONOSSTECH in Turkey.

Condition: new, Year of construction: 2025, pressing force: 800 t, table width: 1,500 mm, table length: 2,000 mm, retraction force: 270 t, stroke length: 1,000 mm, operating pressure: 250 bar, Equipment: documentation/manual, safety light barrier, CRONOSSTECH CHSP 800/270 H-Type Hydraulic Deep Drawing (Sinking) Press – 8-Guided General Description The CRONOSSTECH CHSP series H-type hydraulic deep drawing presses are designed based on the double-acting principle (ram + blank holder) for high-tonnage sheet metal forming, deep drawing, and sinking applications. The 8-guided H-frame structure offers high rigidity, stable parallelism, and extended die life even with large table dimensions during the pressing process. The CHSP 800/270 model, with its 800-ton main ram and 270-ton blank holder capacity, is specifically engineered for processes requiring controlled material flow in automotive, white goods, defense industry, and heavy sheet metal forming applications. The vibration stress-relieved steel frame ensures long-lasting and reliable operation. ⚙️ Standard Equipment • Steel construction, 8-guided H-type press frame • Vibration stress-relieved body structure • Bronze Zr14 slide bearings • WPQR and WPS certified welding (accredited by TÜRK-AK) (EN ISO 15614-1:2017 / EN ISO 14731) • PLC controlled hydraulic system • Touch panel display (DELTA 7”) • Adjustable ram and blank holder stroke control • Adjustable ram and blank holder tonnage (pressure) control • Automatic lubrication system • Electronically monitored filter contamination alert • Real-time monitoring of hydraulic unit oil temperature and system status via screen • Off-line filtration and cooling system • SIEMENS – SCHNEIDER electrical components • Operator safety systems for maximum protection 📐 Technical Specifications – CHSP 800/270 Type: Steel construction, 8-guided H-type press frame Frame Material: St52 – ERDEMİR Slide Bearings: Bronze Zr14 Capacity (Ram): 800 Tons Capacity (Blank Holder): 270 Tons Moving Table Size: 1500 × 2000 mm Fixed Table Size: 1500 × 2000 mm Parallelism Tolerance: 120 micron/meter Perpendicularity Tolerance: 60 micron/meter Stroke (Ram): 1000 mm Stroke (Blank Holder): 350 mm Min. / Max. Daylight: 100 / 1100 mm Max. Working Pressure: 250 Bar Total Motor Power: 75 kW – IE3 Main Pump: 70 cm³ – REXROTH or PARKER Main Cylinder: Ø390 mm – Ck45 (2 units) Blank Holder Cylinder: Ø370 mm – Ck45 Pre-fill Valve: NG 200 PLC: DELTA Touch Panel: DELTA 7” Approximate Weight: 54 Tons Ffedpfxox N Uh Us Agmet Production Note This machine is manufactured by CRONOSSTECH in Turkey.

Condition: new, Year of construction: 2025, pressing force: 600 t, table width: 1,200 mm, table length: 1,500 mm, retraction force: 200 t, stroke length: 1,000 mm, operating pressure: 250 bar, Equipment: documentation/manual, safety light barrier, CRONOSSTECH CHSP 600/200 H-Type Hydraulic Deep Drawing (Spinning) Press – 8 Guideways General Description The CRONOSSTECH CHSP series H-type hydraulic deep drawing presses are engineered with a double-acting operating principle to ensure controlled material flow in sheet metal forming, deep drawing, and spinning applications. The 8-guideway H-frame structure provides maximum rigidity during pressing; parallelism and perpendicularity tolerances are stably maintained throughout the extended stroke length. Model CHSP 600/200, featuring a 600-ton main ram and a 200-ton blankholder (cushion) capacity, is designed to ensure full control over the die and component during high-tonnage deep drawing and spinning operations. The frame structure is stress-relieved by vibration for durable and reliable performance. ⚙️ Standard Equipment - Welded steel construction, 8-guideway H-frame press body - Vibration stress-relieved frame structure Fodjx N Uhzepfx Agmsft - Bronze Zr14 slide bearings - WPQR and WPS certified welding by TÜRK-AK-accredited procedures (EN ISO 15614-1:2017 / EN ISO 14731) - Design and manufacturing to CE standards - PLC-controlled hydraulic system - Touch panel display (DELTA 7”) - Adjustable ram and cushion stroke control - Adjustable ram and cushion tonnage (pressure) control - Automatic lubrication system - Electronically monitored filter clogging warning - On-screen display of hydraulic unit oil temperature and system status - Cooling system - Off-line filtration - Safety systems for operator protection - SIEMENS – SCHNEIDER electrical components 📐 Technical Specifications — CHSP 600/200 - Type: Welded steel, 8-guideway H-frame press body - Frame Material: St52 – ERDEMİR grade - Slide Bearings: Bronze Zr14 - Capacity (Ram): 600 tons - Capacity (Cushion): 200 tons - Movable Table Size: 1200 × 1500 mm - Fixed Table Size: 1200 × 1500 mm - Parallelism Tolerance: 120 micron/meter - Perpendicularity Tolerance: 60 micron/meter - Ram Stroke: 1000 mm - Cushion Stroke: 350 mm - Min. Daylight: 100 mm - Max. Daylight: 1100 mm - Weld Stress Relief: By vibration - Welding: WPQR and WPS certified by TÜRK-AK (EN ISO 15614-1:2017), supervised by certified “welding coordination engineers” (EN ISO 14731) - Max. Working Pressure: 250 bar - Total Motor Power: 55 kW – IE3 - Main Pump: 70 cm³ – REXROTH or PARKER - Movable Table Fast Down Speed: 150 mm/s - Movable Table Drawing Speed: 12 mm/s - Movable Table Return Speed: 170 mm/s - Cushion Advance Speed: 30 mm/s - Main Cylinder Bore: Ø550 mm – Ck45 - Cushion Cylinder Bore: Ø320 mm – Ck45 - Auxiliary Acceleration Cylinders: 2 units - Approx. Press Height: 5900 mm - Approx. Press Width: 3250 mm - Approx. Press Depth: 2300 mm - Lower Table Height from Floor: 1400 mm - Pre-fill Valve: NG 150 - Hydraulic Power Unit: REXROTH or PARKER - Cooling System: EMMEGI – CIESSE – PARKER - Off-line Filtration: REXROTH or PARKER - Linear Scale: NOVATECHNIK or TURCK - PLC System: DELTA - Touch Panel Screen: DELTA 7” - Electrical Components: SIEMENS – SCHNEIDER - Approx. Weight: 35 tons Production Note This machine is manufactured by CRONOSSTECH in Turkey.
