Current offers from similar dealers
Listing
Großenlüder
7,854 km
Sandblasting unit

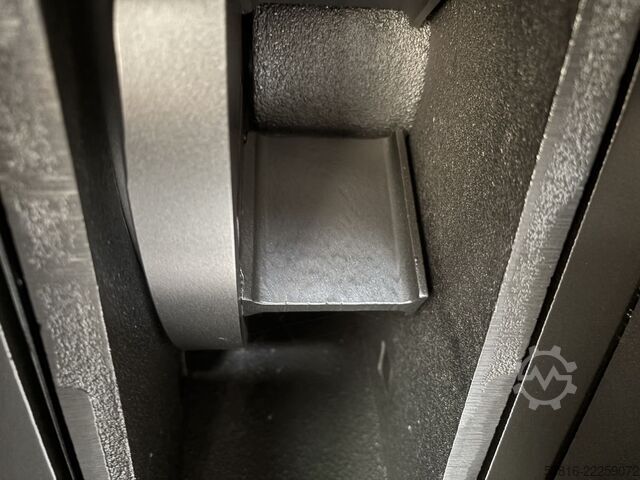

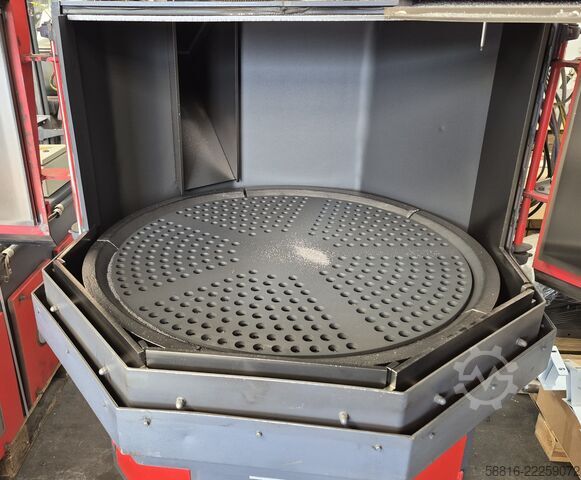

RöslerSchleuderrad Drehtisch RDT 100
RöslerSchleuderrad Drehtisch RDT 100
Call
Condition: refurbished (used), operating hours: 2,103 h, functionality: fully functional, turntable diameter: 1,000 mm, power: 17 kW (23.11 HP), Equipment: documentation/manual, Rösler RDT 100 with filter system, overhauled and in very good condition
- Rotating table with frequency-controlled speed
- Turbine H28 11kW, frequency-controlled speed
- Access via 2 doors for crane loading
- Additional rubber protective mat for the rotating table
- Filter system
Year of manufacture: 2002
Operating hours: approx. 2,193
Rotating table diameter: 1000 mm
Max. workpiece height: 470 mm
Max. batch weight: 300 kg
Number of impeller wheels: 1
Total weight: 2070 kg
Rated power: 17 kW
The system is sold without warranty.
Warranty of 6 months if this system is installed by our qualified technician.
Bedpfx Amezilpaobjdd
Listing
Lichtenfels
7,971 km
Roller conveyor shot blasting machine

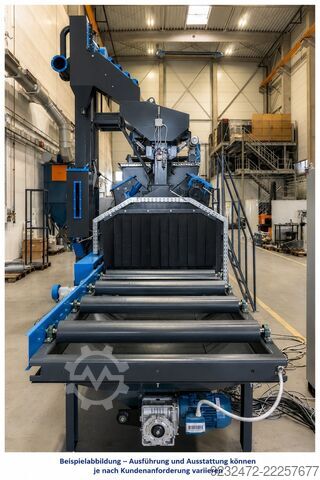

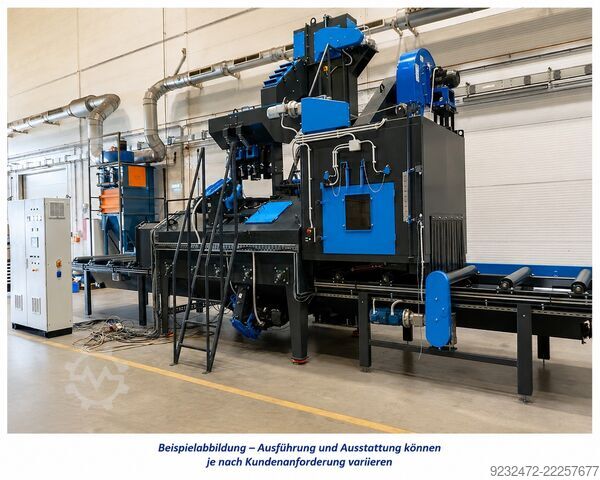

ABRAZIVRollenbahnstrahlanlage RB-2000
ABRAZIVRollenbahnstrahlanlage RB-2000
Call
Condition: new, Year of construction: 2026, functionality: fully functional, air demand: 15 m³/h, pressure: 6 bar, compressed air connection: 6 bar, operating pressure: 6 bar, inner dimension width: 2,000 mm, inner dimension height: 650 mm, volume flow: 12,000 m³/h, tank capacity: 2,500 l, air pressure: 6 bar, suction capacity: 12,000 m³/h, New RB-2000 Conveyor Blast System
Description:
The RB-2000 conveyor blast system from ABRAZIV Kft. was developed for the economical surface treatment of steel sheets, profiles, tubes, and welded structures and is ideally suited for descaling, derusting, cleaning, and roughening steel surfaces.
The system is manufactured to order and can be individually configured according to the customer's requirements.
With a passage width of 2,000 mm and a workpiece height of up to 650 mm, the RB-2000 is particularly suitable for large and heavy workpieces. It offers maximum flexibility for demanding applications in steel construction, mechanical engineering, tank construction, and the metalworking industry.
The RB-2000 is equipped with four high-performance ABR-500 blast turbines. Two turbines are arranged above and two below the conveyor, ensuring optimal coverage of the cross-section and a uniform blasting result.
The inner surfaces of the blasting chamber are lined with highly wear-resistant manganese steel. Other areas are protected by wear-resistant rubber, which simultaneously reduces noise levels.
A closed blasting media circuit with a screw conveyor, bucket elevator, blasting media cleaning, and dosing system ensures reliable and economical operation.
All functions of the system are operated via a central control unit. In addition to automatic operation, a manual mode is also available for maintenance work.
Technical Data
Passage
Passage width: 2,000 mm
Min. workpiece length: approx. 1,500 mm
Max. workpiece height: 650 mm
Blast Turbines
Number: 4
Type: ABR-500
Turbine diameter: 500 mm
Speed: 2,600 1/min
Blasting media flow rate per turbine: 150–300 kg/min
Conveyor
Load capacity: 1,500 kg/m
Bsdpfozikaqsx Ambsdd
Speed range: 0–4 m/min
Power Requirements
Base machine: 59–103 kW
Cartridge filter: 15 kW
Compressed air: min. 6 bar
Compressed air consumption (filter): 15 m³/h
Other Data
Blasting media capacity: 2,500 kg
Recommended blasting media grain size: 0.4–1.2 mm
Extraction capacity: 12,000 m³/h
Mains voltage: 3 × 400 V
Control voltage: 230 V
Frequency: 50 Hz
Optional
Frequency inverter
Extended conveyors
Automatic height scanning
Automatic blasting media dosing
Special paint finish
Transport
Assembly
Commissioning
Operator training
Spare parts supply
Maintenance and service
Application Areas
The RB-2000 is particularly suitable for:
Steel sheets
Steel profiles
Tubes
Hollow profiles
Welded structures
Steel construction
Mechanical engineering
Tank construction
Contract blasting operations
Location / Manufacturing
Lichtenfels (Germany) / Kecskemét (Hungary)
As a manufacturer, we develop and produce our conveyor blast systems individually according to customer requirements. In addition to the RB-2000, other sizes and special versions are available. We will be happy to advise you on the design of the appropriate system and provide you with a non-binding offer.
Price on request.
Listing
Lichtenfels
7,971 km
Overhead rail blasting machine
ABRAZIVHängebahnstrahlanlage HC-1500
ABRAZIVHängebahnstrahlanlage HC-1500
Call
Condition: new, Year of construction: 2026, functionality: fully functional, New HC-1500 Suspension Monorail Shot Blasting Machine
Description:
The HC-1500 suspension monorail shot blasting machine from ABRAZIV Kft. has been developed for the economical surface treatment of cast, forged, and welded parts as well as smaller steel structures. It is ideally suited for descaling, derusting, cleaning, and roughening a wide variety of workpieces.
The machine is manufactured to order and can be individually configured according to customer requirements.
The HC-1500 features a Y-shaped suspension monorail with two carriers, which enables continuous operation. While one carrier is in the shot blasting process, the second can already be loaded or unloaded.
The machine is equipped with three high-performance ABR-400 shot blasting turbines, which are arranged at different angles. This ensures uniform and thorough cleaning of complex workpiece geometries.
The internal surfaces of the shot blasting chamber are lined with highly wear-resistant manganese steel in the active shot blasting area. Other areas are protected by wear-resistant rubber, which also reduces noise levels.
A closed shot blasting media circuit with a collection hopper, screw conveyor, bucket elevator, air separator, and dosing system ensures reliable and economical operation.
A high-performance cartridge filter with a fan is included in the scope of supply for the extraction and filtration of dust generated during the shot blasting process.
All functions of the machine are operated via a central control unit. In addition to automatic operation, a manual mode is also available for maintenance work.
Technical data
Workpiece dimensions
Maximum workpiece height: 2,000 mm
Maximum workpiece diameter: 1,500 mm
Shot blasting turbines
Number: 3
Type: ABR-400
Turbine diameter: 400 mm
Speed: 2,400 rpm
Shot blasting media flow rate: 180 kg/min
Motor power per turbine: 11 kW
Suspension monorail
Load capacity per carrier: 500 kg
Power consumption
Machine power: 37 kW
Cartridge filter: 7.5 kW
Bdsdozifcgjpfx Ambed
Compressed air: 6 bar
Compressed air consumption: 8 m³/h
Other data
Shot blasting media capacity: 1,800 kg
Recommended shot blasting media grain size: 0.4–1.2 mm
Extraction capacity: 6,000 m³/h
Supply voltage: 3 × 400 V
Control voltage: 220 V
Frequency: 50 Hz
Optionally available:
Electric hoist
Extended suspension monorail
Frequency inverter
Automatic shot blasting media dosing
Special coating
Transport
Installation
Commissioning
Operator training
Spare parts supply
Maintenance and service
Application areas
The HC-1500 is particularly suitable for:
Cast and forged parts
Welded structures
Small steel structures
Mechanical engineering
Tank and apparatus construction
Job-order shot blasting operations
Location / Production
Lichtenfels (Germany) / Kecskemét (Hungary)
As a manufacturer, we develop and produce our suspension monorail shot blasting machines individually according to customer requirements. In addition to the HC-1500, other sizes and special designs are available. We will be happy to advise you on the design of the appropriate machine and provide you with a non-binding offer.
Price on request
Listing
Lichtenfels
7,971 km
Roller conveyor shot blasting machine
ABRAZIVRollenbahnstrahlanlage RB-1650
ABRAZIVRollenbahnstrahlanlage RB-1650
Call
Condition: new, Year of construction: 2026, functionality: fully functional, pressure: 6 bar, compressed air connection: 6 bar, operating pressure: 6 bar, inner dimension width: 1,500 mm, inner dimension height: 450 mm, input voltage: 380 V, volume flow: 6,000 m³/h, tank capacity: 2,000 l, air pressure: 6 bar, Equipment: documentation/manual, New Conveyor Blast Machine RB-1650
Description:
The RB-1650 conveyor blast machine from ABRAZIV Kft. has been developed for the economical surface treatment of steel sheets, profiles, tubes, and welded structures, and is ideally suited for descaling, derusting, cleaning, and roughening steel surfaces.
The machine is manufactured to order and can be individually configured according to customer requirements.
The RB-1650 is equipped with four high-performance ABR-400 blasting turbines. Two turbines are arranged above and two below the conveyor, ensuring optimal coverage of the cross-section and uniform blasting results.
The inner surfaces of the blasting chamber are lined with highly wear-resistant manganese steel. Other areas are protected by wear-resistant rubber, which also reduces noise levels.
A closed blasting media circuit with screw conveyor, bucket elevator, blasting media cleaning, and dosing system ensures reliable and economical operation.
All functions of the machine are operated via a central control system. In addition to automatic operation, a manual mode is also available for maintenance work.
Technical Data
Passage
Passage width: 1,650 mm
Min. workpiece length: approx. 1,500 mm
Max. workpiece height: 450 mm
Blasting Turbines
Number: 4
Type: ABR-400
Turbine diameter: 400 mm
Speed: 2,600 1/min
Bdjdpfx Aozidykombsd
Blasting media output per turbine: 130 kg/min
Conveyor
Load capacity: 1,300 kg/m
Speed range: 0–4 m/min
Power Requirements
Base machine: 44 kW
Cartridge filter: 7.5 kW
Compressed air: min. 6 bar
Compressed air consumption (filter): 3.2 l/min
Compressed air tank (filter): 250 l
Other Data
Blasting media capacity: 2,000 kg
Recommended blasting media grain size: 0.4–1.2 mm
Extraction capacity: 6,000 m³/h
Mains voltage: 3 × 380 V
Control voltage: 220 V
Frequency: 50 Hz
Optional Extras
Frequency inverter
Extended conveyors
Automatic height scanning
Automatic blasting media dosing
Special coating
Transport
Assembly
Commissioning
Operator training
Spare parts supply
Maintenance and service
Application Areas
The RB-1650 is particularly suitable for:
Steel sheets
Steel profiles
Tubes
Hollow profiles
Welded structures
Steel construction
Machine construction
Tank construction
Contract blasting operations
Location / Production
Lichtenfels (Germany) / Kecskemét (Hungary)
As a manufacturer, we develop and produce our conveyor blast machines individually according to customer requirements. We will be happy to advise you on the design of the appropriate machine and provide you with a non-binding offer.
Price
Price on request.
Listing
Lichtenfels
7,971 km
Rubber belt shot blasting machine
ABRAZIVGH-4 Gummibandstrahlanlage
ABRAZIVGH-4 Gummibandstrahlanlage
Call
Condition: refurbished (used), functionality: fully functional, air demand: 6 m³/h, compressed air connection: 6 bar, warranty duration: 6 months, workpiece weight (max.): 800 kg, Fully Overhauled Rubber Belt Blasting Machine GH-4
For sale is a fully overhauled rubber belt blasting machine GH-4, professionally refurbished by the manufacturer ABRAZIV.
This machine is ideally suited for deburring, descaling, cleaning, and surface roughening of castings, forgings, press parts, and other bulk goods. Its robust design and reliable blasting technology make it versatile for use in foundries, forging shops, and the metalworking industry.
The machine has been professionally overhauled (refurbished) and is in perfect technical condition, like new. It is immediately available and can be inspected by appointment.
Technical Data
Blasting Chamber
Rubber belt width: 1,300 mm
Belt drum diameter: 1,150 mm
Maximum batch weight: 800 kg
Bdedpfezicuajx Ambsd
Blasting media capacity: 800 kg
Blasting Turbines
Number of turbines: 2
Power per turbine: 11 kW
Connection Values
Electrical connection power: 27.5 kW
Compressed air connection: 6 bar
Compressed air consumption: 6 m³/h
Extraction capacity: 5,500 m³/h
Condition
Fully overhauled (refurbished)
Technically inspected
Immediately available
As the manufacturer, we can also offer you the following services, if desired:
Transport
Installation
Commissioning
Operator training
Spare parts supply
Maintenance and service
Location:
Kecskemét, Hungary
Inspection is possible at any time by prior appointment.
Price on request.
Auction
Ends in
d
h
min
s
Auction ended
Solothurn
7,952 km
Satellite blasting system
NicolisSatellite Blasting System
NicolisSatellite Blasting System
Condition: excellent (used), functionality: fully functional, overall weight: 1,100 kg, workpiece width (max.): 230 mm, workpiece height (max.): 320 mm, No minimum price – guaranteed sale to the highest bidder!
The system was only used for demonstration and testing purposes and is therefore in very good condition.
TECHNICAL DETAILS
Number of satellites (workpiece holders): 6
Bedpszh Nggefx Ambjdd
Number of spray nozzles: 6
Maximum workpiece height: 320 mm
Maximum workpiece width: 230 mm
Movement: Rotational movement of the satellites, horizontal up/down movement
Settings: Adjustment of the number of strokes, speed, and height of the lifting movement
MACHINE DETAILS
Control system: PLC Siemens
Total weight: 1,100 kg
EQUIPMENT
Light curtain
Auction
Ends in
d
h
min
s
Auction ended
Solothurn
7,952 km
Sandblasting unit
TurbotechnikaDELTA 250 GR 7/10
TurbotechnikaDELTA 250 GR 7/10
Condition: ready for operation (used), Year of construction: 2008, operating hours: 2,288 h, functionality: fully functional, machine/vehicle number: 936, workpiece weight (max.): 150 kg, power: 8 kW (10.88 HP), workpiece length (max.): 800 mm, workpiece width (max.): 600 mm, number of support arms: 16, No minimum price – guaranteed sale to the highest bidder!
The machine is equipped with an optional support system and can therefore accommodate one large workpiece or a maximum of 16 smaller workpieces on the supports.
TECHNICAL DETAILS
Turbine power: 8 kW
Bdjdpfx Aezh Nf Ajmbed
Workpiece size (single workpiece) max.: 800 x 600 mm
Workpiece weight (single workpiece) max.: approx. 100 kg
Number of positions in the support system: 16
Workpiece size (on support system) max.: 200 x 200 mm
Workpiece weight (on support system) total max.: 150 kg
Filter data
Number of filter cartridges: 2
Total filter area: 20 m²
Filter area per filter cartridge: 10 m²
Air velocity: 1.25 m/min
Compressed air data
Compressed air pressure: max. 4–5 bar
Compressed air consumption: approx. 7 m³/h
Compressed air connection: G 1″
Permissible negative pressure: max. 1,500 Pa
Dust container: 20 l
Residual dust content in the exhaust air: below 5 mg/m³
MACHINE DETAILS
Control unit: Pulse/time: 24 V, 1 phase, 50 Hz
Solenoid valves: Voltage: 24 V, 50 Hz
Timer: Input/output voltage: 24 V, 50 Hz
Operating hours: 2,288 h
Fan data
Air flow: 2,000 m³/h
Static pressure: 1,800 Pa
Total pressure: 2,000 Pa
Power consumption: 2.2 kW
Motor power: 1.1 kW
Motor voltage: 400 V
Motor frequency: 50 Hz
Motor phases: 3 phases
EQUIPMENT
Filter cartridges with 10 m² filter area each
Aluminum venturi tubes
Solenoid valves, type CA 25 DD
Timer CG 03.06/04
Filter group
Pressure regulator
Pressure gauge
1″ ball valve
Dust container, 20 l
Fan
Listing
Deskle
8,400 km
Sandblasting unit
OMSGLAUCO 100 N-SP4
OMSGLAUCO 100 N-SP4
Call
Condition: excellent (used), OMSG LAUCO 100 N-SP4
Type: Roller conveyor
Max. width of workpiece: 1.000 mm
Max. height of workpiece: 400 mm
MAx. loading/roller: 800 kg
Nr. Of turbines: 4
Turbine wheel diameter: 350 mm
Bdedpfozh H Ibex Ambsd
Power of turbine: 7,5 kW
Max. turbine flow: 105 kg/min x 4
Transport speed: 0,5 - 3 m/min
Cleaner type: Airwash
Filtering unit: Included FX20/1
Foundation: no
Total width of machine: app. 5.500 mm
Total height of machine: app. 4.500 mm
Total length of machine: app. 12.000 mm
Max installed power: app. 50 kW
Listing
Kroměříž 1
8,387 km
Cleaning laser JETLASER M200
4JETM200
4JETM200
Call
Condition: excellent (used), Year of construction: 2020, operating hours: 200 h, functionality: fully functional, machine/vehicle number: 31015, pressure: 5 bar, compressed air connection: 5 bar, operating pressure: 5 bar, total width: 775 mm, total height: 1,454 mm, total length: 1,310 mm, type of input current: AC, overall weight: 365 kg, input current: 16 A, input voltage: 400 V, power: 200 kW (271.92 HP), Equipment: documentation/manual, A JETLASER M200 cleaning laser, with a power of 200W and a beam width of up to 60 mm. The laser does not come into contact with the surface. Additional accessories include: 6 x laser safety glasses, 15 m fiber optic cable, mobile laser safety curtain, 1.1 kW extraction system, and replacement lenses (200 mm and 300 mm).
Bdodpozhwdyofx Ambsd
Clickout
מגדל תפן
10,726 km
Shot Peening System with Media Reclaim
Nicolis
Nicolis
Condition: used, functionality: fully functional, Nicolis Shot Peening System
Bjdpfx Amszhurnjbodd
Media reclaim
Listing
Goldenstedt
7,653 km
Shotblasting line
SCHLICKRoto-Jet
SCHLICKRoto-Jet
Call
Condition: used, internal diameter 25 mm
external diameter 39 mm
wall strength 7 mm
length in total 33 m
Bdjdpfx Amjzg Nmwobod
jet hose
Unused, but shows significant signs of storage wear
Listing
Borken
7,623 km
Mobile sandblasting unit DUO - 74 liters
DatonaSKU DT-55212
DatonaSKU DT-55212
Call
Condition: excellent (used), Here, we offer a used Datona mobile sandblasting unit.
Datona Mobile Sandblasting Unit DUO - 74 Liter SKU DT-55212
Advantages and disadvantages:
2.5 m long hose for a large reach
Easy switching between blasting media thanks to the mixing valve
When using soda, the surface of the workpiece is not damaged
Description:
This mobile sandblasting unit is used for removing paint and rust.
Thanks to the two tanks, you can choose between two different blasting media.
The mobile sandblasting unit operates with a pressure of 4 to 8 bar and requires
a compressor with an intake capacity of at least 350 l/min.
Double tank:
If blasting with soda or calcium carbonate does not produce the desired result,
simply try a different blasting medium.
For a more effective result, it is also possible to use both blasting media simultaneously.
With the sandblasting unit, you bring a practical machine into your home.
With the help of the special mixing valve, you can easily and gently remove paint from steel, stainless steel, chrome, aluminum, or polyester using soda.
A major advantage of blasting with fine soda is that the surface
of the object being blasted is not damaged.
You don't even have to remove rubber seals, chrome parts, or glass.
This saves a lot of time! The mobile sandblasting unit can be used both in the workshop
and on-site.
Note: One tank is only suitable for soda and calcium carbonate!!!
✓ Duo sandblasting unit
✓ 74 liter tank capacity
✓ Air consumption is approximately 350 l/min
Technical data:
SKU DT-55212
Weight 33 kg
Suitable blasting media
Aluminum silicate
Dato-Blast calcium carbonate
Soda
Connection for blasting cabinet 1/4"
Max. pressure 2 - 6 bar
Bdsdpezgcbnofx Ambed
Minimum air consumption 350 l/min
Min. tank capacity compressor 100 liters
Type: DT-55212
Condition: used
Scope of delivery: (See picture)
(Changes and errors in the technical data, information is subject to change!)
We will be happy to answer any further questions you may have by telephone.
Listing
Striegistal
8,030 km
Blast wheel machine
AGTOSDHT 21-21-3.6-03.11
AGTOSDHT 21-21-3.6-03.11
Call
Condition: excellent (used), Year of construction: 2015, functionality: fully functional, Technical Data – AGTOS Abrasive Blast Machine
Manufacturer: AGTOS
Type: DHT 21-21-3.6-03-11
Year of Manufacture: 2015
Machine Dimensions
Length: 10,420 mm
Width: 12,750 mm
Height: 6,600 mm
Door Opening: 2,000 x 2,000 mm
Workpiece Data
Max. Workpiece Diameter: 2,100 mm
Max. Workpiece Height: 2,100 mm
Max. Hook Load: 2,000 kg
Max. Workpiece Temperature: 80 °C
Blasting System
6 High-Performance Turbines, Turbine Type: 3.6
Impeller Diameter: 380 mm
Blade Width: 55 mm
6 Blades per Turbine
Drive Power per Turbine: 11 kW
Abrasive Flow Rate per Turbine: 242 kg/min
Throwing Speed: approx. 75 m/s
Filter System
Filter Capacity: 15,000 m³/h
Residual Dust Content in Exhaust Air: < 1 mg/m³
Electrical Data
Supply Voltage: 3~400 V / 50 Hz
Control Voltage: 230 V / 50 Hz
Installed Total Power: 63 kW
Compressed Air
Operating Pressure: 4–6 bar
Compressed Air Consumption, Blasting Machine: approx. 0.5 m³/h
Bsdpfxszf Unwe Ambodd
Compressed Air Consumption, Compressed Air Tank: approx. 9.1 m³/h
Application Area
Desanding and cleaning of castings
Surface preparation before painting or coating
Steel, cast iron, and forged parts up to 2,000 kg piece weight
Special Feature: Modern hook-on blasting machine with 6 turbines, 2-ton load capacity, and a powerful 15,000 m³/h filter system. Ideal for foundries, forging plants, and contract blasting operations.
Listing
Solbiate Arno
8,128 km
Sandblasting unit
Carlo BanfiPS-6-B
Carlo BanfiPS-6-B
Call
Condition: used, Year of construction: 2006, functionality: fully functional, air demand: 4,000 m³/h, pressure: 5 bar, operating pressure: 7 bar, inner dimension width: 900 mm, workpiece weight (max.): 1,000 kg, filter area: 120 m², input voltage: 380 V, working range: 1,400 mm, tank capacity: 960 l, suction capacity: 4,000 m³/h, Equipment: cabin, documentation/manual, Automatic hook-type shot blasting system complete with monorail overhead conveyor, abrasive recovery system, bucket elevator, pneumatic shot selector, vibrating screen, dust collection filter, and control panel.
Main features:
Maximum workpiece diameter: 900 mm
Maximum workpiece height: 1,400 mm
Maximum load weight: 1,000 kg
No. 6 hook holders
No. 4 Carlo Banfi X1 centrifugal turbines
Turbine power: 4 x 7.5 kW
Abrasive flow rate: 300 – 360 kg/min
Abrasive capacity (initial charge): 960 kg
Power supply: 380 V three-phase – 50 Hz
Total installed power: approximately 22 kW
Carlo Banfi PS-6B dust collection filter included:
Air flow rate: 4,000 m³/h
Filter area: 120 m²
No. 6 microfibre filter cartridges
4 kW suction fan
Bedpfx Amjzdqtmobodd
Automatic cartridge cleaning system with compressed air
Required compressed air pressure: 5 – 7 bar
System suitable for shot blasting and surface cleaning of castings, metal structures, mechanical components, stamped parts, and steel products.
Machine complete with shot recovery and recycling system, electrical panel, and original technical documentation.
Includes spare parts, including motors and parts for the blasting chamber.
Video of the machine in operation available upon request.
Another identical shot blasting machine is available.
Listing
Germany
7,829 km
Shot blasting machine, sandblasting machine, shot.
AUER StrahlanlageSA 1100 S5 Shot - Peening
AUER StrahlanlageSA 1100 S5 Shot - Peening
Call
Condition: used, Year of construction: 2013, operating hours: 11,188 h, total height: 5,000 mm, inner dimension width: 250 mm, inner dimension height: 250 mm, workpiece weight (max.): 15 kg, Rotary indexing – shot blasting machine – shot peening
Bdsdpszdk Nnjfx Ambed
Used for cold hardening of transmission components.
Manufacturer: AUER
Type: SA 1100 S5
Year of manufacture: 2013
Operating hours: 11,188 h
Workpiece height: 250 mm
Workpiece diameter: 250 mm
Workpiece weight: 15 kg
Number of satellites/stations: 5
- Workpiece loading/unloading
- Airlock - inlet
- Blasting position 1
- Blasting position 2
- Airlock - outlet / cleaning
Number of nozzles: 12 (individually controlled)
Including filter system
Overall height: 5.00 m
Other dimensions, see photos.
Well-maintained machine, from a highly reputable company, regularly serviced.
The machine can still be inspected while powered on.
Auction
Auction ended
Grand Est
7,875 km
Blasting system
RöslerRMBD 400/4
RöslerRMBD 400/4
Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, workpiece weight (max.): 12 kg, power: 45 kW (61.18 HP), controller model: SIEMENS Simatic, TECHNICAL DETAILS
Drum diameter: 400 mm
Maximum workpiece length: 700/1,000 mm
Maximum individual workpiece weight: 12 kg
Load capacity: 100 kg
Bjdszcl I Dspfx Ambodd
MACHINE DETAILS
Control system: SIEMENS Simatic
Installed power: 45 kW
Centrifugal wheels: 4 units
Centrifugal wheel type: Hurricane H 28
Power per centrifugal wheel: 7.5 kW
Listing
Wollerau
8,026 km
Sandblasting unit
Schlick
Schlick
Call
Condition: used, Year of construction: 2003, functionality: fully functional, We offer this used Schlick sandblasting system, manufactured in 2003, for sale.
It features a throwing wheel, a centrifugal wheel, and a pressure tank, as well as fully automatic sand filters and a conveying system. It also includes dust extraction and electronically controlled conveying wheels. The system is in very good working order.
Bodpfxozbzwxe Ambedd
We offer professional dismantling and reassembly services within Switzerland at very favorable conditions.
Year of manufacture: 2003
Factory number: 24/23717
Type:
If you have any questions or require further information, please feel free to send us a message or call us.
Listing
Großenlüder
7,854 km
Sandblasting system with 5-year warranty
Oliver Fritz GmbH & Co. KGStrahlcontainer 40Fuß 9m Strahlraum
Oliver Fritz GmbH & Co. KGStrahlcontainer 40Fuß 9m Strahlraum
Call
Condition: new, Year of construction: 2026, functionality: fully functional, Blasting container, 40 ft, with 9 m blasting chamber, screw conveyor floor (very low maintenance), blasting media preparation, and filtration system.
Chamber dimensions (internal): approx. length = 8850 mm, height = 2485 mm, width = 2250 mm. Option: width including widening = 3240 mm.
Transport height: approx. 3000 mm. Floor height: approx. 440 mm.
Options:
- Side container opening for 9 m and 3 m machine room
- Side extension for widening the blasting chamber
- Crane roof opening (not possible with side opening)
- Crane track, 500 kg
and much more upon request.
Bdjdpfxszbztas Ambod
Listing
France
7,876 km
Sandblasting unit
SchlickRB 2100
SchlickRB 2100
Call
Condition: ready for operation (used), ROLLER-TYPE SHOT BLASTING MACHINE MANUFACTURER: USF SCHLICK RB 2100
Shot blasting processing of cut-to-size parts, profiles, and sheets.
Bedpfx Aszbylusmbjdd
Manufacturer: USF Schlick
Year of manufacture: 2001
Type: RB 2100
Passage width: 2100 mm
Passage height: 450 mm
Blast wheels: 4 x 11 kW
Infeed roller conveyor: approx. 6,200 mm + approx. 20 m
Outfeed roller conveyor: approx. 9,000 mm
Blow-off and brushing station: YES
Filter system: Yes
Cross conveyor: Yes
Includes control cabinet, filter system
Price: Loaded onto truck .-€
Warranty: 6-month functional and warranty guarantee upon commissioning by DECK Sarl.
Spare parts supply for the next 10 years.
OPTIONAL: Delivery / Assembly / Commissioning / Training
We also offer spare parts for Rösler, Schlick, Wheelabrator, Gietart, etc. shot blasting machines!
Listing
Plzeň
8,131 km
Blasting cabin
ŠKODA2900×2900mm
ŠKODA2900×2900mm
Call
Condition: used, Year of construction: 1978, functionality: fully functional, air demand: 300 m³/h, pressure: 6 bar, total height: 3,800 mm, We offer a Škoda blasting booth.
The equipment is fully functional and in working order.
A test run is possible.
Internal working space dimensions: 2900×2900×2900mm.
The booth features a floor-level abrasive collection system, abrasive transport to the abrasive cleaning unit, a blasting unit, and a filtration unit.
Complete equipment.
Bsdpfx Amezbrgdobedd
Listing
Deskle
8,400 km
Sandblasting unit
CARLO BANFIGT 7
CARLO BANFIGT 7
Call
Condition: good (used), Tumble rubber belt blast machine
Max. batch volume: 140 L
Max. batch weight: 300 kg
Max. component weight: 10 kg
Bedszbrftjpfx Ambedd
Compartment diameter: 700 mm
Compartment width: 850 mm
Nr. Of turbines: 1
Power of turbine: 4 kW
Max. turbine flow: 56 kg/min
Cleaner type: air
Foundation: no
Housing protection: Mn + rubber
Filtering unit: YES
Max. installed power: app. 12 kW
!!! NEW Rubber bel installed !!!
Listing
Deskle
8,400 km
Sandblasting unit
TOSCATG9
TOSCATG9
Call
Condition: good (used), Tumble rubber belt blast machine
Max. batch volume: 250 L
Max. batch weight: 300 kg
Max. component weight: 10 kg
Compartment diameter: 900 mm
Compartment width: 930 mm
Nr. Of turbines: 1
Power of turbine: 7,5 kW
Max. turbine flow: 105 kg/min
Cleaner type: air
Foundation: no
Housing protection: Mn + rubber
Filtering unit: YES 2.000 m3/h
Bedpfx Asza Eq Tembodd
Max. installed power: app. 15 kW
Listing
Pforzheim
7,915 km
Sandblasting unit
Auer StrahlkabineSA1200 NS-2
Auer StrahlkabineSA1200 NS-2
Call
Condition: used, Year of construction: 2007, functionality: fully functional, machine/vehicle number: 3863, For sale is a used, but fully functional, Auer blasting cabinet.
Bdodpfx Amszampksbed
Listing
San Vito al Tagliamento
8,364 km
Sandblasting unit
CARLO BANFI
CARLO BANFI
Call
Condition: used, Year of construction: 2002, 1. Shot blasting machine CARLO BANFI SCM4R/12X18.5/X1/10
Serial number: 4965
Year of manufacture: 2002
Technical specifications:
Dimensions of the fixture (cluster): 1200 × 18050 mm
Maximum weight of a single fixture: 500 kg
4 turbines, model X1
Turbine diameter: 300 mm
Rotational speed: 2900 rpm
1 self-cleaning bag filter P.J.60/B/S.R.
Starting price: 20,000 EUR
2. Shot blasting machine CARLO BANFI SCM3R/F.500/12X18.5/X1
Serial number: 4223
Year of manufacture: 1994
Technical specifications:
Dimensions of the fixture (cluster): 1200 × 18050 mm
Maximum weight of a single fixture: 500 kg
3 turbines, model X1
Turbine diameter: 300 mm
Rotational speed: 2900 rpm
Bdjdpszaizvjfx Ambsd
1 self-cleaning bag filter P.J.60/B/S.R.
Starting price: 15,000 EUR
3. Two-track overhead conveyor FUTURA type DR44
Serial number: 045/2002
Year of manufacture: 2002
Technical specifications:
2 caterpillar-type drive units
Total track length: 150 m
Adjustable speed: 3.4–8 m/min
Allowable load per hook: 300 kg
Number of hooks: 33
Starting price: 50,000 EUR.
The line is located at the parent company in Italy, near Pordenone.
Direct contact is possible after prior arrangement.
Listing
Soufflenheim
7,875 km
Sandblasting unit
RöslerRDT 100
RöslerRDT 100
Call
Condition: excellent (used), Year of construction: 2012, functionality: fully functional, ROTARY TABLE SHOT BLASTING MACHINE WITH FILTER
Designation: Rotary Table Shot Blasting Machine
Manufacturer: Rösler
Year of Manufacture: 2012
Type: RDT 100
Rotary Table Diameter: 1,000 mm
Maximum Workpiece Height: 470 mm
Blast Wheels: 1 unit, 7.5 kW each
Consisting of:
- Rotary Table Shot Blasting Machine
- Control Cabinet
- Filter System
Designation: Table Shot Blaster
Brand: Rösler
Type: RDT 100
Year: 2012
Table Diameter: 1,000 mm
Maximum Piece Height: 470 mm
Shot Wheel: 1 piece, 7.5 kW
Consisting of:
- Table Shot Blaster, Type: RDT 100
- Main Panel
- Filter
Price: Loaded onto truck from F-67620 Soufflenheim
Warranty: 6-month functional and warranty guarantee upon commissioning by DECK Sarl.
Spare parts supply for the next 10 years.
Bdedpfx Amey Uimpjbed
OPTIONAL: Delivery / Installation / Commissioning / Training
We also offer spare parts for Rösler shot blasting machines!
