Used Walter Helitronic Mini Power for sale (4)

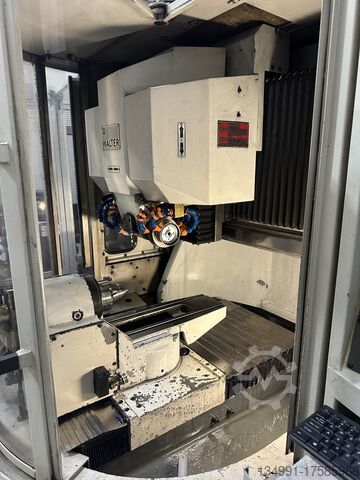

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 663015, Walter Helitronic Mini Power Production 5 Axis CNC Tool & Cutter Grinder Universal tool and cutter grinder (CNC controlled) Made by Walter, model Helitronic Mini Power Production, s/n663015, year 2000 Description: Suitable to manufacture and regrind metal and woodworking tools of all kinds. Run with 1 micron filtration system, so the machine is very clean. Specifications: • Longitudinal traverse (X-axis) 350 mm, • Vertical traverse (Y-axis) 200 mm, • Cross traverse (Z-axis) 470 mm, • Rotary table swiveling range (C-axis) +/- 200°, • Work head ISO 50, center height (with / without worktable) 145 / 190 mm, • Max. diameter of workpiece 100 mm • Max. length of workpiece 270 mm • Max. dia. of grinding wheel 150 mm • Peak performance 11,5 kW, grinding spindle motor 9kW,speed 0 - 9500 rpm, • Connected load approx. 25 kW (460 volts 3ph / 60 Hz), • Dimensions w x d x h = 2600 x 2550 x 1970 mm, weight approx. 3950 kg, color grey RAL 7035 / grey RAL 7043. Accessories: • Control HMC 500 Windows XP Upgrade Fodeu Ez Huepfx Af Eoga • Includes: 2021 Ebbco Filtration & Chiller unit Model PMF-MWF5-623-P-40K capable of filtering & chilling up to 2 grinders. 40,000 BTU Chiller & filtration up to 1 Micron. • Booster Box Upgrade option along with a spare Booster Box as well that could be used as a backup or for up to 3 other Walter machines. Value of each booster box is $10,000 a piece. • Stepless speed control, probe, pneumatic workpiece clamping • Fire extinguishing system • Mist Extractor • Oil collecting pan, 2 grinding wheel flanges • Complete set of Manuals Software: • Tool Studio Version 2.1 Standard & Steptools • WWM Software Condition: • New Y axis Motor & Ball screw Installed 2021 • New Spindle Installed 2021 • New Electrical cabinet air conditioner Installed 2021 • All new encoder & motor cables for A, C, X, Y & Z axis Installed 2021 • Currently in production producing very accurate & consistent tools. Can be viewed under power • We have all of the shipping bracket, so the machine will be safely secured for shipping. • We can load onto a flatdeck for shipping for $900. We can also provide shipping & crating quotes if you would like.

Condition: used, Year of construction: 2002, Walter Helitronic Mini Power Production 5 Axis CNC Tool & Cutter Grinder Year: 2000 Universal tool and cutter grinder (CNC controlled) Description: Suitable to manufacture and regrind metal and woodworking tools of all kinds. Specifications: • Longitudinal traverse (X-axis) 350 mm, • Vertical traverse (Y-axis) 200 mm, • Cross traverse (Z-axis) 470 mm, • Rotary table swiveling range (C-axis) +/- 200°, Fodpfx Afoyymmko Eoga • Work head ISO 50, center height (with / without worktable) 145 / 190 mm, • Max. diameter of workpiece 100 mm • Max. length of workpiece 270 mm • Max. dia. of grinding wheel 150 mm • Peak performance 11,5 kW, grinding spindle motor 9kW, speed 0 - 9500 rpm, • Connected load approx. 25 kW (460 volts 3ph / 60 Hz), • Dimensions w x d x h = 2600 x 2550 x 1970 mm, weight approx. 3950 kg,

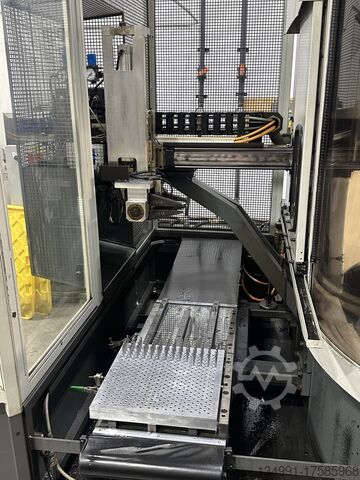

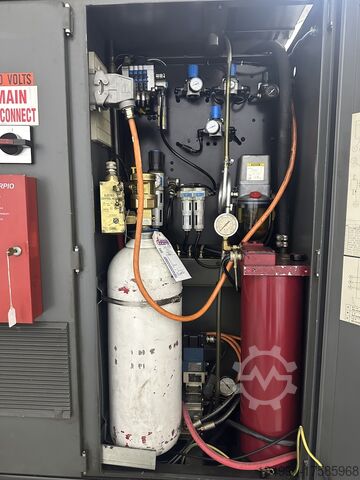

Condition: used, Year of construction: 2013, The original build year of this machine was 1998. It was overhauled at the end of 2013 by Walter and converted from HMC500 to Fanuc control. In 2014 it was returned to operation. Maintenance was carried out and the associated parts were replaced up until 2024. Protocols/logs are available. The spindle bearings were replaced with high-precision ball bearings 14 days ago. The spindle is now running with 0-1 µm accuracy and is very quiet. Suitable for regrinding and remanufacturing of wood and metal working tools of all kinds. Accessories: FANUC i15 Control Pallet loader cylindrical, Toolstudio Software Standard & Advanced Version 2.1 Toolstudio Software Drills Toolstudio Software Boost Toolstudio Calibration Probe Software package 1 (cylindrical mills) Software package 2 (tapered-spiral end mills) Software package 3 (drill bit and step drill) Software package 16 (warming-up program) Measuring probe Electrostatic mist extractor Oil collection tray Automatic fire extinguishing system Pneumatic workpiece clamping Machine light X – axis longitudinal movement: 350 mm Y-axis vertical movement: 200 mm X-axis cross movement: 470 mm C-axis rotary table swing range: + / - 200° Centre height (with / without over-table): 130 / 160 mm Workpiece holder: ISO 50 Max. Workpiece diameter: 100 mm Workpiece length: 270 mm Grinding spindle speed stepless variable: 0 – 9500 U / min Workpiece length face grinding: 150 mm Grinding wheel diameter: max. 150 mm Fgodpfx Asyrrhvef Eea Drive power grinding spindle: 9 kW Connected load: 400 V / 50 Hz / 25 kW Weight: approx. 3600 kg Dimensions W x D x H: 2869 x 2716 x 1933 mm colour: grey RAL 7035 / 7043.

Condition: used, Year of construction: 2013, The original build year of this machine was 1999. It was overhauled at the end of 2013 by Walter and converted from HMC500 to Fanuc control. In 2014 it was returned to operation. Maintenance was carried out and the associated parts were replaced up until 2024. Protocols/logs are available. Suitable for regrinding and remanufacturing of wood and metal working tools of all kinds. Accessories: FANUC i15 Control Pallet loader cylindrical, Toolstudio Software Standard & Advanced Version 2.1 Toolstudio Software Drills Toolstudio Software Step Tools Toolstudio Software Boost Toolstudio Calibration Probe Software package 1 (cylindrical mills) Software package 2 (tapered-spiral end mills) Software package 3 (drill bit and step drill) Software package 4 (step tools) Software package 6 (woodworking tools) Software package 8 (taps) Software package 16 (warming-up program) Software package 32 (contours) Measuring probe Electrostatic mist extractor Oil collection tray Automatic fire extinguishing system Pneumatic workpiece clamping Machine light X – axis longitudinal movement: 350 mm Fgedpsyrra Sofx Af Esa Y-axis vertical movement: 200 mm X-axis cross movement: 470 mm C-axis rotary table swing range: + / - 200° Centre height (with / without over-table): 130 / 160 mm Workpiece holder: ISO 50 Max. Workpiece diameter: 100 mm Workpiece length: 270 mm Grinding spindle speed stepless variable: 0 – 9500 U / min Workpiece length face grinding: 150 mm Grinding wheel diameter: max. 150 mm Drive power grinding spindle: 9 kW Connected load: 400 V / 50 Hz / 25 kW Weight: approx. 3600 kg Dimensions W x D x H: 2869 x 2716 x 1933 mm colour: grey RAL 7035 / 7043.
