Cnc latheGoodway
GS-260MYS
Price & Location
- Location:
- Rineanna, Windsor Hill, Glounthaune, T45 DP71 Cork, IE
Technical details
- Turning diameter over cross slide:
- 500 mm
- Turning length:
- 560 mm
- Turning diameter:
- 420 mm
- Spindle bore:
- 65 mm
- Spindle speed (max.):
- 4,000 rpm
- Spindle speed (min.):
- 40 rpm
- Travel distance X-axis:
- 230 mm
- Travel distance Y-axis:
- 110 mm
- Travel distance Z-axis:
- 600 mm
- Spindle motor power:
- 15,000 W
- Rapid traverse X-axis:
- 20 m/min
- Rapid traverse Z-axis:
- 20 m/min
- Rotational speed (min.):
- 40 rpm
- Rotational speed (max.):
- 4,000 rpm
- Total height:
- 2,260 mm
- Total length:
- 3,430 mm
- Total width:
- 1,810 mm
- Feed length X-axis:
- 230 mm
- Feed length Y-axis:
- 110 mm
- Feed length Z-axis:
- 600 mm
- Swing diameter over cross slide:
- 500 mm
- Feed rate X-axis:
- 20 m/min
- Feed rate Z-axis:
- 20 m/min
- Turning diameter over bed slide:
- 650 mm
- Workpiece weight (max.):
- 230 kg
- Turning diameter over top slide:
- 500 mm
- Type of input current:
- three-phase
- Torque:
- 287 Nm
- Overall weight:
- 5,800 kg
- Swing diameter over bed slide:
- 650 mm
- Bar passage:
- 65 mm
- Chuck outer diameter:
- 250 mm
- Center width:
- 560 mm
- Spindle nose:
- A2-8
- Bar diameter:
- 65 mm
- Equipment:
- rotational speed infinitely variable
Details about the offer
- Listing ID:
- A193-78276
- Reference number:
- 968897
- Update:
- 17.06.2025
Description

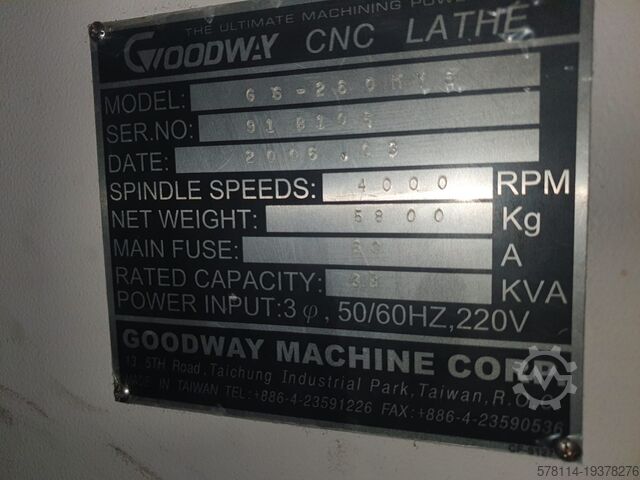

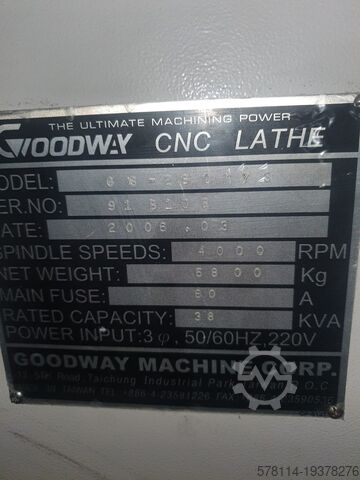

Make: Goodway
Model: GS-260MYS
Year: 2006

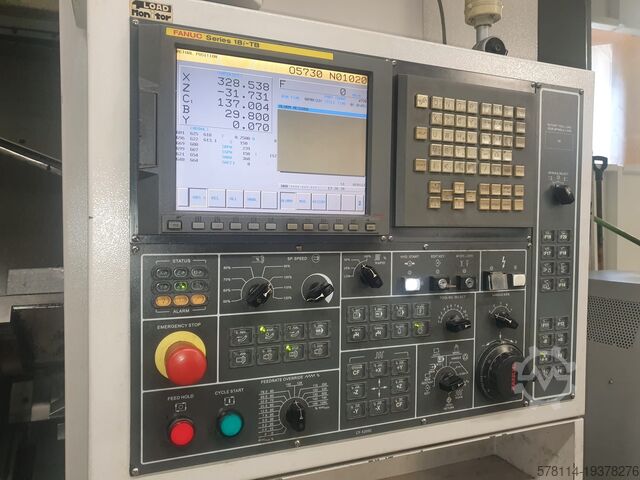

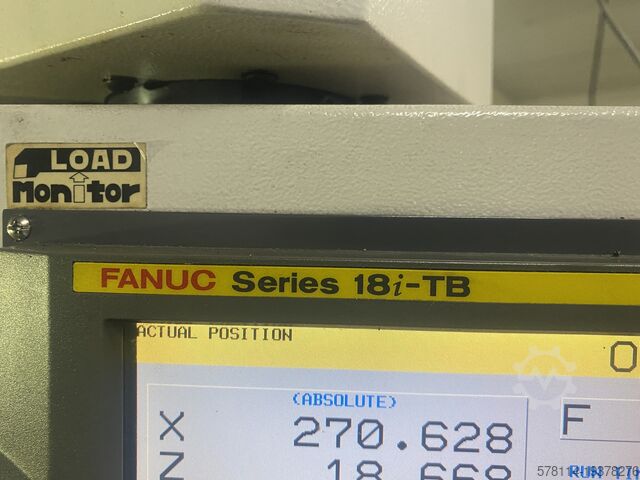

Control: Fanuc Series 18i-TB
Machine Type: CNC Turning Centre with Sub Spindle, Driven Tools, Y Axis & C Axis
Condition: Very Good
Location: Ireland
Availability: Immediately available
📌 Description:
For sale is a 2006 Goodway GS-260MYS CNC Lathe, a powerful multi-axis CNC turning centre equipped with live tooling, Y-axis milling, and a sub spindle. This robust machine is ideal for complex turning and milling operations in a single setup — perfect for modern precision engineering environments.
Maintained in very good working condition, it includes a selection of manual and driven tool holders, 2 chucks, and a swarf conveyor.
🔧 Technical Specifications:
Main Spindle:
Chuck Size: 10" (250 mm)
Bar Capacity: 65 mm
Spindle Nose: A2-8
Max Swing: 650 mm
Swing Over Saddle: 500 mm
Max Turning Diameter: 420 mm
Standard Turning Diameter: 205 mm
Max Turning Length: 560 mm
Max Part Weight: 230 kg
Hole Through Drawtube: 65.5 mm
Hole Through Spindle: 76 mm
Spindle Drive: Direct Belt Drive
Spindle Speeds: 40 – 4,000 rpm
Continuous Spindle Motor: 11 kW
30-Min Spindle Motor: 15 kW
Spindle Torque (Cont.): 210 Nm
Spindle Torque (30 Min): 287 Nm
Axes:
X Axis Travel: 230 mm
Z Axis Travel: 600 mm
Y Axis Travel: ±55 mm
X/Z Rapid Traverse: 20 m/min
Z2 Axis Travel (Sub Spindle): 600 mm
Z2 Rapid Traverse: 24 m/min

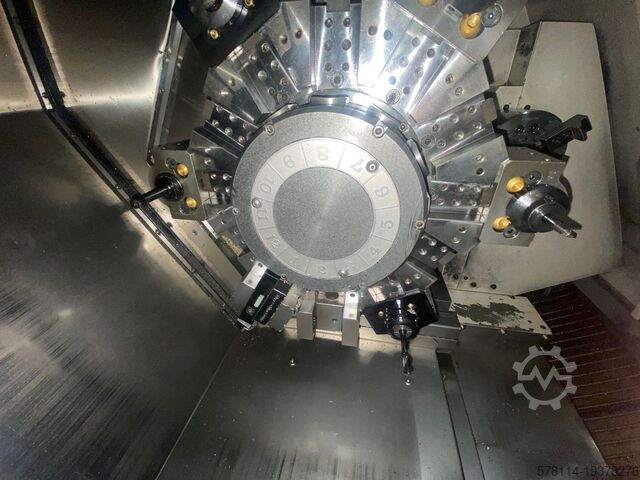

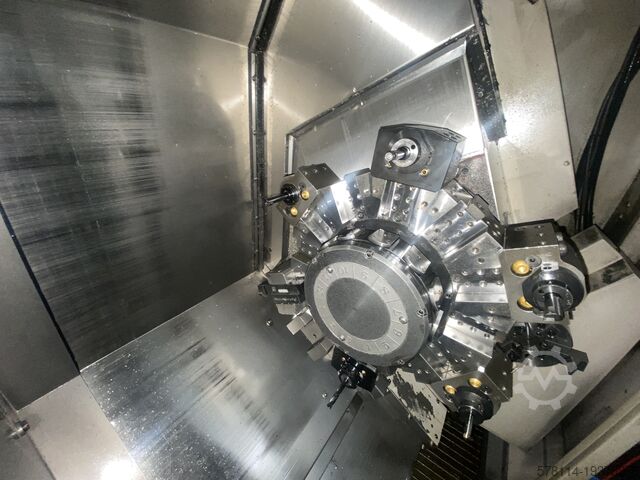

Tooling:
Turret Stations: 12
OD Tool Shank Size: 25 mm
ID Tool Shank Size: Up to 40 mm
Live Tooling Stations: 12
Live Tool Drive Motor: 4.5 kW
Live Tool Torque: 22 Nm

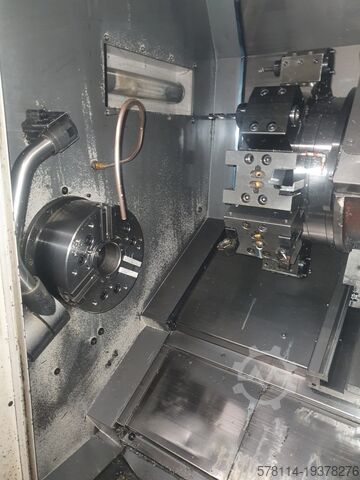

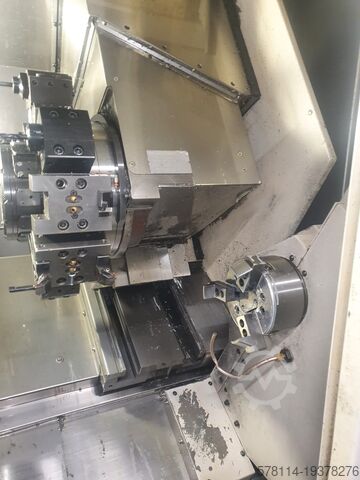

Sub Spindle:
Chuck Size: 6"
Spindle Nose: A2-5
Hole Through Spindle: 46 mm
Continuous Motor Output: 5.5 kW
30-Min Motor Output: 7.5 kW
Spindle Speed Range: 60 – 6,000 rpm
Drive: Built-in Motor
Construction:
Slideways: Hardened & Ground Box Ways
Machine Dimensions: 3430 x 1810 x 2260 mm
Machine Weight: 5,800 kg
🧰 Included with the Machine:
Selection of Driven Tool Holders
Selection of Manual Tool Holders

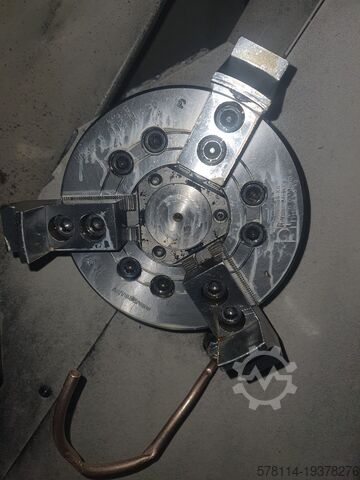

2x Chucks
Swarf Conveyor
Note: Tools shown in photos are not included – only the holders are provided.
🛠 Suitable For:
Precision turning, mill-turn applications, production of complex components in aerospace, medical, automotive, and general engineering sectors.
Cedpfx Agowtpdfomjrh
Used CNC Lathe Ireland, Goodway GS-260MYS for Sale, CNC Lathe with Y Axis and Sub Spindle, Live Tool CNC Turning Centre, CNC Turning Machine Europe, Fanuc CNC Lathe for Sale, Multi-Axis Lathe Machine Used
