High-gloss polishing machine

Gottschild HBS

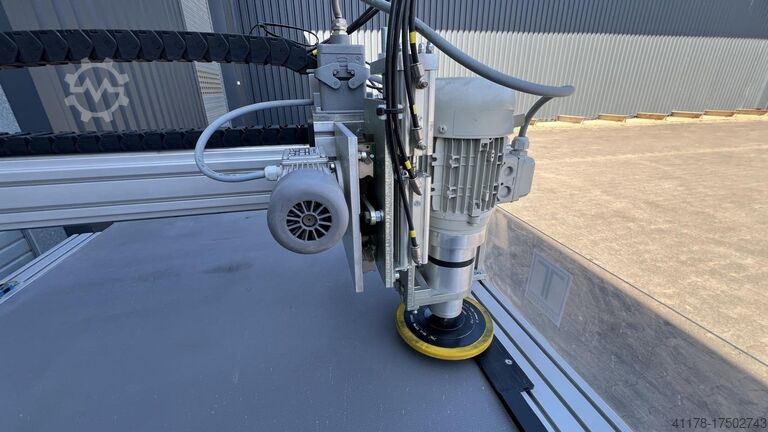

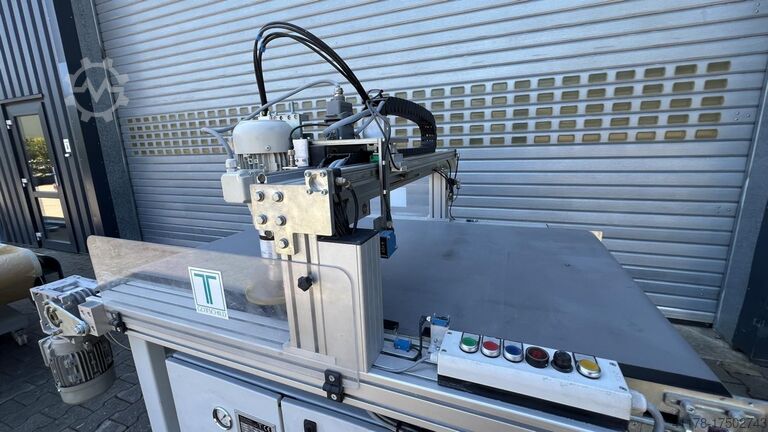

Condition: used, Year of construction: 2013, machine/vehicle number: 15513, Polishing machine Gottschild HBS 1600-750-100-1(2) The Gottschild grinding and polishing machine offers a wide range of applications, from the production of high gloss furniture fronts, glass panels to Corian • grinding and polishing. • Easy change between grinding and polishing head • with sinusoidal tool head oscillation, for an even better uniform high- gloss surface which satisfies even the highest demands. • with automatic part detection (machine only designed for rectangular parts) Technical data: Nlodpfx Aheu Afu Do Dei • Type: HBS 1600-750-100-1 • Year of manufacture 2013 • Electrical connection 400V, 50 Hz, 4,5 kW, 10 A • Compressed air 6 bar connection adjusted to 5 bar • Conveyor belt 1.600 mm x 940 mm • part width: 90mm- 750mm (without tool brigde 850mm) • part length: 150 mm - 2.800mm • part heights 8-100 mm (extended working height) • Frame size 1600 mm x 1200 mm • Rack height approx. 960 mm ± 25 mm • Frame material welded steel tube • Support for superstructure aluminum profiles • Belt cleaning manual every 8 hours • Safety devices emergency stop. • The machine has to be shielded by protective walls if the machine is delivered without housing. • Polishing motor 400V, 50 Hz, 0,75 kW with planetary gearbox • Control Siemens/Vipa S7 PLC, parameters via KEB Touch Panel • Frequency converter KEB • Control elements control ON/OFF, RESET, START/STOP, program interruption, grinding head speed, oscillation speed and belt speed • Tool bridge: Tool bridge with polishing head, consisting of a linear profile system, driven by linear cylinder. • Without polishing pad for the polishing head Location: on stock PICTURES of an identical machine built in the same year
