Pull saw

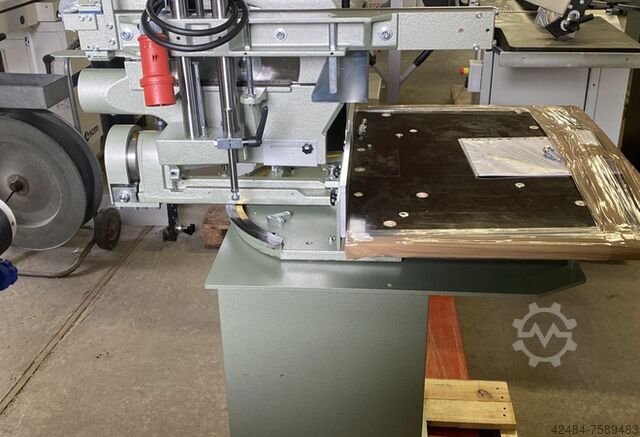

Graule ZS170N

Condition: new, Year of construction: 2026, machine/vehicle number: ZS170N mit ES-F3, functionality: fully functional, power: 3 kW (4.08 HP), cutting height (max.): 170 mm, cutting width (max.): 410 mm, saw blade diameter: 420 mm, tilt adjustment saw blade: 45 °, saw blade bore: 40 mm, actuation type: manual, total length: 6,400 mm, total width: 1,200 mm, total height: 1,550 mm, table height: 920 mm, Equipment: CE marking, Mobile saw carriage, overall length 6400 mm, with a Graule SZ170N saw mounted on it. Stop roller track with folding stop and scale on the left side, 3100 mm, measuring length on the folding stop 3050 mm + attached extension with stop and scale for a measuring length up to 5000 mm. Feed roller track on the right side, track length 3000 mm. Track width on the left and right sides is 500 mm. Crosscut and miter circular saw ZS170 N, cutting height at 90° is 170 mm, at 45° inclination is 115 mm. Cutting length is 410. Ndsdpfx Aaezwn T Rs Roa Machine can be tilted on both sides using a hand crank, up to 45° to the left and up to 60° to the right. Machine with carbide-tipped circular saw blade for wood, 420x4.0x40 mm, 48 teeth.

Condition: new, length 3000 mm Wheel width 500 ( 450 ) mm work height max. 880 (+/- 60) mm MADE IN GERMANY Description: - 3000 mm roller and measuring track type Exakt A standard - with digital position indicator el. connection 230 V 50 HZ with power pack - Display in mm display (measuring range: +/- 0.5 mm on 1,000 mm) - Measuring stop can be adjusted from the workplace by means of a hand wheel - with pneumatic brake for fixing the dimensions. - Stable material stop trolley, 12 ball bearings - on a large guide profile. - The stop is adjustable and can be folded back manually. - Basic version of roller and measuring track - in stable steel construction, all versions are stationary - The suring length is the track length minus 450 mm - Ball-bearing support rollers Ø 60 x 2 mm - Galvanized conveyor roller with axis Ø 15 mm - Load capacity per meter of roller conveyor approx. 300 kg Ndsdpfx Ajxaahrja Rja - Roller pitch 250 mm - Web width: 500 mm, usable roll width 450 mm - Construction height: 880 +/- 60 mm - Color: feet anthracite gray RAL 7016, upper part silver gray RAL 7042 - Attachment side

Condition: excellent (used), Year of construction: 1990, functionality: fully functional, HM circular saw blade for aluminum and plastics, 420 x 3.2 x 40 mm, 108 teeth, negative tooth angle Ndjdpfx Aaszu Azde Rsa Hydraulic feed brake Pneumatic material clamping system, on both sides from above Pneumatic saw blade spray system Pneumatic maintenance unit, consisting of a water separator, pressure reducing valve with pressure gauge, and oiler Crosscut fence for cutting angled pieces Machine stand

Condition: new, saw blade diameter 420 x Ø 40 mm cutting diameter 170 mm cutting length 410 mm dimensions of saw-blade 420x3,2/2,4x40 mm turning speeds 3500 U/min Dust suction hood 100 mm total power requirement 3,0 kW weight of the machine ca. 120 kg dimensions of the machine ca. 1300 x 800 x 1600 mm - Cross-cut and miter saws for cross-cut cuts - Miter adjustment on both sides (60 ° / 45 °), with fixed stop - Shifter cut on both sides 45 °, with fixed stop Nodpfxoxabzto Aa Rsda - Stable cast iron construction - Precise linear bushing guide on the tool slide hardened and ground steel shafts - manual saw feed - Saw blade infinitely adjustable in height - nozzle for opt. Suction Cutting data: - Cutting length at 90 ° = 410 mm - Cutting height at 90 ° = 170 mm - Cutting length at 45 ° = 290 mm - Cutting height at 45 ° = 115 mm Special accessories included: - Adjustment of shifter cut via hand crank, both. adjustable (45 ° / 45 °) - HM circular saw blade 420x3.2 / 2.6x40 mm Z = 108 FTZ neg. For aluminum and plastic - hydraulic feed brake, infinitely adjustable - pneumatic material clamping from above consisting of: 2 vertical clamping cylinders, adjustable, with hand lever valve - machine stand

Year of construction: 2005, condition: used, Manual length adjustment via handwheel with digital display For attachment to any Elumatec single-head saw (right) Max. insertion length: 4,500 mm Nedpfxsy N Dcbo Aa Rsda Pneumatic parking brake

Condition: new, Year of construction: 2024, machine/vehicle number: 2024/121/47, functionality: fully functional, saw blade diameter: 420 mm, GRAULE cross-cut and mitre saw Type ZS 170 N (tiltable) 400 Volt three-phase brake motor 2.2 kW Saw blade diameter 420 mm Saw blade holder 40 mm Cutting height 170 mm, Saw blade tilted to 45°: cutting height 115 mm, cutting length 410 mm Ndedpstwz Tljfx Aa Rea incl. the following accessories: 1 pc. Machine can be tilted by hand crank from the rear on both sides from 90° to the left by 45° and to the right by approx. 30° to approx. 60° 1 pc. Carbide circular saw blade 420x3.4/2.4x30 mm 48 WZ neg. for wood 1 pc. Machine stand

Condition: new, GRAULE ZS 170 N cross-cut and mitre saw - tiltable - Includes: - GRAULE ZS 170 N cross-cut and mitre saw - tiltable - - without machine stand and saw blade - Ndedpfx Aaeu R Sype Rea Including: - GRAULE machine stand for type ZS 135 N and ZS 170 N Includes: - GRAULE type RO feed roller conveyor complete with support feet and connection bracket Plastic rollers with ball bearings Ø 40 mm, Roller width 300 mm, roller spacing approx. 300 mm, Support feet for roller conveyor height 885 +/- 10 mm Includes: - GRAULE type RLK roller conveyor/length stop with scale and material stop that can be folded back. Ball bearing mounted plastic rollers Ø 40 mm, Roller width 300 mm, roller spacing approx. 300 mm, Support feet for roller conveyor height 885 +/- 10 mm - new exhibition machine -

Condition: new, Description:- Crosscut and miter circular saw with a maximum cutting height of 170 mm- Miter-adjustable machines in 2 levels- Stable gray cast iron construction- Precise ball bushing of the tool slide on hardened andground steel shafts- Manual saw feed- Fast miter adjustment up to 25 ° horizontally and up to 45 ° vertically- Readjustable fixed stops at 90 ° and 45 °- Lower saw blade protection can be connected to the suction systemScope of delivery:1 x Graule crosscut and miter circular saw, type ZS 170 Nincluding additional charge for 3 kW 400 volt motor1 x machine stand for type ZS 135 N and ZS 170 NTechnical specifications:- Motor: 400 V / 3.0 kW- Speed: 3500 rpm- Cutting length: 410 mm- Cutting width: 410 mm at 90 ° / 290 mm at 45 °- Cutting height: 170 mm at 90 ° / 115 mm at 45 ° 2- Horizontal miter range: 45 ° -90 ° -25 °- Vertical miter range: 90 ° -45 ° (inclined to the left)- Saw blade Ø: 420 mm- Suction nozzle Ø: 100 mm- Weight: 120 kg Nsdpovwf Rdefx Aa Roda

Condition: new, Description:- Crosscut and miter circular saw with a maximum cutting height of 170 mm- Miter-adjustable machines in 2 levels- Stable gray cast iron construction- Precise ball bushing of the tool slide on hardened andground steel shafts- Manual saw feed- Fast miter adjustment up to 25 ° horizontally and up to 45 ° vertically- Readjustable fixed stops at 90 ° and 45 °- Lower saw blade protection can be connected to the suction systemScope of delivery:1 x Graule crosscut and miter circular saw, type ZS 170 Nincluding additional charge for 3 kW 400 volt motorTechnical specifications:- Motor: 400 V / 3.0 kW- Speed: 3500 rpm- Cutting length: 410 mm- Cutting width: 410 mm at 90 ° / 290 mm at 45 °- Cutting height: 170 mm at 90 ° / 115 mm at 45 ° 2- Horizontal miter range: 45 ° -90 ° -25 °- Vertical miter range: 90 ° -45 ° (inclined to the left)- Saw blade Ø: 420 mm- Suction nozzle Ø: 100 mm- Weight: 120 kg Ndedpsvwf N Tefx Aa Rea

Condition: new, Year of construction: 2025, functionality: fully functional, saw blade bore: 40 mm, Equipment: documentation/manual, scrap and mitre circular saws Model: ZS 170N Motor: 400 V / 2.0 kW Speed: 3500 rpm Cutting length: 410 mm (at 90°) Cutting height: 170 mm (at 90°) Mitre range horizontal: 45°-90°-25° Mitre range vertical: 90°-45° (left) Saw blade diameter: 420 mm Ndjdpfsypwhpjx Aa Rja Extraction nozzle: 100 mm Weight: 120 kg
