2 x wheat beer fermentation tanks (14,600 liters)

Gresser

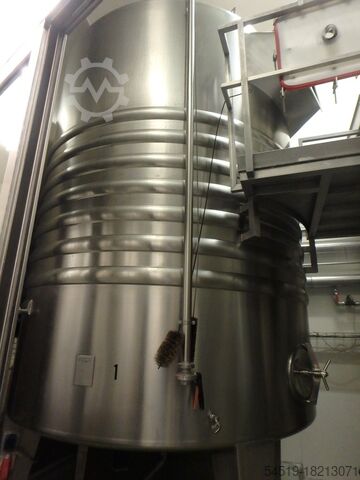

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, tank capacity: 36,784 l, total height: 6,245 mm, inner diameter: 3,400 mm, outer diameter: 3,770 mm, overall weight: 4,000 kg, negative pressure: 0.02 Pa, overpressure (max.): 2 bar, 2 x 37 m³ CCT Vessels / Beer Pressure Tank / Fermentation and Storage Tank Technical Data / Dimensions Available units: 2 Total volume: approx. 36,784 liters Tank type: Pressure vessel Condition: used Suitable for food use: yes Design: suspended Internal diameter: approx. 3,400 mm External diameter: approx. 3,800 mm Total height: approx. 6,245 mm (incl. insulation dome approx. 7,245 mm) Weight (empty): approx. 4,000 kg Specific weight of medium: 1.0 t/m³ Operating pressure: Overpressure Dedoyhzrgopfx Advjun Operating pressure: 2 bar Test pressure: 2.9 bar Cone wall thickness: approx. 3.5-5 mm Top head wall thickness: approx. 6 mm Shell/Cylinder wall thickness: approx. 3 mm Operating temperature: -10°C / +50°C Material: Inner shell material: Stainless steel V2A (1.4301) Internal surface: ground and pickled Heating/Cooling System Cooling medium: Glycol Operating pressure: 3.0 bar Operating temperature: -3 °C Heating/Cooling system material: Stainless steel V2A (1.4301) 1 x shell cooling zone with approx. 112 ltr. capacity 1 x cone cooling zone with approx. 40 ltr. capacity Insulation Insulation thickness: approx. 150 mm (shell + top head), cone: 100 mm Insulation material: PU foam Cone cladding: Stainless steel (1.4301) Shell cladding: Aluminium trapezoidal sheet Equipment Mounting type: Suspension lugs Number: 4 Fastening: fixed Top head type: Torispherical head Lower head type: Conical Top head: 1 x manway DN 1000 with insulated hood and vent DN 80 1 x roof edge railing 1 x spray ball DN 32 incl. spray tube (removable) 1 x Cleaning-Air valve combination (RLV) consisting of: 1 x vacuum valve DN 50 1 x safety valve DN 25 1 x cleaning connection DN 100 1 x air connection DN 50 (threaded) Shell: 2 x temperature measuring connection with insulated box 1 x condensate pipe DN 32 1 x sampling line DN 10 1 x cable protection pipe DN 50 1 x cleaning line DN 50 1 x return manifold DN 40 (cooling) 1 x supply cooling DN 25 1 x cooling vent DN 10 1 x cooling drain DN 20 Lower head/cone: 1 x sample valve DN 10 1 x swiveling cone NW 450 1 x cone with threaded outlet DN 100 Documentation: Drawing Inspection book TÜV certificate

Condition: excellent (used), Stainless steel tank 6000 l double jacket Volume 6000 l Double jacket Dsdpfsk D T Rtsx Advoun Very good condition, directly from production!!!

Condition: used, tank capacity: 29,000 l, 29,000-liter refrigerated storage tank made of stainless steel (V2A) Dusdpfxsyfwnho Advon

Year of construction: 1998, condition: used, Two upright stainless steel tanks with flat cone. Duedpoxwy S Ssfx Advsn Additional title: vertical flatconical stainless steel tanks Volume: 18140 l Operating pressure: 0 bar Operating temperature: 20 °C Width: 2,9 m Height: 4,15 m Material: Stainless steel Position: Vertical Base construction: 4 support legs, cylindroconical Features: CIP-noozle

Condition: used, Item: AV-11841-Vertical40m3tank Used vertical tanks, capacity 40.000L Exterior dimensions: Dia Ø 3200/3400 mm Total H 9600 mm incl. gear. Cylinder height: 7200 mm. Vertical stainless steel tanks - 3 pcs. Insulated with 100 mm rockwool completed with flat plate. Conical bottom 35 degrees with 4" outlet. Klöffer top with manhole. Powerful top mounted agitator. Dujdpfxsi E Abis Adven 37 kw agitator. AISI 316.

Condition: used, Year of construction: 1986, Additional title: 3 coolable tanks Capacity: 205 hl Dusdsxbql Depfx Advsn Operating pressure: 0,3 bar Width: approx. 2,80 m Height: approx. 4,20 m Position: Vertical Base construction: on feet Features: manhole; cooling jackets; spunging apparatus; sampling valve

Condition: used, Year of construction: 1997, vertical stainless steel tank with dished bottoms, shell cooling zone, manhole, sampling tap, central outlet. Additional title: pressure tank Volume: 152 hl Operating pressure: 5 bar Operating temperature: 20 °C Width: approx. 2600 mm Height: approx. 4000 mm Material: stainless steel Position: vertical Dusdsxbqlqspfx Adven Base construction: cylindrical tank with dished bottoms, placed an 4 square tube feet Features: cooling coil (jacket, 5.1 m², 1 bar, 84 l, glycol), manhole, spout DN65 with hand flap valve, vacuum valve DN32, safety valve DN25, bung glass, sample pipe DN10, CIP pipe DN40 with spray head DN25, level indicator by hose, yeast plug, pressure gauges, crane eyelets, ladder bar

Condition: used, functionality: fully functional, usable tank capacity: 15,000 l, Item: AV-12052-AV12053-Vertical-Tank-15000L Exterior dimensions: Dia Ø 2300 mm Total H 5500 mm. Vertical stainless steel tanks - one piece to offer Conical bottom 35 degrees with 4" outlet. Dusdpoq A R S Dofx Advjn Conical top 15 degrees with manhole. AISI 304.

Condition: used, Year of construction: 1982, Fermentation tank on feet, uninsulated, with flat conical bottom, side wall and cone cooling zone, central outlet and manhole. Additional title: coolable tank Volume: 21797 l Dujdpfxjxbqkmj Adven Operating pressure: 0 bar Width: 2,95 m Height: 4,1 m Weight: 2000 kg Material: stainless steel, uninsulated Position: vertical Features: flat conical bottom, side wall and cone cooling zone, central outlet, manhole, DN50

Condition: used, Year of construction: 1998, Fermentation tank on feet, uninsulated, with flat conical bottom, side wall and cone cooling zone, central outlet and manhole. Additional title: coolable tank Volume: 21798 l Working pressure: 0 bar Duodpfxsxbpq So Advon Width: 2,95 m Height: 4,2 m Weight: 1500 kg Material: stainless steel Position: vertical Features: flat conical bottom, side wall and cone cooling zone, central outlet DN50, manhole

Condition: excellent (used), functionality: fully functional, Item: AV-12421-Vertical-12000L Jacketed Insulated Vertical Tanks Dimensions: Dia Ø 2600 mm Total H 4400 mm. Dsdernuhpspfx Advsun Stainless steel tank - 4 pcs. identical Manhole at top, conical top with ventilation and conical bottom 15 degrees with 2" outlet. Scrape agitator with gear AISI 304

Year of construction: 1992, condition: used, Additional title: 6 coolable tanks Capacity: 164 hl Operating pressure: 0 bar Width: approx. 2.05 m Height: approx. 6,2 m Duedpsw Tmqzefx Adven Position: Vertical Base construction: On feet Features: Manhole, 2 cooling zones, sampling valve, security valve with pressure indicator, vacuum breaker

Year of construction: 1992, condition: used, horizontal stainless steel tanks Additional title: horizontal stainless steel tanks Content: 6277 l Dodpfow Tamiex Advoun Max. pressure: 0,9 bar Length: 2500 mm Width: 1800 mm Height: 1800 mm Material: stainless steel Position: horizontal tanks suspended on two levels in a steel structure Features: Manhole, sampler, ladder bracket and outlet on the front, connection for gas fittings on top

Condition: good (used), - Material: AISI 316 stainless steel - Standing on feet Dsdsvlkgaopfx Advjun - Tanks, above, adapted to the cellar vault Dimensions : - Width: approx. 1150 mm - Depth: approx. 1800 mm - Total height at rear: 2500 mm - Total height at front: 3650 mm (including dome) - Ground clearance: 340 mm Equipment: - Rectangular door 320 x 420 mm - Total drain: flap valve DN 40, Friedrich no 2 - Residual drain: flap valve DN 40, Friedrich no. 2 - Taster - Level indicator - Dome DN 200

Condition: used, Year of construction: 1993, Additional title: vertical, coolable stainless steel tank Dodpfxsvcqnxj Adveun Gross volume: 10474 l Material: stainless steel 1.4301 Position: standing on feet Features: Flat conical bottom, frame and cone cooling zone, manhole, sampling tap, central spout.
